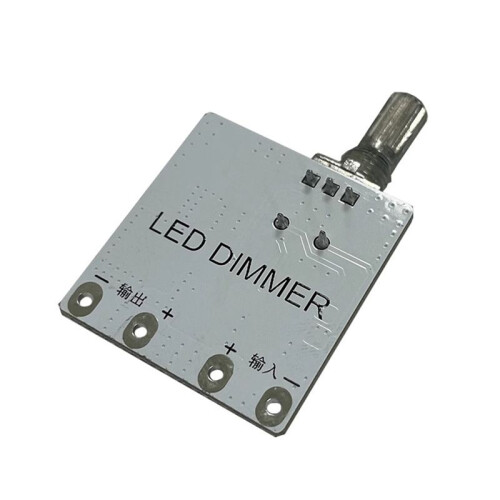

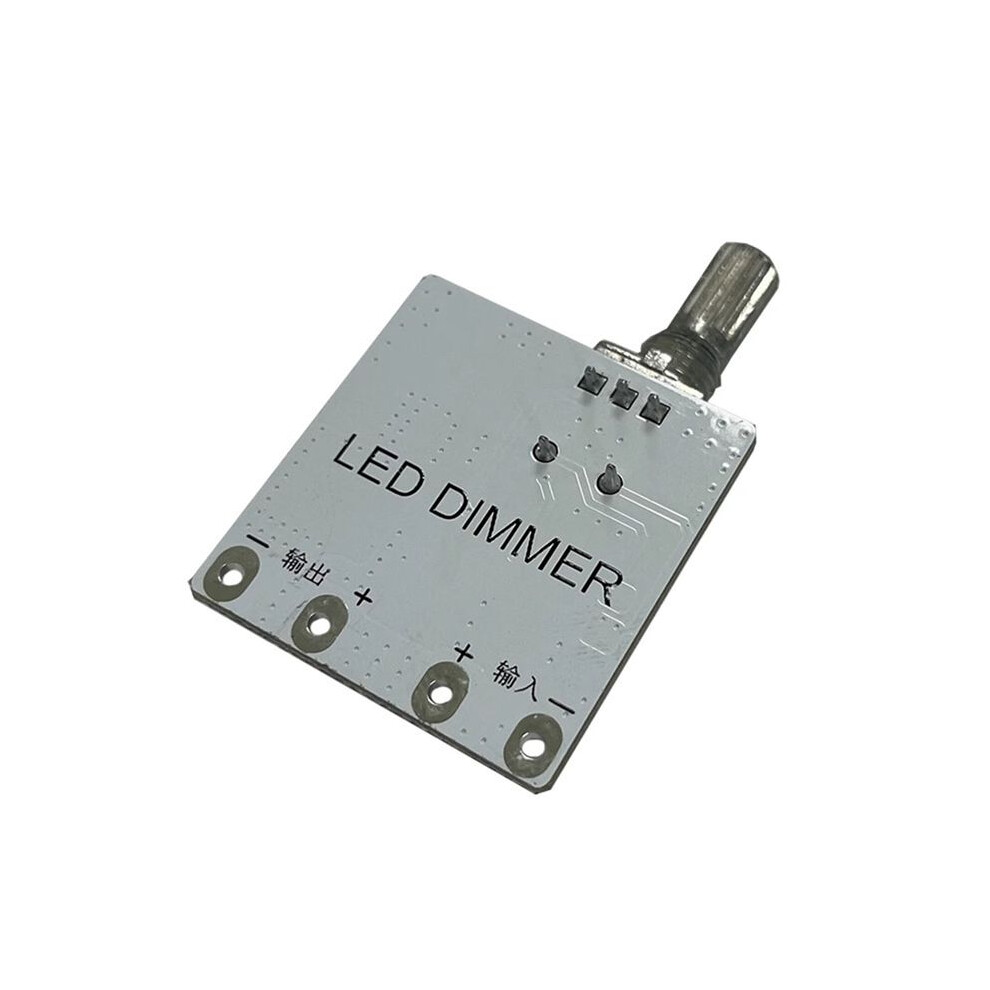

LED Constant Voltage Dimmer Board Control Module Table Lamp Stepless Knob Potentiometer Live Fill Light Dimmer Module,B

LED Constant Voltage Dimmer Board Control Module Table Lamp Stepless Knob Potentiometer Live Fill Light Dimmer Module,B leírása

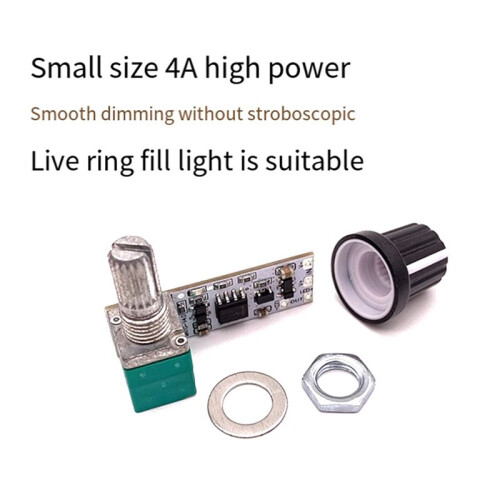

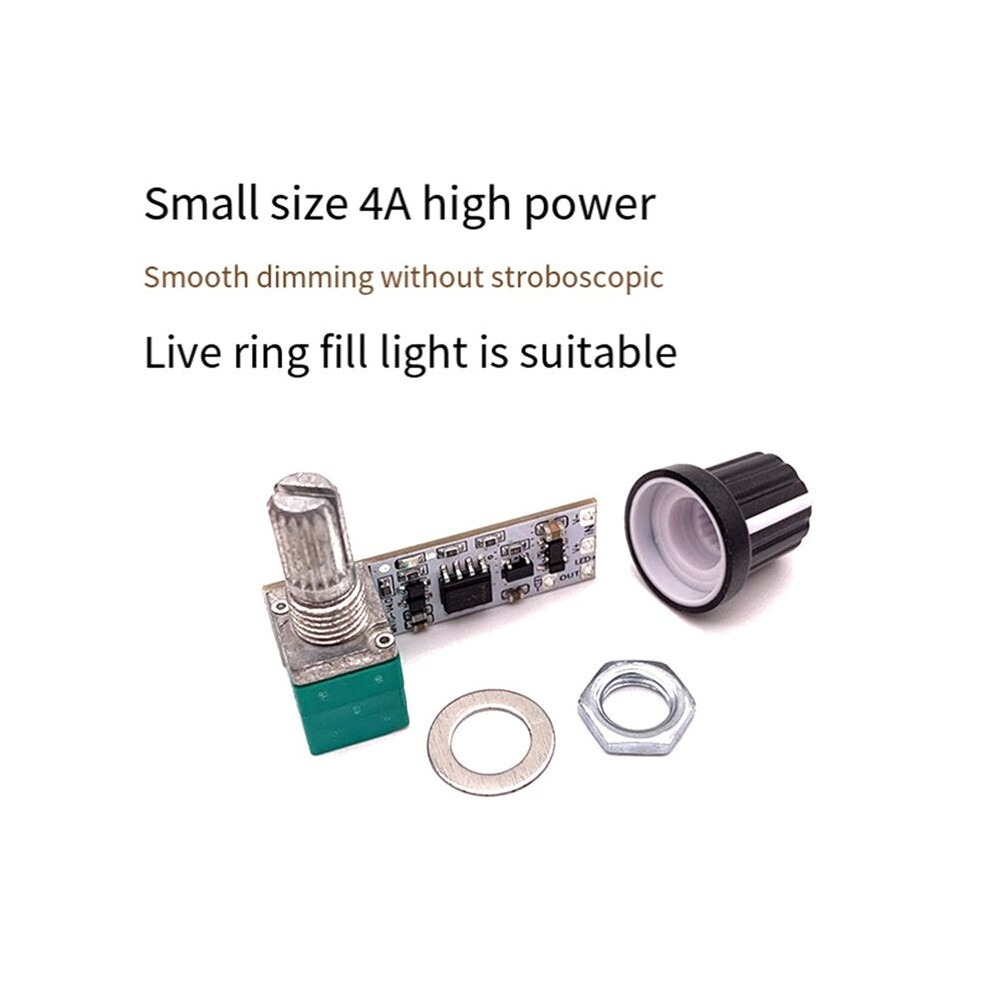

Small Size, 4A High Power, Smooth Dimming,
Constant Voltage Dimming Scheme, Output Voltage = Input Voltage
Applicable To 3.7V-24V Range, Lithium Battery Can Be Driven, Light Indicator
With , 0- Range Adjustable
No Flicker, Suitable For Live Broadcast Fill Light

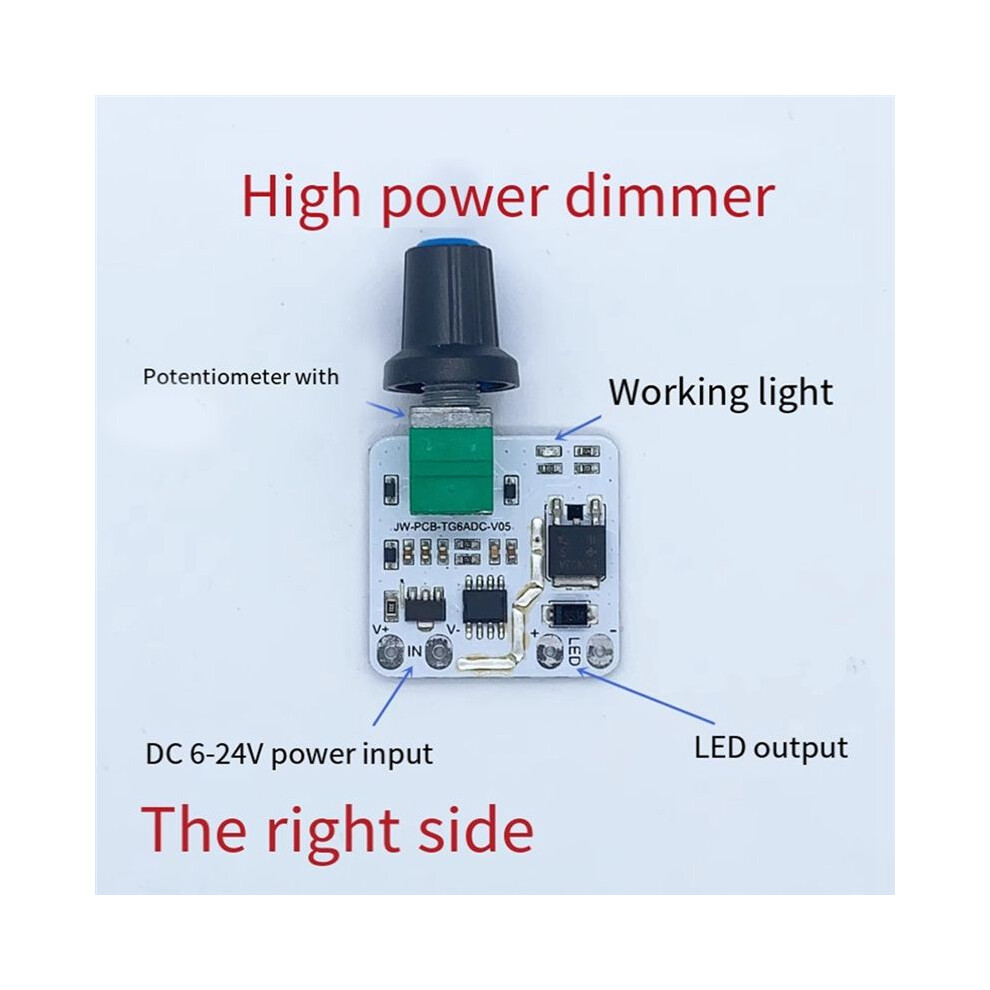

Product Name: High Power Led Light Panel Module
Working Mode:Constant Voltage, With Function
Input Voltage:Input 6--24V
Output Voltage:Same As Input Voltage
Load Current:Within 5A Maximum
Load Power:Maximum 120W; (Voltage x Current = Power)
Dimming Range:0 - Stepless Adjustment, No Flicker
Tips:
1. This Module Has Input Reverse Connection Protection And No Output Short-Circuit Protection. Please Check That The Wiring Is Correct Before Connecting It.
Electrical Work.
2. The Input And Output Voltage Difference Of The Module Should Not Be Higher Than 3V To Ensure The Best Dimming Effect And Efficiency.
Like:
Input 9V, With 2 Strings Of LEDS (The Light Source Must Be Resistor-Limited)
Input 12V, With 3 Strings Of LEDS (The Light Source Must Be String-Limited By Resistors)
Input 24V, With 6-7 Strings Of LEDS (The Light Source Must Be In Series With Resistors For Current Limiting)
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Type:B:Square
Colour:As Shown
Material:PCB+Metal

Package Contents:
1 * LED Constant Voltage Dimmer Control Module
2 * Screw Installation Accessories
