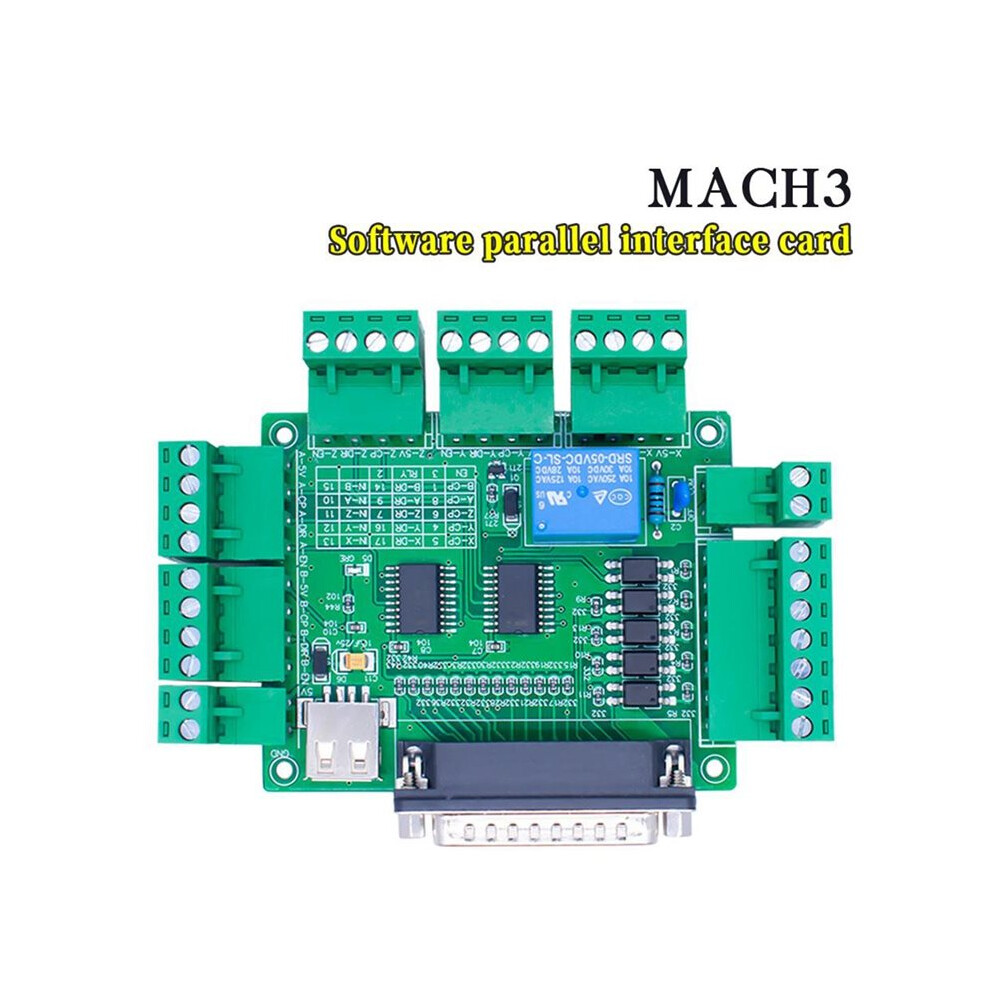

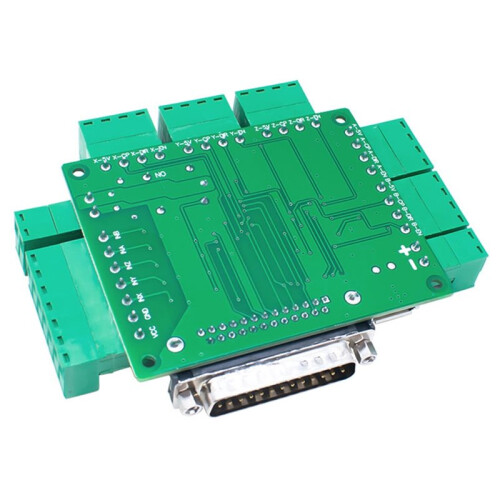

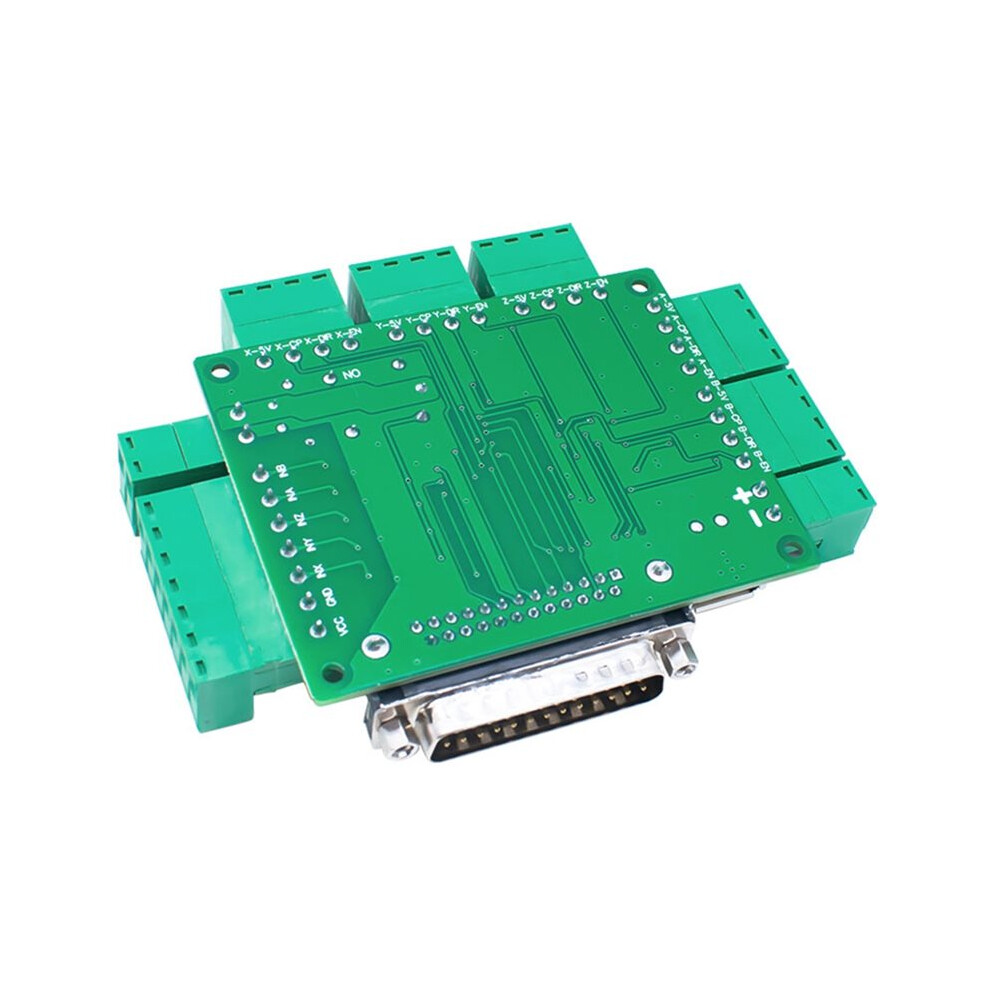

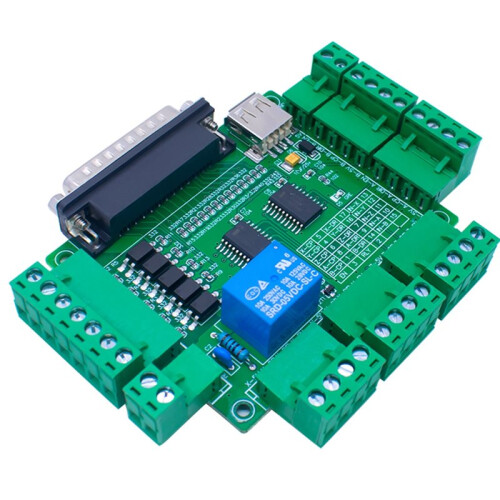

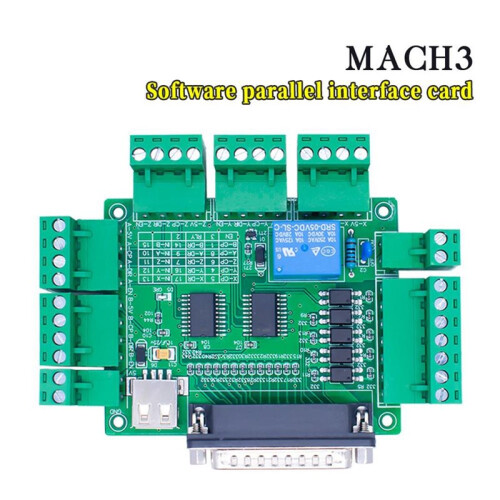

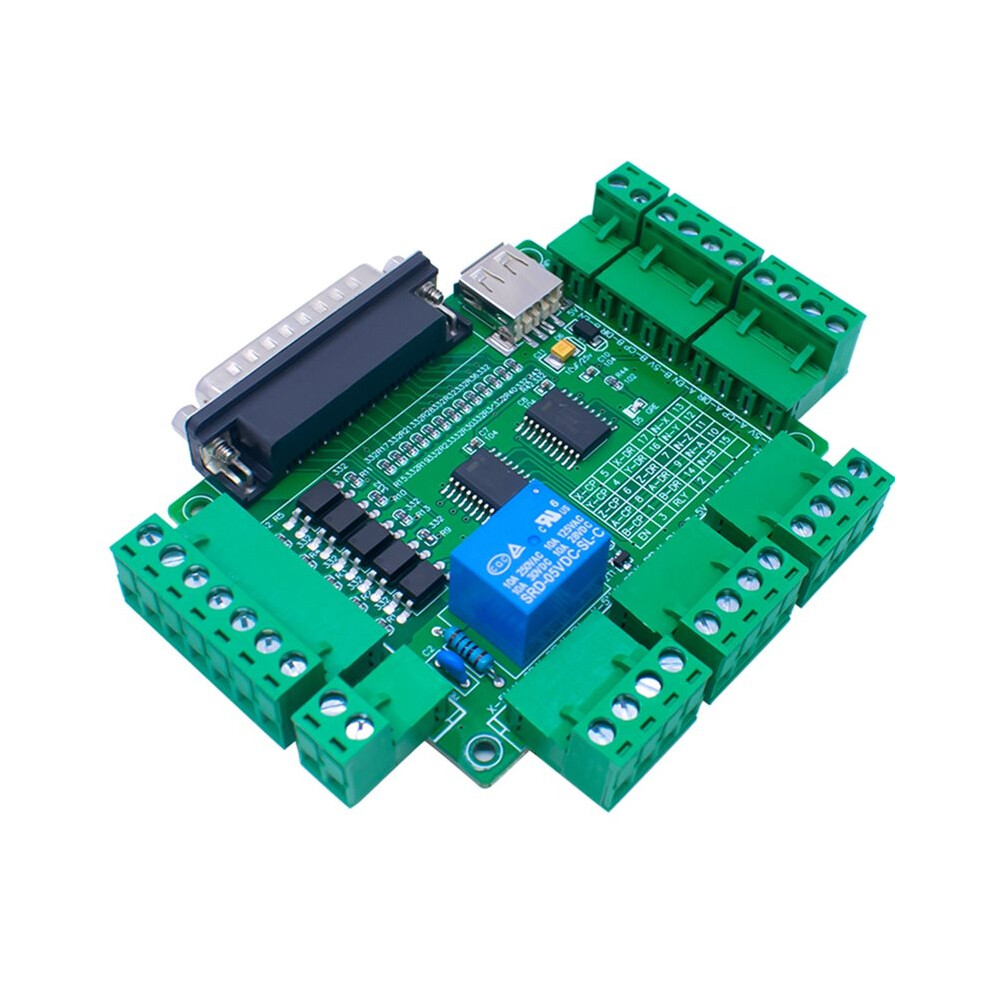

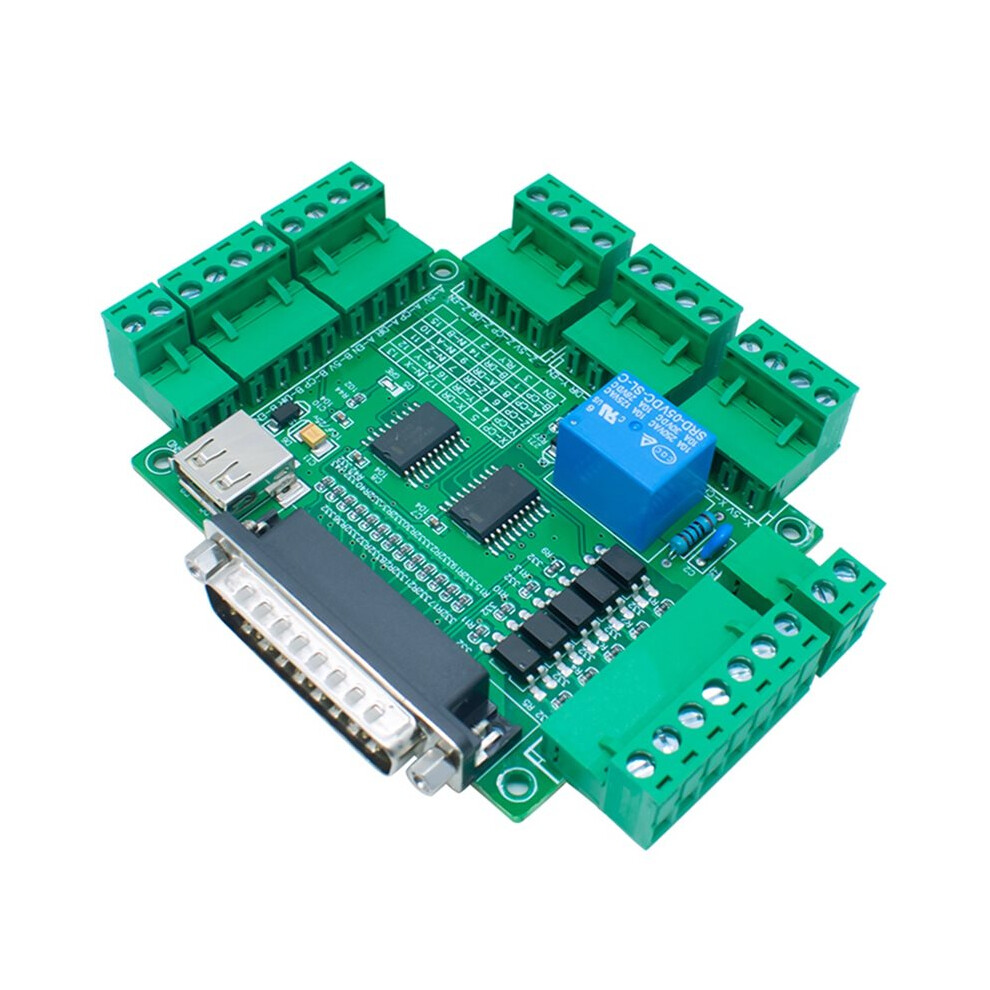

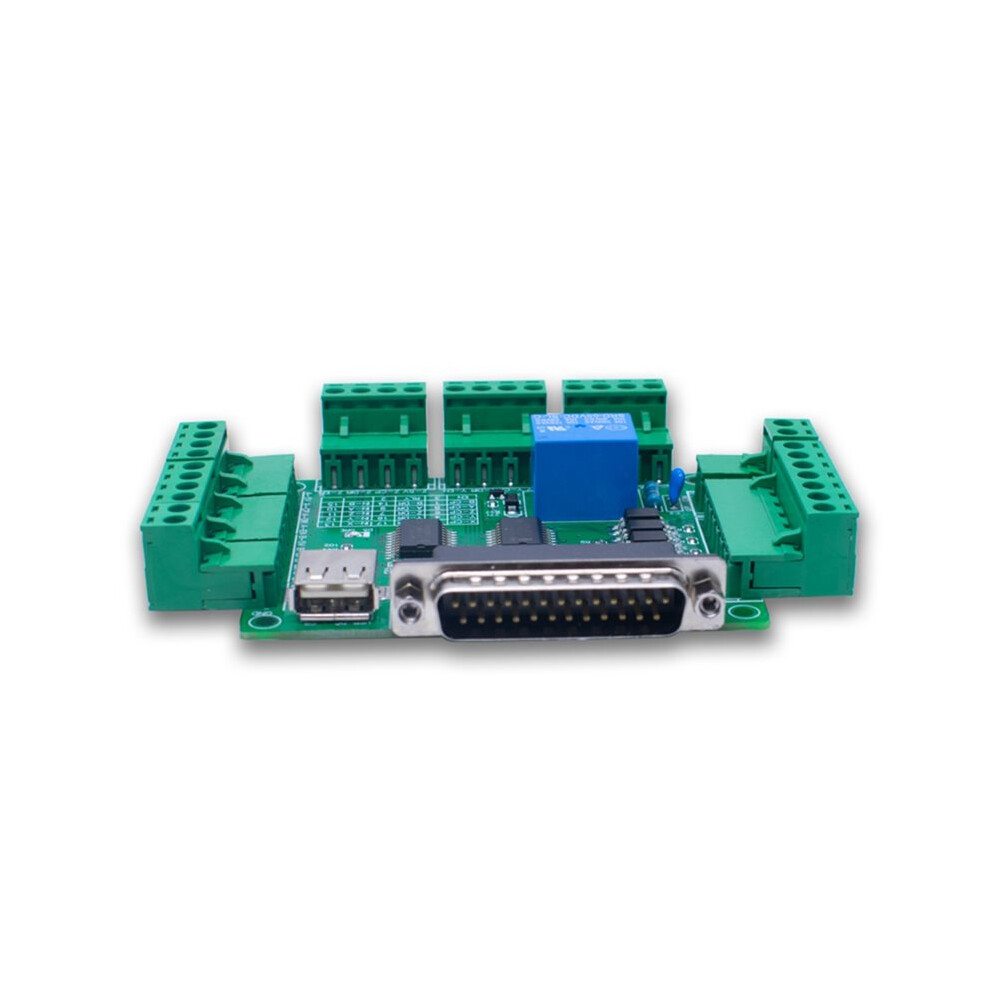

MACH3 5-Axis Engraving Machine Interface Board Cnc Interface Board with Optical Coupling Isolated Usb Power Supply

MACH3 5-Axis Engraving Machine Interface Board Cnc Interface Board with Optical Coupling Isolated Usb Power Supply leírása

Customizable Design:Tailor your CNC experience with the customizable MACH3 interface board, catering to your specific needs.
High Bandwidth 3dB:With a 3dB bandwidth, this board delivers precise control for intricate 5-axis machining tasks.
Mach3 5 Axis|Mach3 5 Axis Engraving Machine|5-axis Mach3 Compatibility:Optimized for Mach3 5-axis control, this board ensures seamless integration with your CNC setup.
Optical Coupling Technology:Employs optical coupling for efficient signal transmission, ensuring smooth operation in your CNC projects.
Isolated USB Power Supply:Features an isolated USB power supply for stable, reliable operation in your CNC environment.

Product Features:

Capable of simultaneously connecting to 5 stepper motor driver boards to control the operation of 5 stepper motors.

Features a standard parallel port interface and supports Mach3 software.

Includes four input interfaces, allowing for connections to limit switches, emergency stop switches, reset buttons, tool-setting probes, and similar devices

Incorporates relay control functionality, enabling the user to control the /off status (rotation) of the engraving machine's spindle motor

Power supply options: Can be powered via a 5V USB port or a dedicated 5V external power supply

(Note: Only one of these power sources may be selected at a ; they cannot be used simultaneously.)

The external input power terminal located the left side should only be connected when external input signals are required to be active
This interface board features signal amplification for the parallel port outputs, allowing a single channel to drive two separate motor drivers. This provides a convenient solution for users building engraving machines or other automated systems that require dual X, dual Y, or d
