Waveshare ESP32-S3 1.69inch LCD Display Development Board 240x280 with QST Attitude Gyro Sensor QMI8658C for Python

Waveshare ESP32-S3 1.69inch LCD Display Development Board 240x280 with QST Attitude Gyro Sensor QMI8658C for Python leírása

Powered by the high-performance ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, clocked at to 240 MHz.

Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and 5 (LE), featuring an onboard antenna.
Includes 512KB of built-in and 384KB of ROM, along with 8MB of stacked PSRAM and 16MB of external Flash memory.
Features a modern Type-C interface-keeping pace with current trends-that allows for hassle-free, reversible plugging.

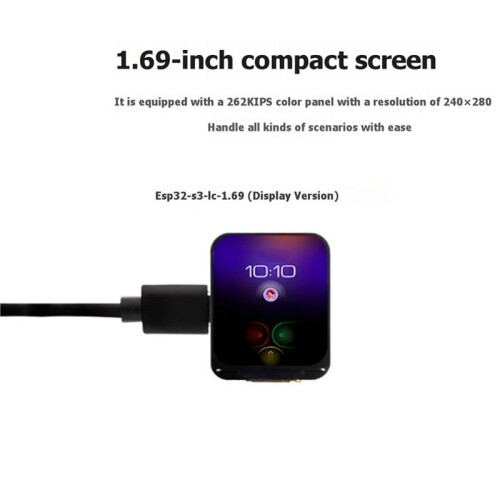

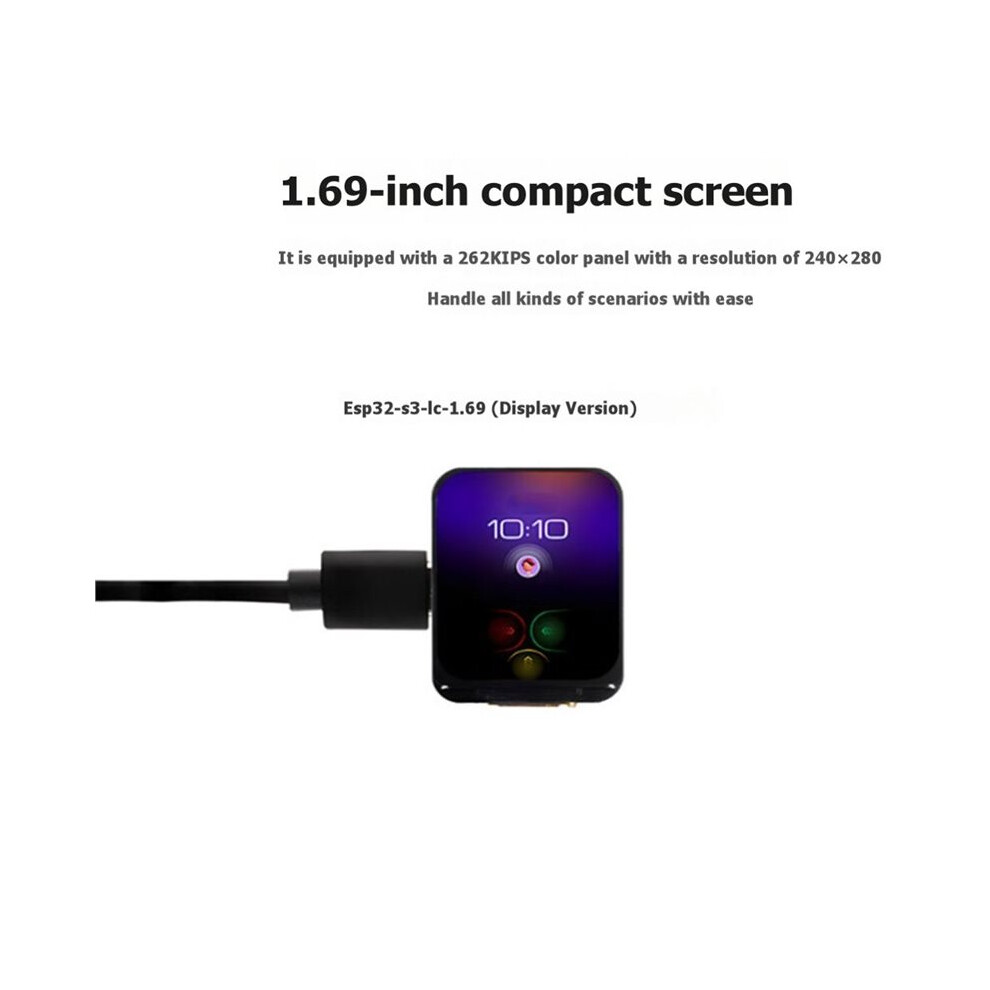

Equipped with an onboard 1.69-inch LCD screen (240x280 resolution, 262K colors), capable of clearly displaying full-color images.
Integrates an ST7789V2 driver chip, utilizing an SPI interface to minimize the consumption of GPIO pin resources.
Includes an onboard QMI8658 6-axis Inertial Measurement Unit (3-axis accelerometer and 3-axis gyroscope) for detecting motion posture, step counting, and more.



Specifications:
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color: Black
Material: PCB

Package Contents:

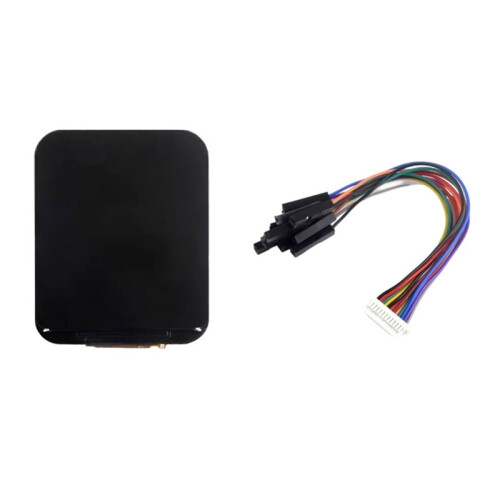

1 * ESP32-S3-LCD-1.69 Development Board Kit
