0.39 Inch OLED Display Viewfinder for FPV Drone Ae Description

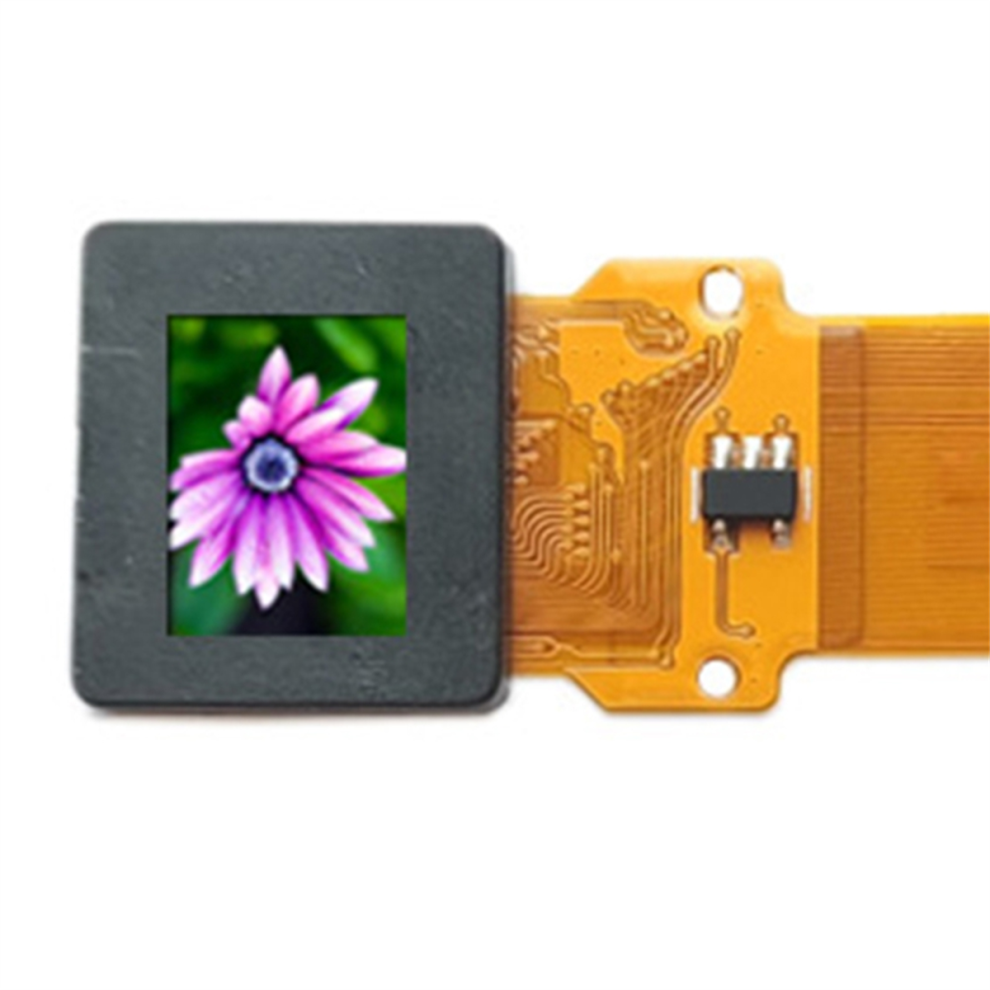

OL39E is a 0.39-inch full-color silicon-based display module with a 1024 x 768 dot matrix. The display module features high brightness, high contrast, narrow border, wide viewing angle, wide temperature range and low power consumption, and is used for portable displays, head-mounted displays, AR glasses, etc.
Display color: full color
Maximum resolution 1024 x 768
Digital video interface
Support 24-bit RGB digital video

Support 24-bit YCbCr digital video
Support 16-bit 4:2:2 format YCbCr digital video
Support scanning, digital signal enhancement, 8-bit input, 256-level grayscale display, 10-bit D/A conversion
Horizontal/vertical image mirroring
Can work at -40C~65C To the normal operation of the chip, a heat dissipation module needs to be configured, and the recommended operating temperature is 60

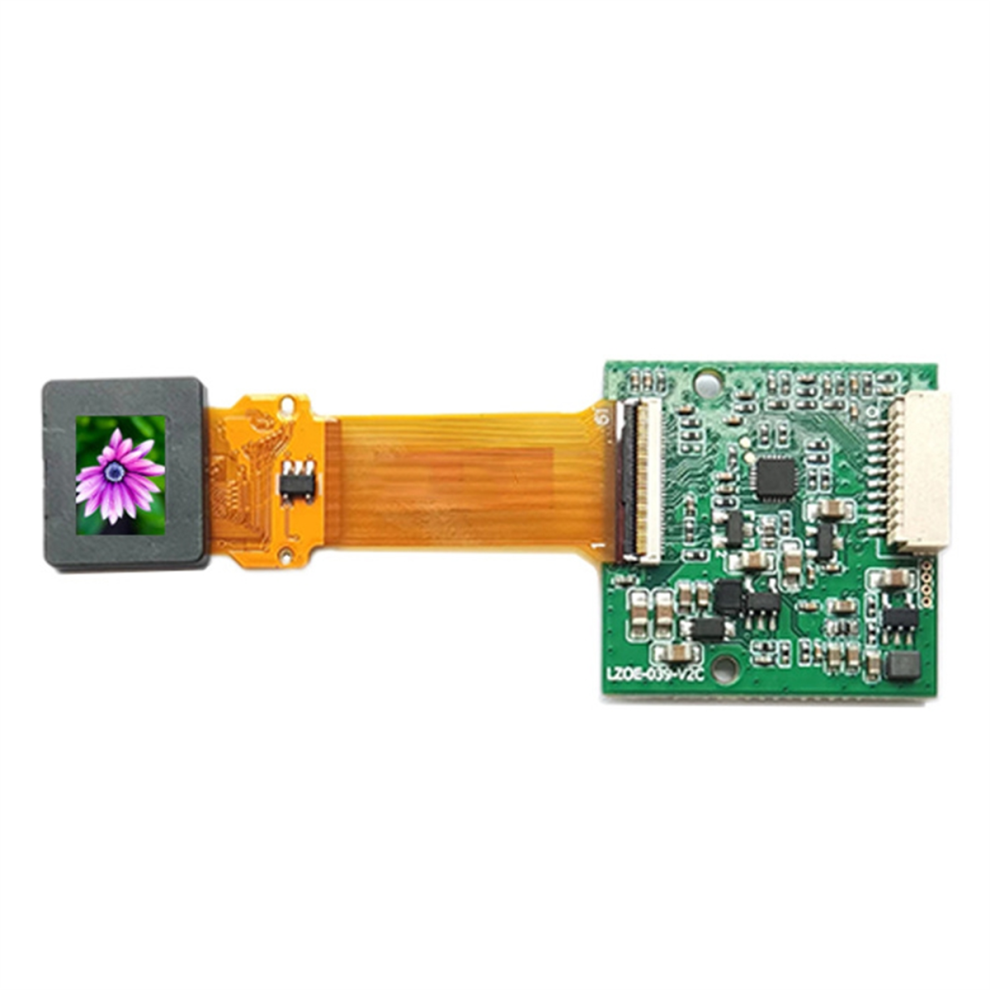

Our company has developed a CVBS (AV) analog video interface driver circuit, with a size of 28 x 28MM, a total power consumption of about 0.58W, and an operating voltage range of DC3.5-5V.
Specifications: C:AV color display
Color: As shown
Material: PCB

Package Contents:
1 * Viewfinder

Only the above package content, other products are not included.
