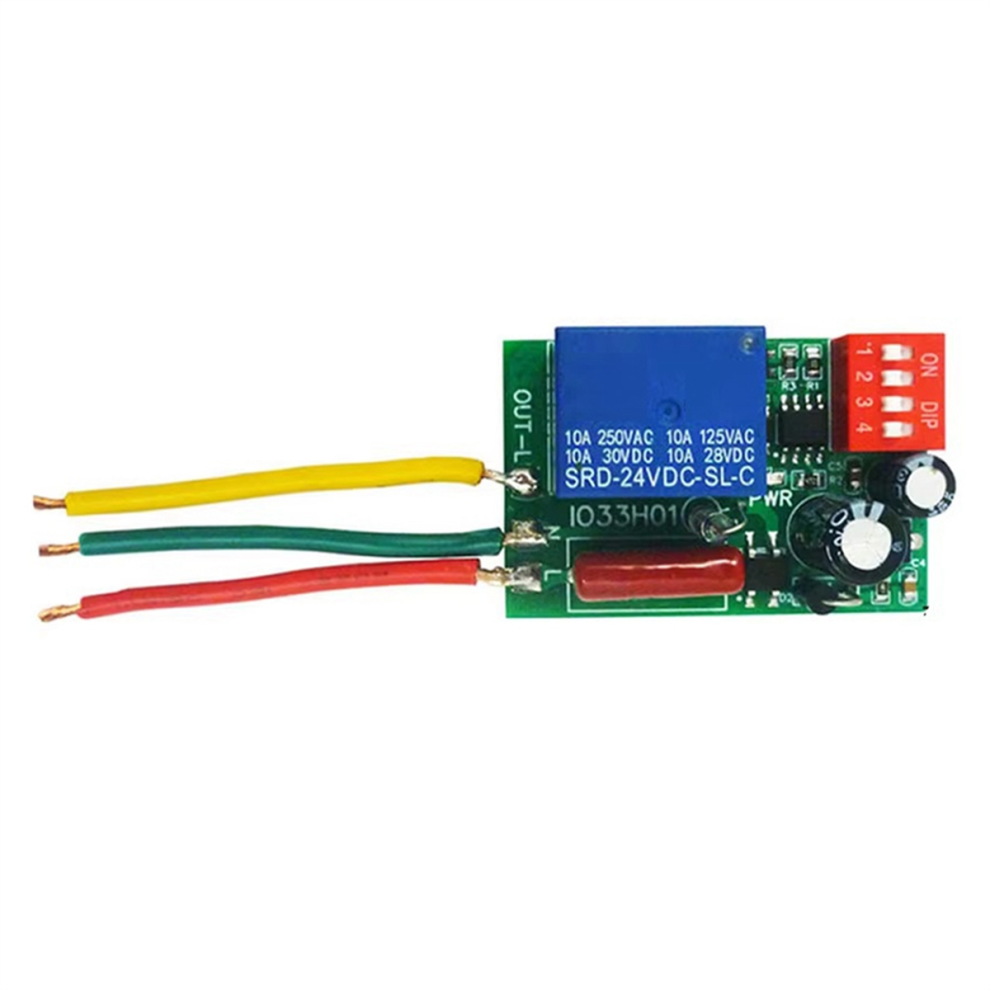

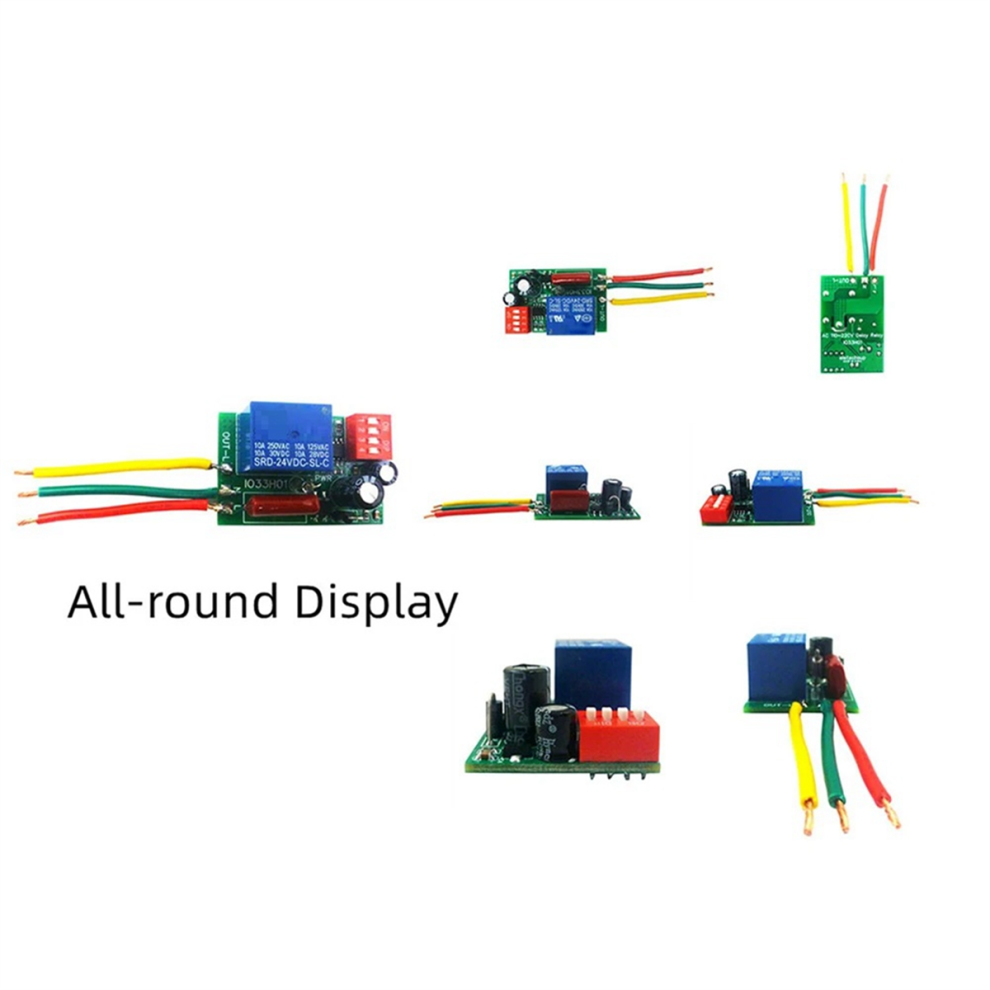

1-480 Min Timer Adjustable Disconnect Delay Controller A

1-480 Min Timer Adjustable Disconnect Delay Controller A Description

1-480 Min Timer Adjustable Disconnect Delay Controller A Description
Function: Delays the power supply for a specific period of time.
Small size, easy to use. Stable performance.
Module Function: This module is a delayed shutdown module. After the set delay time has elapsed, the power supply is interrupted.
Wide range of applications: e.g. B. Exhaust fans, motors, air coolers, cooling fans, germicidal lamps, humidifiers, heaters, etc.
Application area: Living room, kitchen, bathroom, bedroom, hallway, stairs, etc.
Parameters:
Output current: 7 A (MAX. 10 A)
Operating current consumption: 43 mA
Output voltage: AC 110-220 V
Supply voltage: AC 110-220 V
Maximum standby current consumption: 12 mA
Number of control channels: 1 output
Operating temperature: -25C to 85C
Operating humidity: 5% to 95% relative humidity
Control power: 1400 W (max.) incandescent lamp, energy-saving lamp 300 W (max.)
With LED indicator to show the operating status (steady light means operating, flashing means that the delay has expired)
16 delay modes to choose from (1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 25 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes, 240 minutes, 300 minutes, 480 minutes)
Operating status: After switching on, the indicator light (PWR) is always on; After the delay has elapsed, the indicator light (PWR) continues to flash.
Instructions:
: Set the time to be delayed (live setting is not permitted);
: Turn on the device after verifying that the wiring is correct. After being turned on, the module will begin to operate (the indicator light will remain on), and when the time has elapsed, the module will stop supplying power (the indicator light will flash).
1. If you need to shut down in advance during use, you can disconnect the module's main power supply directly.
2. Start the second time delay: Turn the module back on.
Color: as shown
Material: PCB + components
Style: A without housing
Due to different production batches, the appearance may vary, which does not affect its use.
Package contents:
1 * Delay relay switch
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The allowable measurement error is +/- 1-3 cm.
