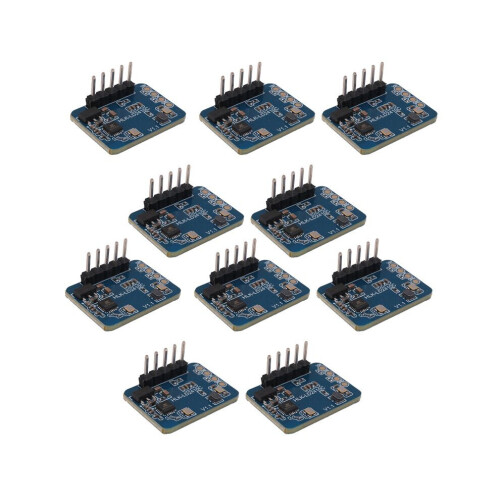

10 Pcs 24G mmWave HLK-LD2410C Human Presence Sensor Motion Detection Module

10 Pcs 24G mmWave HLK-LD2410C Human Presence Sensor Motion Detection Module Description

10 Pcs 24G mmWave HLK-LD2410C Human Presence Sensor Motion Detection Module Description

1.Plug and , easy assembly.The longest sensing distance is to 6 meters
2.Large detection angle, coverage to 60 degrees.Accurate identification within the interval, support the division of the sensing range, and shield the interference outside the interval
3.Multi-level intelligent parameter adjustment can be realized through or serial port to meet the needs of scene changes Visual debugging and configuration tools
4.Small and simplified, the minimum size is only 16*22mm.Supports various installation methods such as ceiling hanging and wall hanging
5.24GHz ISM band, compliant with FCC and CE spectrum regulations.5-12V wide voltage power supply,The cost-effective choice

LD2410C human body sensing module adopts 24GHz millimeter wave sensor technology. Compared with other solutions, it has obvious advantages in human body sensing applications:
1.In addition to being sensitive to moving human bodies, it can also sensitively sense static, micro-moving, sitting and lying human bodies that cannot be identified by traditional solutions;
2.It has good environmental adaptability, and the sensing effect is not affected by the surrounding environment such as temperature, brightness, humidity and light fluctuations;
3.It has good shell penetration and can be hidden in the shell to work without opening holes the surface of the product, which improves the aesthetics of the product;
4.It can flexibly configure the farthest sensing distance and the sensitivity each distance door to achieve flexible and fine personalized configuration.
The LD2410C human body sensing module can detect and identify the human body in motion, fretting, standing, sitting and lying down. It supports multi-level parameter adjustment and can be widely used in various scenarios of AIoT. The common types are as follo
