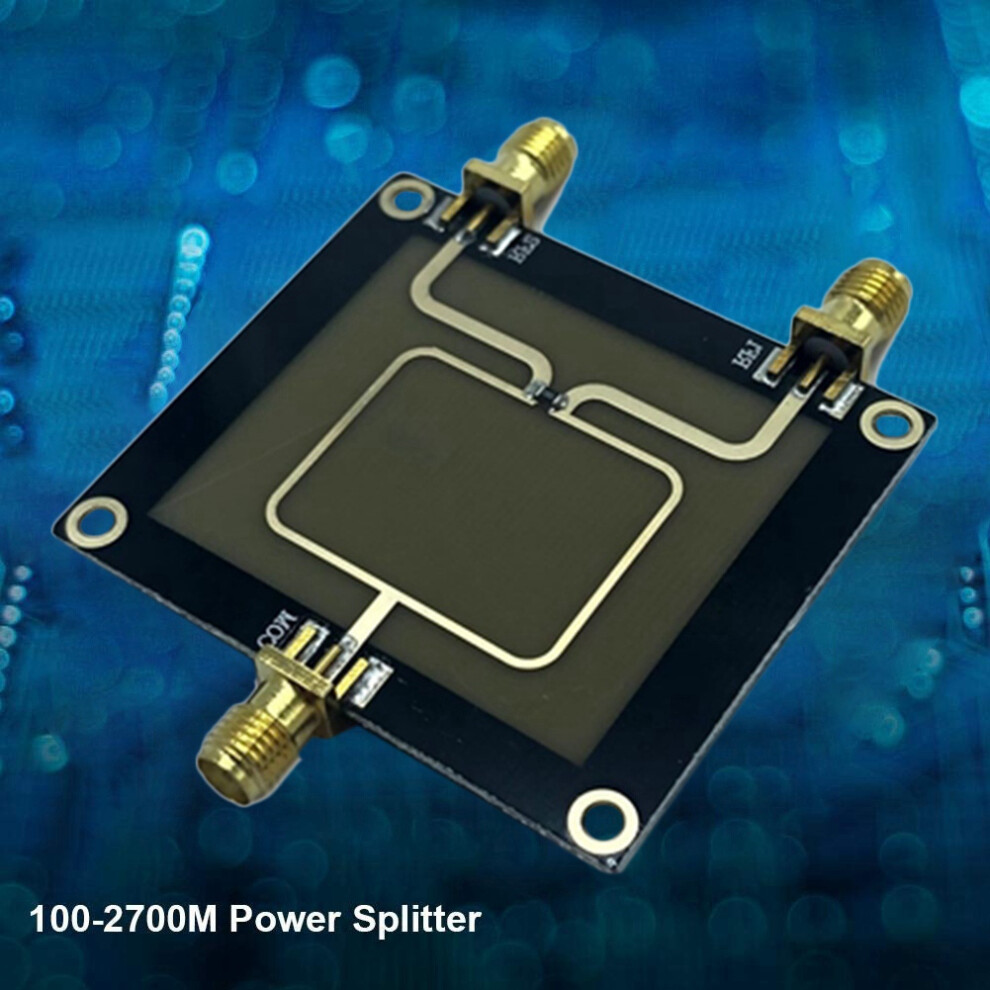

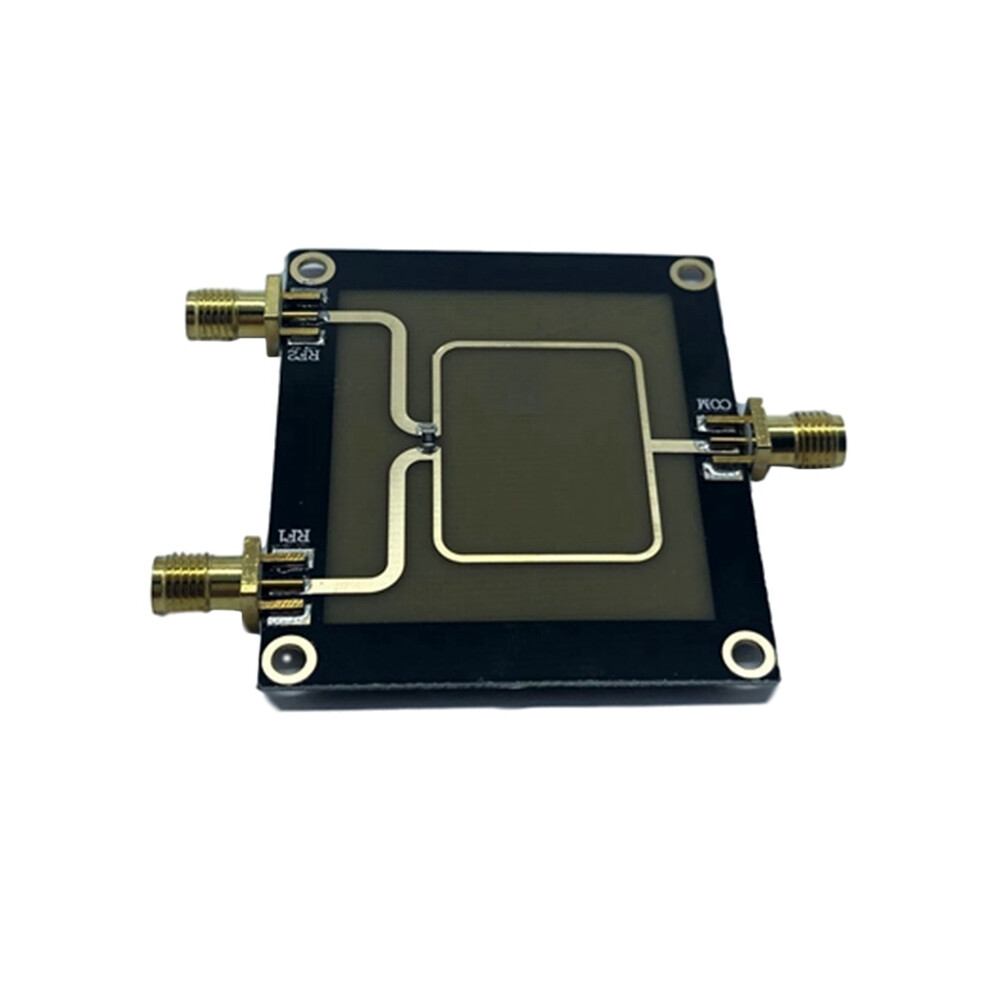

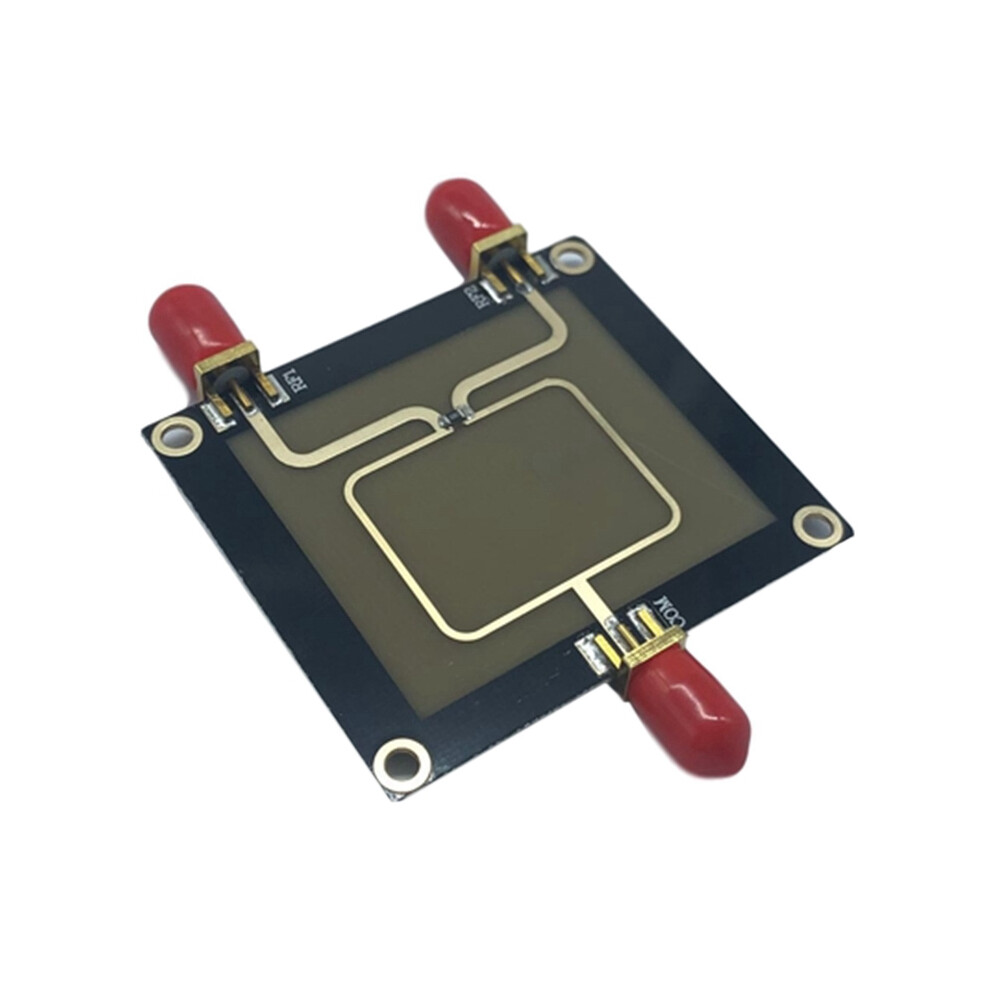

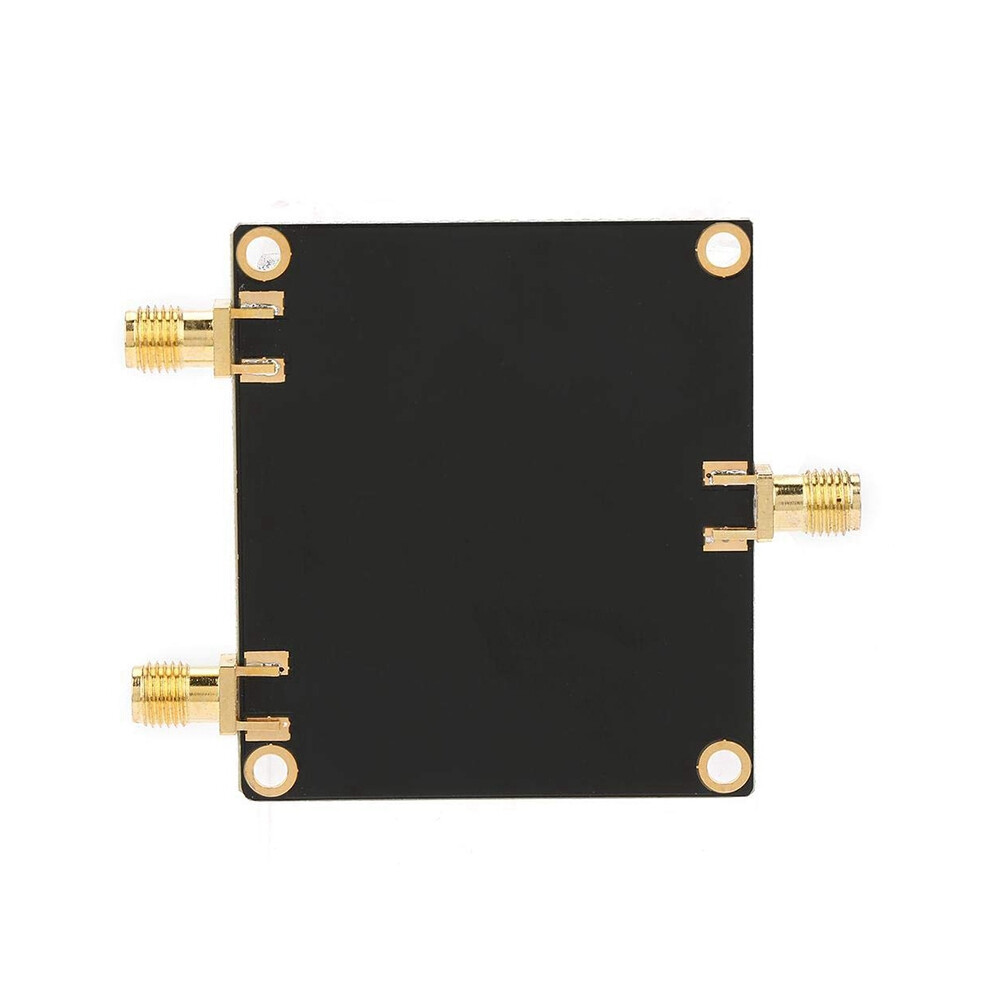

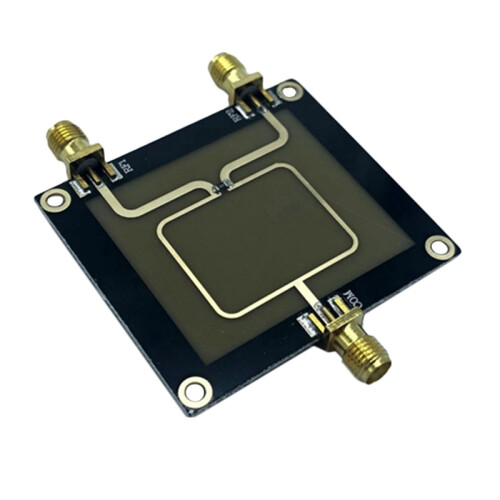

100-2700M Frequency Power Splitter 2-Way Divider Combiner Microstrip

100-2700M Frequency Power Splitter 2-Way Divider Combiner Microstrip Description

1. Microstrip power divider, the full name of microstrip power divider, is a device that divides the energy of one input signal into two or more channels and outputs equal or unequal energy; it can also combine the energy of multiple signals into one output. At this time, it is also called a combiner.
2. A certain degree of isolation should be guaranteed between the output ports of a power divider. It has the advantages of wide operating frequency, low insertion loss, high gain and isolation, stable performance, etc.
3. The power divider can divide the input signal of one channel into equal or unequal signals of two channels
4. It can also be used as a combiner to combine signals into one channel's output.
5. Wide operating frequency, low insertion loss, high gain, high isolation and stable performance.

Performance parameters:
Frequency Range-100-2700MHz
Standing wave ratio VSWR less than equal 1.4
Isolation- equal 20dB
Insertion Loss: less than equal 1
Passband Ripple- less than equal 0.3dB
Phase Imbalance: less than equal 3
Input impedance Impedance-50Ω
Maximum Input Power-25W
Material:PCB
colour:As shown

Package Contents:
1 Splitter

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
