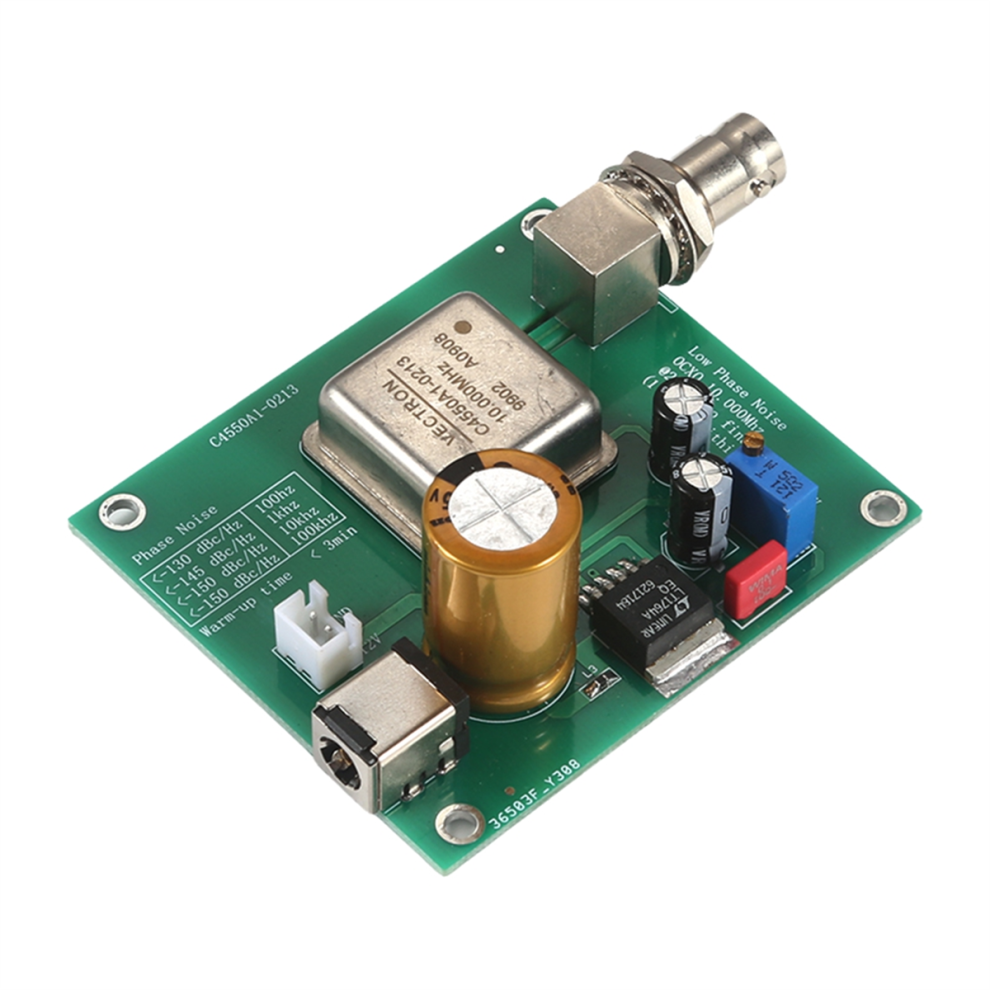

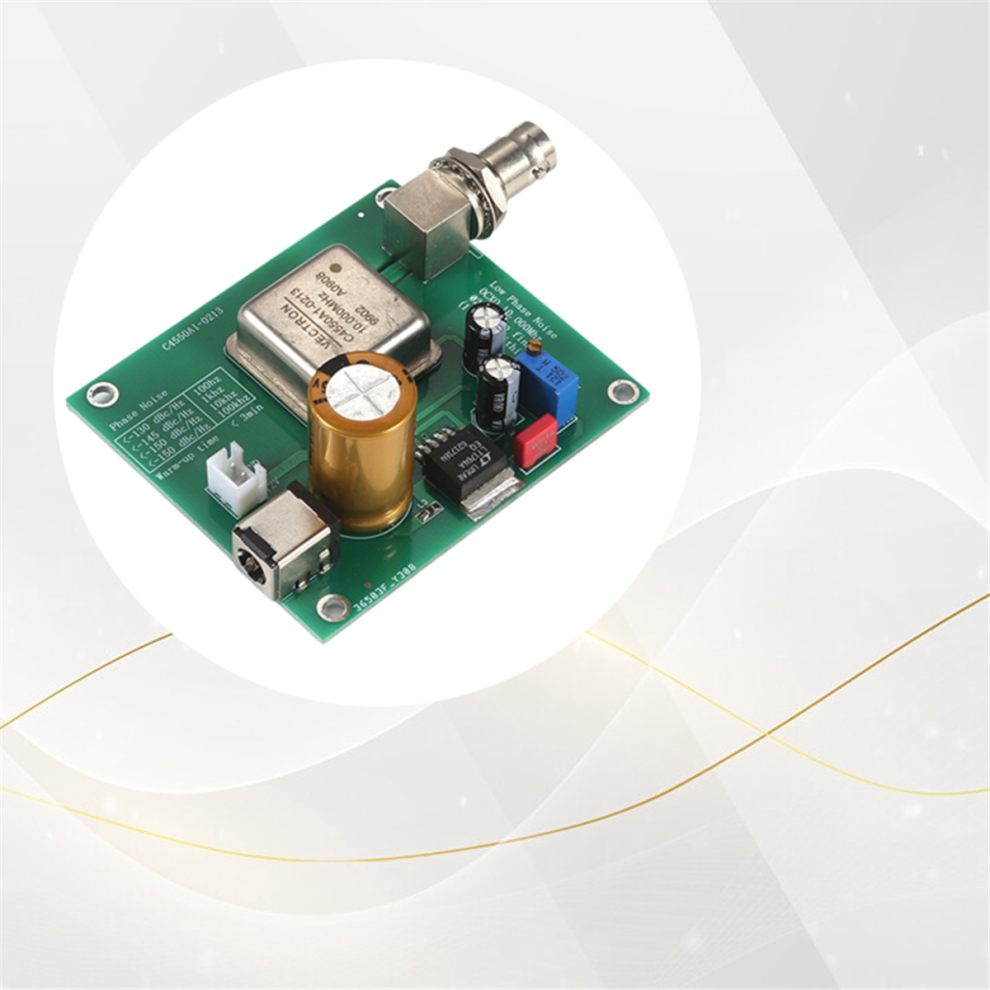

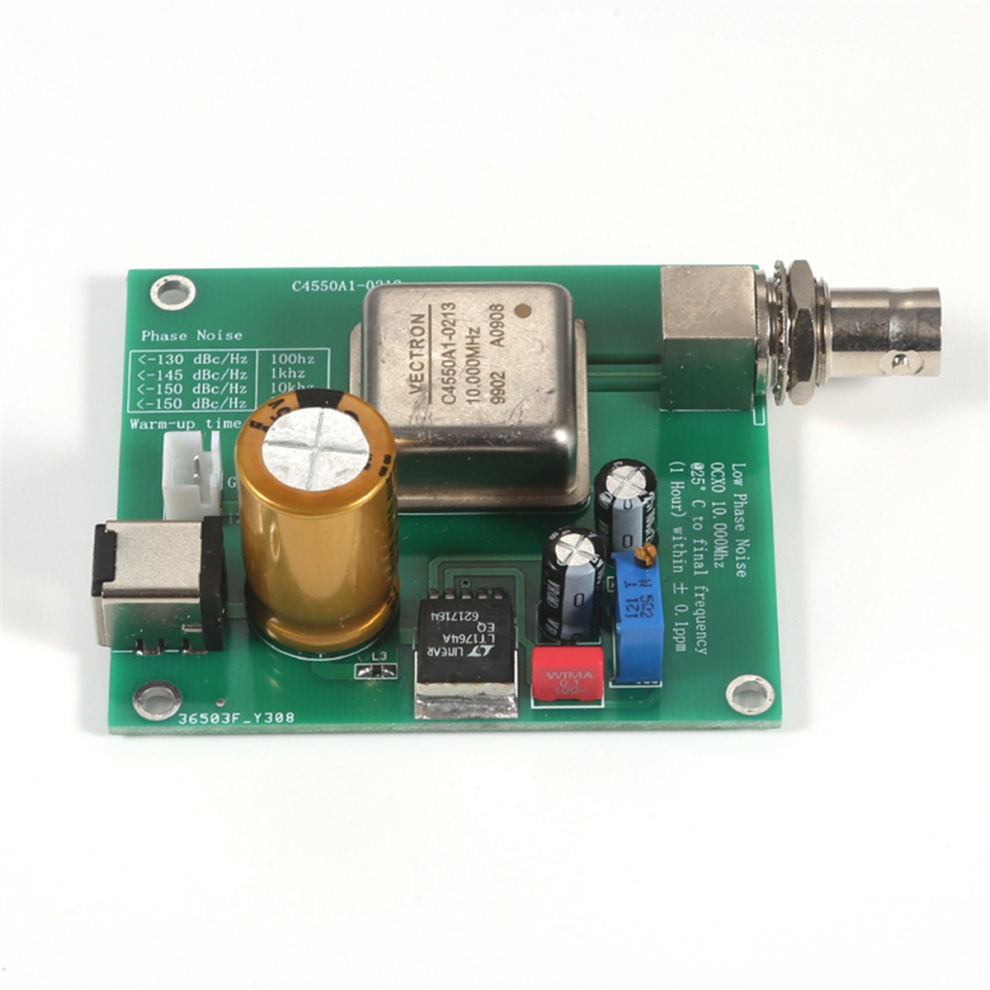

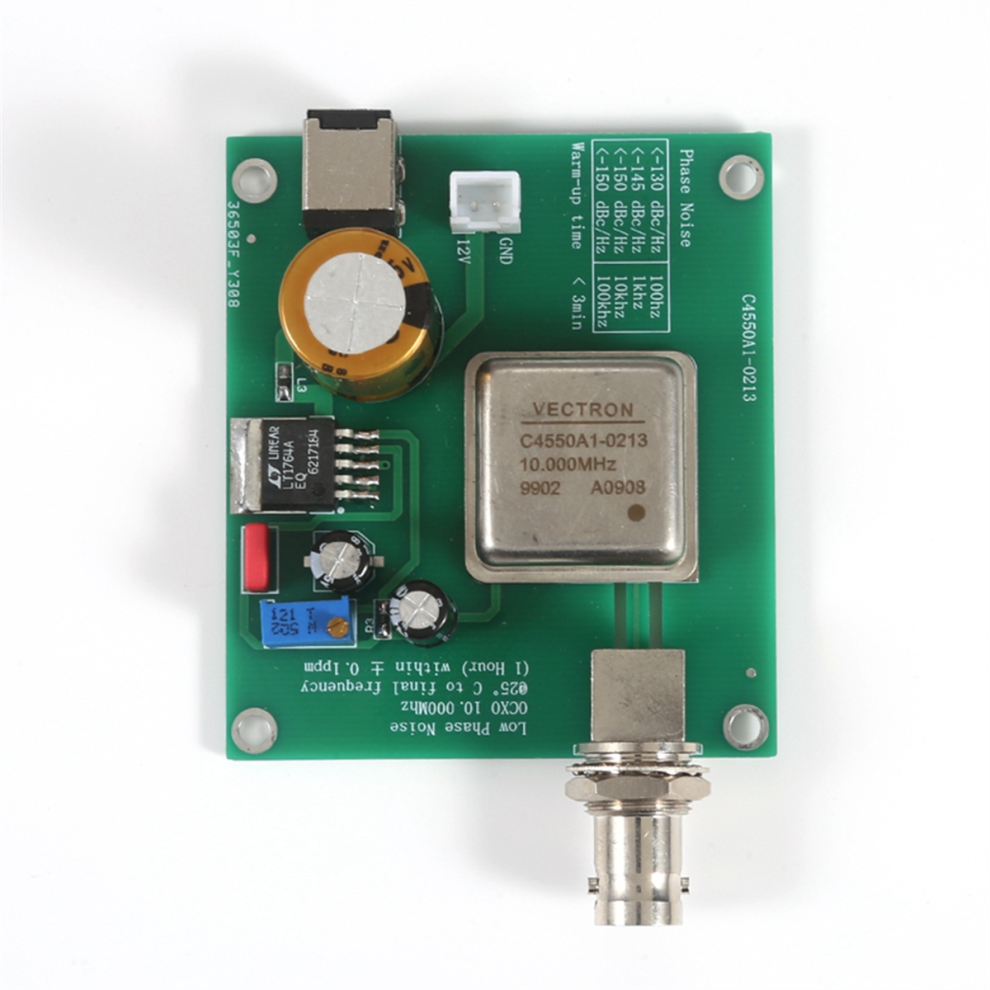

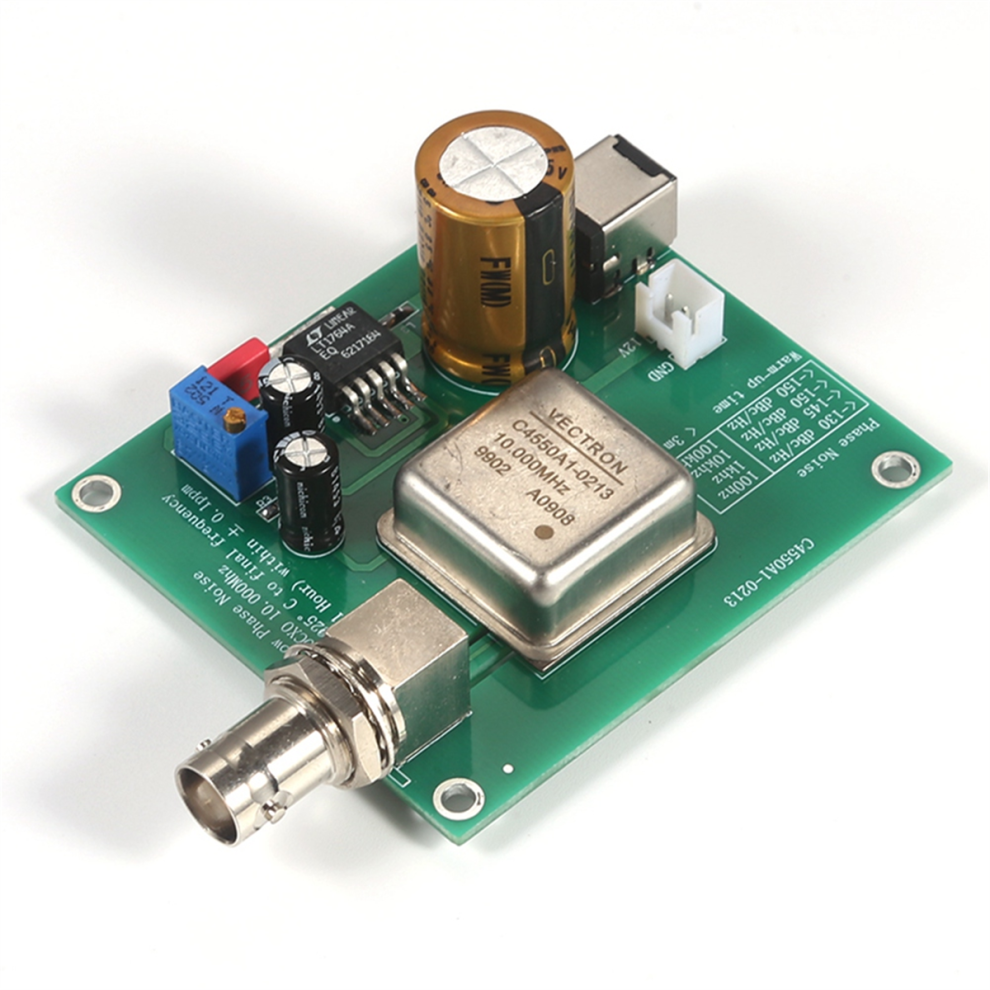

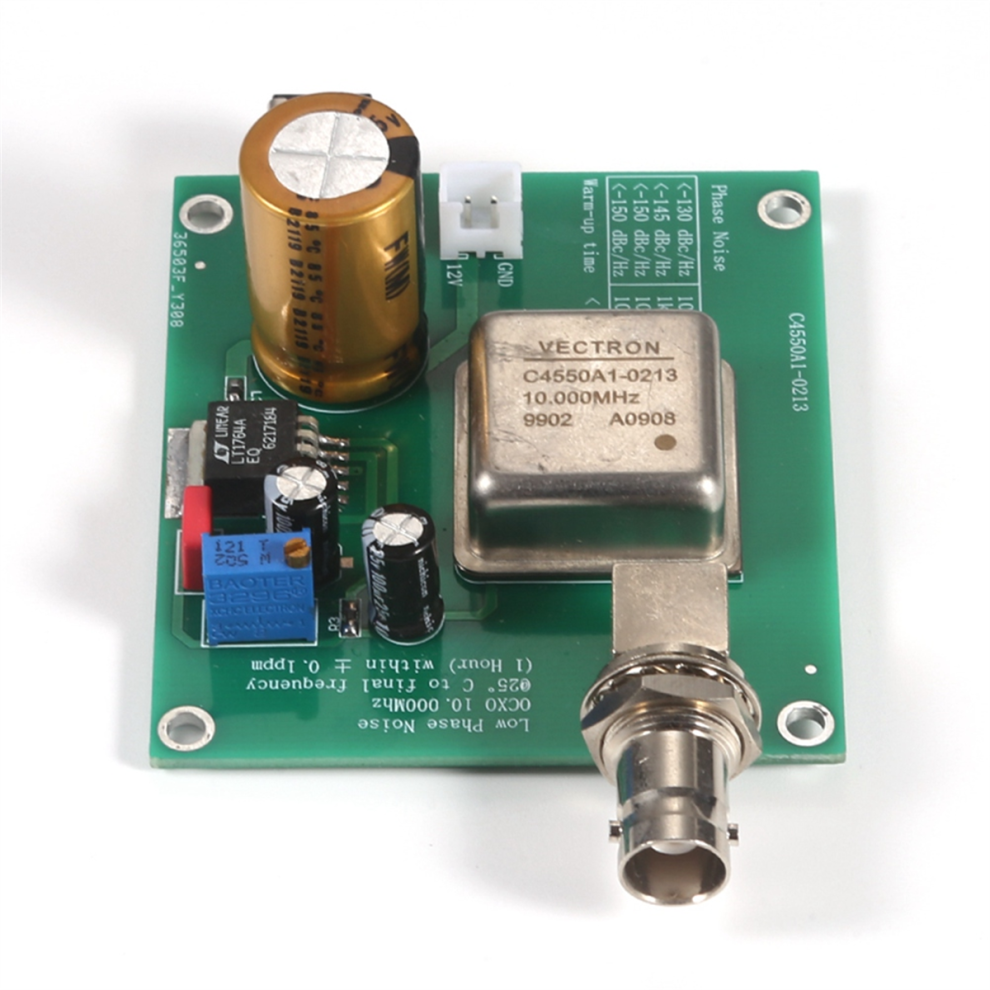

10MHz Audio External Clock Source Module Professio

10MHz Audio External Clock Source Module Professio Description

Enhance the performance of your audio equipment with our professional audio clocks, which feature a precise 10MHz frequency
This external clock source is designed to maintain a constant temperature, ensuring minimal phase noise and optimal stability
Low phase noise - reduces jitter and improves clarity
Thermostatic control - maintains performance stability under varying conditions
Ideal for audiophiles and professional equipment, it significantly improves sound quality and synchronization, universal compatibility, and easily integrates with a variety of professional audio systems

Frequency: 10mhz
Interface: BNC
Input voltage: DC12v
Powered by UV-grade low ripple LT1764
Phase Noise -130 dBc/ Hz 100hz -145 dBc/ Hz 1000hz -150 dBc/ Hz 10000hz -150 dBc/ Hz 100000hz
Phase noise parameters are close to femtosecond crystal oscillator 25 to final frequency (1 Hour) within 0.1ppm Frequency accuracy 0.1 parts per million
The product appearance and printed words depending on the batch, but this does not affect use
Colour:Green
Material:PCB

Package Contents:
1 x Audio Clock Source

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
