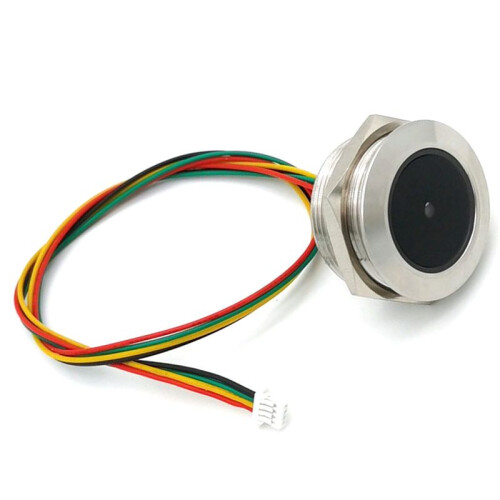

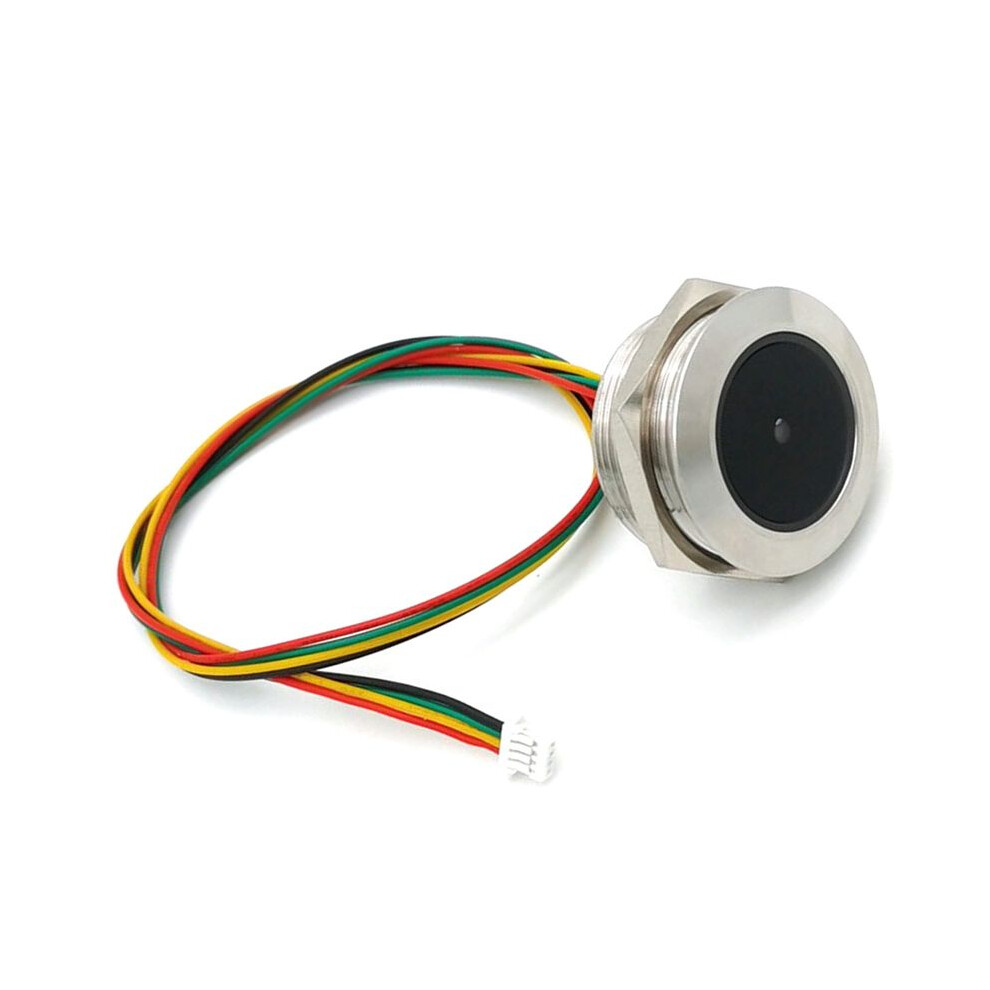

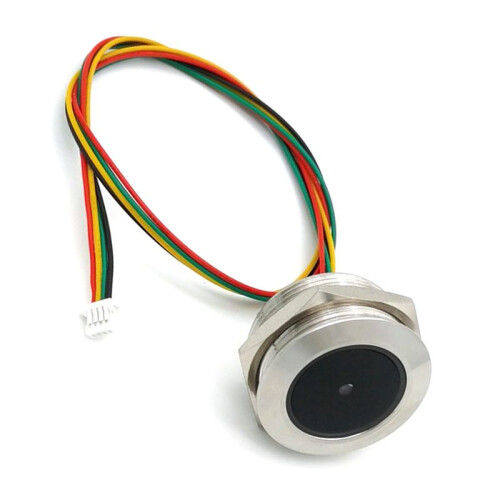

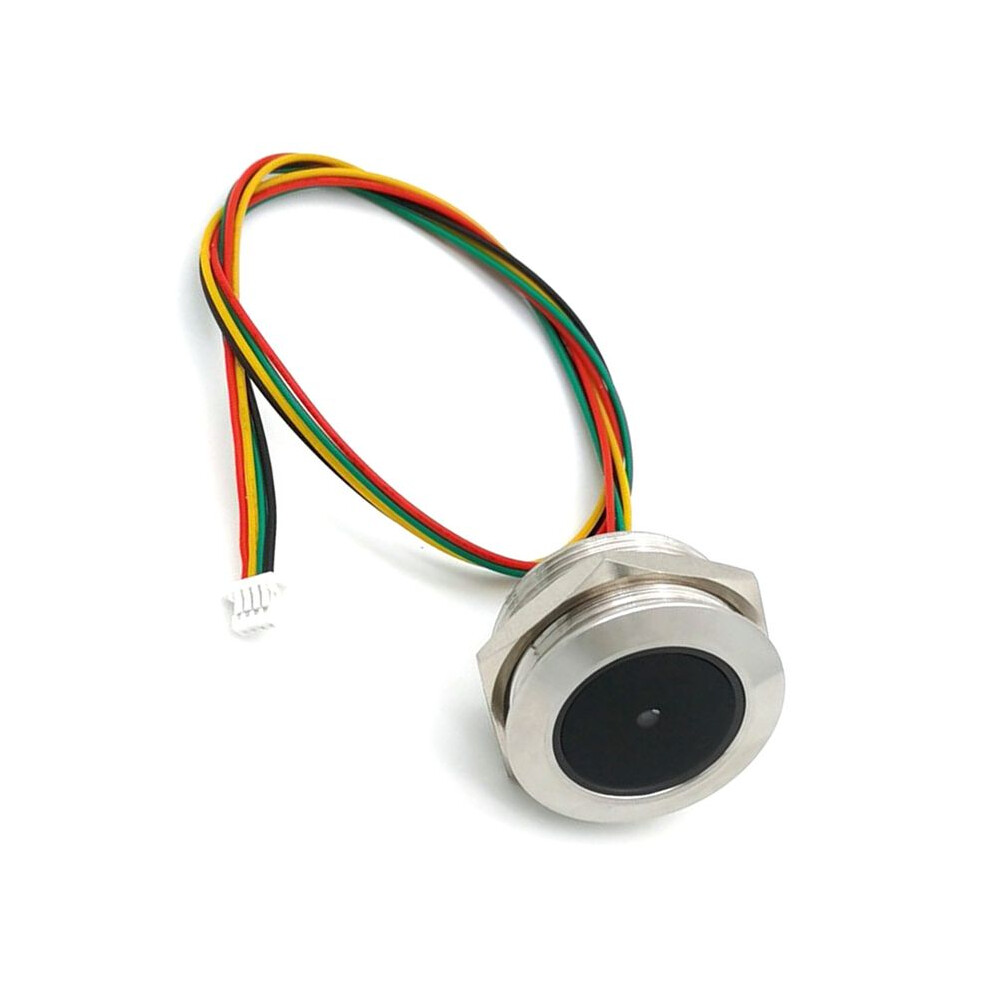

10X GM60 UART Stainless Steel Controlled Ring Indicator Light 1D/QR/2D Bar Code Scanner QR Code Barcode Scanner Module

10X GM60 UART Stainless Steel Controlled Ring Indicator Light 1D/QR/2D Bar Code Scanner QR Code Barcode Scanner Module Description

GM60 is a QR code scanner with high integration and excellent performance;
It is small in size;
The barcode and QR code formats that can be recognized include QR Code, Data Matrix, PDF417, EAN13, UPC, Code 39, Code 93, Code 128, UCC/EAN 128 et al.
Stainless steel threaded housing simplifies installation troubles. Neon color effects can be set freely.

Color: silver
Material: stainless steel + plastic
SPECIFICATION
Model: GM60
Type: Barcode Scanner
Decoding Ability: QR Code, Data Matrix, PDF417,EAN13,UPC,Code 39,Code 93,Code 128,UCC/EAN 128
Scan Mode: 640 x 480
Interface: UART
Resolution: 5mil
Serial Baud Rate(UART): 57600
Operating Voltage: 3.3V
Operating Current: 70mA
Contrast: 25%
Weight: 25g/pcs

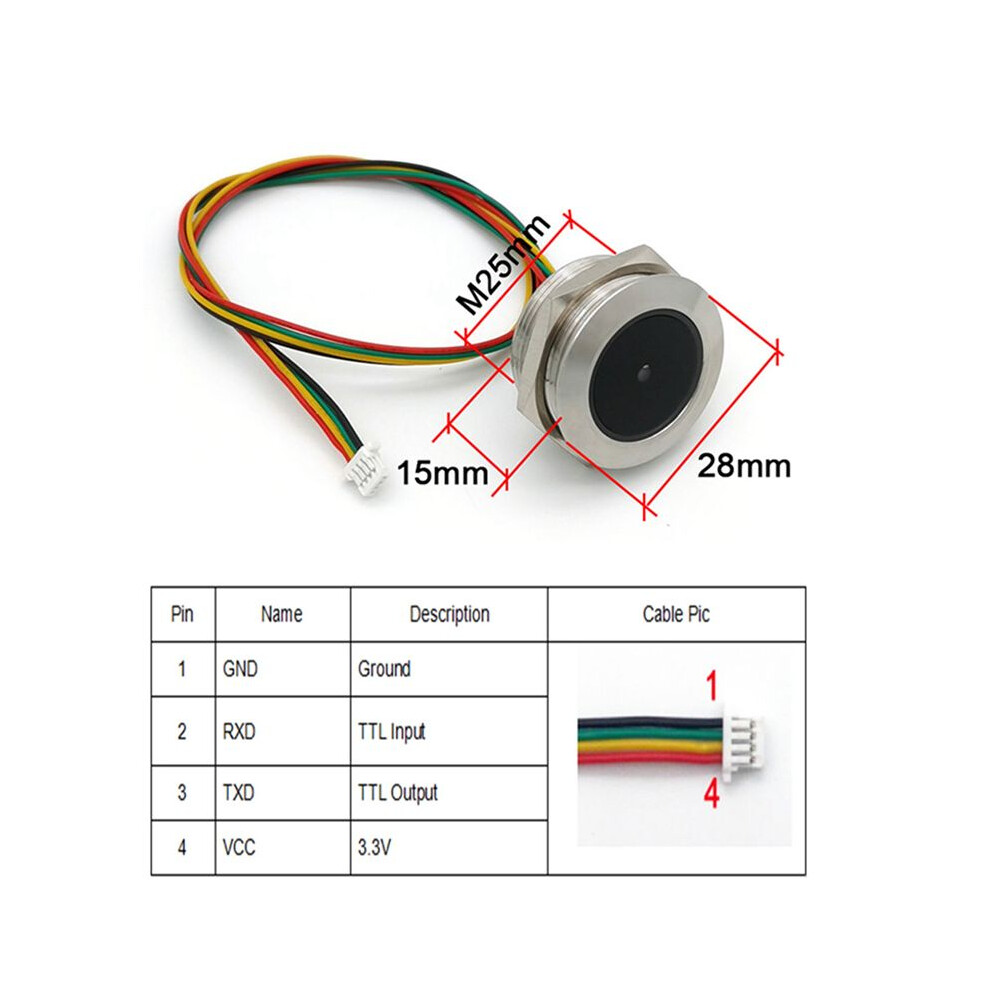

Size: External Diameter 28mm Internal Diameter 25mm
Height 15mm Thread M25
Scan Angle: Roll 360, Pitch 55, Yaw 55
Viewing Angle: 69(Inclination), 56(Elevation)
Light: Colorful indicator/green light flashing prompt reading success
Operating Temperature: -30 degrees to 70 degrees
Storage Temperature: -30 degrees to 85 degrees
Temperature Humidity: 5% to 95% Relative humidity, Non-condensing

Package Contents:

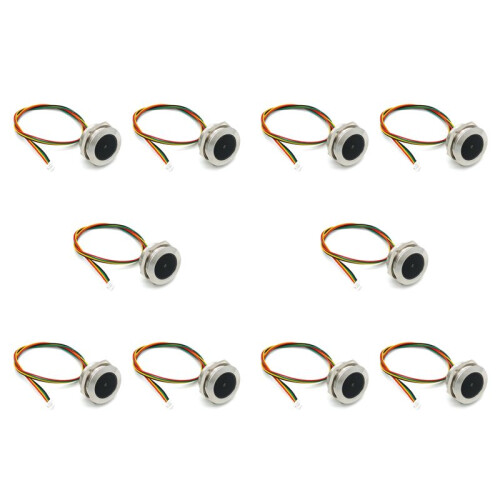

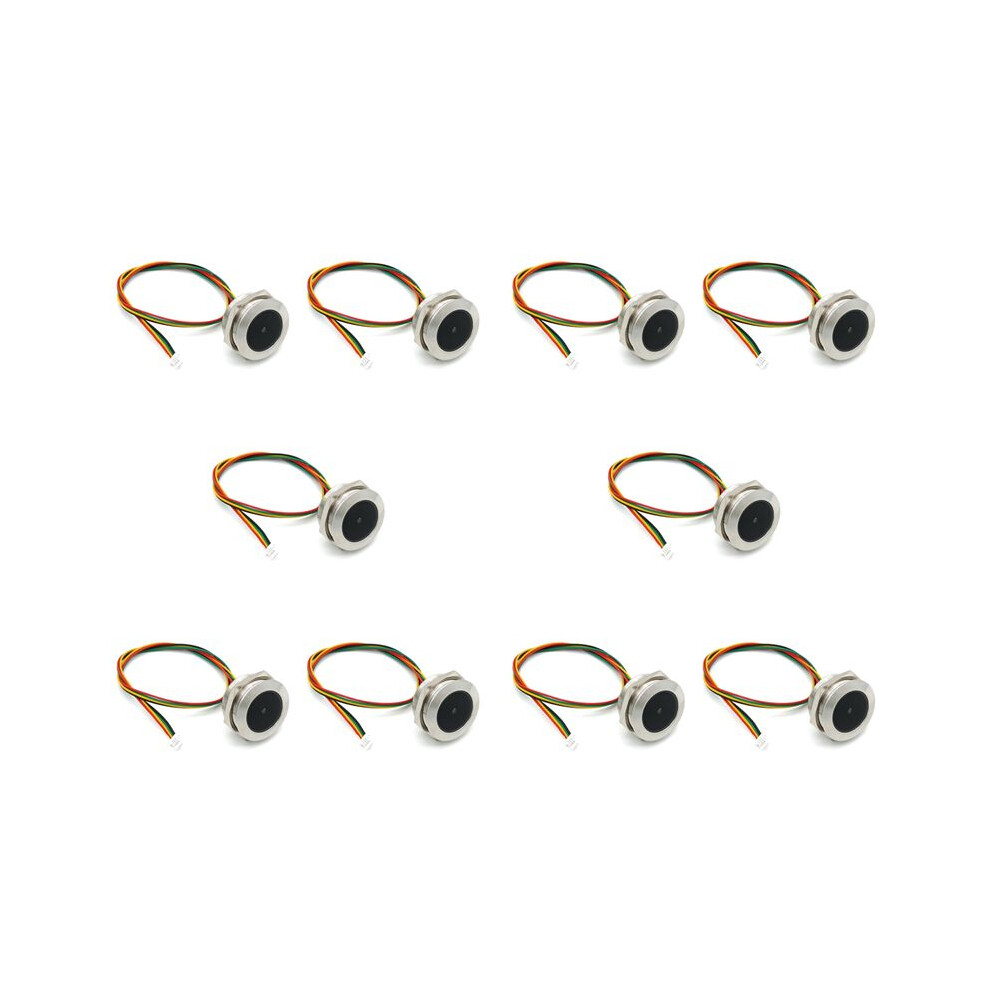

10 x Barcode Scanner Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
