12-37V 5A Brushless Hall Motor Driver Board Motor Foward Reverse Speed Controller Control Module

12-37V 5A Brushless Hall Motor Driver Board Motor Foward Reverse Speed Controller Control Module Description

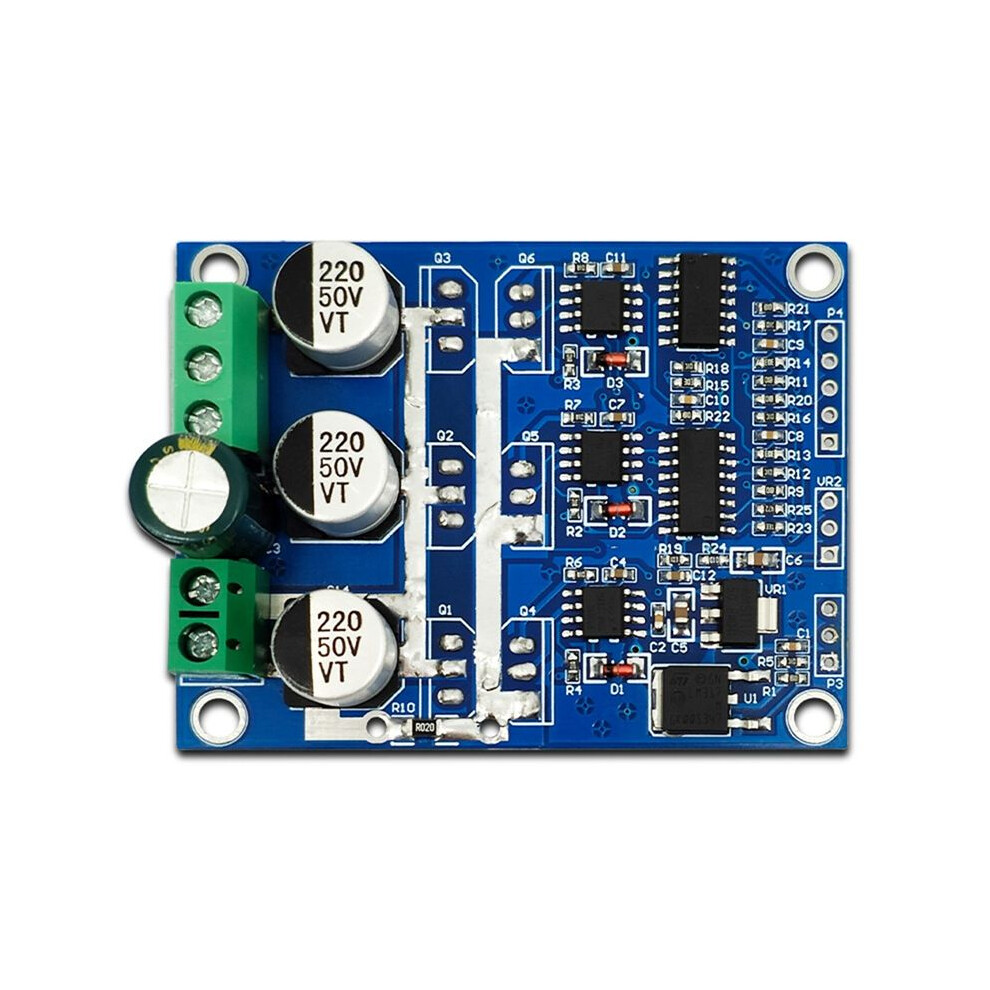

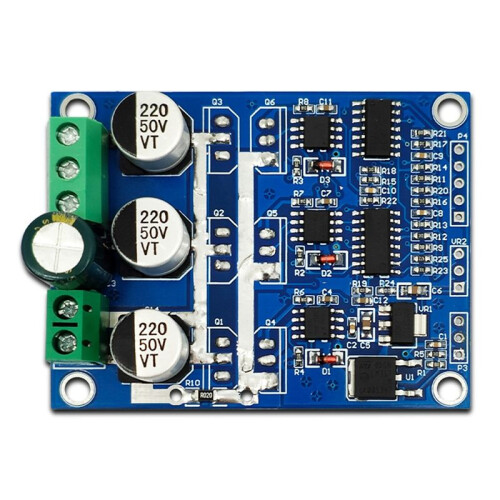

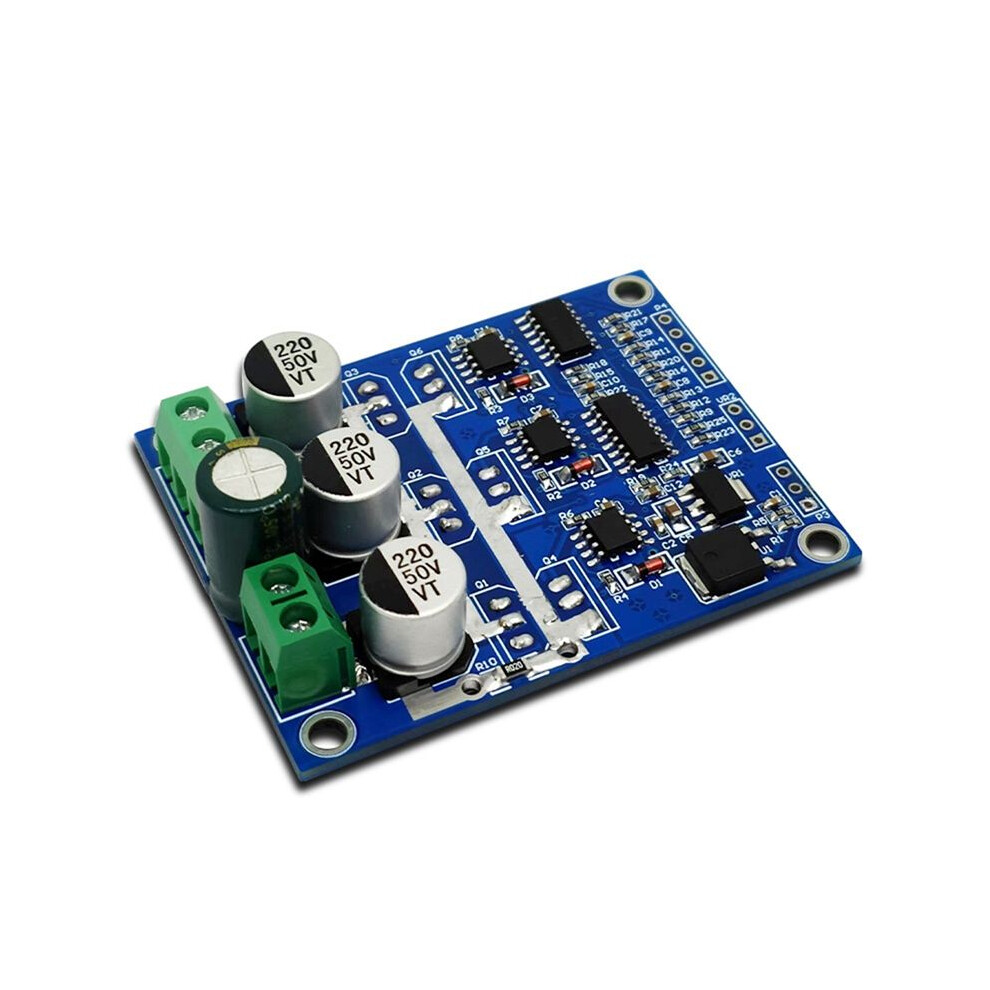

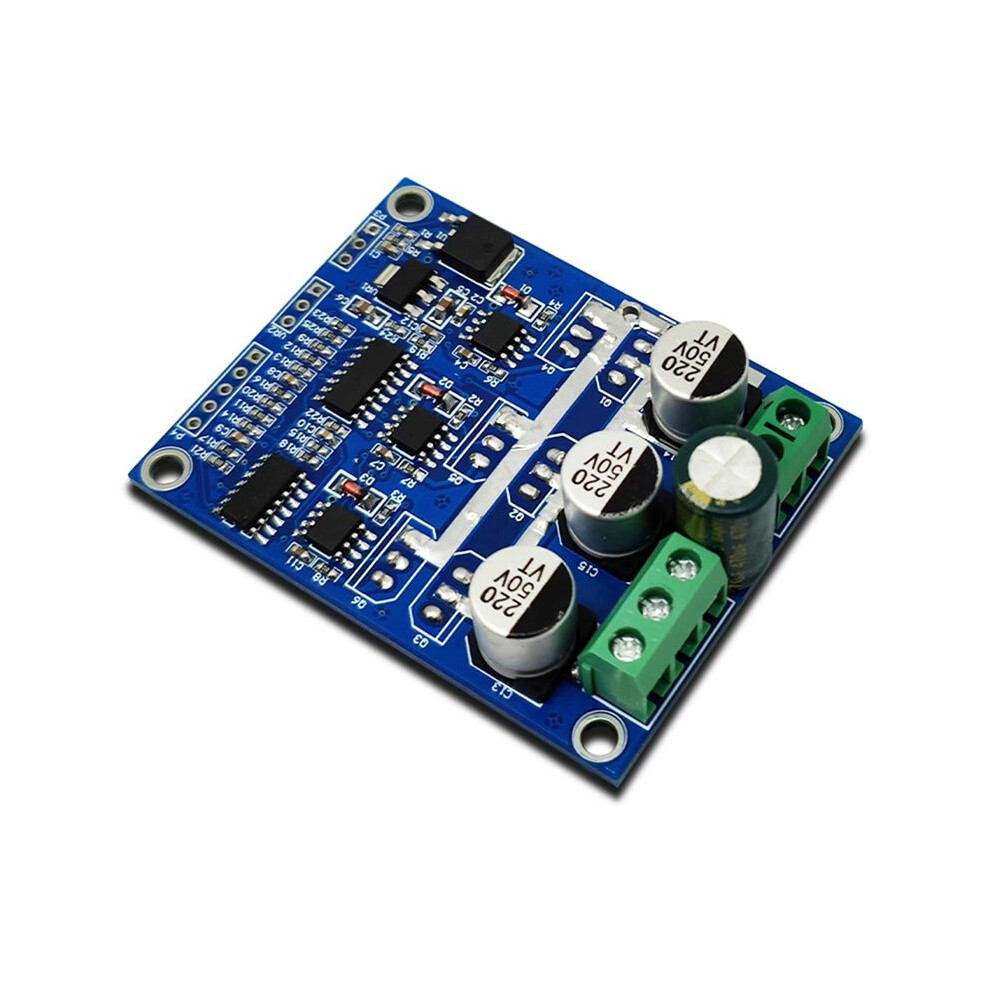

The brushless Hall driver board uses the JY01 chip as the core, with the LM339 comparator and the IR2101s gate driver IC, to provide an efficient and stable brushless motor drive solution. The driver board supports precise control of the Hall brushless motor. It only needs to connect the Hall signal and the motor UVW three-phase to control the motor rotation.
Supports SPWM drive mode, speed adjustment through PWM signal, and can control the motor forward and reverse rotation through pins.
The driver board has overcurrent and overtemperature protection functions to ensure safe and stable operation of the motor.
Input power supply voltage: 12~37V
Supports maximum output current 5A

Onboard Hall sensor interface, supports Hall brushless motor
Motor speed is adjusted by potentiometer
Built-in protection circuit, with over-current and over-temperature protection function to ensure safe operation of the motor
Support SPWM drive mode
Adopt LM339 high-performance comparator to improve signal stability

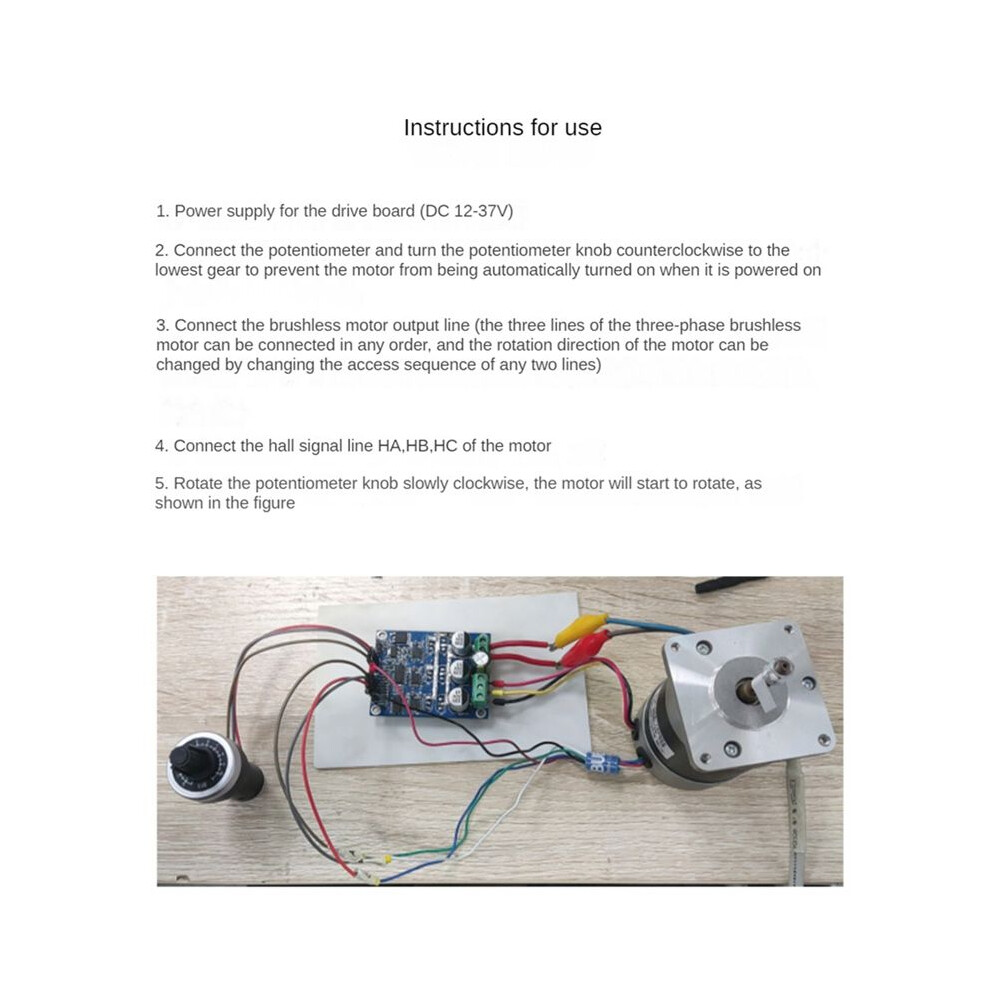

Instructions for use:
1. Power the driver board ( 12-37V)
2. Connect the potentiometer and turn the potentiometer knob counterclockwise to the lowest gear to prevent the motor from automatically turning when powered
3. Connect the brushless motor output (the three wires of the three-phase brushless motor can be connected in any order, and the direction of rotation of the motor can be changed by changing the connection order of any two wires)
4. Connect the motor's Hall signal lines HA, HB, HC
5. Slowly rotate the potentiometer knob clockwise and the motor will start to rotate.
Different batches may have different appearances, but will not affect the use
Colour:
Material:PCB

Package Contents:

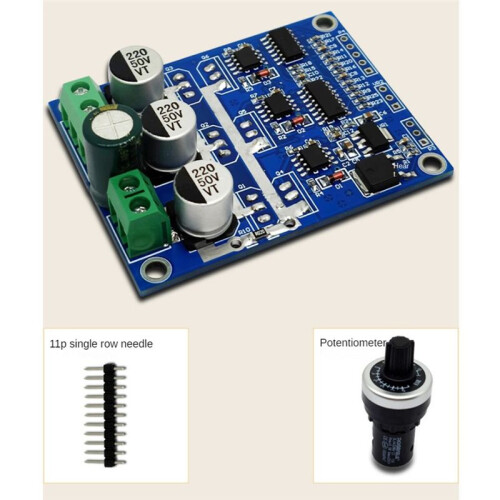

1 x Motor driver board

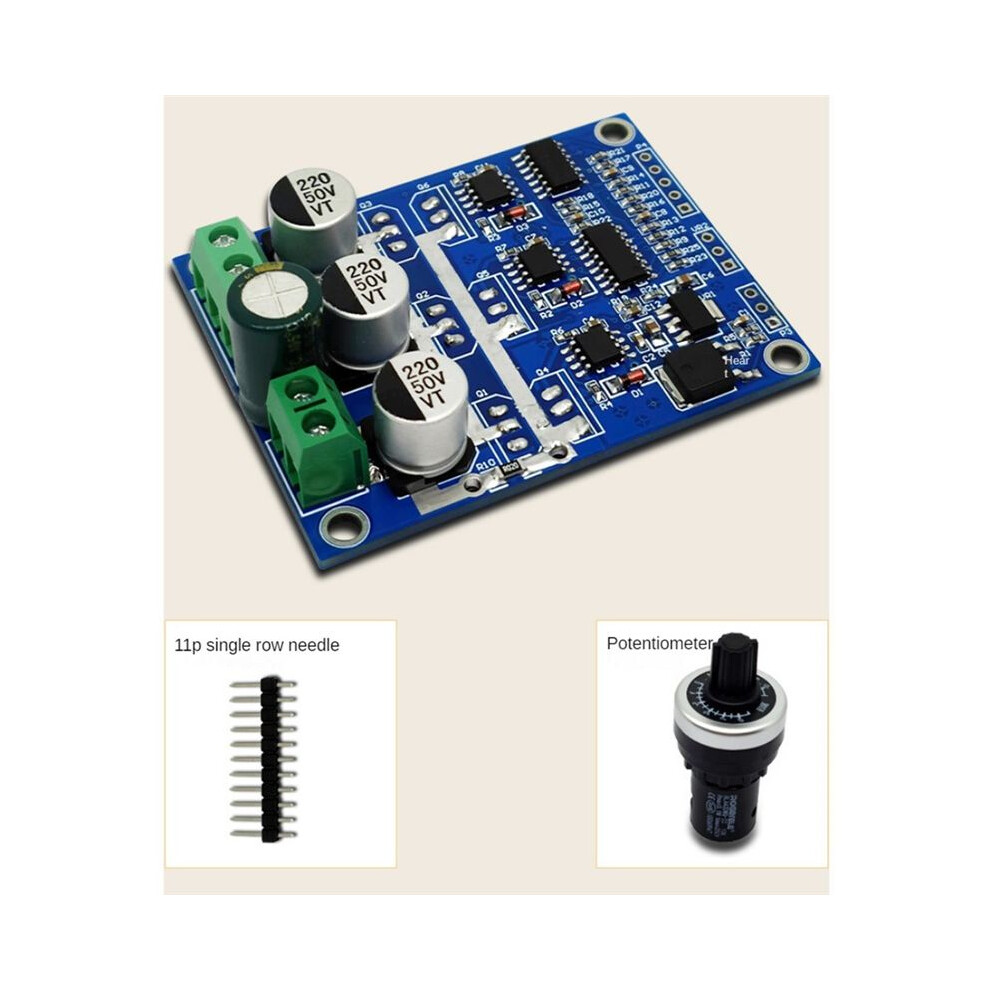

1 x Pin header
