12CHx5A 12-24VDC CV OLED DMX512 Decoder D12A 4 PWM Frequency for RDM DMX Master DIM/CCT/RGB Decoding Mode Selectable

12CHx5A 12-24VDC CV OLED DMX512 Decoder D12A 4 PWM Frequency for RDM DMX Master DIM/CCT/RGB Decoding Mode Selectable Description

12 channels constant voltage output, Max. 5A current per channel, to 1440W output power.
Master & decoder mode, RDM function.
Easy operation with OLED display and 4 buttons.

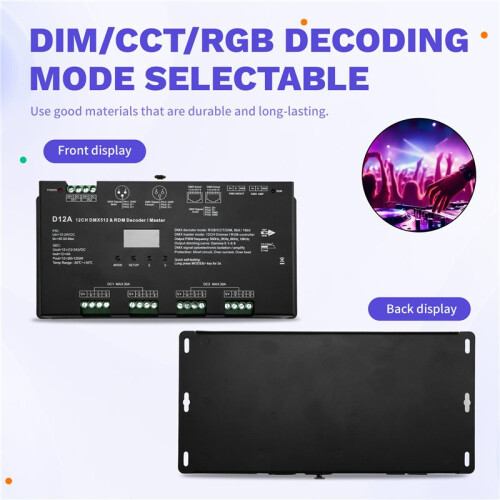

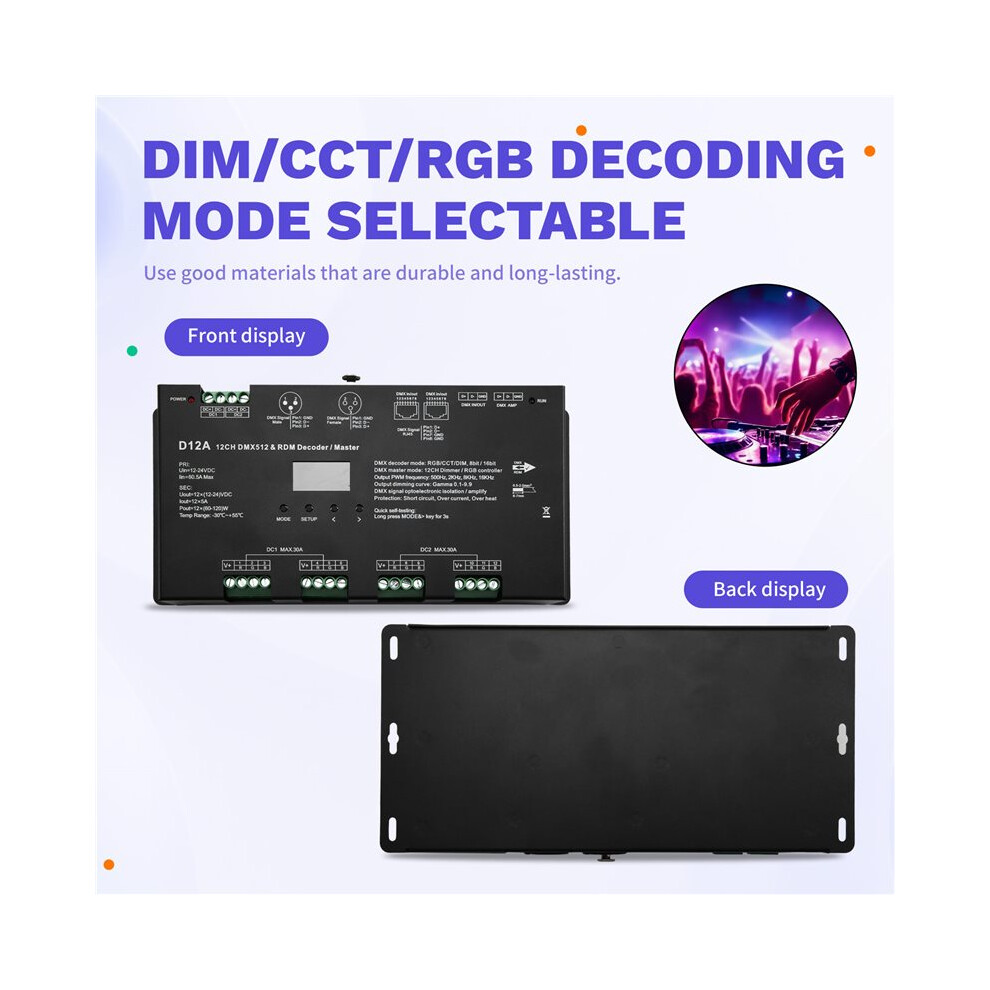

DIM/CCT/RGB decoding mode selectable.

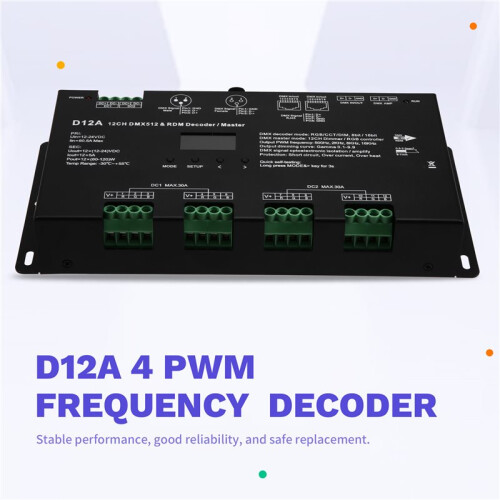

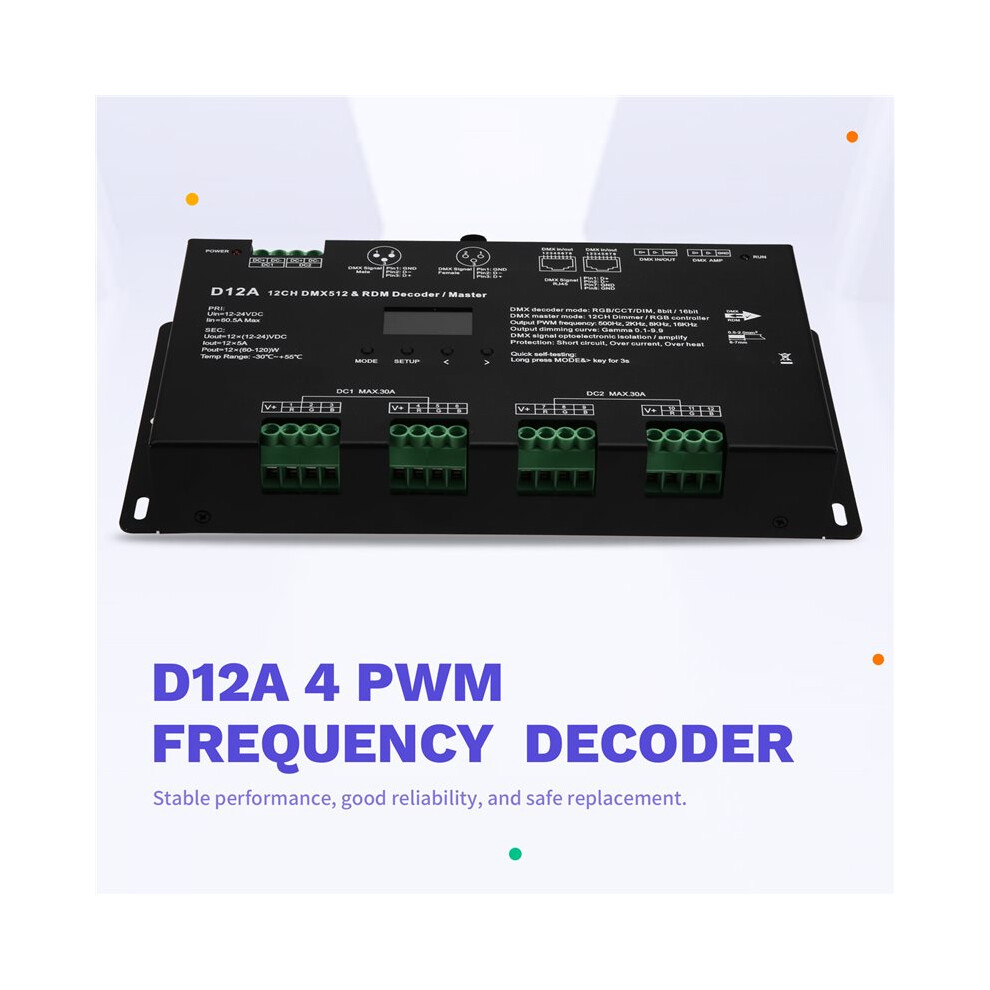

PWM frequency 500/2000/8000/16000Hz selectable.

Description
Report Item

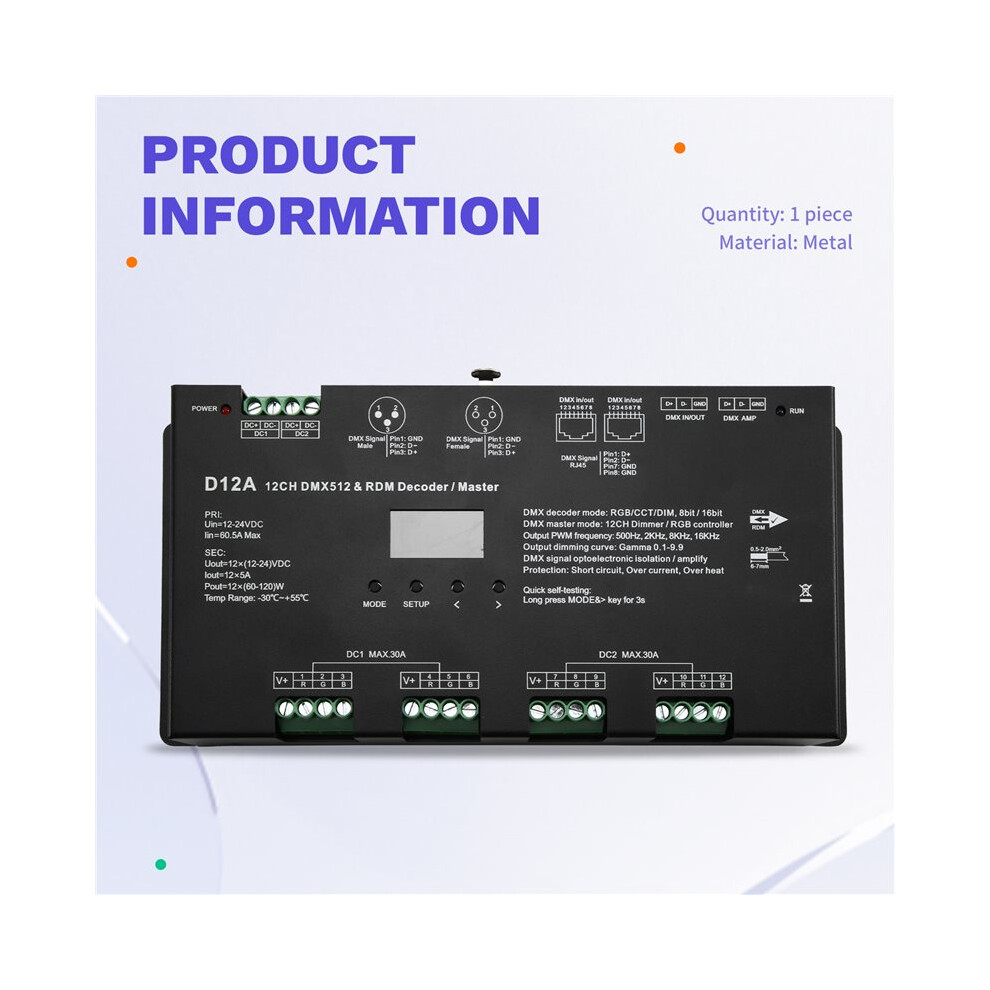

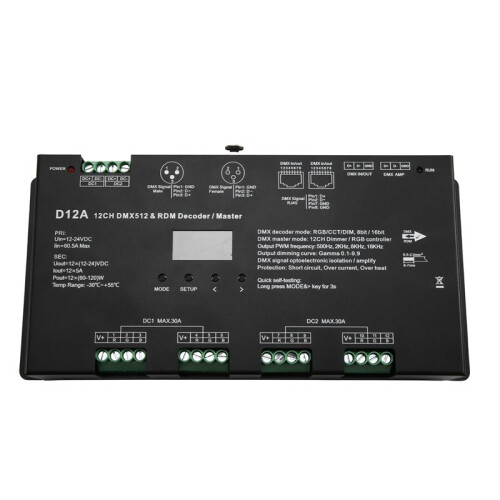

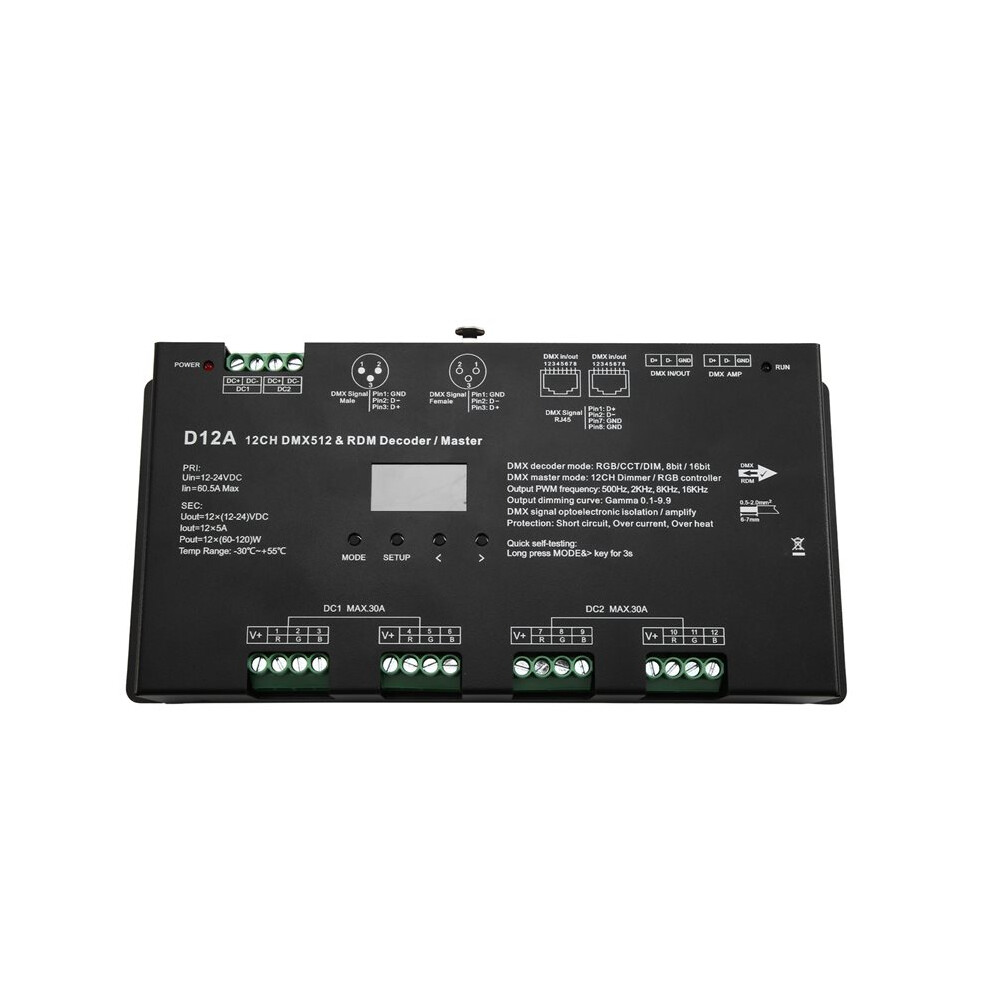

D12A 12 Channels Constant Voltage DMX512 & RDM Decoder / Master
RDM / Stand-alone function / 8 bit or 16bit decode / Four PWM frequency / Multiple dimming curve / OLED display

Features:
12 channels constant voltage output, Max. 5A current per channel, to 1440W output power.
Master & decoder mode, RDM function.
Easy operation with OLED display and 4 buttons.
DIM/CCT/RGB decoding mode selectable.
PWM frequency 500/2000/8000/16000Hz selectable.
16bit (65536 levels) /8bit (256 levels) grey level selectable.
Output dimming curve gamma value 0.1-9.9 selectable.
Stand-alone RGB mode and 12 channel dimmer mode selectable, work as DMX master(8 bit) to control other decoders.
Built-in 10 RGB programs, speed and brightness adjustable.
Comply with the DMX512 standard protocols.
For DMX signal optoelectronic isolation / amplify.
Over-heat / Over-load / Short circuit protection, recover automatically.
With fast self-testing function.
Color: As Shown
Material: Metal

Package Contents:
1*DMX512 Decoder
