1.54inch E-Ink Display Module for , STM32, SPI EPaper Screen 1.54inch-E-Paper-(G)

1.54inch E-Ink Display Module for , STM32, SPI EPaper Screen 1.54inch-E-Paper-(G) Description

Enhance your DIY projects with our versatile 1.54-inch E-Ink display module, compatible with a wide range of devices including for , STM32, and for models. This SPI EPaper screen is perfect for applications requiring low power consumption and clear visibility in lighting conditions.
Low Power Consumption: Ideal for battery-powered projects.
High Visibility: Clear display under direct sunlight.
Wide Compatibility: Supports multiple platforms and development boards.

Working voltage:Bare screen version:3.3V
Display size: 27.0 x 27.0 (mm)
Dot pitch: 0.135 x 0.135 (mm)
Resolution: 200 x 200 pixels
Display color: red, yellow, black, white
Grayscale: 2
Fast refresh: 15 seconds
Global refresh: 20 seconds
Refresh power consumption: Less than 30mW
Sleep current: Less than 0.01uA (close to 0)
Viewing angle: 170
Due to different batches, there may be differences in product appearance and printed text, which not affect use.

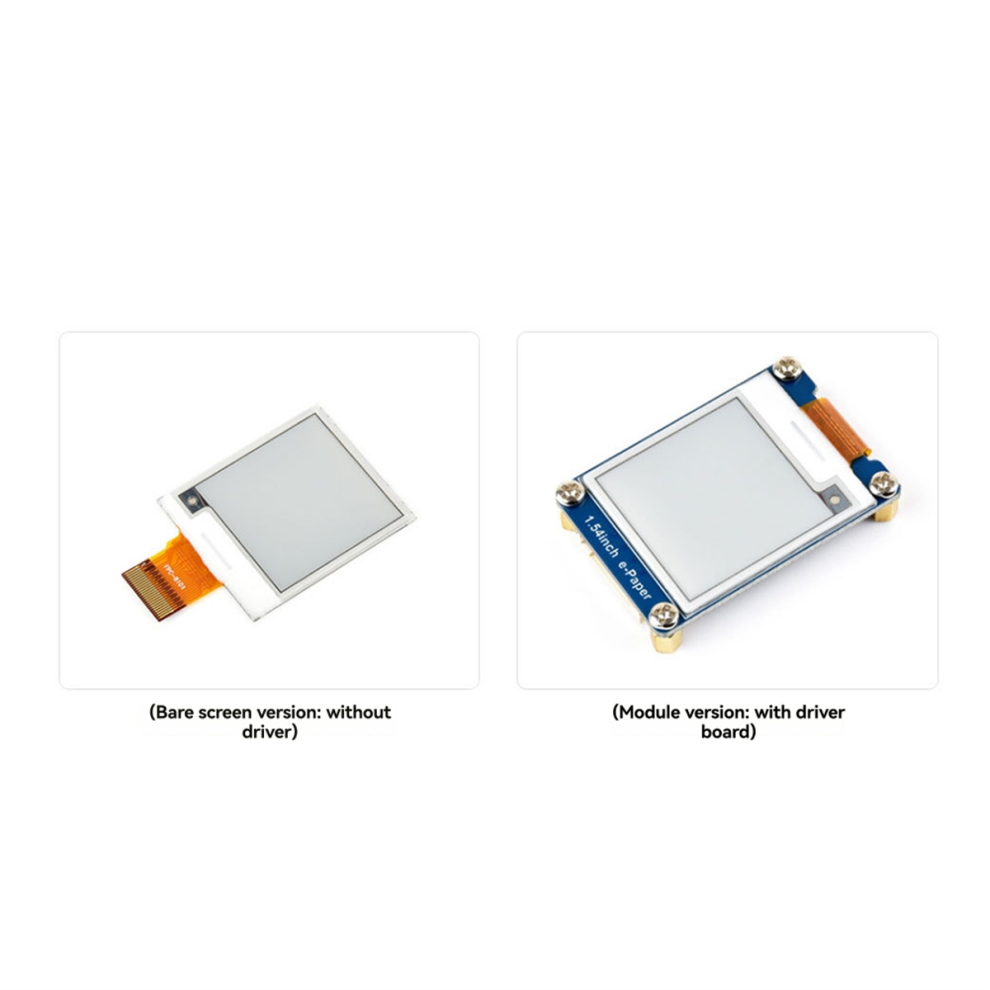

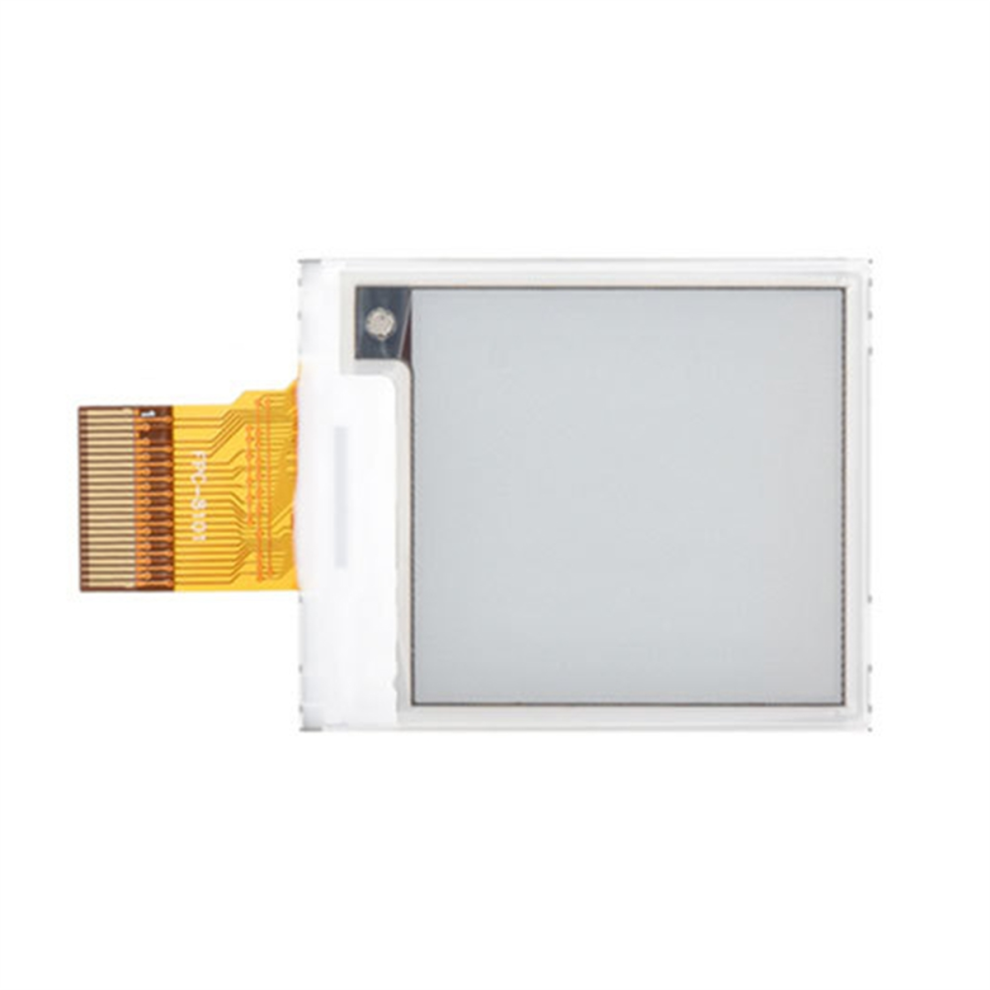

Specifications:B:Bare Screen Version 1.54inch-E-Paper-(G)
Colour:As Shown
Material:glass

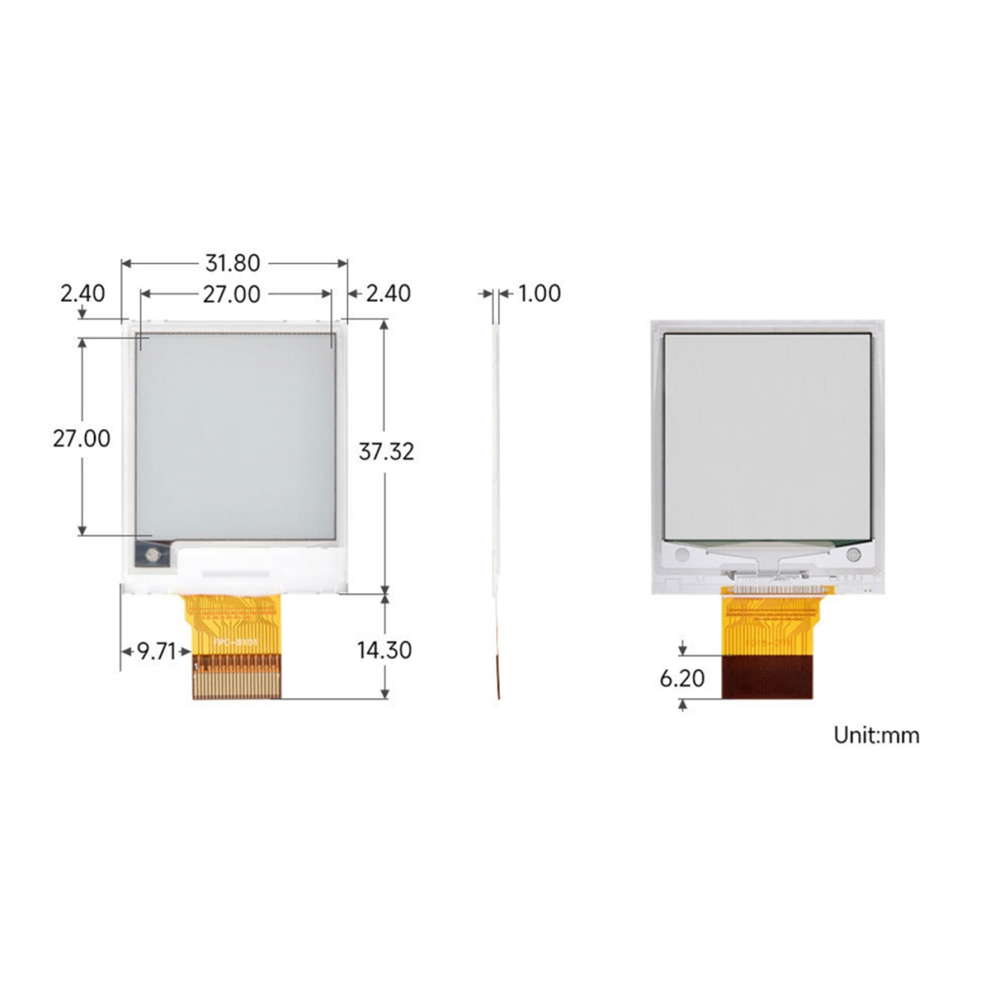

Dimensions:bare screen version:37.32 x 31.8 x 1.00 (mm)

Package Contents:
1 * E-Ink Display Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
