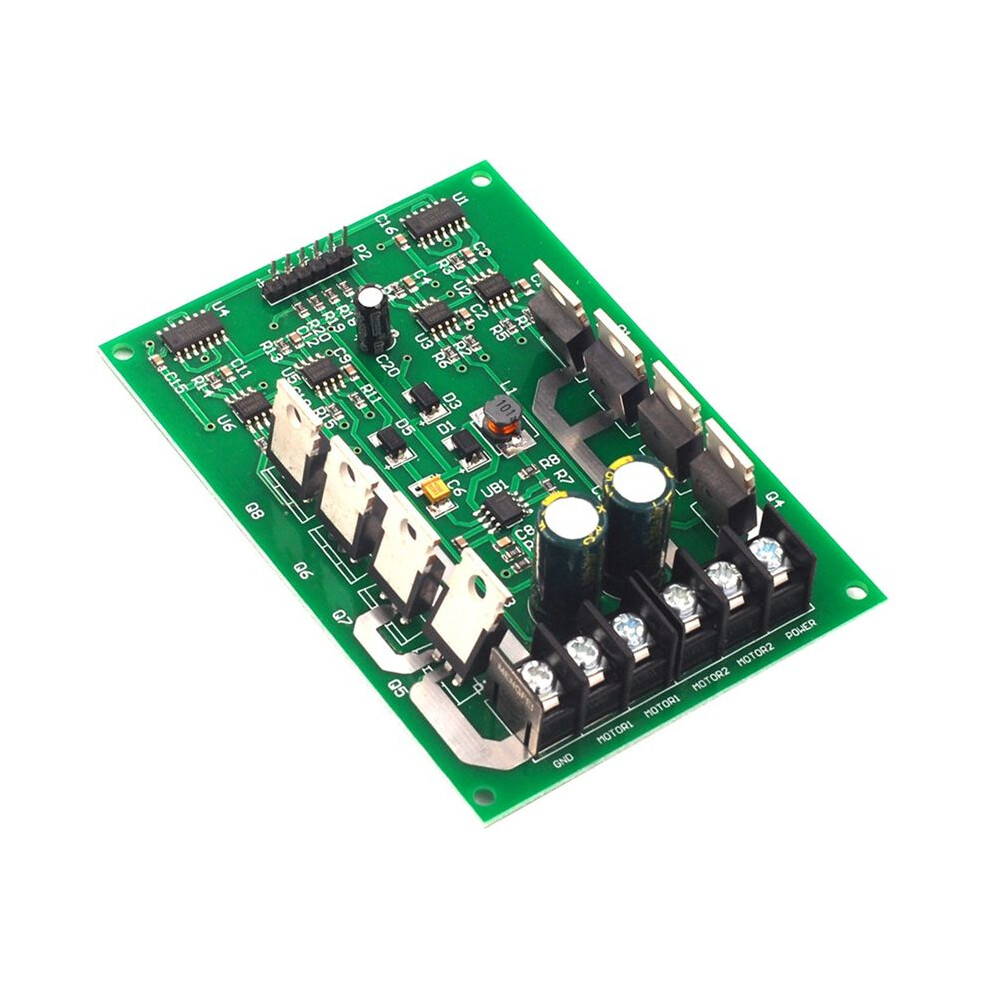

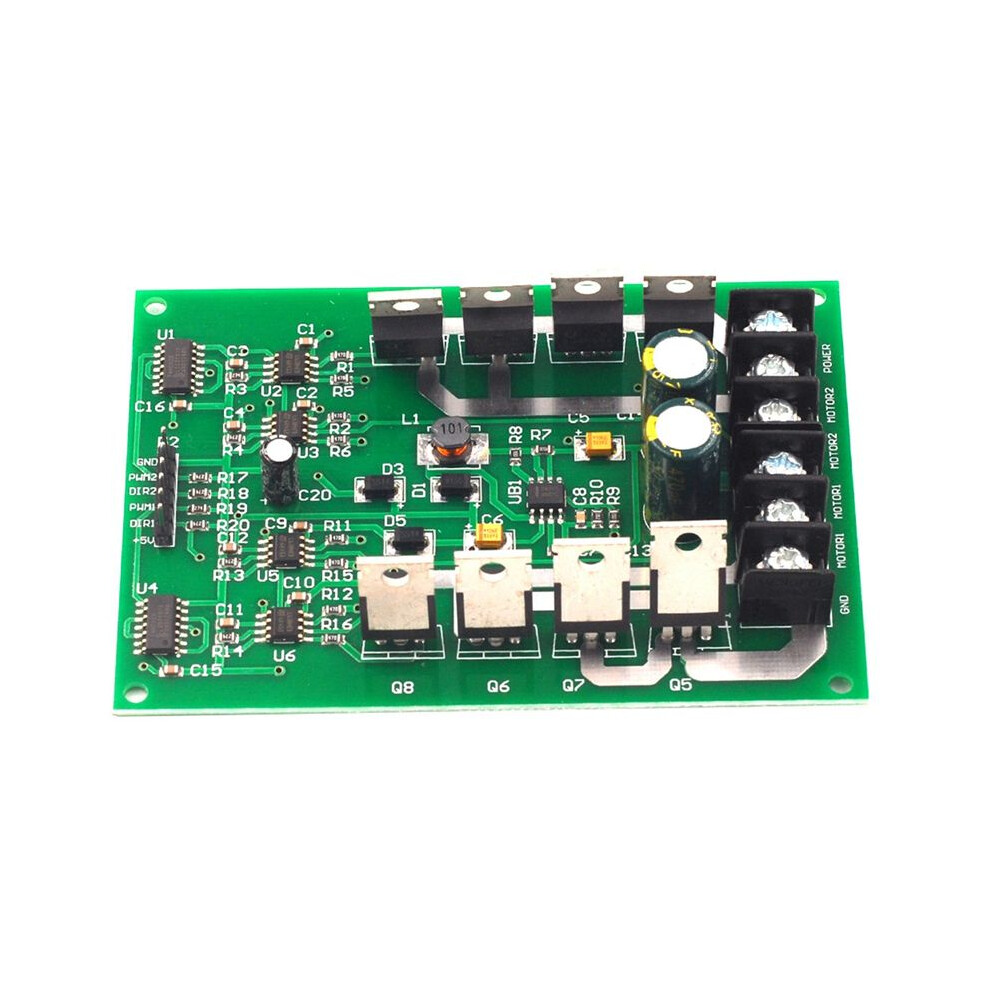

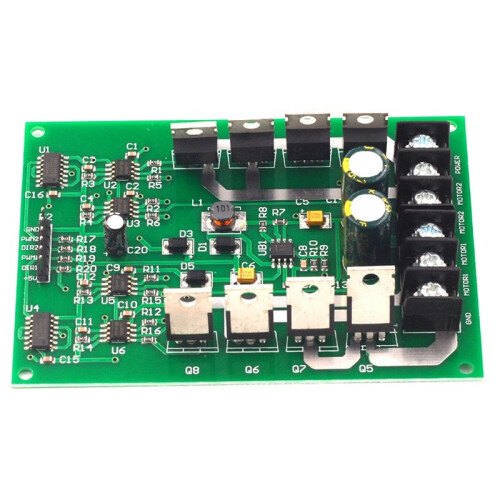

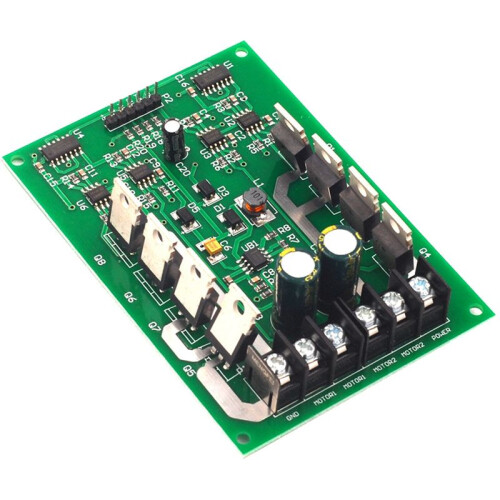

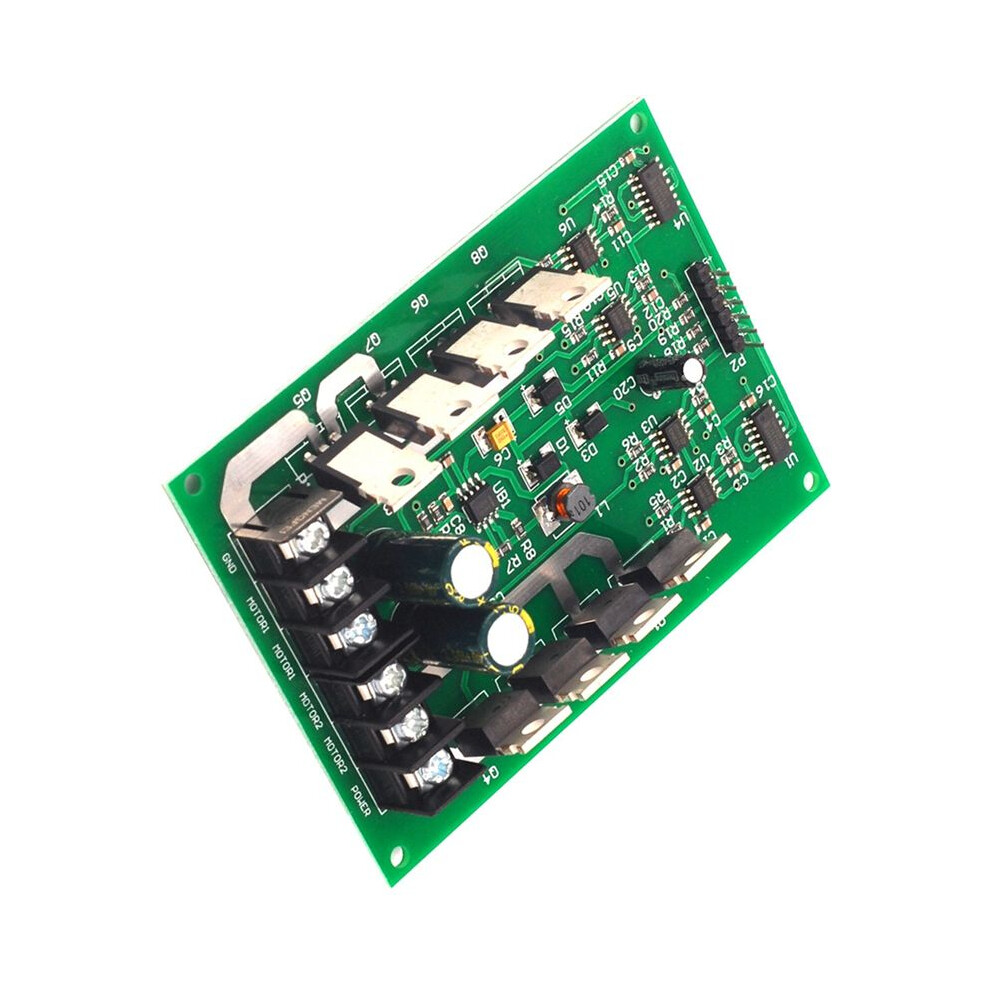

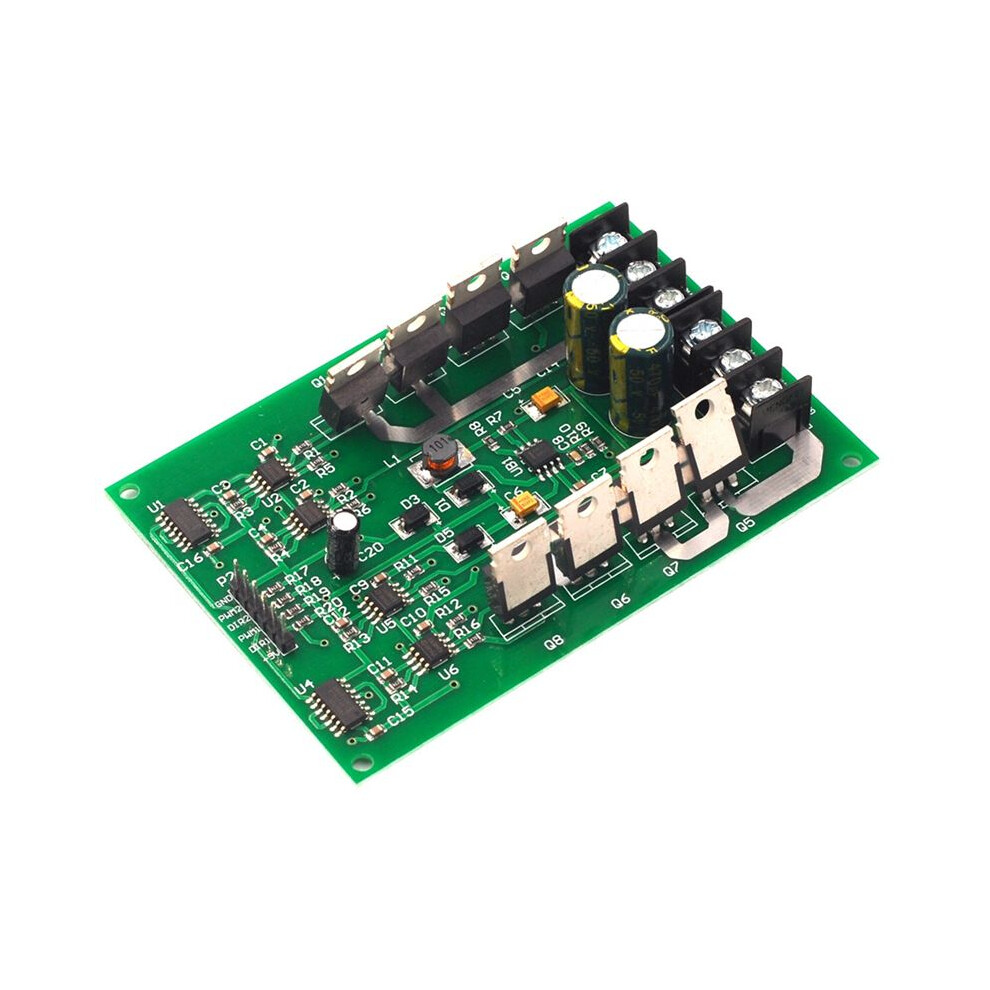

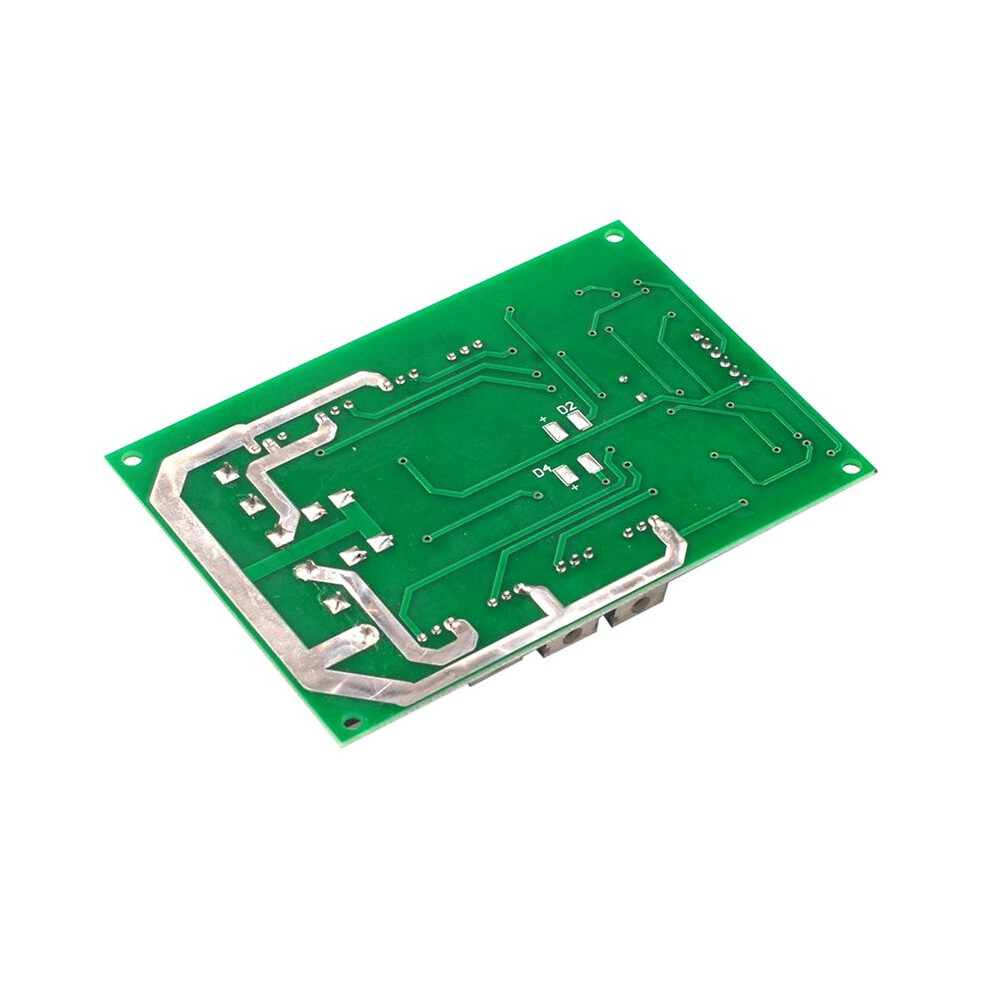

15A Dual H-Bridge Motor Driver Module Motor Drive Controller Board for Robot Car Compatible 3V-36V

15A Dual H-Bridge Motor Driver Module Motor Drive Controller Board for Robot Car Compatible 3V-36V Description

The performance of this driver is unmatched by motor driver chips such as L298. This driver focuses current and efficiency, effectively exerting motor power and battery life. It can withstand large current overloads, with a maximum current of 30A.
This driver also has a braking function that can quickly brake the motor, with rapid and obvious braking, and it is easy to operate to achieve this function. This driver is composed of two complete half-bridge driver chips + extremely low internal resistance N-channel MOSFET.
The reliable driving method of the complete two half-bridge driver chips minimizes the switching loss of MOSFET. MOSFET uses N-channel IRF3205 MOSFET, uses two dedicated half-bridge driver chips, and uses bootstrap capacitors for the upper tube, so that the upper tube has sufficient driving voltage, which can quickly open the MOSFET channel and increase the acceleration curvature of the motor.
At the same , it can also quickly brake the motor. This can enable the car to start quickly and kill quickly. This driver can operate at a PWM modulation duty cycle of 0%-99%, so that the motor can get enough driving voltage.

Rated voltage: 3v-36v
Rated current: 15A
Motor forward: DIR=1 PWM=PWM
Motor reverse: DIR=0 PWM=PWM
Parking brake: DIR=X PWM=0 (X is Any state)
POWER is connected to the positive pole of the power supply, GND is connected to the negative pole of the power supply. The two motors are connected to MOTOR1 and MOTOR2 respectively
Different batches may have different appearance label printing, which will not affect the use
Colour:Green
Material:plastic

Package Contents:
1 x Motor Driver Module
