1.8v 3v 5v 6v 7.2v 12v 2A 30W Motor Speed Controller (PWM) 1803BK Adjustable Driver

1.8v 3v 5v 6v 7.2v 12v 2A 30W Motor Speed Controller (PWM) 1803BK Adjustable Driver Description

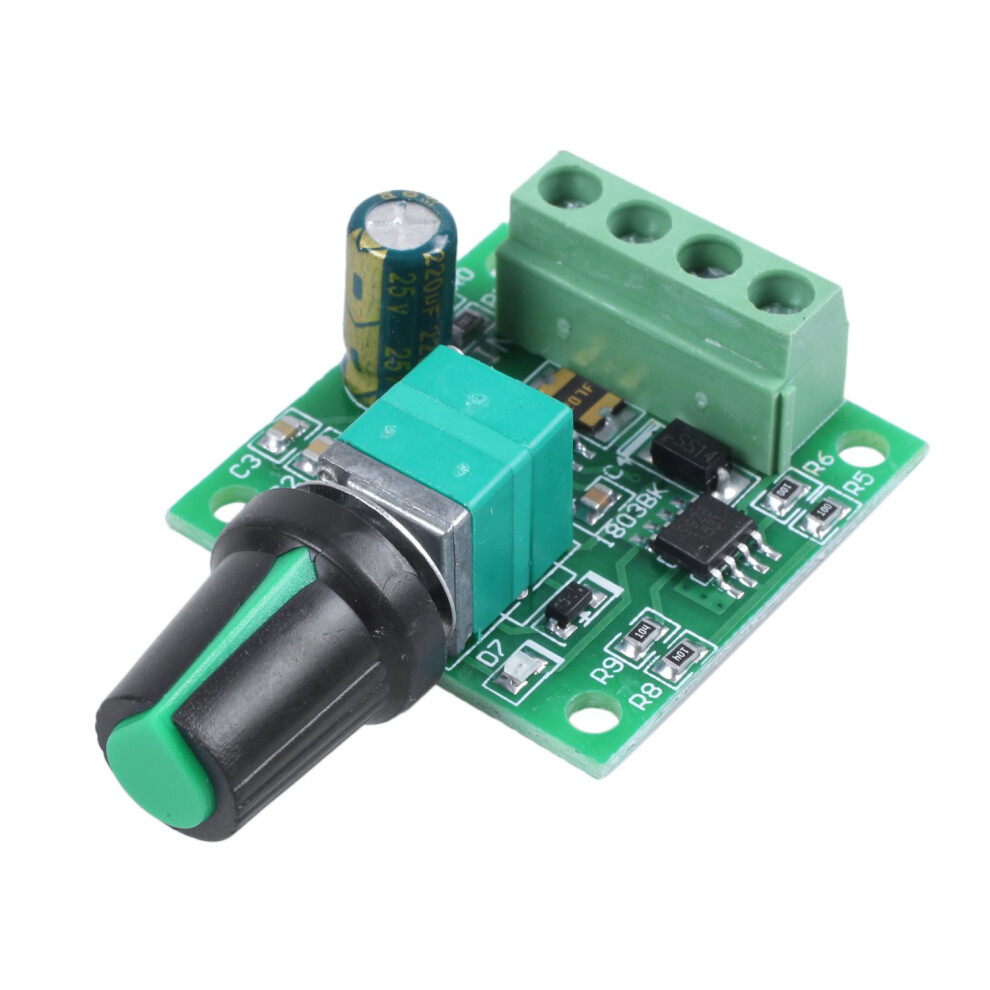

1803BK Motor Speed Regulator controls the speed of a motor by adjusting Pulse-Width-Modulated (PWM).
The input power range is 1.8-15V .
Use a 2A resettable fuse to protect the controller.
Potentiometer with function.
Operating instruction: Before you attempting to wire the controller, make sure power is off.

WARNING: TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
Connect wires refer to the "wiring diagram" (NO.5 picture).
Turn the power, and adjust the potentiometer.
The LED indicates the and the speed of motor.
Input supply voltage: 1.8V-15VDC;
The maximum output power: 30W
The maximum continuous output current: 2A
Duty Cycle adjustable: 0%-
Material: Plastic
Colour: Green
Item size: 1.3 x 1.3 x 0.6 inches; Net Weight: 0.5 ounces

Package Contents:
1 x Motor Speed Controller

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
