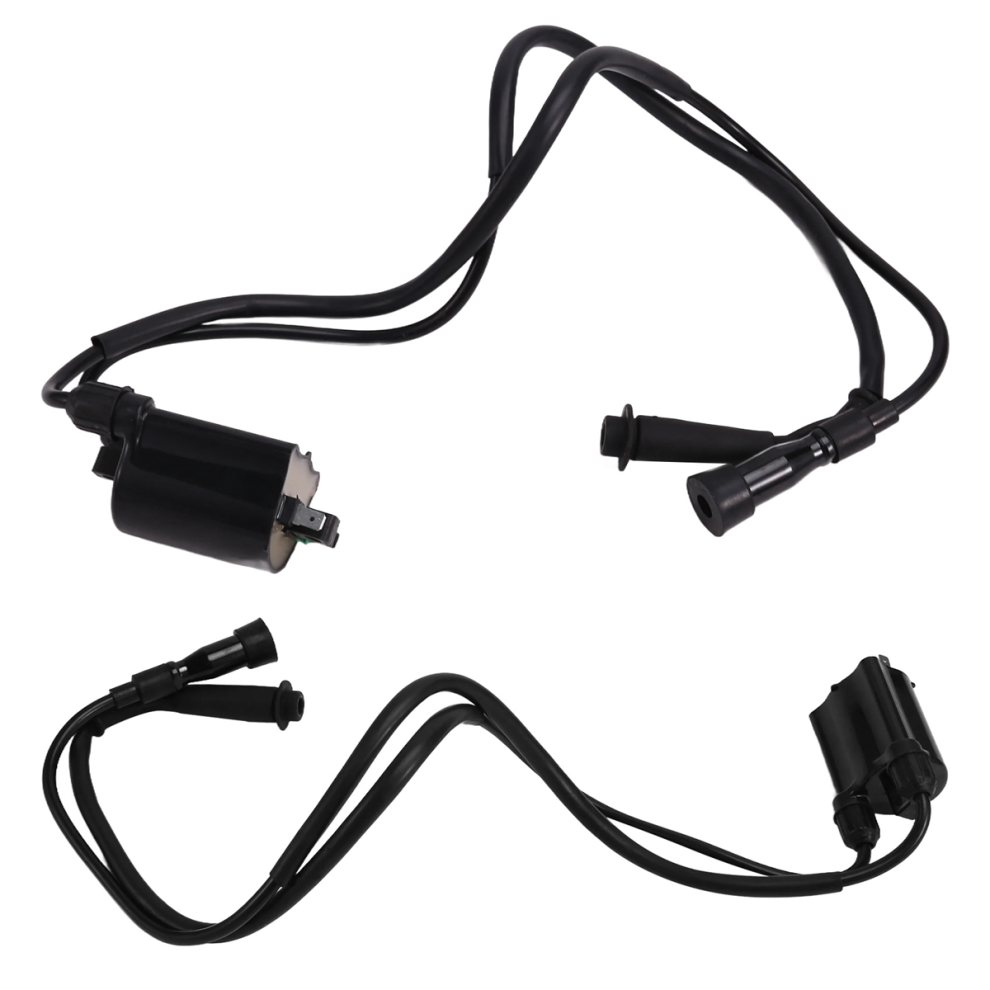

1Set Ignition Coil & Spark Plug Cap for Shadow VLX

1Set Ignition Coil & Spark Plug Cap for Shadow VLX Description

Distance between installation center hole : 80mm
Primary resistance 1.8Ω
The secondary resistance with the cap: 36KΩ(the secondary resistance without the cap: 26KΩ)
Name:ignition coils with spark plug caps
Type:Ignition coil

Part Number:
Ignition Coil Part Numbe: 30510-MM8-003
Spark Plug cap Part Numbe: 30701-MF5-000 30751-MR1-000 30753-MR1-000

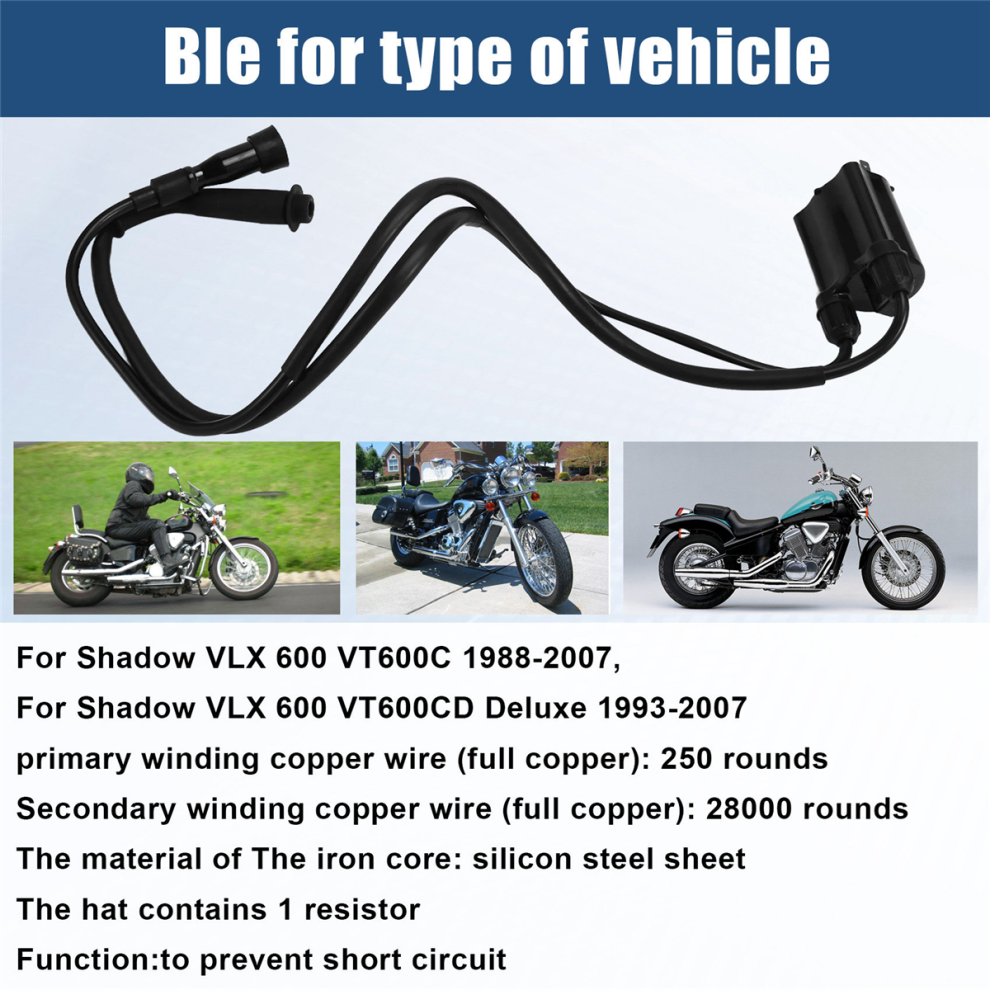

This Accessories fits the following models:
For Shadow VLX 600 VT600C 1988-2007,
For Shadow VLX 600 VT600CD Deluxe 1993-2007
primary winding copper wire (full copper): 250 rounds
Secondary winding copper wire (full copper): 28000 rounds
The material of The iron core: silicon steel sheet
Function: rust-proof, magnetic conductivity, low loss
The material of the hat: silicone
Function: high temperature resistance, aging resistance, insulation resistance
The hat contains 1 resistor
Function:to prevent short circuit

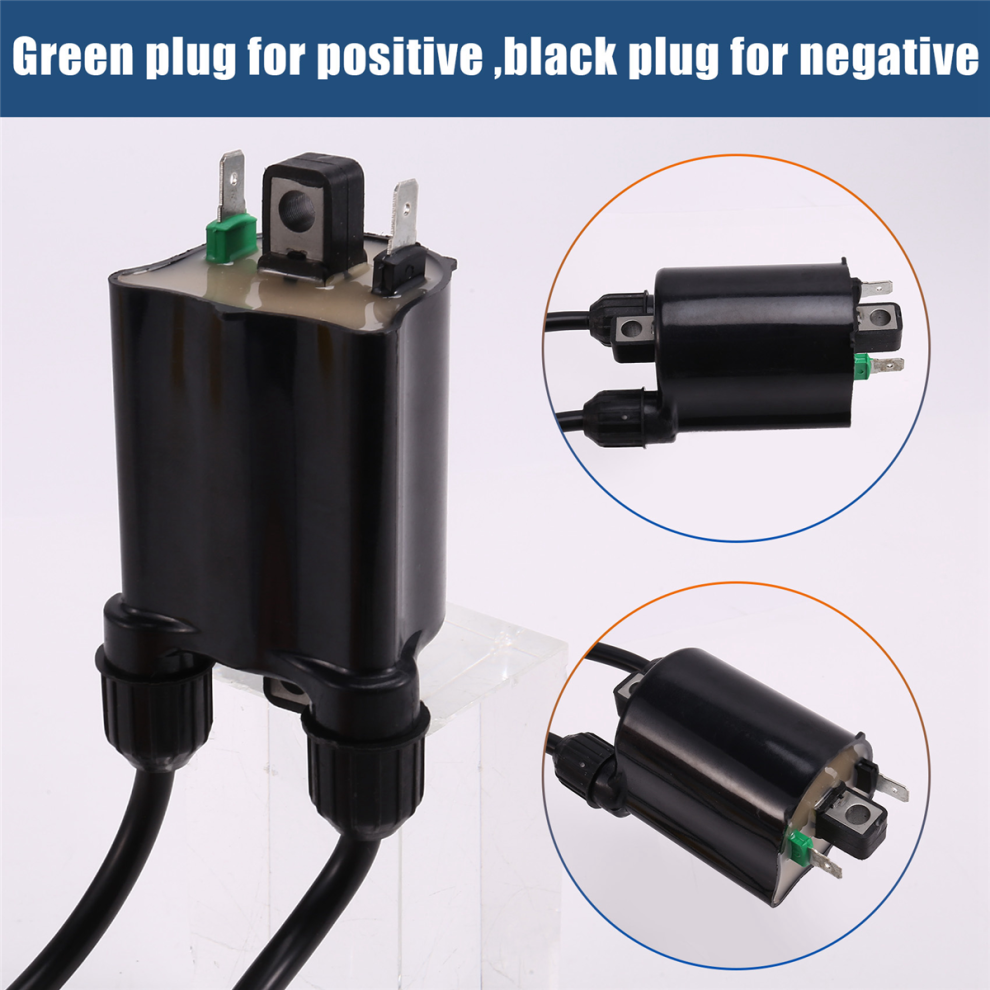

Green plug for positive ,black plug for negative
Colour:black
Material:plastic

Package Contents:

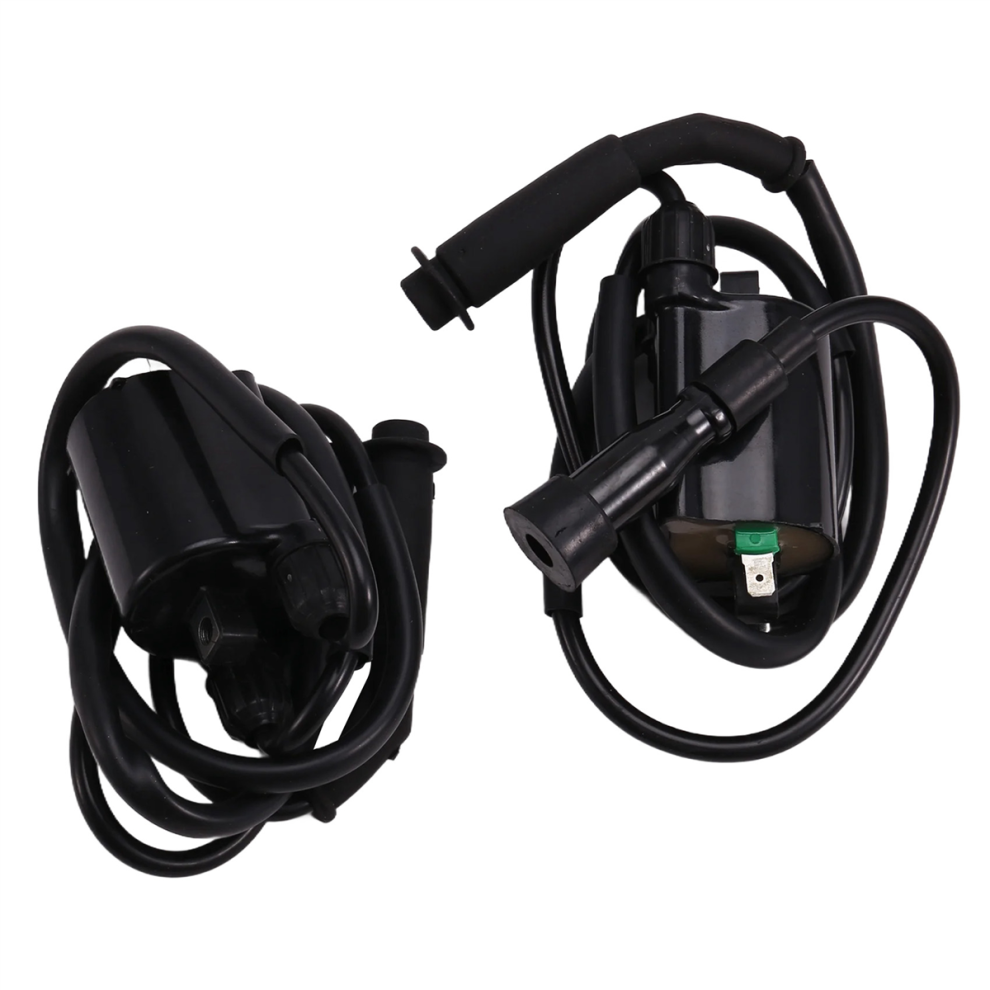

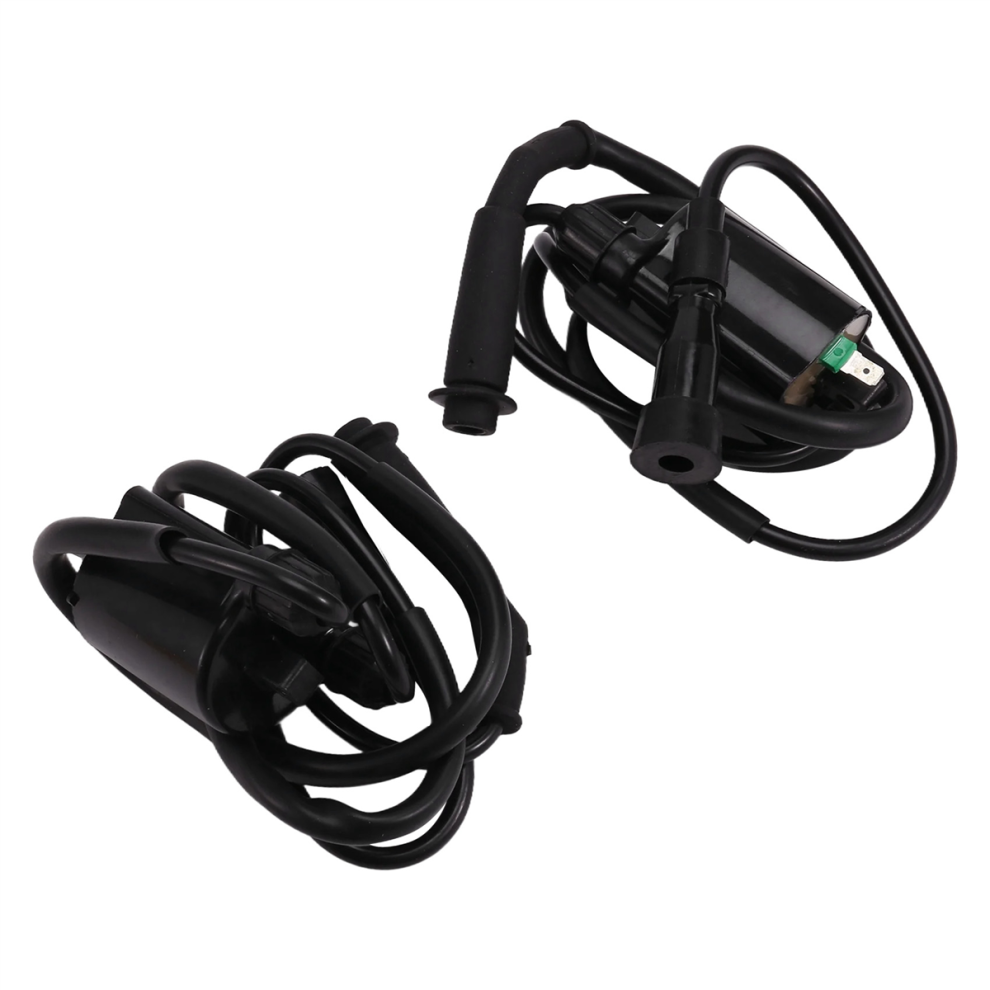

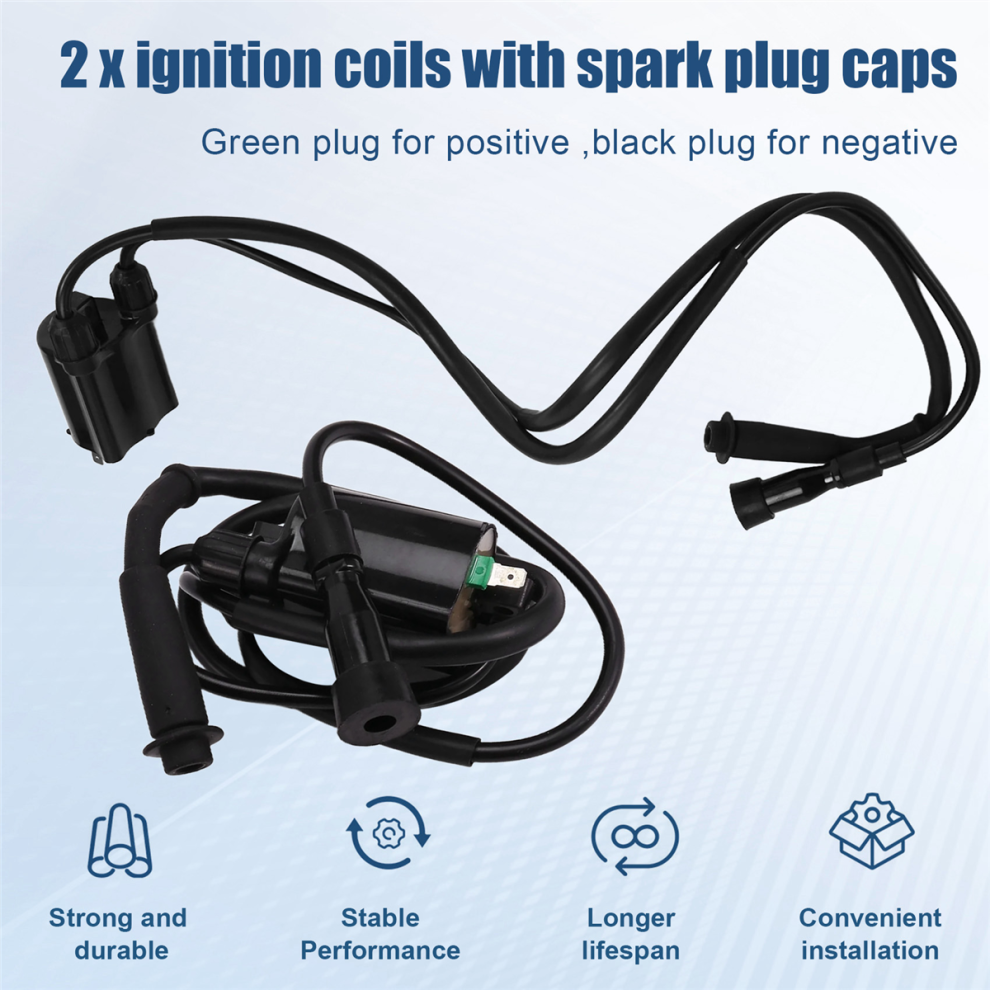

2 x ignition coils with spark plug caps

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
