1set IR Infrared Transmitter Module Digital 38Khz

1set IR Infrared Transmitter Module Digital 38Khz Description

Note:due to different production batches, the printing screen printing/appearance is different, which does not affect the use.
Colour:Black

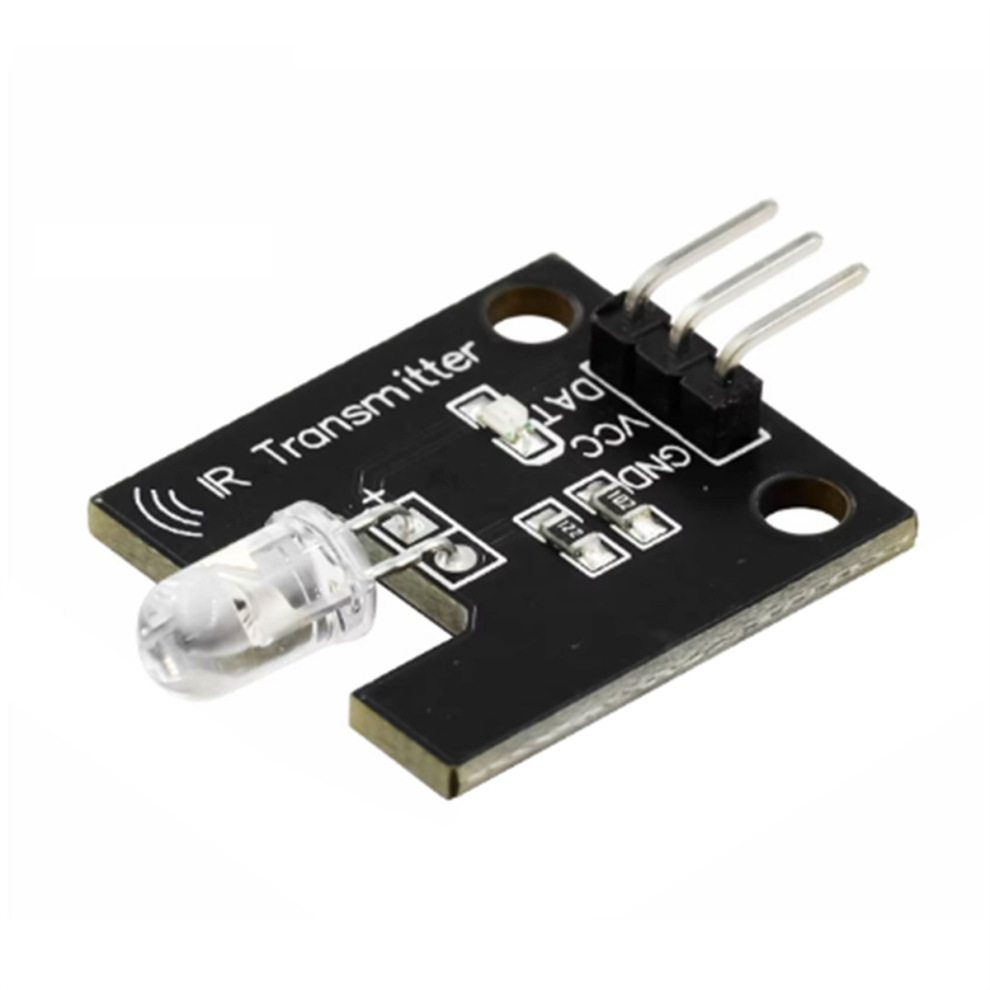

1. Infrared Transmitter module:
Supply voltage: 5V
Working environment: -25-+85
Storage temperature: -30-100
Wavelength: 940mm
Signal type: Digital signal
Infrared central wavelength: About 582nm-940nm
Infrared emission distance: About 1. (5V 38khz)
Infrared emission Angle: About 25 degrees
Wiring instructions:
DAT: indicates the digital output interface
VCC: positive terminal of the 5VDC power supply
GND: The negative pole of the 5VDC power supply

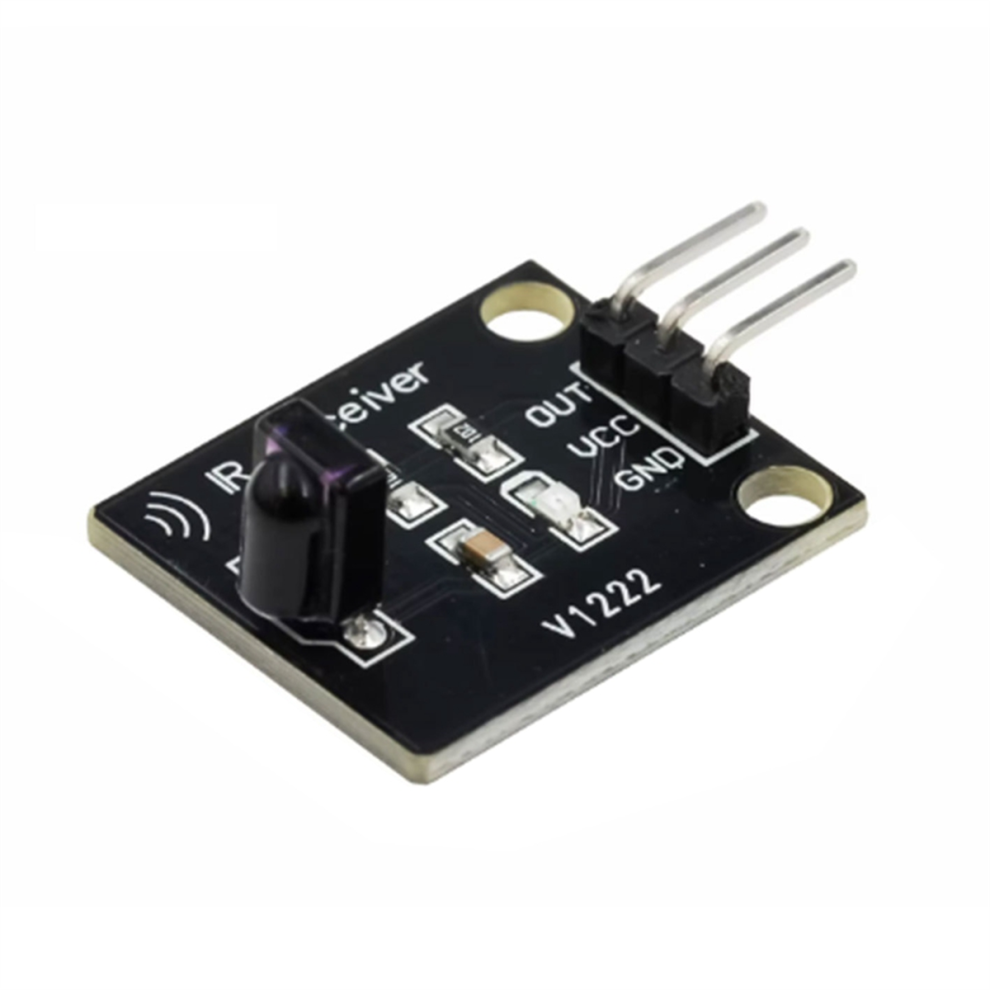

2. Infrared receiving module:
Supply voltage: 5V
Working environment: -25-+85
Storage temperature: -30-100
Carrier frequency: 940mm
Signal type: Digital signal
Infrared emission distance: About 10 meters
Infrared emission Angle: About 35 degrees
Wiring instructions:
DAT: digital output interface
VCC: positive terminal of the 5VDC power supply
GND: The negative pole of the 5VDC power supply
Material:PCB+ components

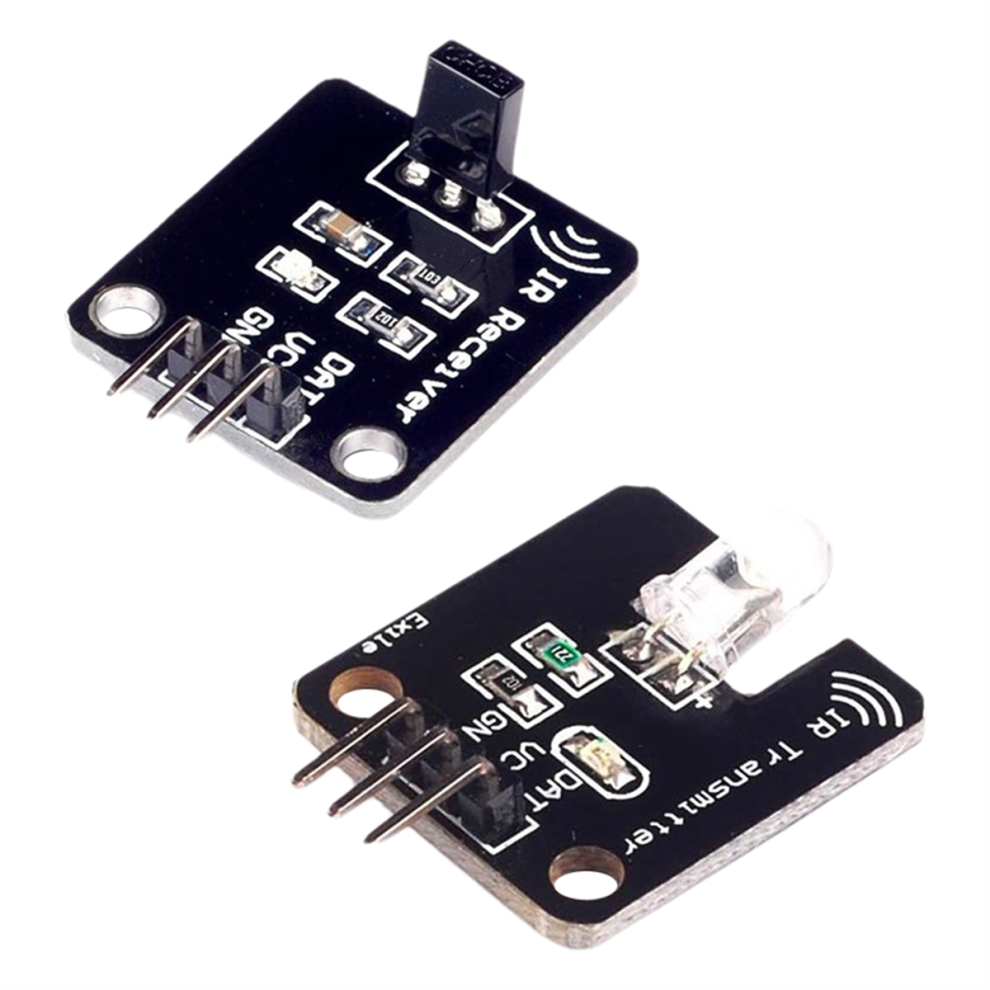

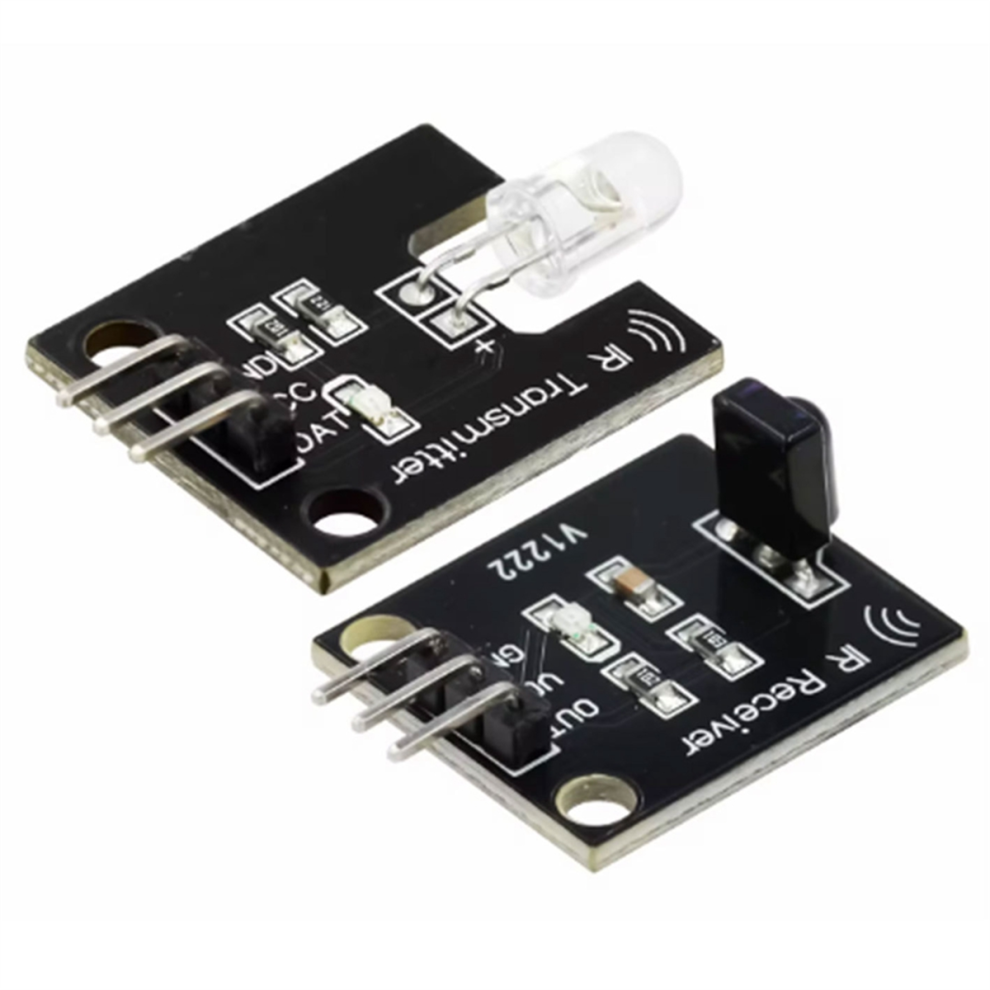

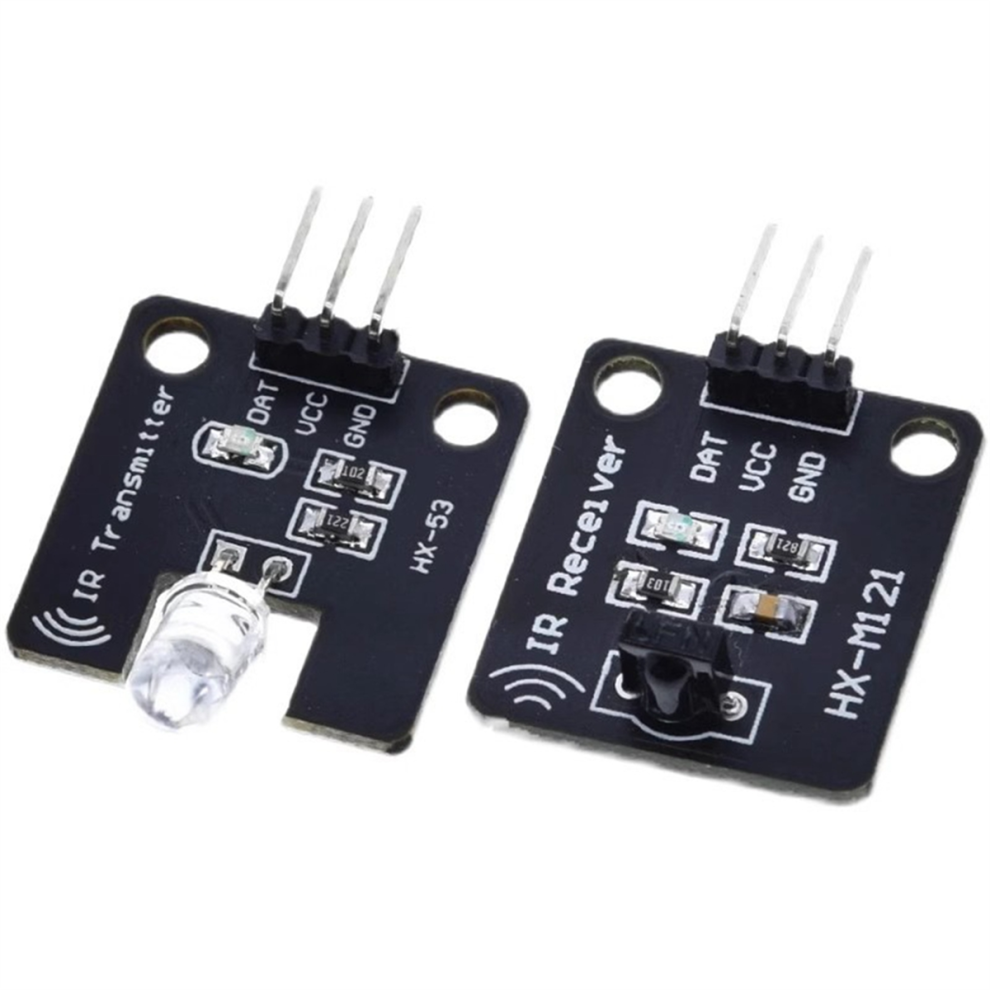

Package Contents:
1 * IR Transmitter Module
1 * IR Receiver Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
