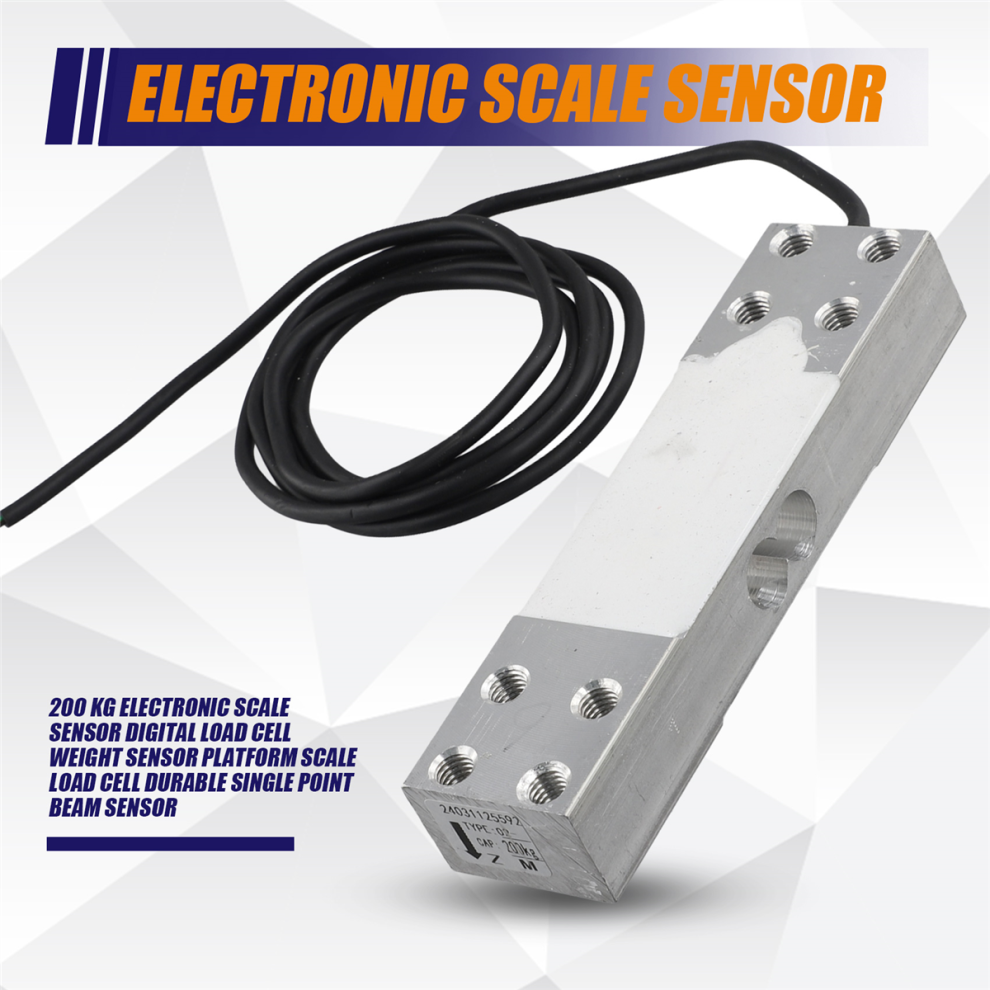

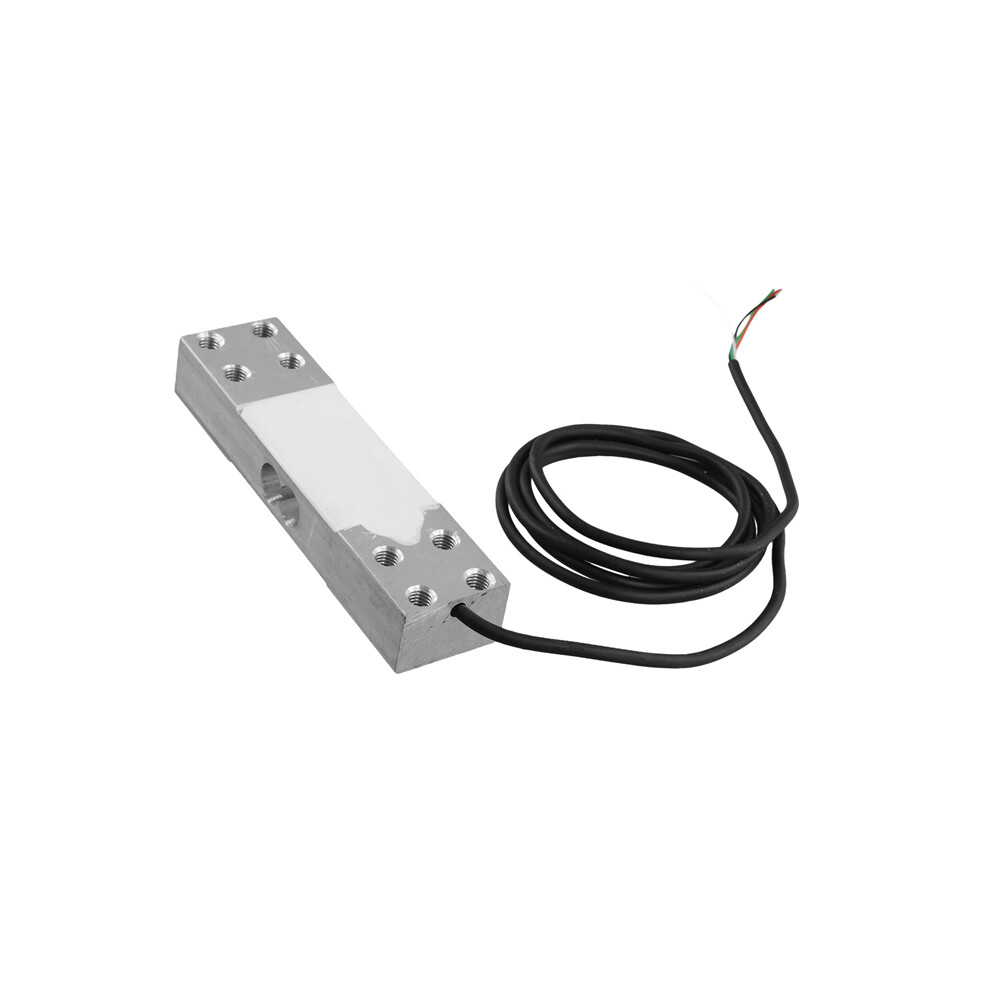

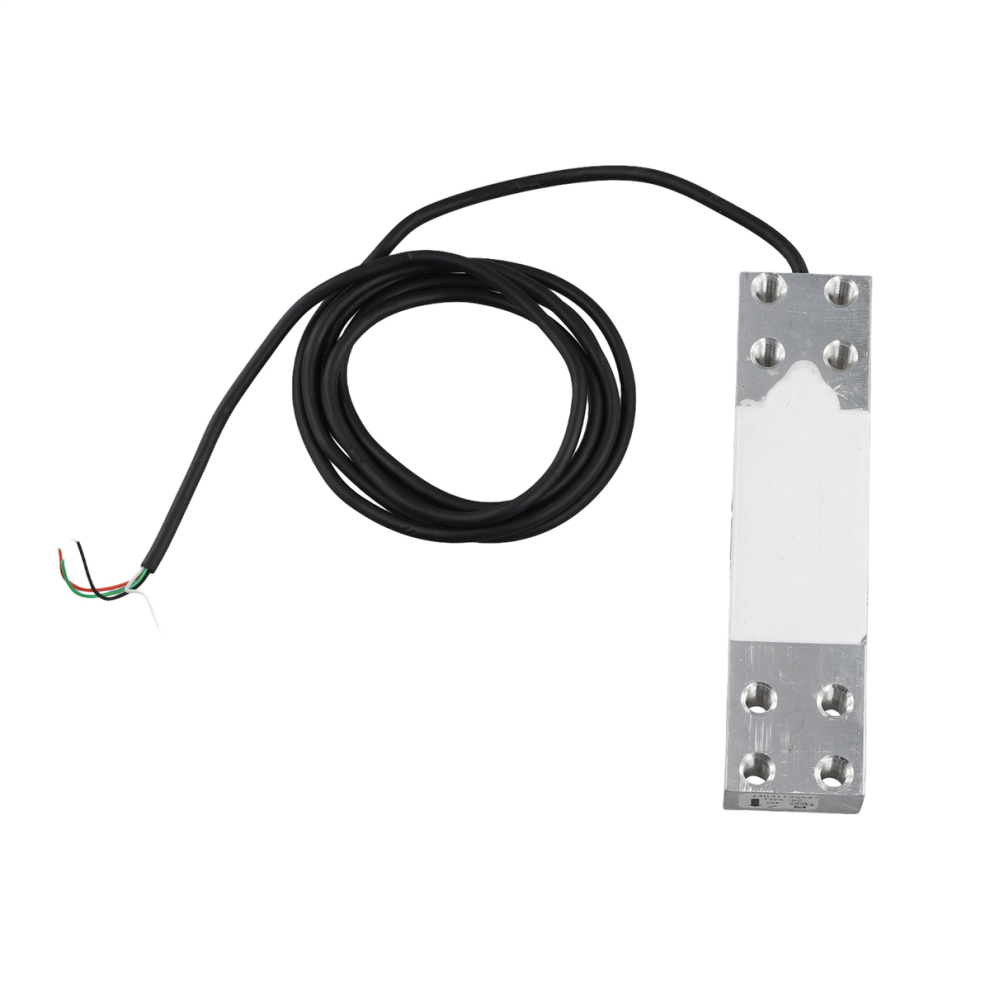

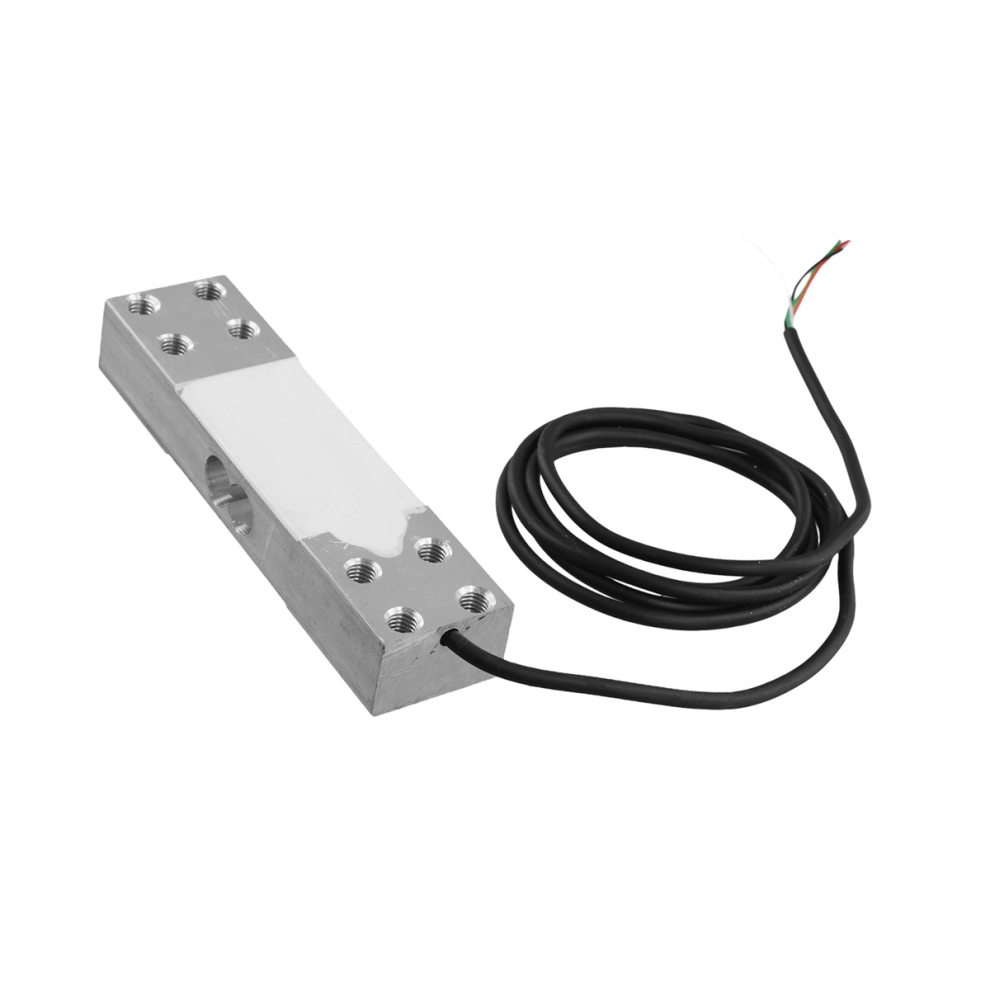

200 Kg Electronic Scale Sensor Digital Load Cell Weight Platform Single Point Beam

200 Kg Electronic Scale Sensor Digital Load Cell Weight Platform Single Point Beam Description

Comprehensive error: 0.02%F.S Sensitivity: 1.0 +/- 0.1mv/v Non-linearity: 0.02%F.S Hysteresis: 0.02%F.S Repeatability: 0.02%F.S Creep: 0.02%F.S/10min Zero output: +/- 2%F.S Input impedance: 405 +/- 10 ohm Output impedance: 350 +/- 3 ohm Insulation resistance: greater or equal to 5000M ohm(100VDC) Excitation voltage: 5VDC~12VDC Temperature compensation range: 10~+40 Operating temperature range: -20~+60 Influence of zero temperature: 0.03%F.S/10 Sensitivity temperature influence: 0.02%F.S/10 Safe overload range: 120% Limit overload range: 150% Protection level: IP65 Colour: silver Material: aluminum alloy Package Contents: 1 * Electronic platform scale Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
