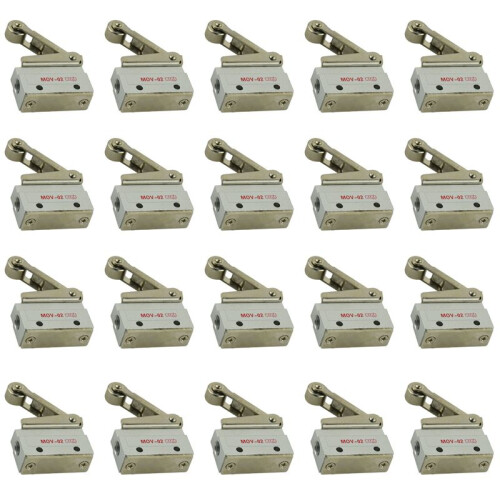

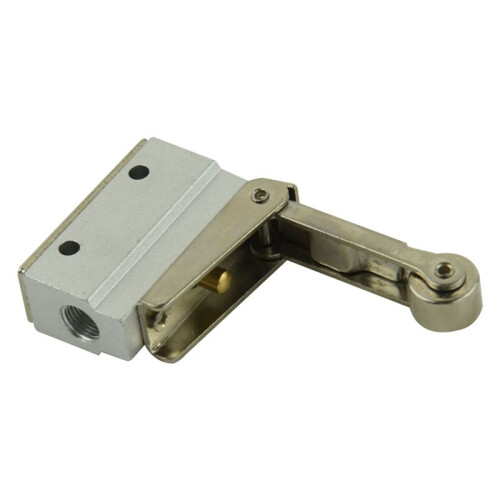

20X MOV-02 8.5mm 2 Position 3 Way Roller Lever Mechanical Valve

20X MOV-02 8.5mm 2 Position 3 Way Roller Lever Mechanical Valve Description

Product Name : Mechanical Valve;
Model : MOV-02;
Resetting Type : Standard Type;
Actuator Type : Roller Type
Fluid : Air;Position and Way No. : 2 Position 3 Way;

Pipe Thread Diameter : 8.5mm
Fixing Hole Diameter : 4.5mm;
Working Pressure Range : 0 - 8kgf/cm2
Roller Diameter : 13.8mm / 0.5 inch;
Arm Size(not include roller) : 50 x 11mm / 1.9 inch x 0.47 inch (L x W);
Body Size(Approx.) : 44 x 23.3 x 16mm / 1.7 inch x 0.9 inch x 0.63 inch(L x W x T)
Material : Alloy
3/2 way mechanical valve.
Steady performance,easy installation.
This pneumatic mechanical valve is used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
Package : 20 x Mechanical Valve
