2.15-Inch E-Paper Electronic Module 296x160 Pixels SPI Communication HAT+ Standard for ,B

2.15-Inch E-Paper Electronic Module 296x160 Pixels SPI Communication HAT+ Standard for ,B Description

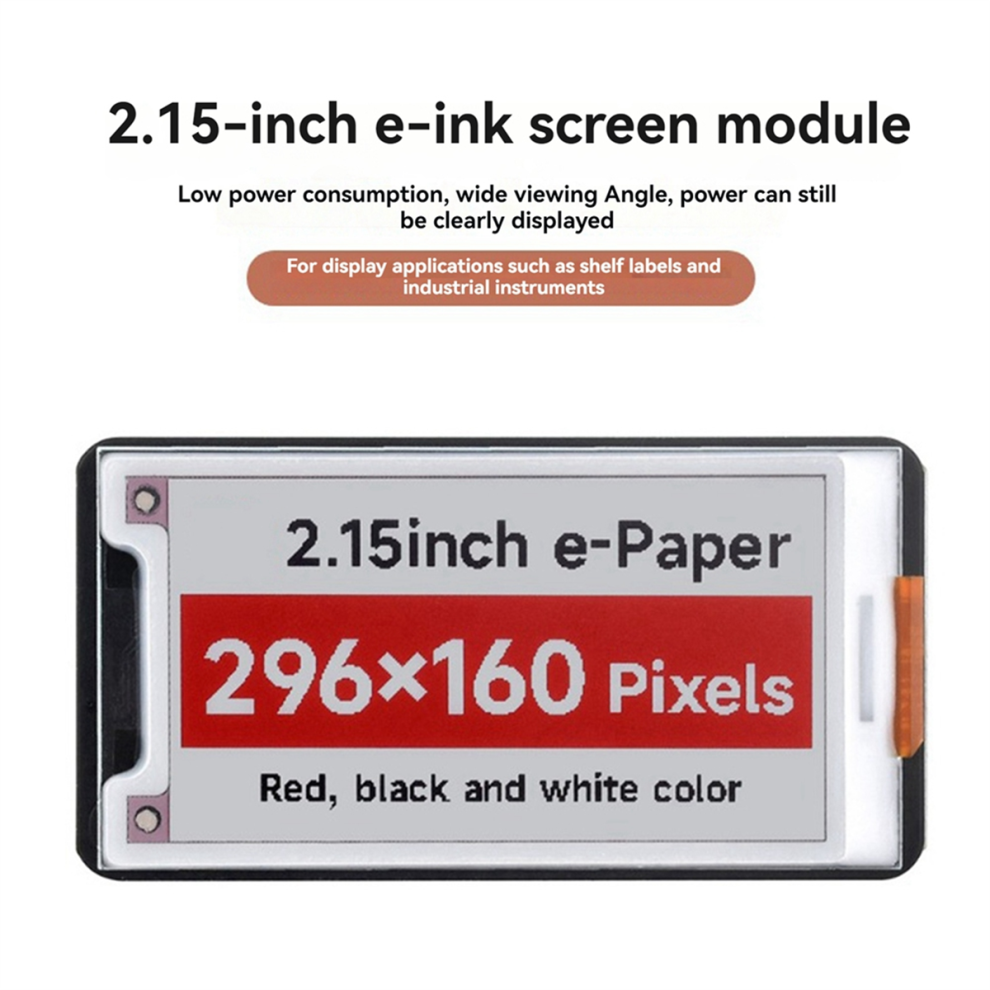

1. No backlight is required, and the display content of the last screen can be maintained for a long time when the power is turned off.
2. The power consumption is very low, and basically only consumes power when refreshing.
3. The following is only applicable to the module version; based on the design of the for 40PIN GPIO interface, it is suitable for , for JetsonNano, and for RDK series motherboards.
4. The for HAT+ standard is adopted to improve the interoperability of the expansion board, help developers design and develop faster, and use external devices more easily, expanding the functions and performance of the for .

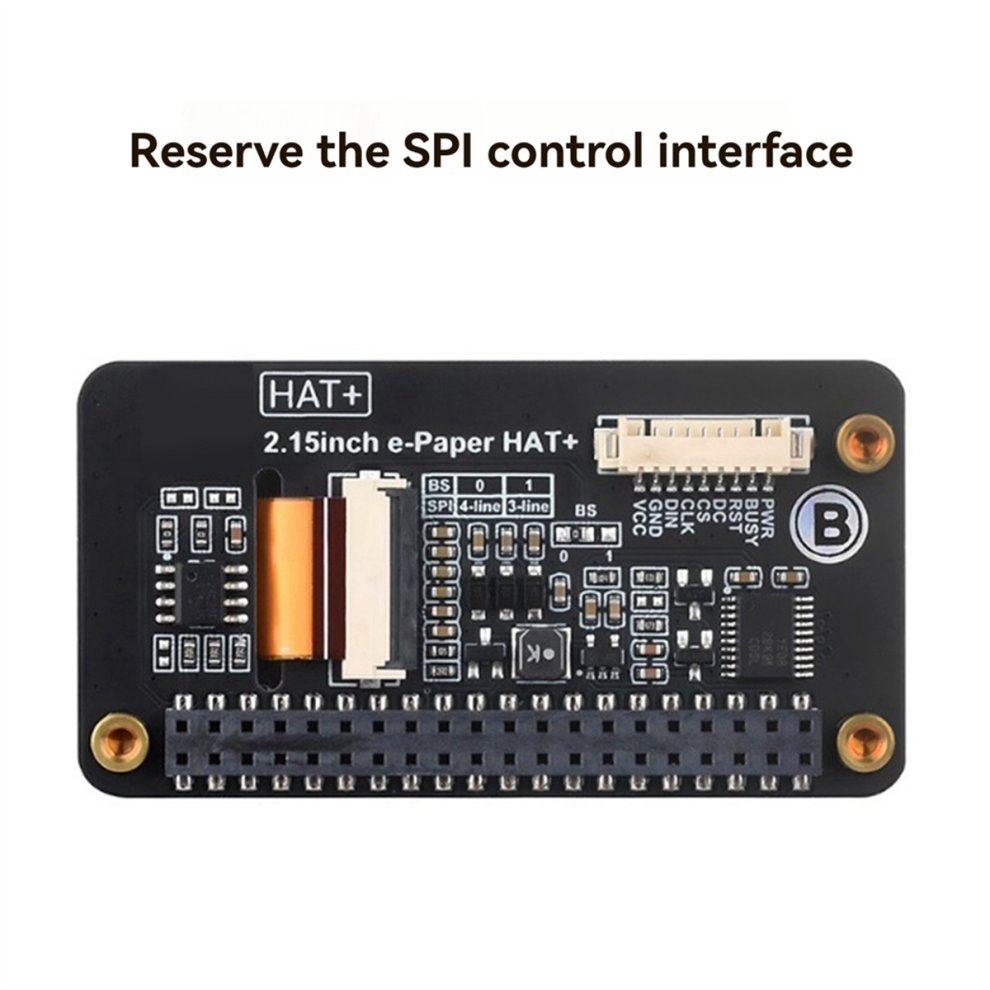

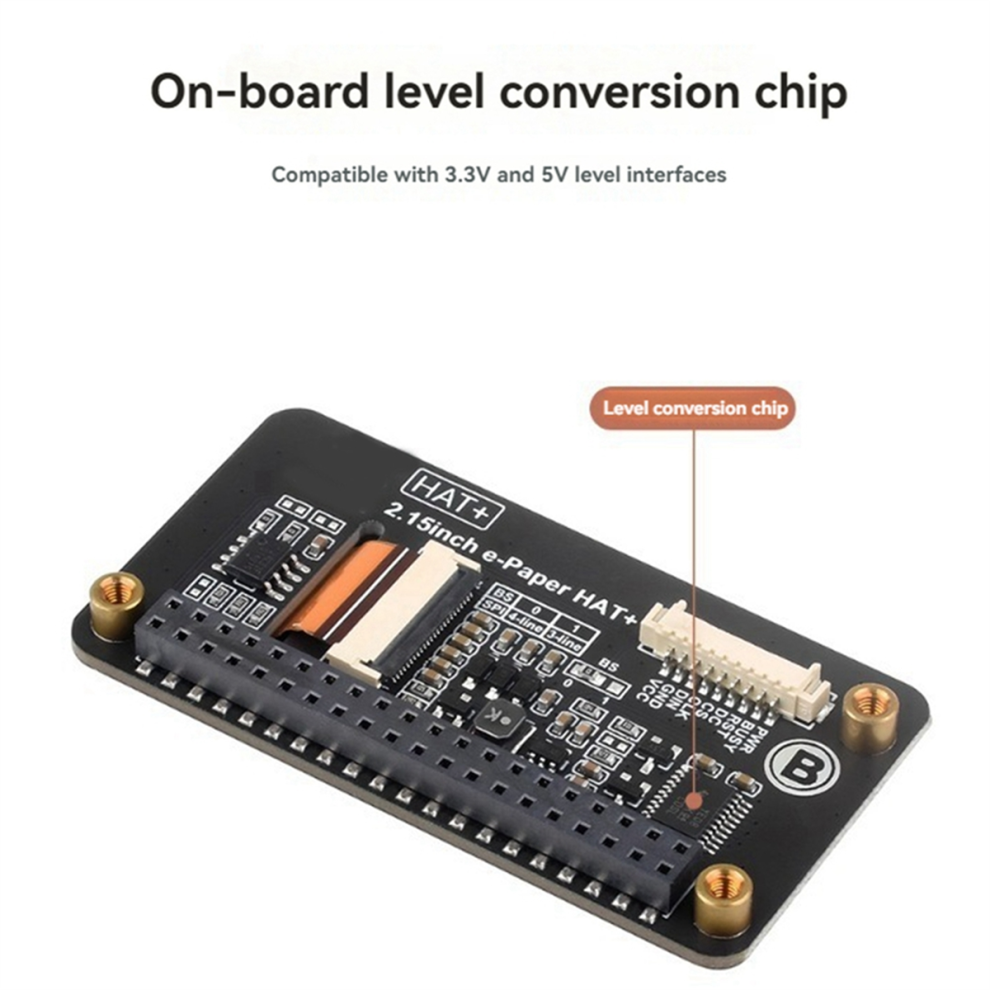

5. The SPI communication interface is reserved for easy access to the main control board such as for / for / for STM32; the onboard level conversion chip is compatible with 3.3V and 5V level interfaces.

Communication interface:3-wire SPI, 4-wire SPI
Grayscale level:2
Global refresh:23s
Refresh power consumption:Less than 15mW
Dot pitch:0.1625 x 0.1625 (mm)
Sleep current:Less than 0.01uA (close to 0)

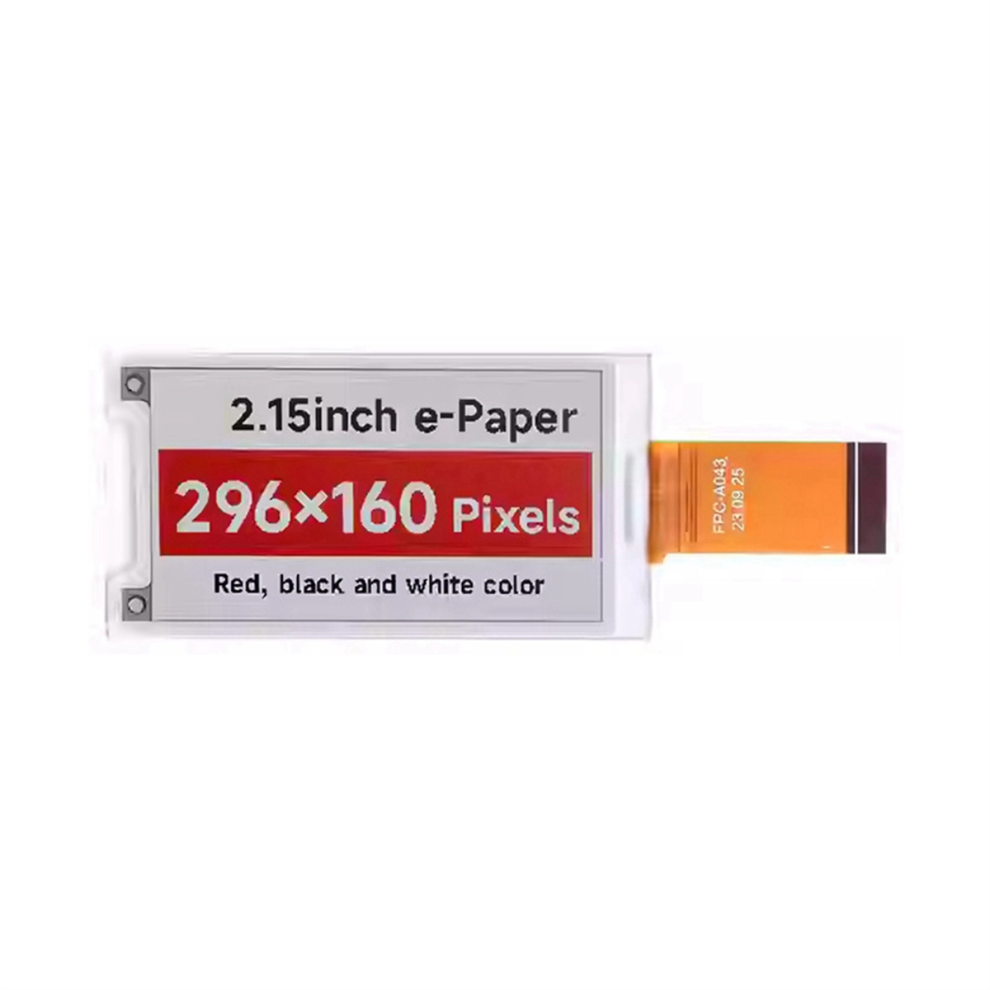

Resolution:296 x 160 pixels
Viewing angle: 170
Due to different batches, there may be differences in product appearance and printed text, which not affect use.

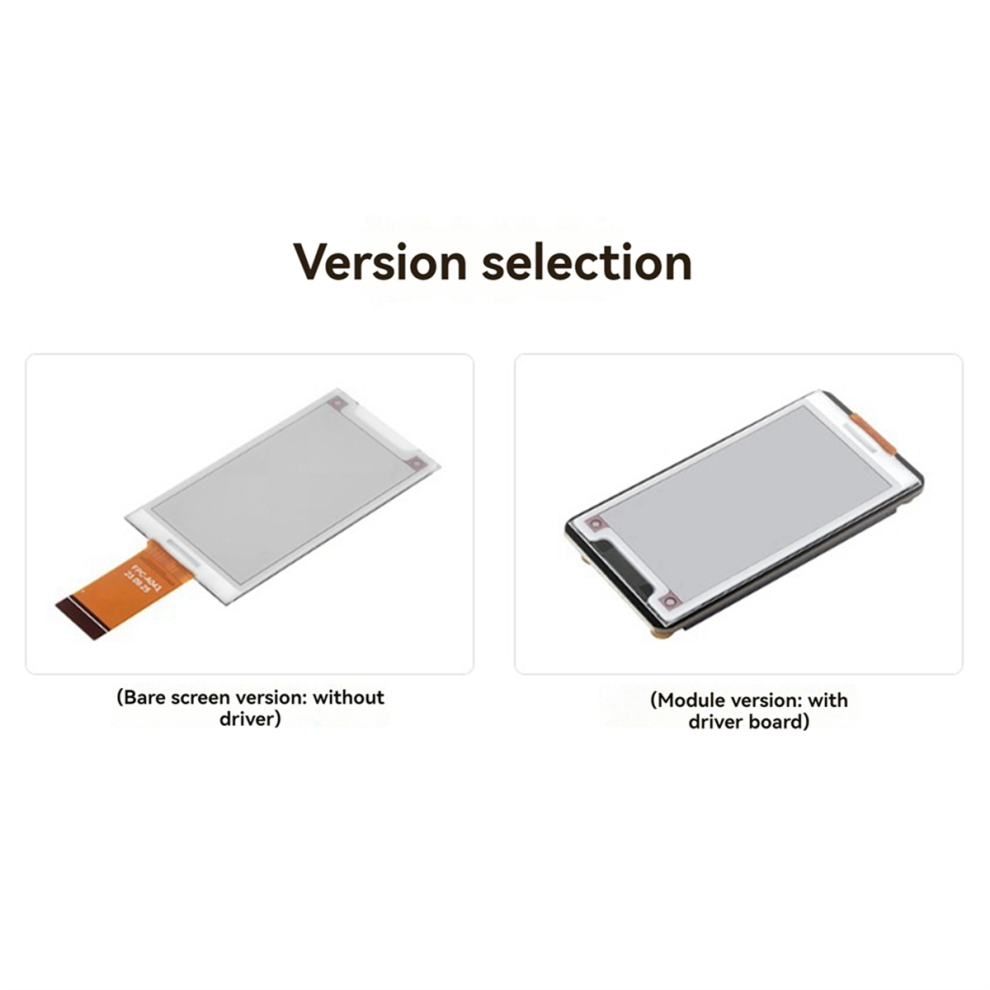

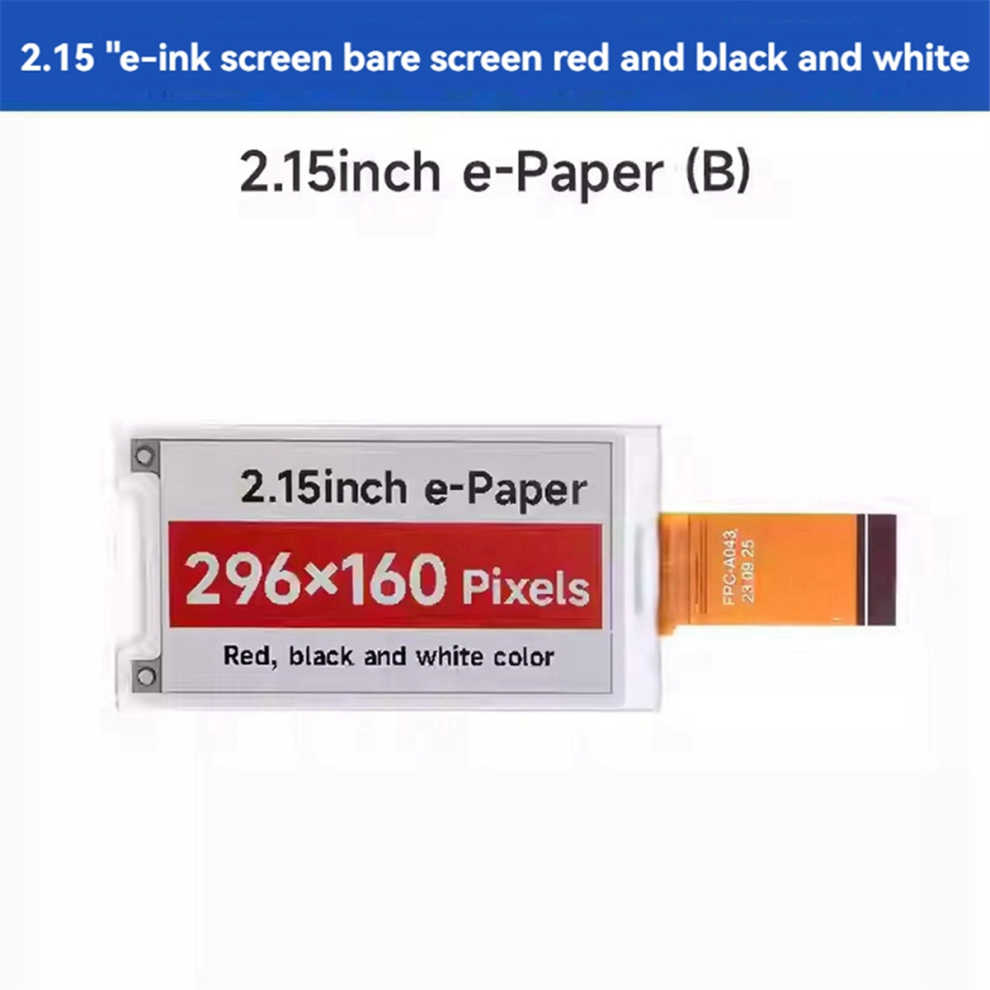

Type:B:E-Ink Screen Bare Screen
Colour:Black
Material:Metal+LCD

Package Contents:
1 * E-ink screen bare screen

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
