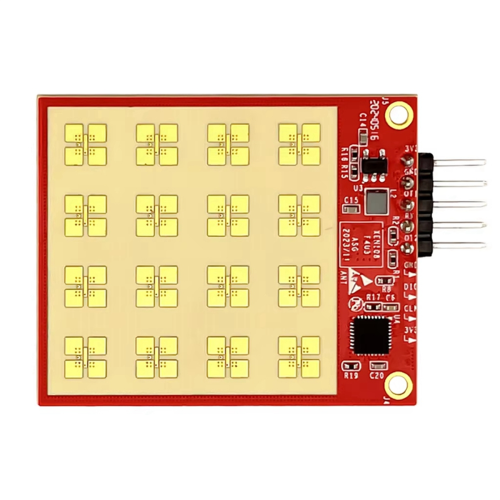

24G Water Level Detection Sensor LD2413 Radar Module, Module Only

24G Water Level Detection Sensor LD2413 Radar Module, Module Only Description

Using FMCW waveform and chip proprietary advanced radar signal processing, to achieve accurate detection of liquid and material height.
The product is mainly used in hydrological monitoring, urban pipeline network, water level measurement of fire-fighting water tanks. Support UART output, plug and play, can be flexibly applied to different intelligent scenes.

Frequency: 24GHz(23-27GHz)
Modulation mode: FMCW
Scanning bandwidth: 4GHz
Detection distance: 0.15m-10m
EIRP parameter: 11dBm(-6dB dual range)
Horizontal/vertical range: 12
Ranging accuracy: 3mm (theoretical value)
Reporting period: 160ms (50-1000ms/configurable)
Ambient Temperature: -40-+85
Power supply range: 3.3V(3.0-3.6V)@1A
Specifications:Module Only
Colour:Red & Gold
Material:PCB

Package Contents:
1 * LD2413 module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
