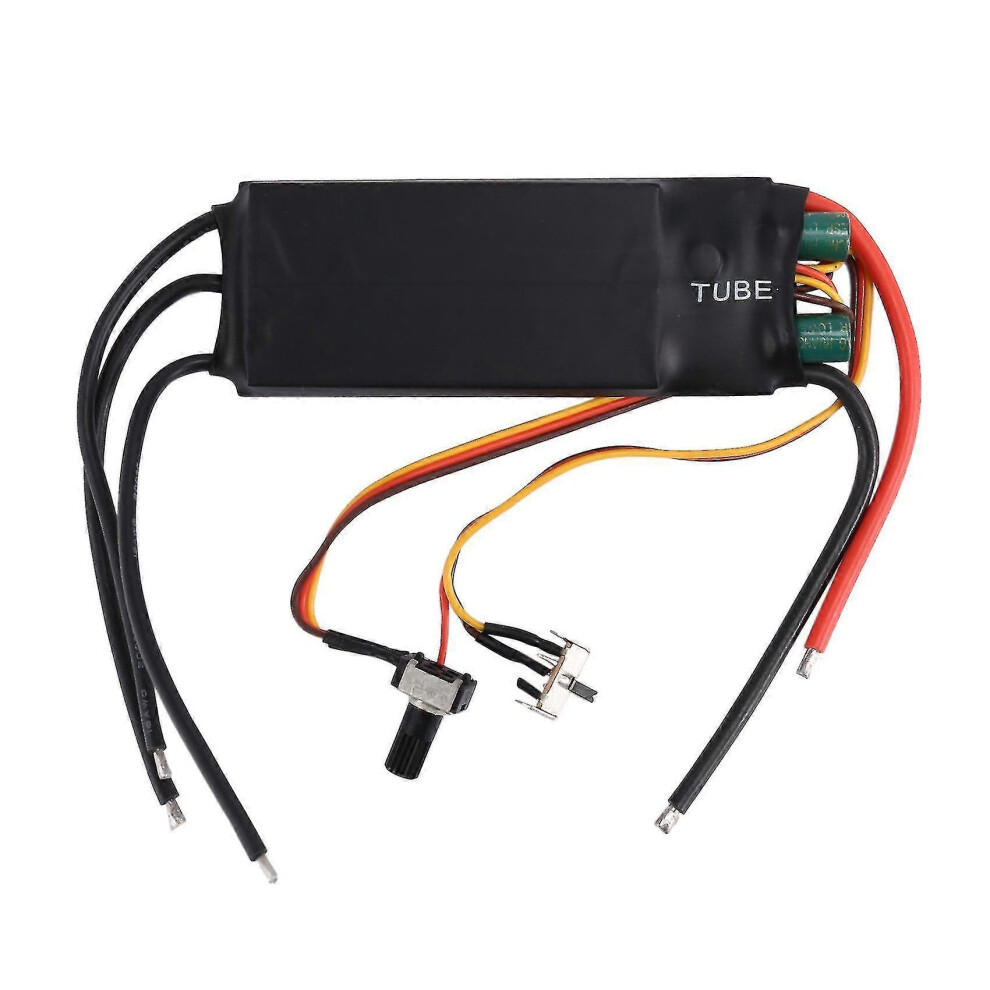

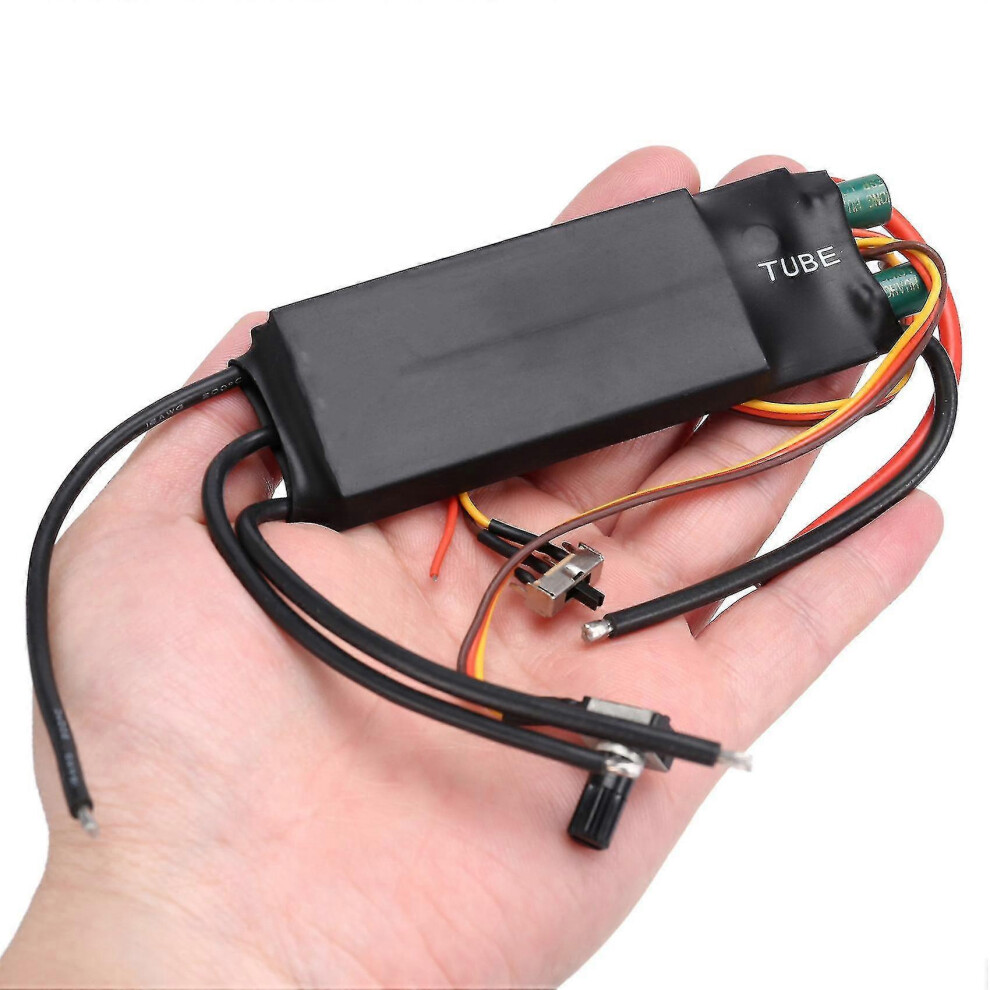

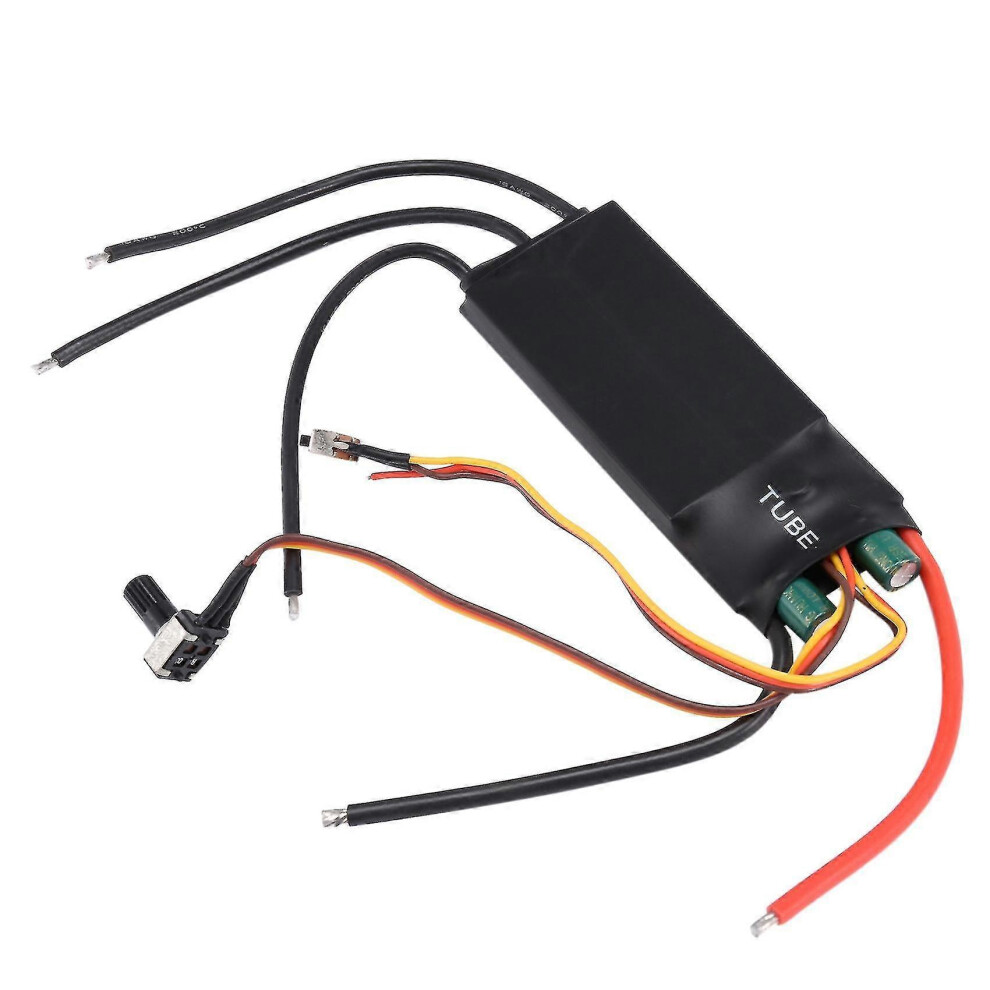

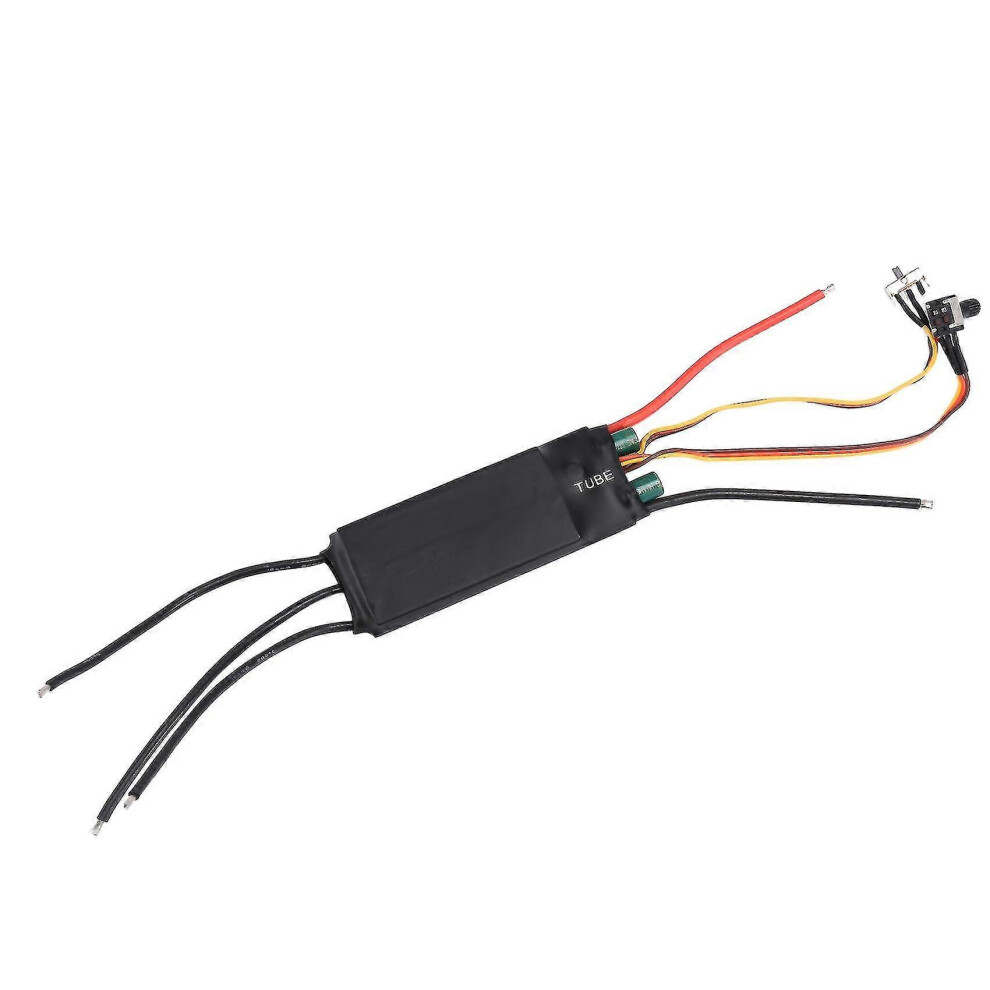

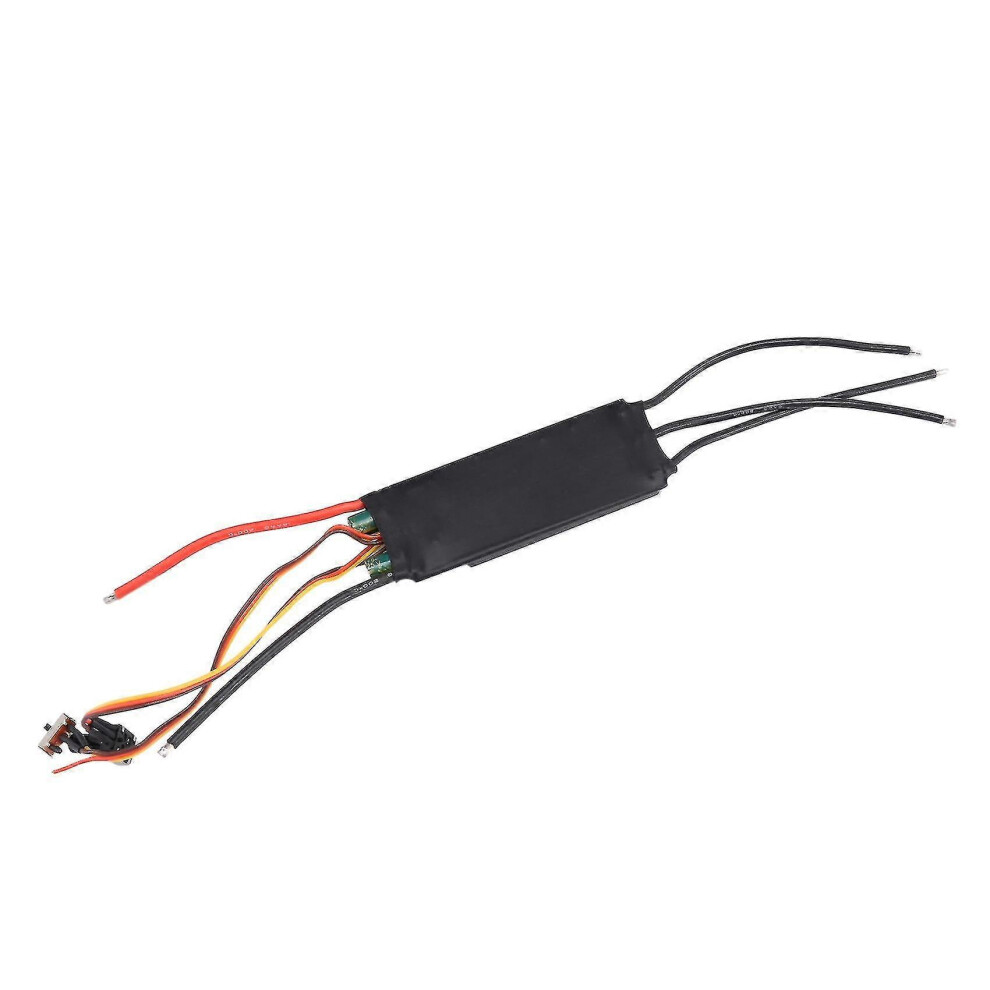

24V 1000W Brushless DC Motor Driver with 3 Phase Hallless Design featuring Speed Controller and Voltage Regulator

24V 1000W Brushless DC Motor Driver with 3 Phase Hallless Design featuring Speed Controller and Voltage Regulator Description

Working voltage: 6-20V (limit 24V)

Drive current: rated 30A plus air cooling 50A

Maximum power: 1000W

Overcurrent protection: Yes

Locked-rotor protection: Yes (after locked-rotor, the current will automatically drop and run at intervals)

Over-temperature protection: Yes (over-temperature power is halved)

Maximum speed: 224000 RPM (2 pole motor), 74000 RPM (6 pole motor), 40000 RPM (12 pole motor), 35000 RPM (14 pole motor).

Precautions:

1. Reverse connection of the positive and negative poles of the power supply on the motherboard will cause permanent damage to some of the chips on the board ( current will not work for a few seconds)

2. There is sampling over-current protection at the output of the motor during normal operation. Because the power and current of the module are very , please do not artificially short-circuit the module when the module is not working normally. Once the short-circuit, the circuit may be burnt and the tube may burst, the first wiring test Please test with low current and low voltage. After ok, connect with high current and high voltage. Since it is a bare board module, please pay attention to the insulation of the wiring head. It is strictly forbidden to touch the board parts

3. Do not connect the motor that is obviously inconsistent with module voltage, current, or power, to avoid inexplicable damage

Model Number: Motor Driver Board

color:As shown

Material:Plastic + Metal

Package Contents:

1 x DC 6-24V 1000W BLDC 3-Phase Brushless Motor Driver

Only the above package content, other products are not included.

Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
