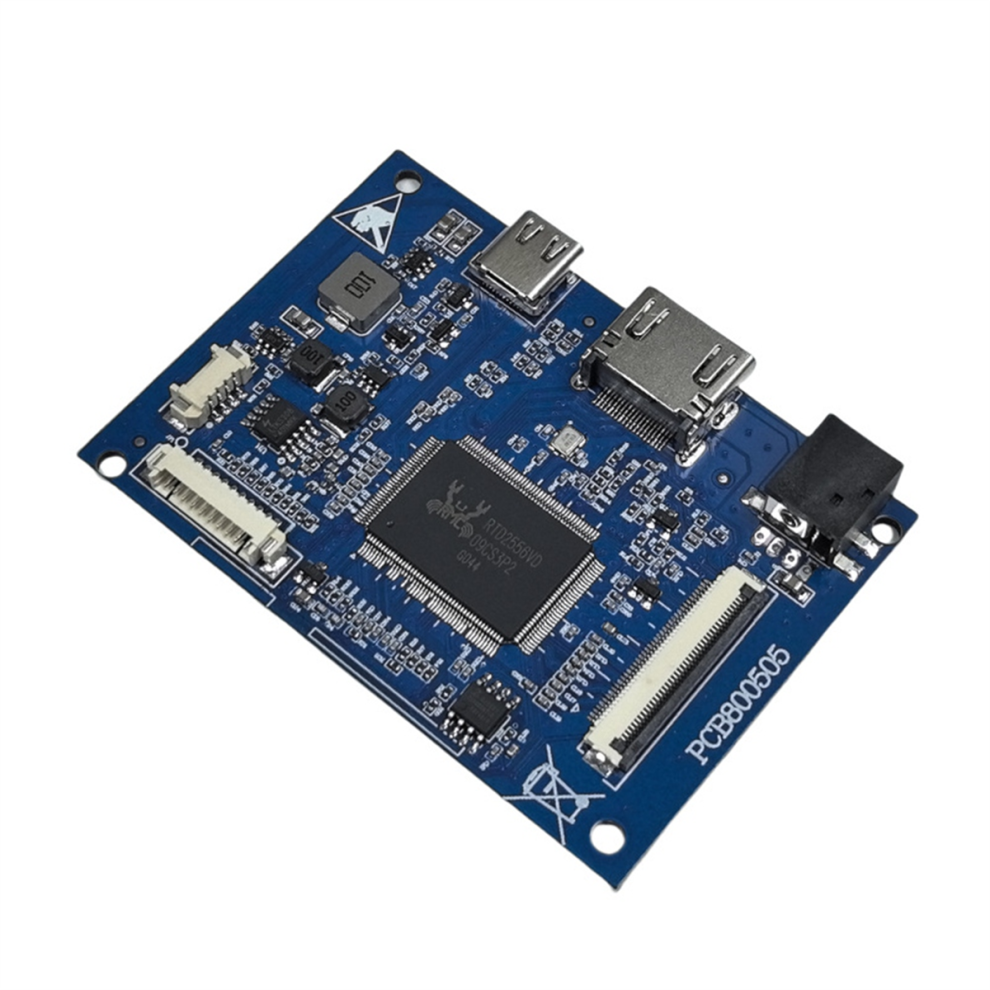

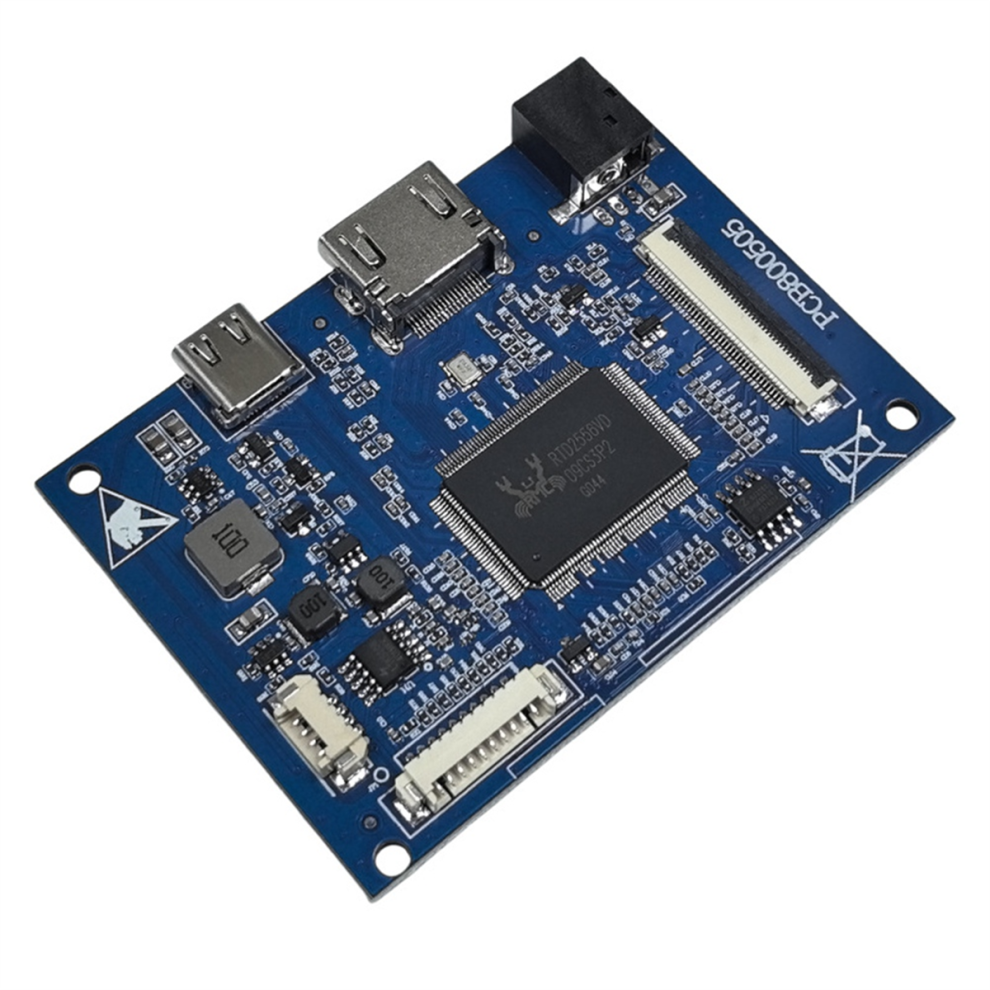

2K LCD Display Driver Board Notebook Screen 40pin EDP

2K LCD Display Driver Board Notebook Screen 40pin EDP Description

1. Two input modes of 1-channel +TYPEC signal, and this IC supports HDMI1.4, TYPEC supports full-function input
2. Support wide voltage input, and can work normally between 5V-15V, (but the voltage requirements of external devices need to be considered to avoid damaging external connected devices or accessories, this working voltage is only applicable to this driver board)
3. Audio power 3WX2

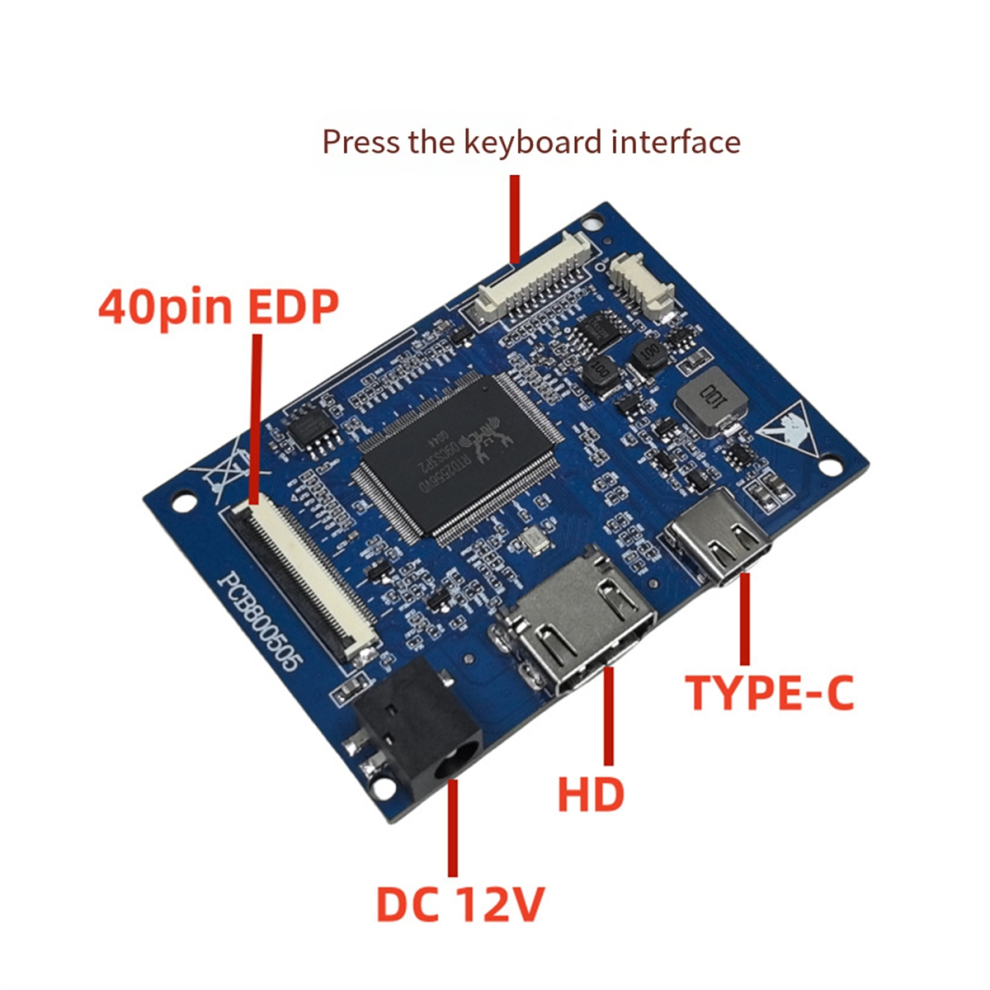

4. Standard EDP-40PIN output, support resolution below 2560*1600
5. Support upgrade

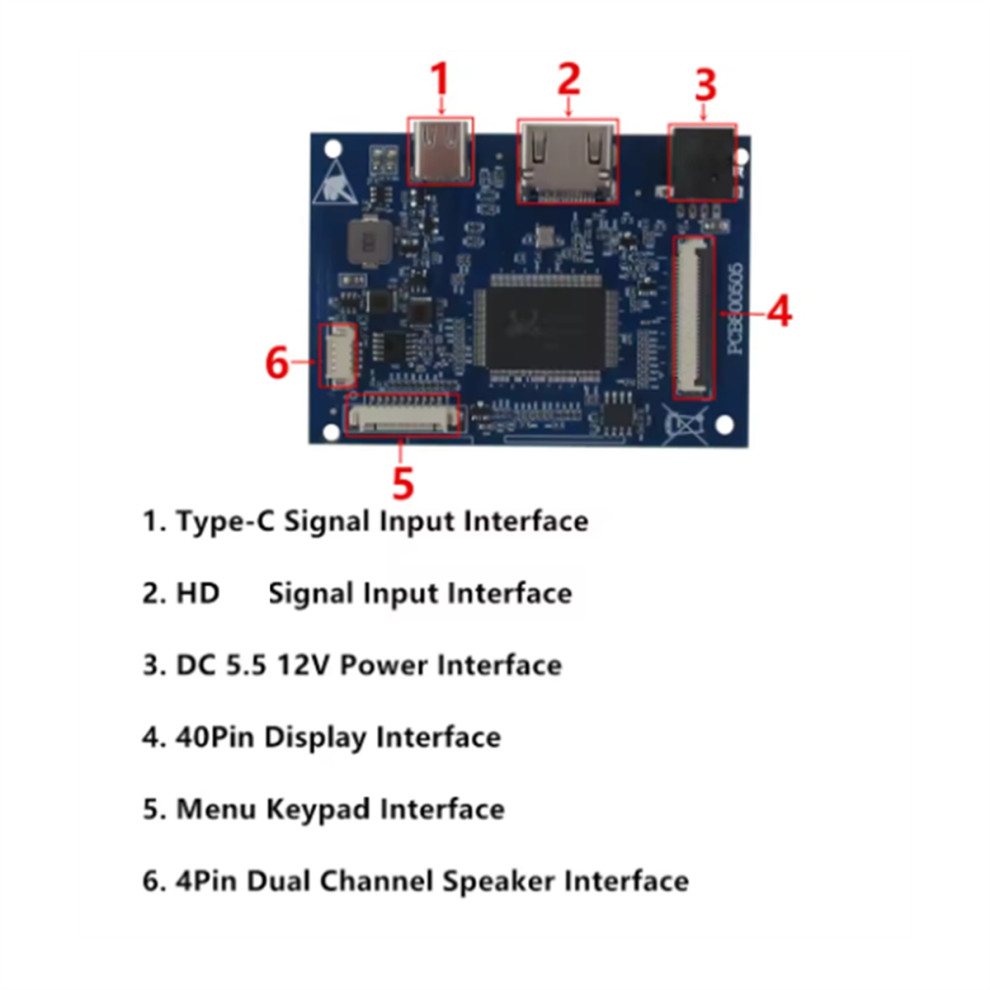

Standard large-port universal connector
High temperature resistant components are used, which can be used in high temperature environment for a long time, but ventilation needs to be paid attention to
Support remote control function,
Support 40PIN general general definition, please check the product specification
PCB uses FR4 material, 1.6MM thickness, super strong mechanical strength,

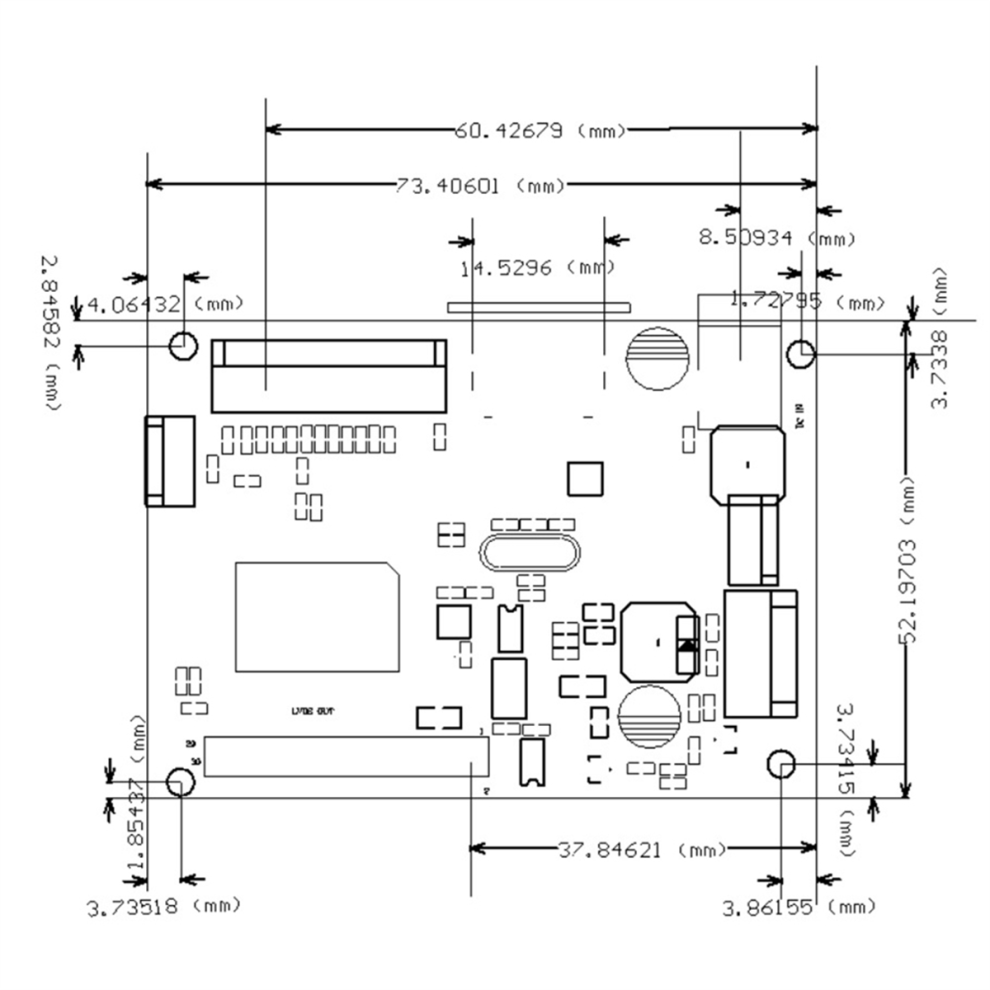

This driver board has four positioning holes, and the positioning hole size is 3MM
Support multi-language OSD
Color: As shown
Material: PCB

Package Contents:
1 x 2K LCD display driver board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
