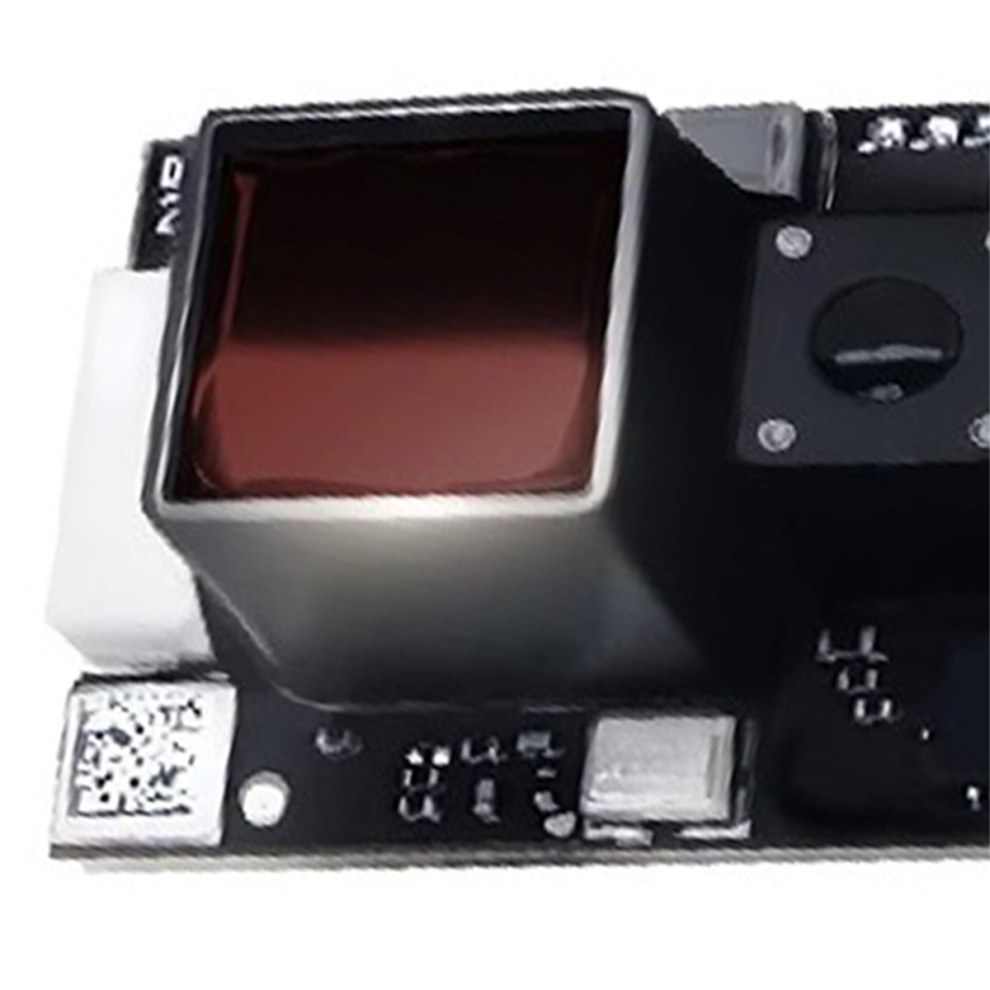

2pcs 20m High Integrated DToF Laser Ranging Module

2pcs 20m High Integrated DToF Laser Ranging Module Description

1. Highly integrated dToF ranging small module solution
2. Ultra-small structure size
3. Ultra-light weight
4. 3cm Less than 6m, Less than 1% 6m outside accuracy, maximum range 20m
5. Integrated histogram statistical algorithm, output double position, easy to calibrate integrated time-related photon threshold anti-ambient light algorithm, with 18m 88% 160Klux/15m 18% 160KLux anti-ambient light energy

TDC time window is configurable to meet the needs of different application scenarios
Data is output stably according to the configured cycle, with a maximum frame rate of 1kfps
With reflectivity correction function
Application scenarios: used in various industrial scenarios, such as sweepers, obstacle avoidance, drone height determination and obstacle avoidance, security monitoring, capacity detection, proximity detection, presence or absence perception
Colour:As Shown
Material:PCB

Package Contents:

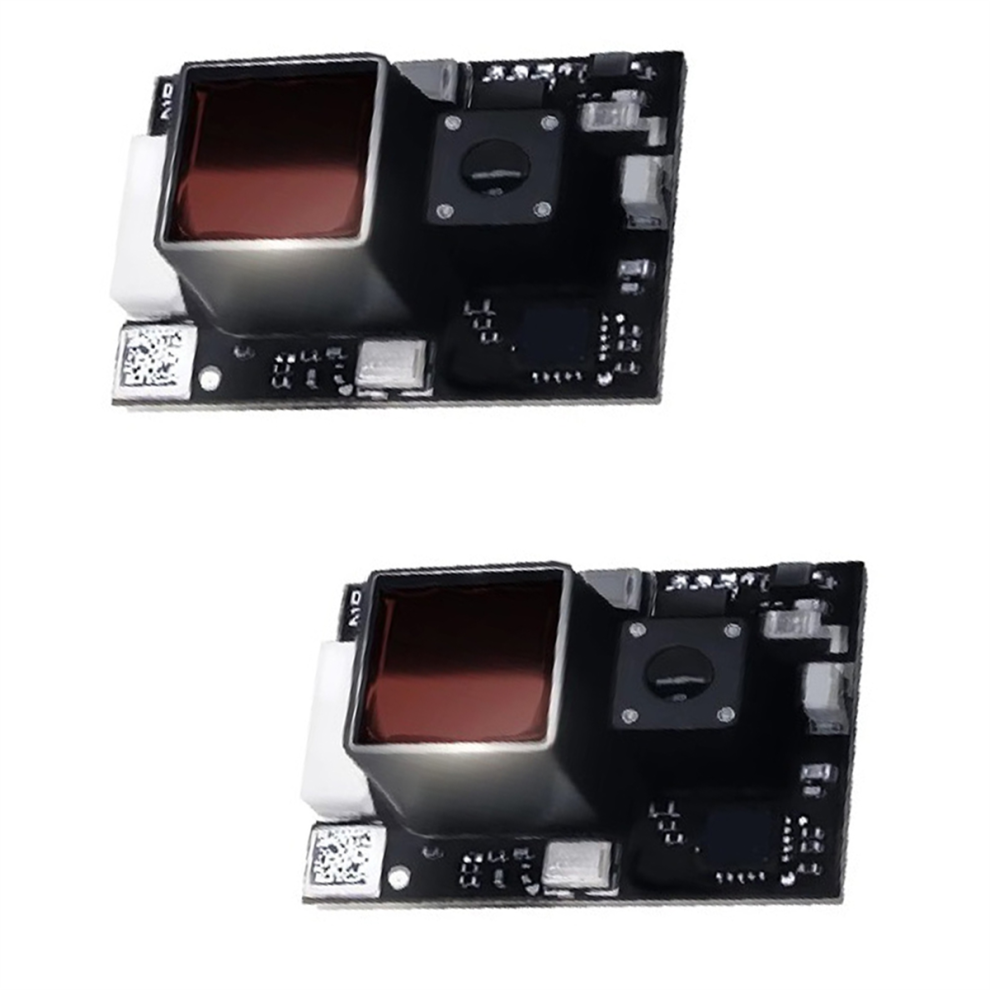

2 x Laser Ranging Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
