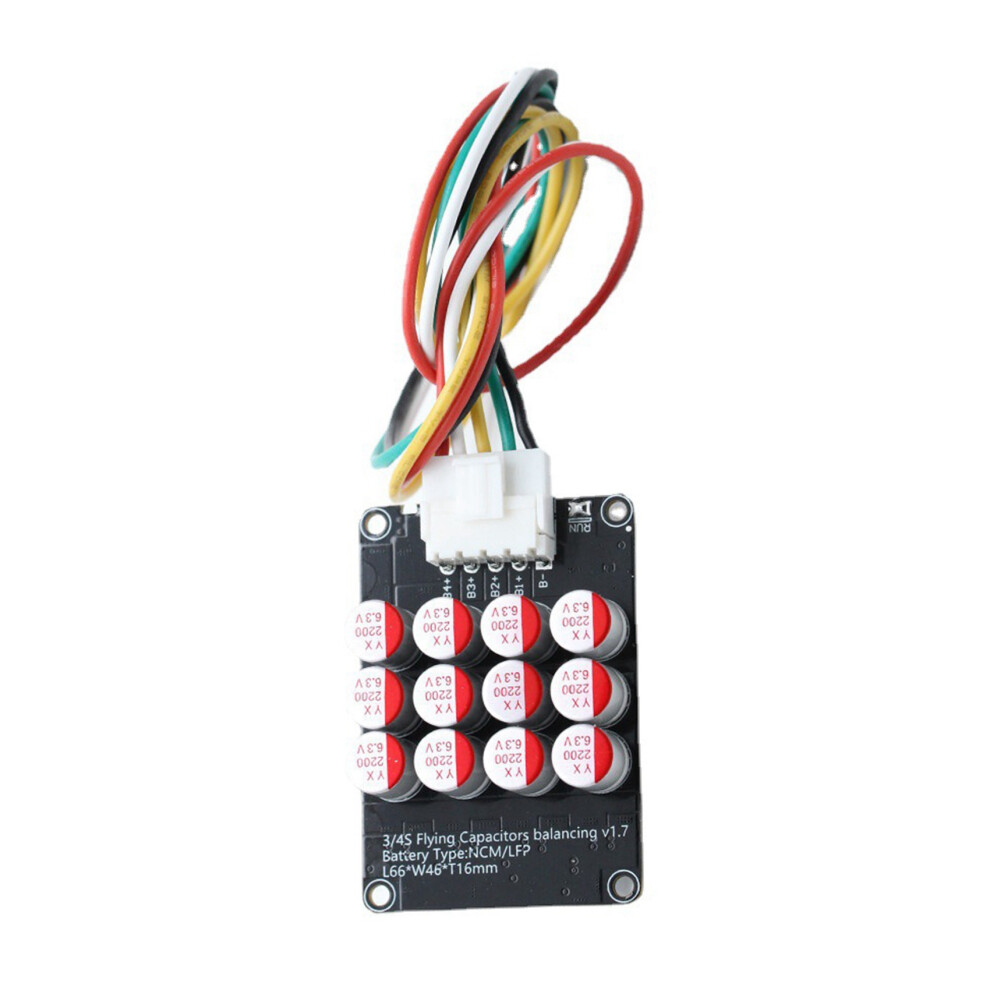

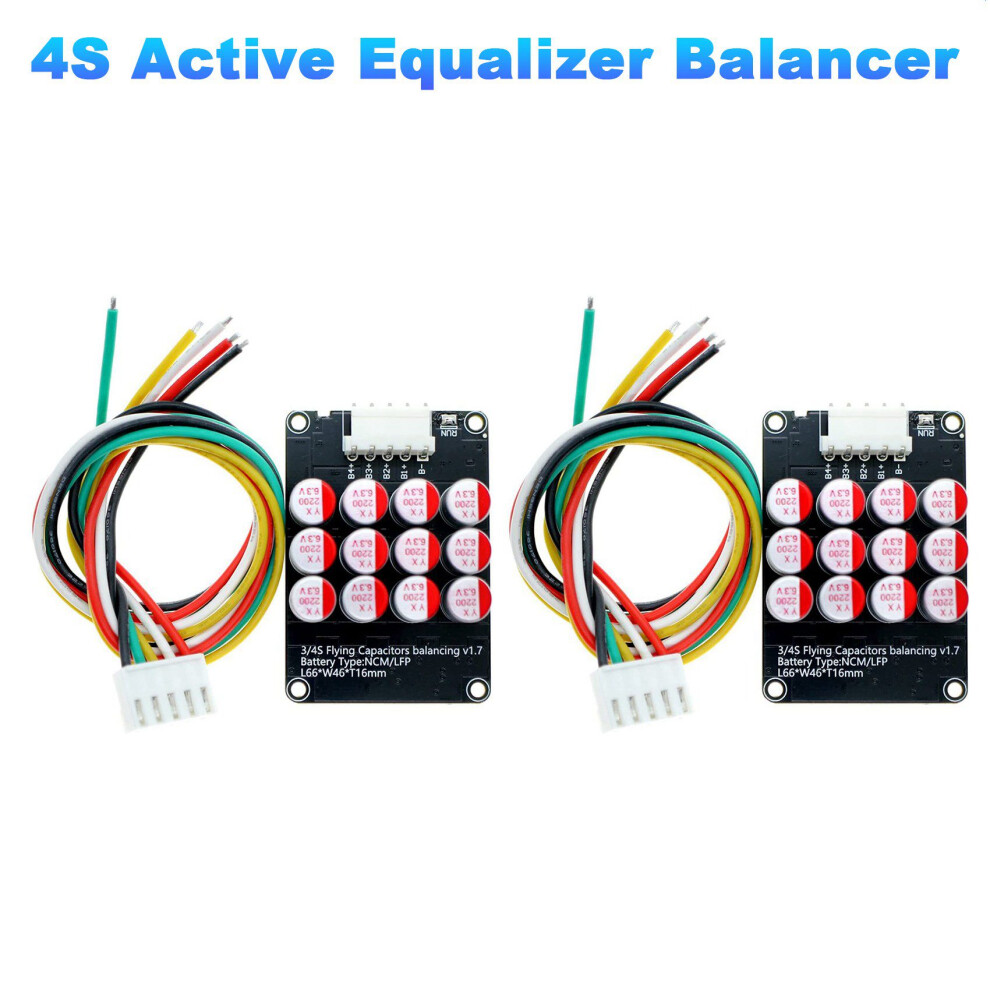

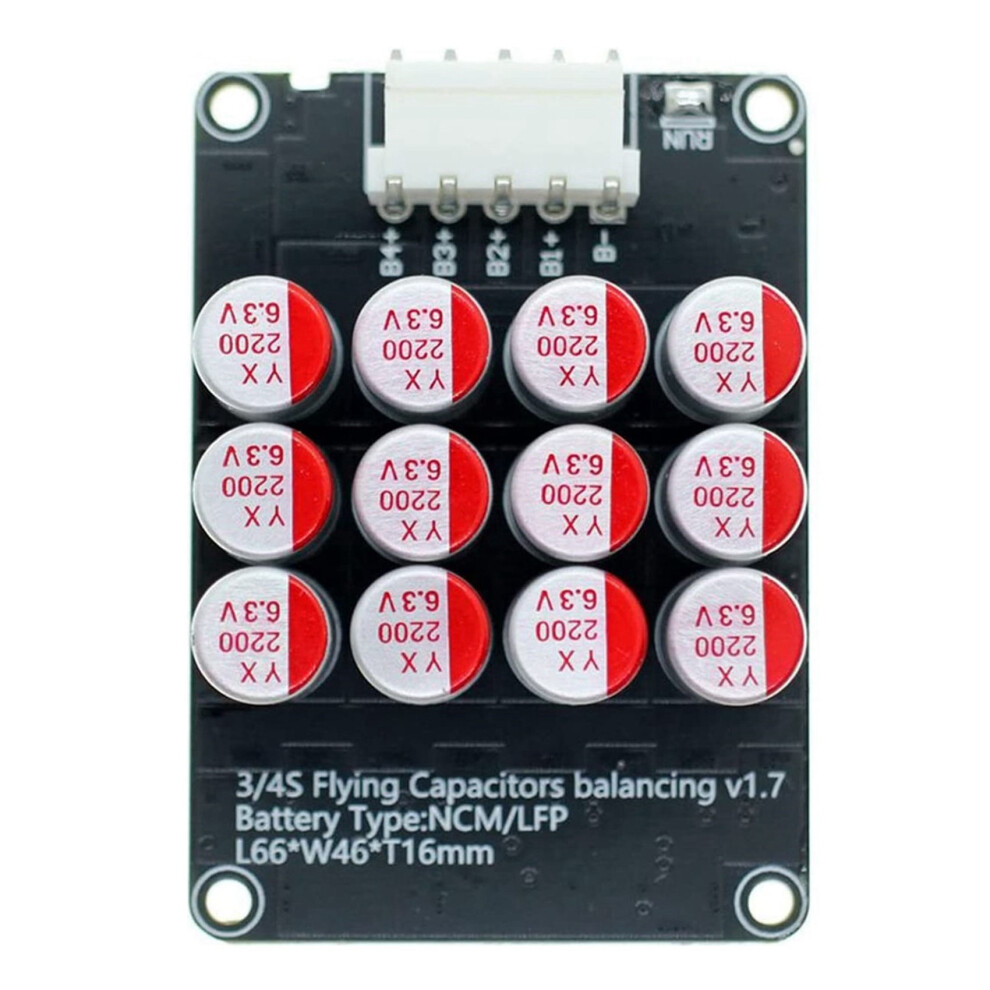

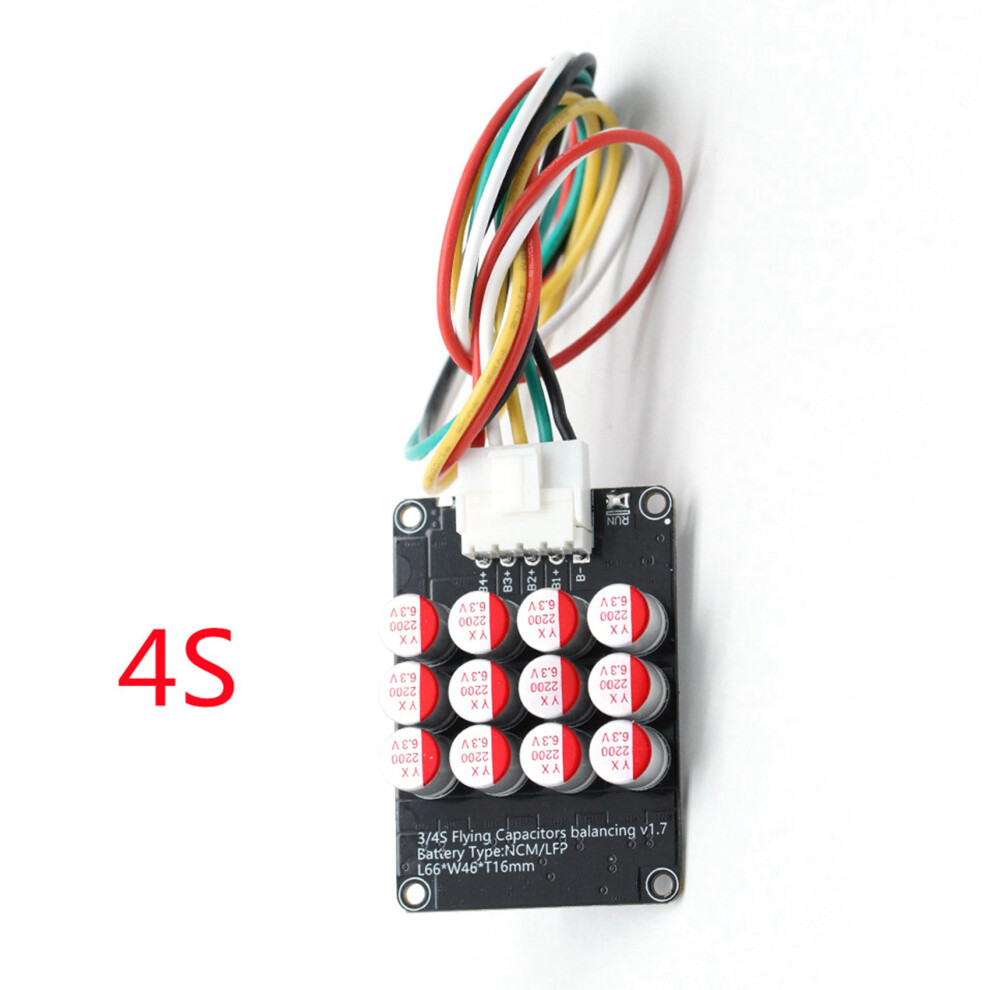

2PCS Battery Energy Equalization Capacitor Board

2PCS Battery Energy Equalization Capacitor Board Description

Capacitive energy transfer equalization board (high precision 5mv, whole group equalization, not adjacent equalization)
Capacitive energy transfer equalization board (upgrade version)
Working voltage 1.8V-4.5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate.

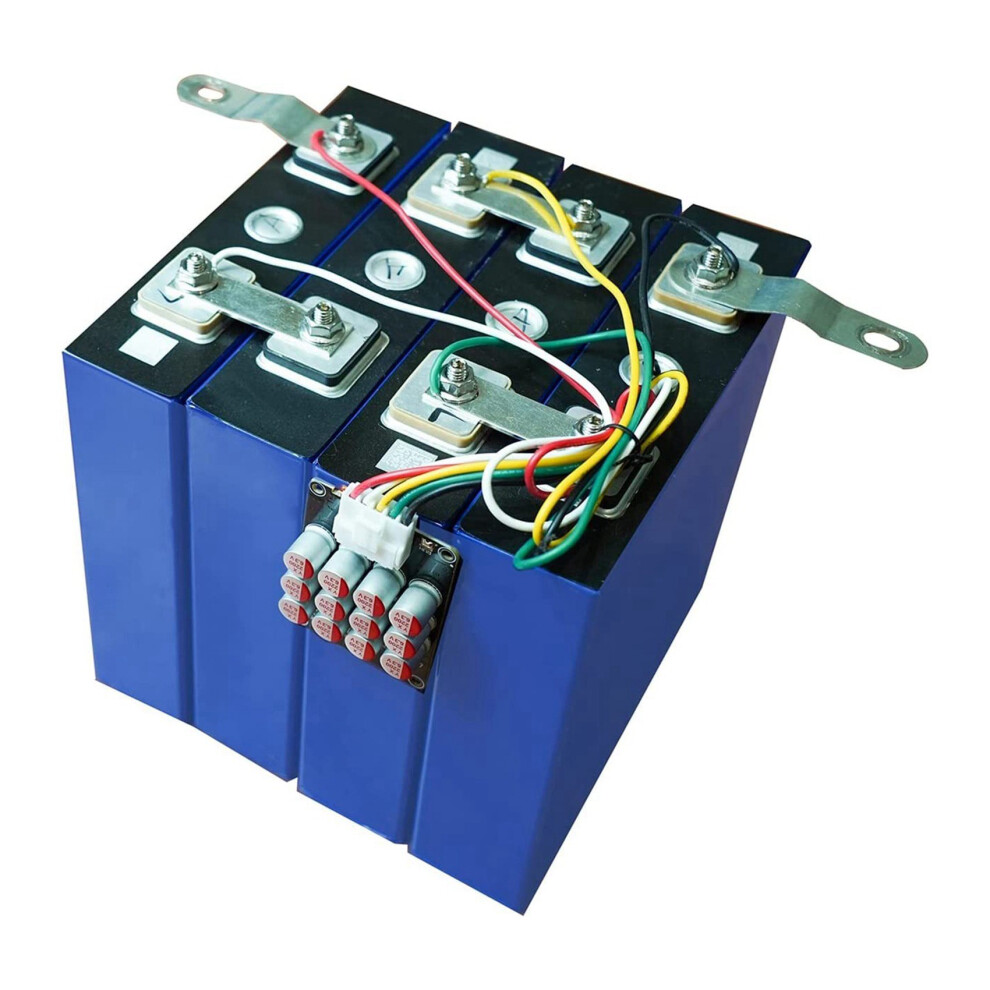

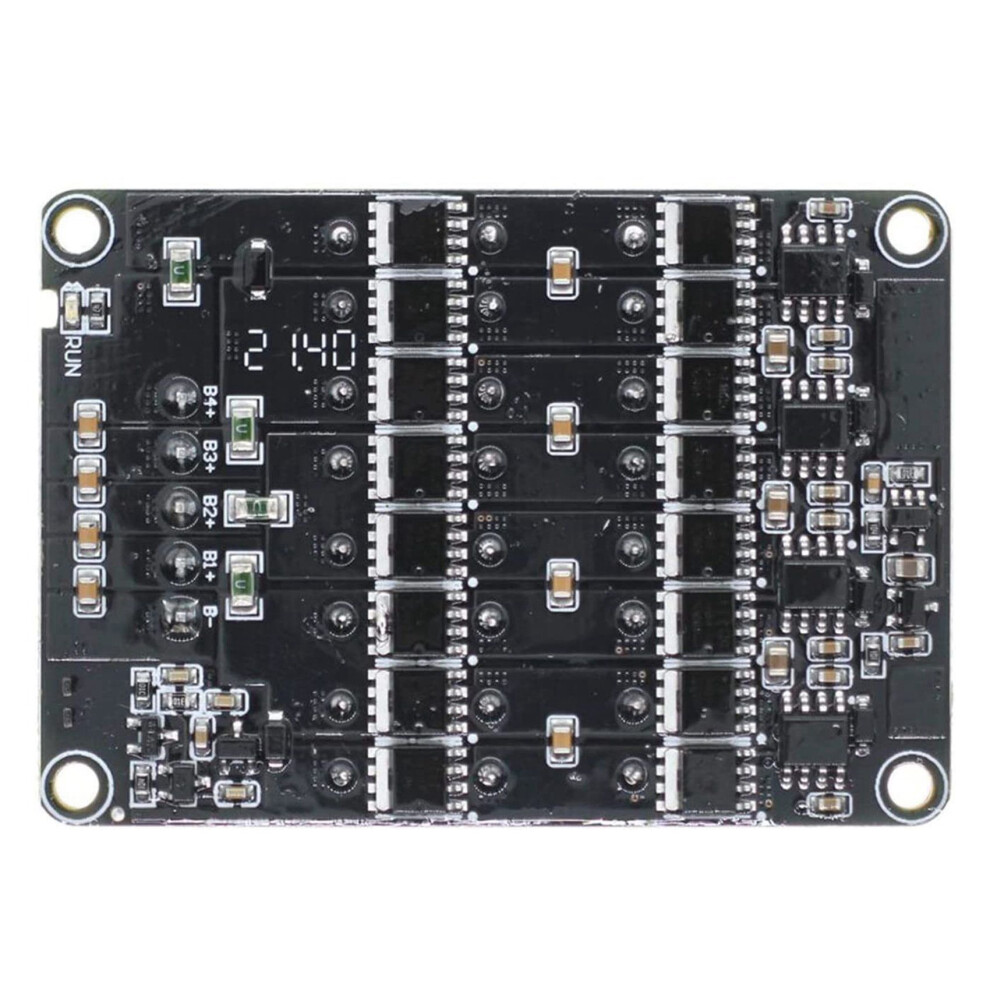

Working principle, the capacitor fit transfers the charge porter, and the balance board is connected to the battery to start the balance work. It adopts the new ultra-low internal resistance MOS, 2OZ copper thickness PCB, and the balance current is 0-5.5A. The more balanced the battery, the smaller the current. Reserve the wiring position of the sleep switch, the working current of the sleep power-off mode is less than 0.1mA, and the equalization voltage accuracy is within 5mv!
The quiescent current is about 12 mA, and it is recommended that the battery capacity should be 30-300AH for batteries!

With under-voltage sleep protection, the voltage automatically stop entering the sleep state when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1 mA.
The appearance and color of different batches of products may be different, which not affect the use
Colour:black
Material:PCB

Package Contents:
4

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
