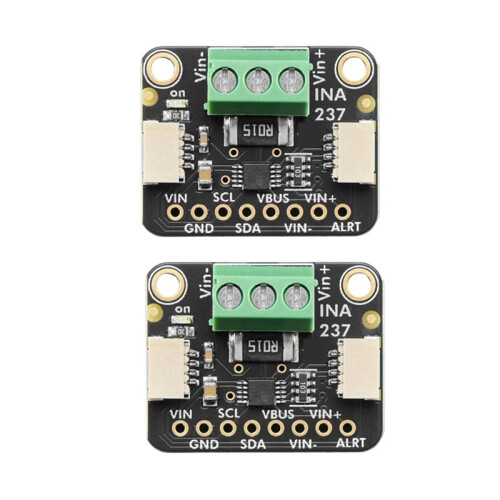

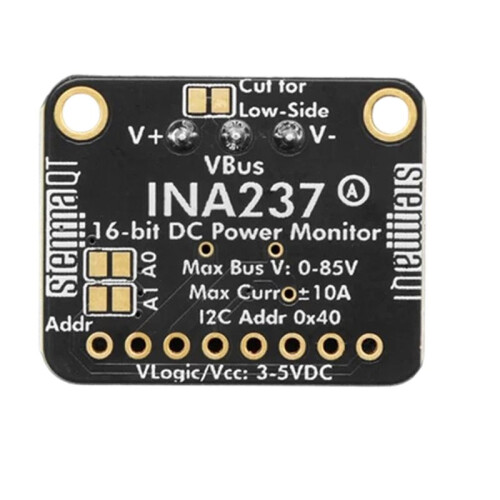

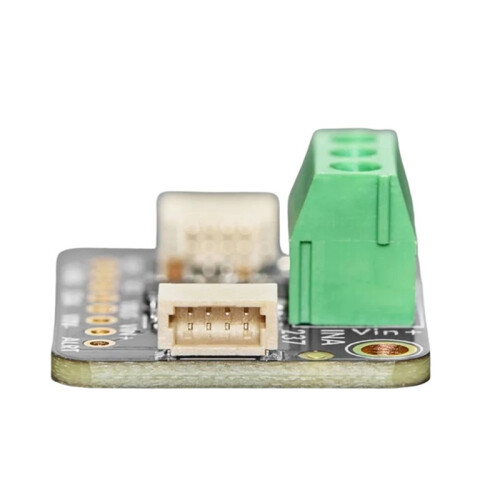

2PCS INA237 85V 10A 16Bit Current/Power Monitoring Module for STEMMA QT/Qwiic Interface Voltage Current Sensor

2PCS INA237 85V 10A 16Bit Current/Power Monitoring Module for STEMMA QT/Qwiic Interface Voltage Current Sensor Description

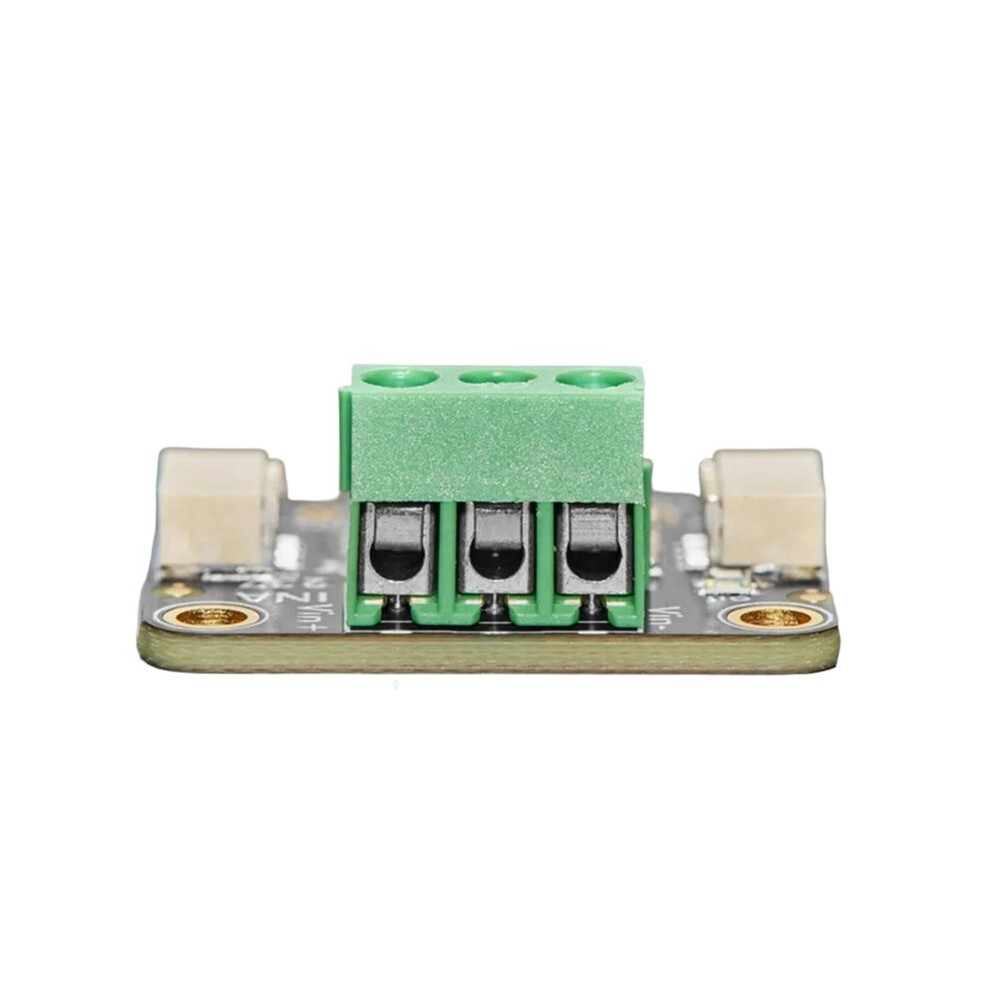

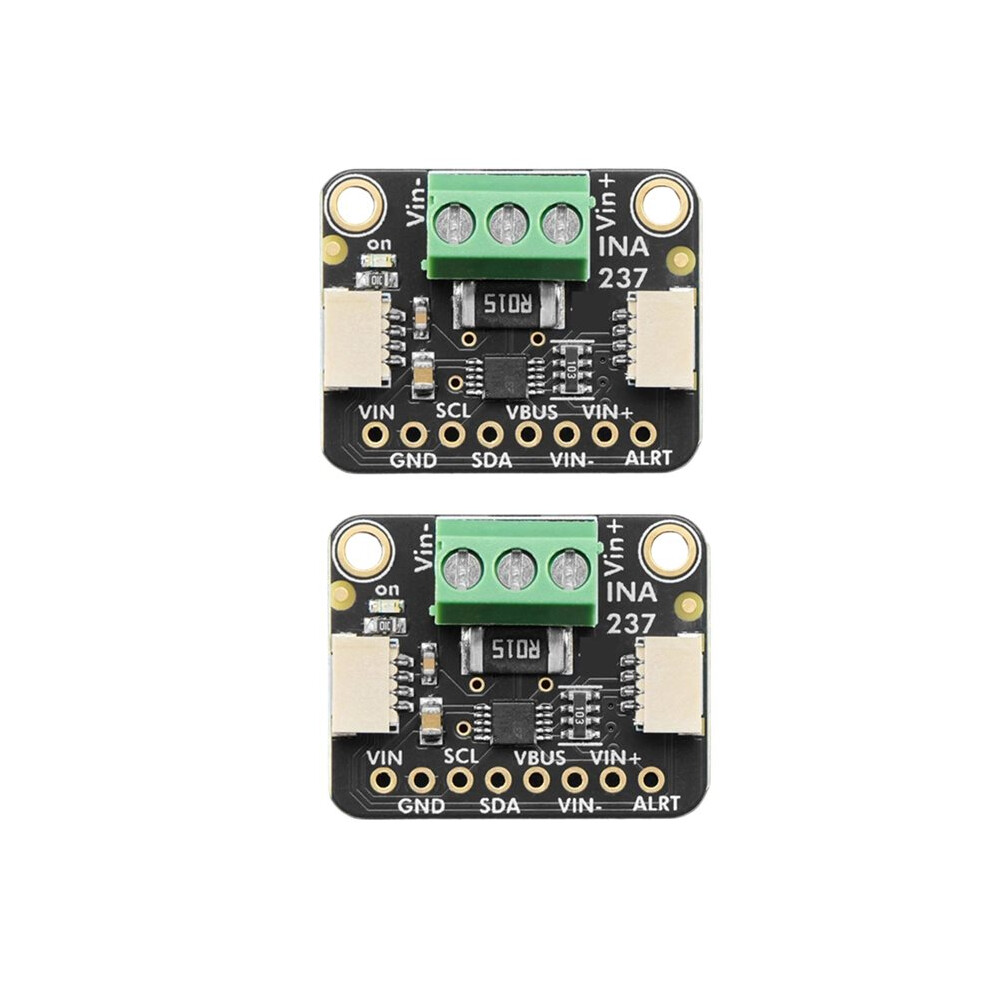

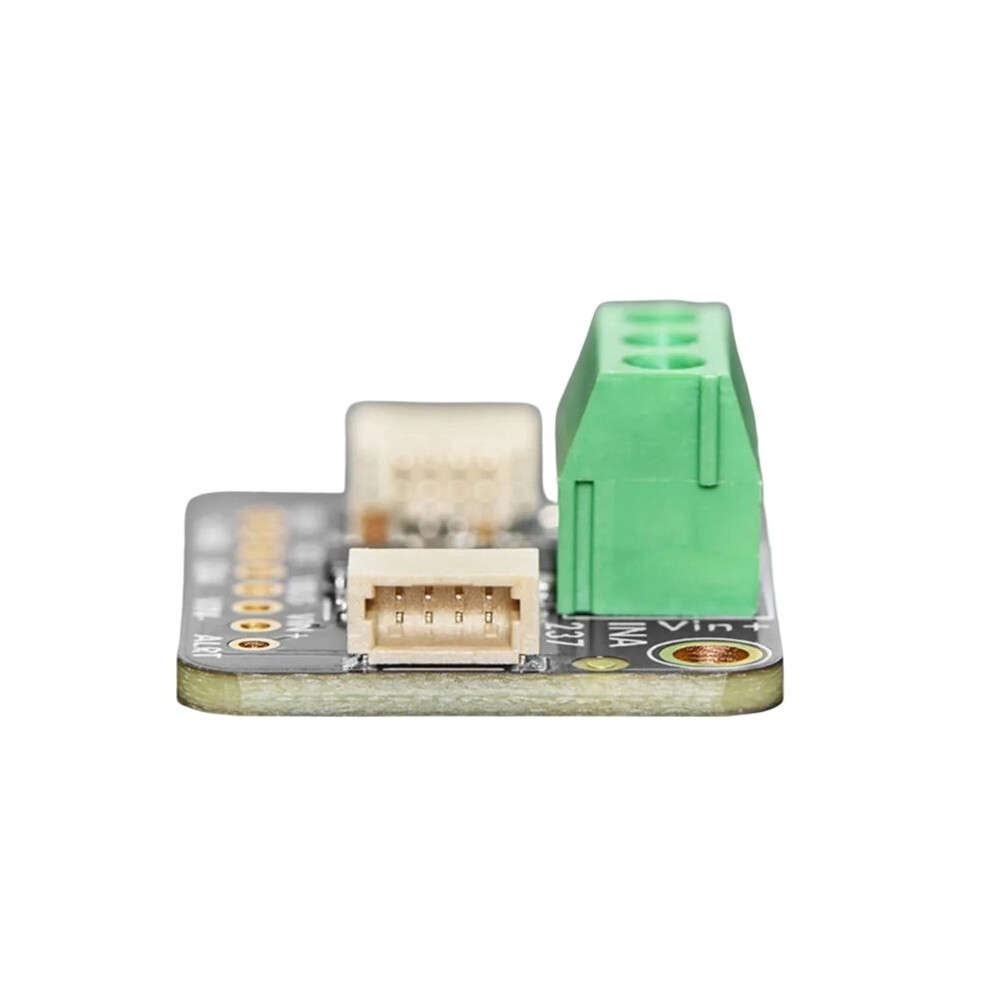

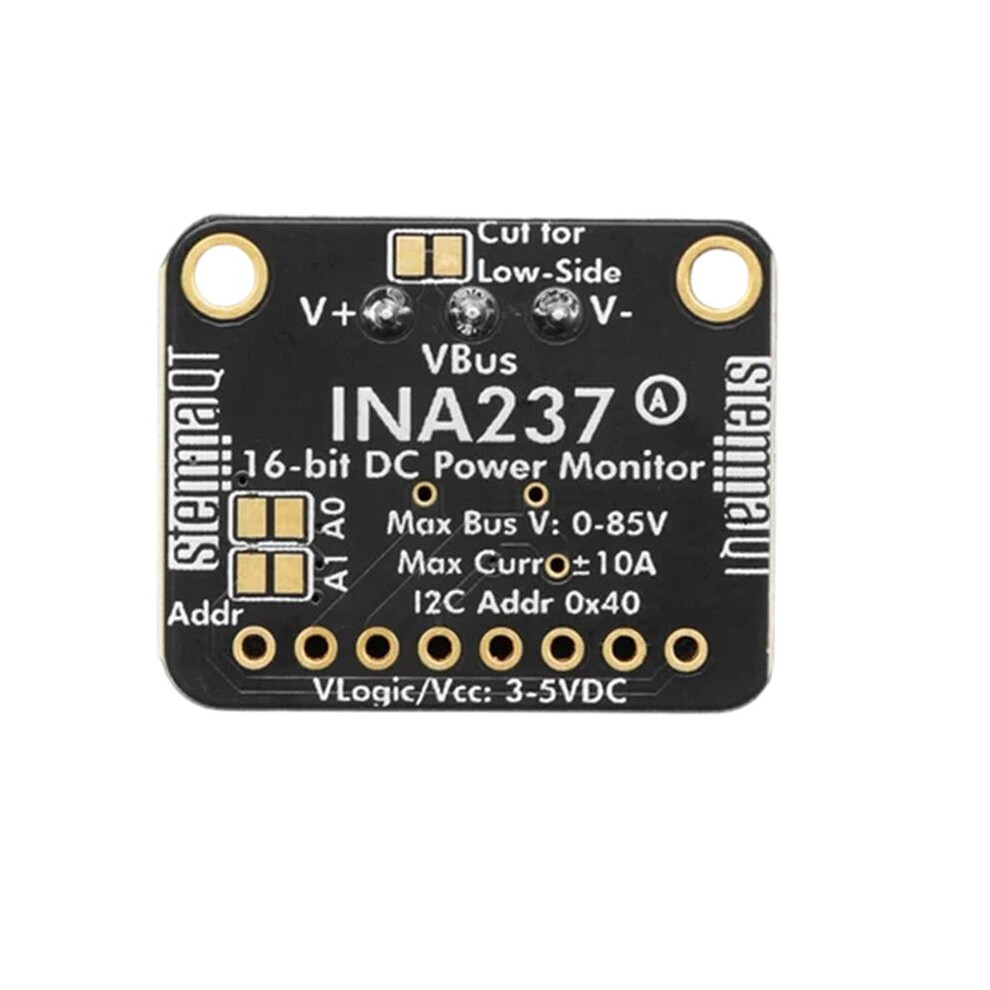

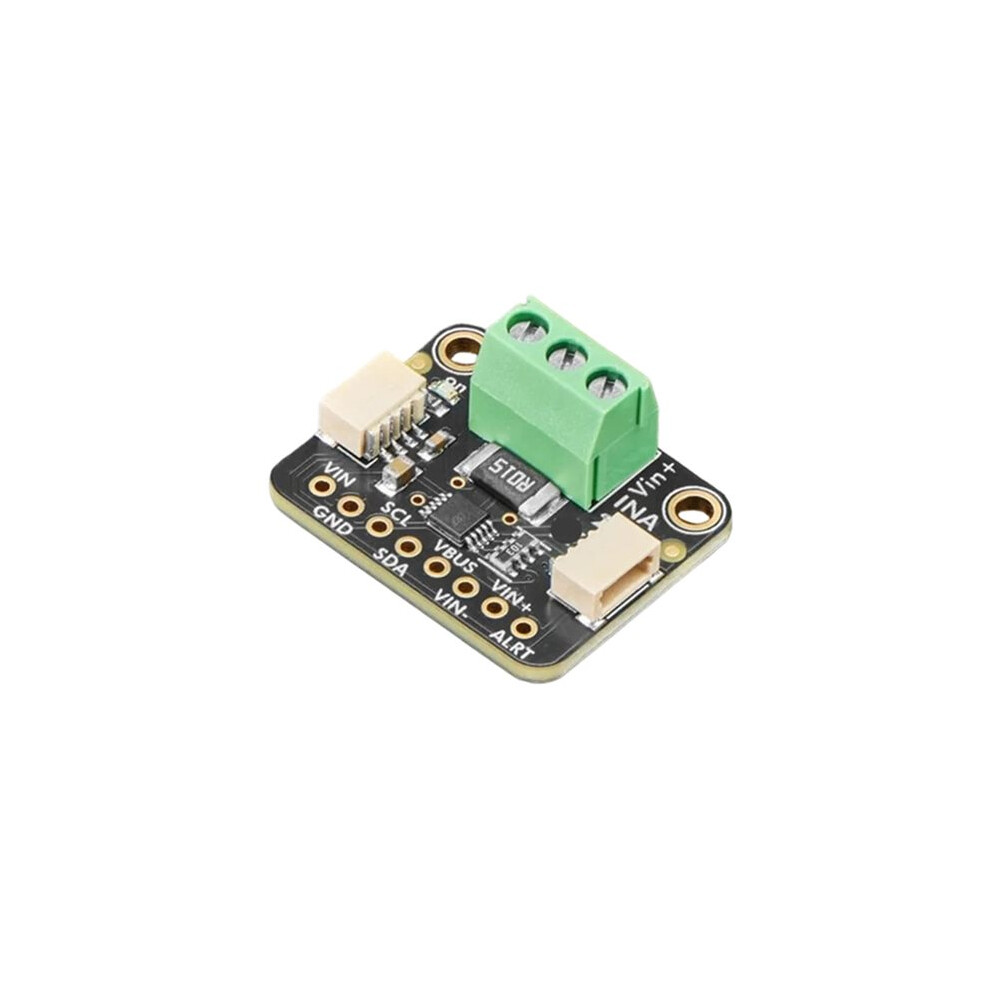

Product Name: INA237 High-Precision Current/Power Monitoring Module (STEMMA QT/Qwiic)

Core Functions:
High-side current, voltage, and power measurement;
16-bit Δ-Σ ADC; for and charge accumulation calculation;
STEMMA QT/Qwiic interface, plug and
Current Measurement: 20A (maximum, depends shunt resistor)
Voltage Measurement: 0V ~ 85V
ADC Resolution: 16-bit
Current Accuracy: 0.5% (gain error, maximum)
Supply Voltage: 2.7V ~ 5.5V
Interface: STEMMA QT / Qwiic (I2C address configurable)
Module Dimensions: 25.3mm x 20.3mm x 10mm
Main Applications:
Battery Management System (BMS);
Server/Data Center Power Monitoring;
Solar System for Metering;
Industrial Equipment Power Consumption Analysis
Product Features:
Plug and (STEMMA QT/Qwiic interface, no soldering required);
High precision (16-bit) ADC (Analog Converter with support for power accumulation); Wide voltage range (supports bus voltages for to 85V); Open-source ecosystem (provides for /CircuitPython drivers).
Color: Random
Material: PCB

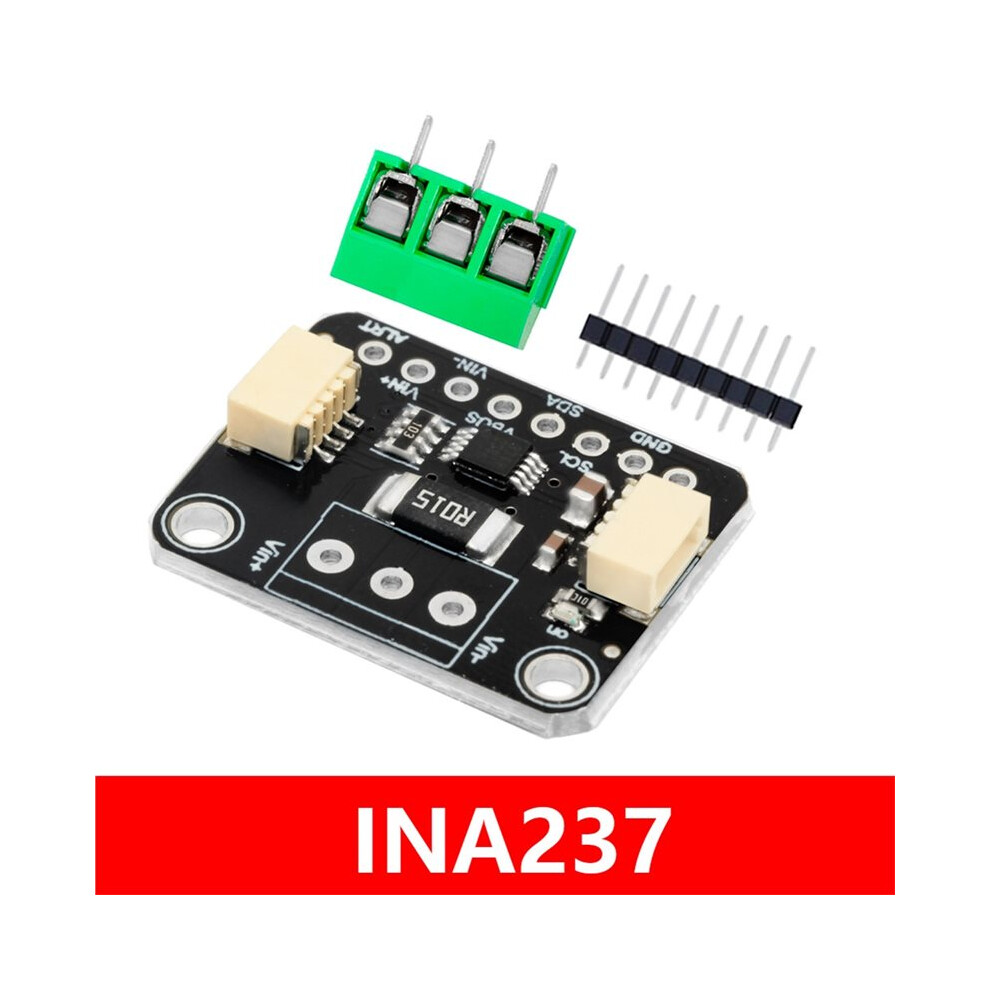

Package Contents:

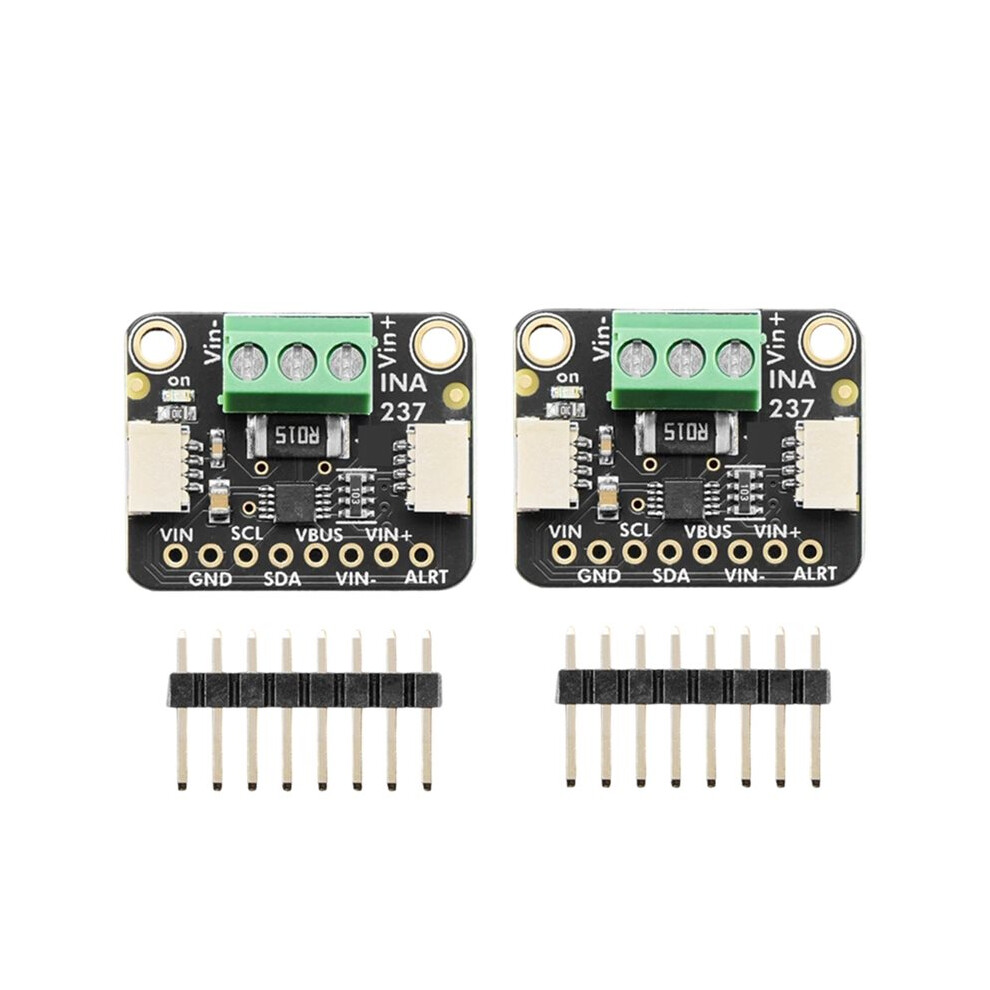

2*Module
