2PCS Multi-Protocol Serial Bus Servo Driver Board for ESP32 Integrated Power Supply Controller

2PCS Multi-Protocol Serial Bus Servo Driver Board for ESP32 Integrated Power Supply Controller Description

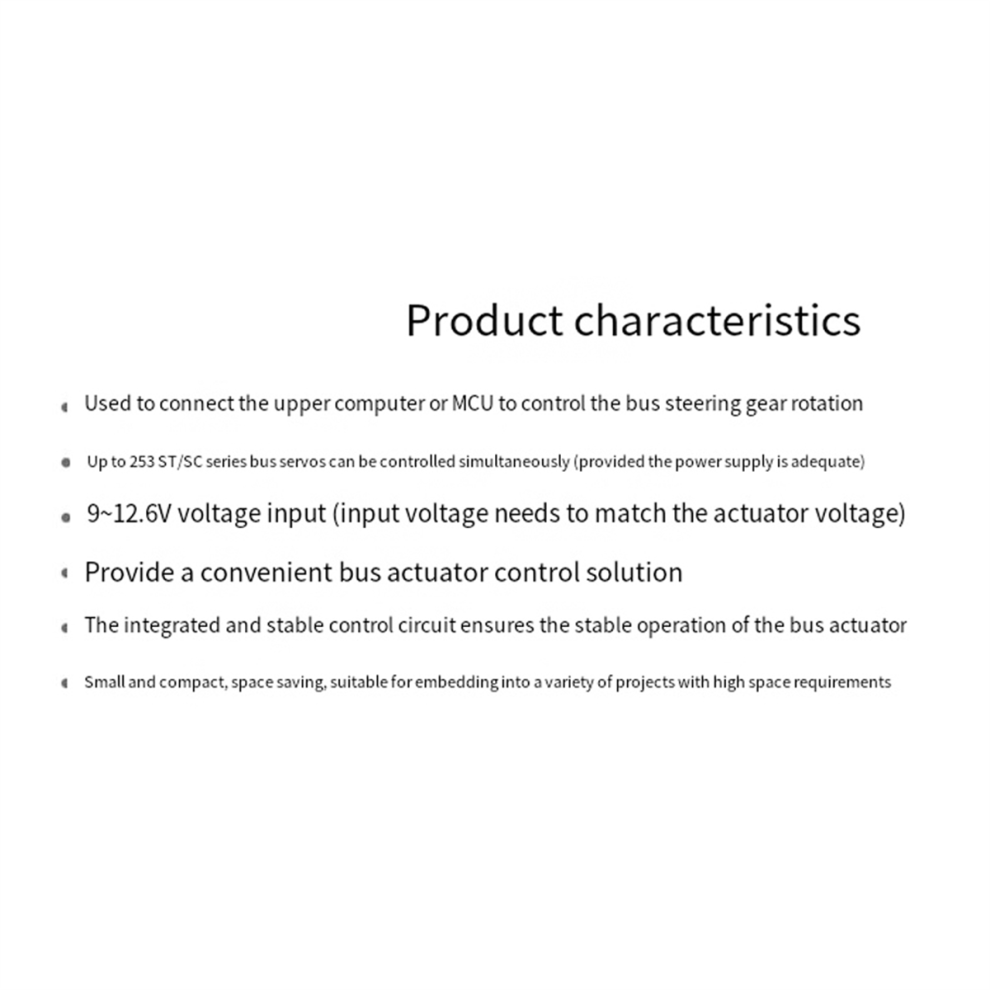

UART Serial Bus Control: Allows for easy UART control of multiple servos, enhancing project prototyping efficiency.
High Servo Capacity: Supports up to 253 /SC series serial bus servos, ideal for advanced robotic applications
Versatile Power Supply Options: Integrates both DC5521 power jack and screw terminal for flexible power supply integration
Multiple MCU Compatibility: Compatible with for , for , for , and STM32, enhancing its usability across platforms.
Compact Size and Integration: Saves space with its 42.00 x 33.00mm dimensions and easy-to-integrate design for space-limited projects.

Hign-concerned Chemical:None
Type:Servo Drives & Amplifiers

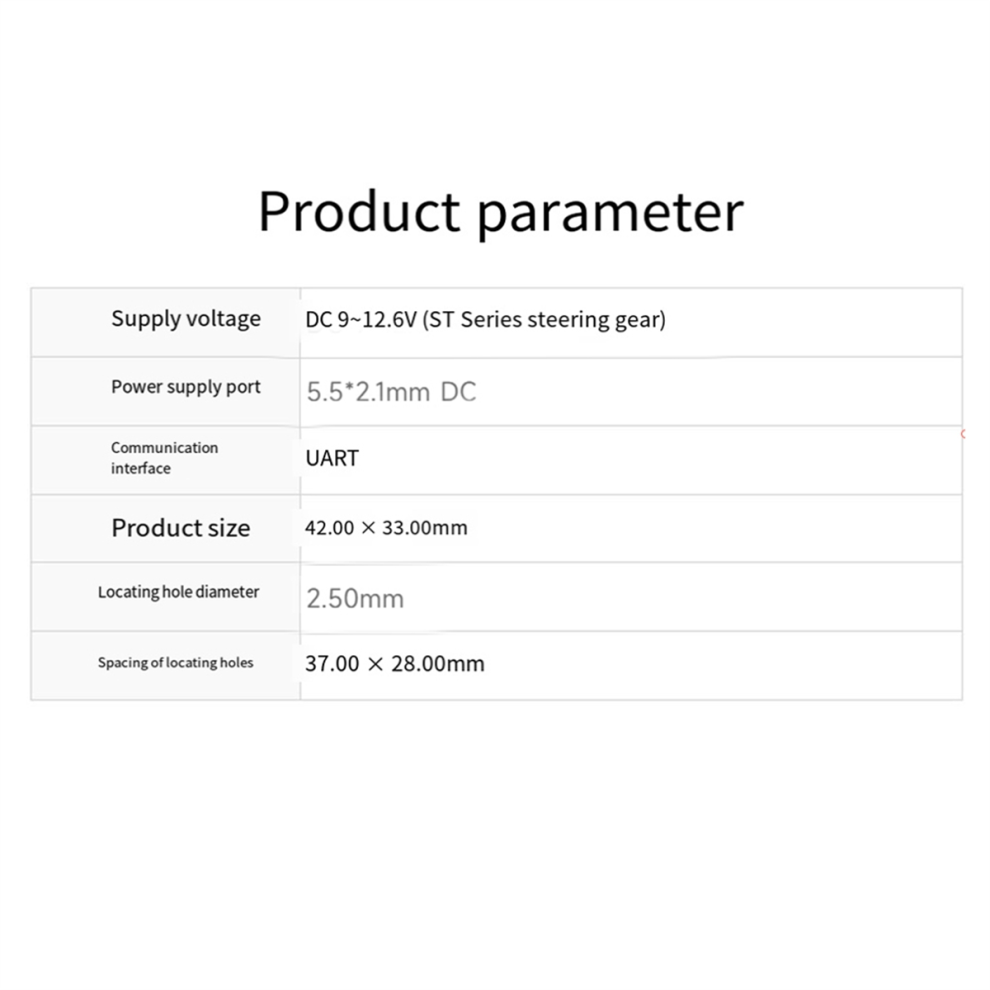

POWER SUPPLY:DC 9-12.6V ( series servo)
WER SUPPLY CONNECTOR:5.5 x 2.1mm DC
COMMUNICATION INTERFACE:UART
DIMENSIONS:42.00 x 33.00mm
MOUNTING HOLE SIZE:2.50mm
MOUNTING HOLE SPACING:37.00 x 28.00mm
The product appearance and printed words depending on the batch, but this does not affect use.
Colour:As Shown
Material:PCB

Package Contents:
2 * UART Serial Bus Control

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
