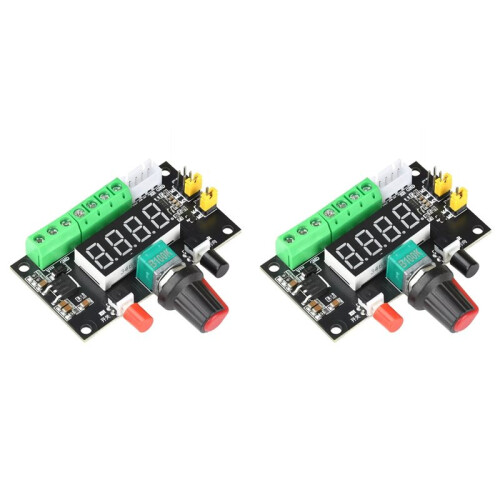

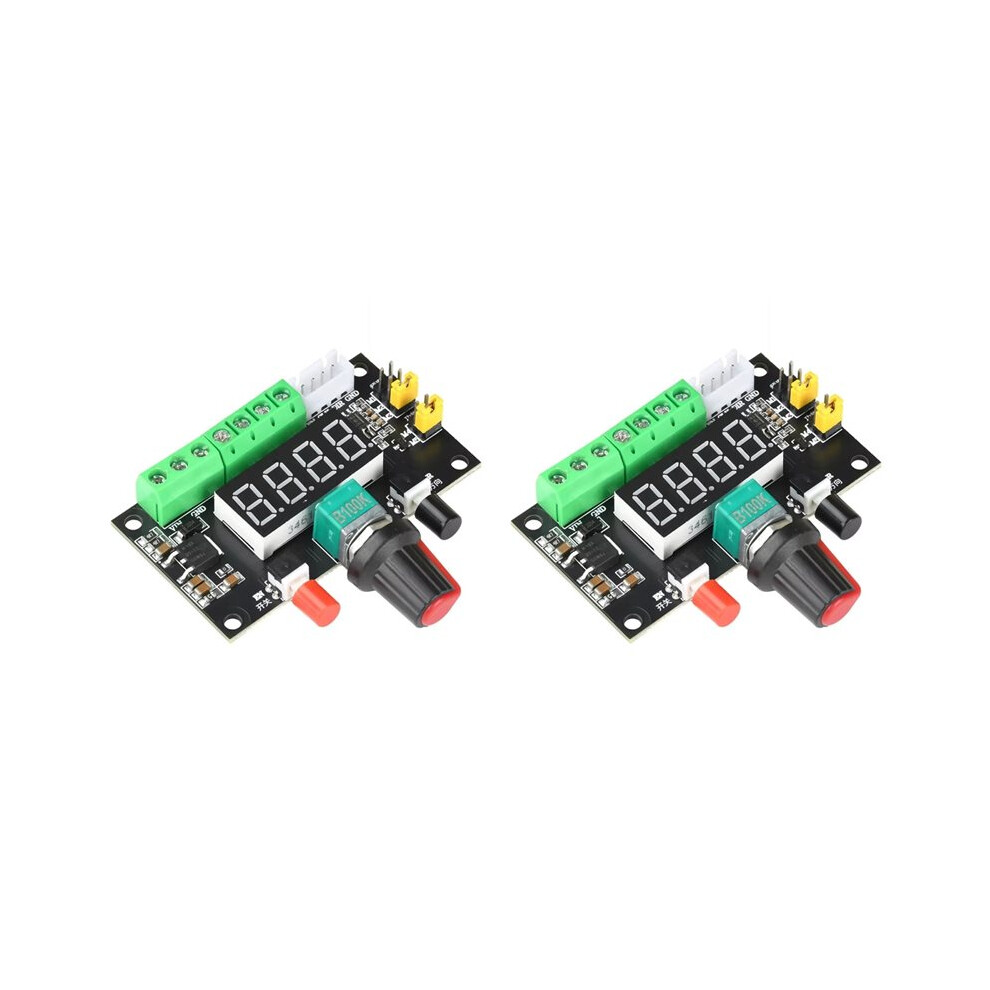

2X 12V 24V Stepper Motor Driver Controller Speed Regulator PWM Pulse Signal Generator Module with LED Display

2X 12V 24V Stepper Motor Driver Controller Speed Regulator PWM Pulse Signal Generator Module with LED Display Description

1. Supports 12V/24V power supply, adapting to various stepper motor drive requirements.
2. Enables forward and reverse rotation control, flexibly handling complex situations.
3. Integrated speed control module for precise motor speed adjustment.
4. Outputs PWM pulse signals with high stability and fast response.
5. Comprehensive product features, suitable for various automation control scenarios.

1. This module is a pulse generator that provides control signals to the stepper driver. To control a stepper motor, a driver is required.
2. This simple controller, stepper motor driver, stepper motor, and power supply form a simple control platform.
3. Frequency measurement: PUL and common cathode. Different stepper drivers may be labeled differently.
EN = ENA = Free Enable
PUL = PULS = CLK Pulse
DIR = CW = CWW Direction
Common Anode Connection Method (A)
Connect EN+, PUL+, and DIR+ to the common anode terminal
Connect EN- to EN
Connect PUL- to CLK
Connect DIR- to DIR
Common Cathode Connection Method (B)
Connect EN-, PUL-, and DIR- to the common cathode terminal
Connect EN+ to EN
Connect PUL+ to CLK
Connect DIR+ to DIR
Color: As Shown
Material: PCB

Package Contents:
2 x Forward and reverse controller speed control module
