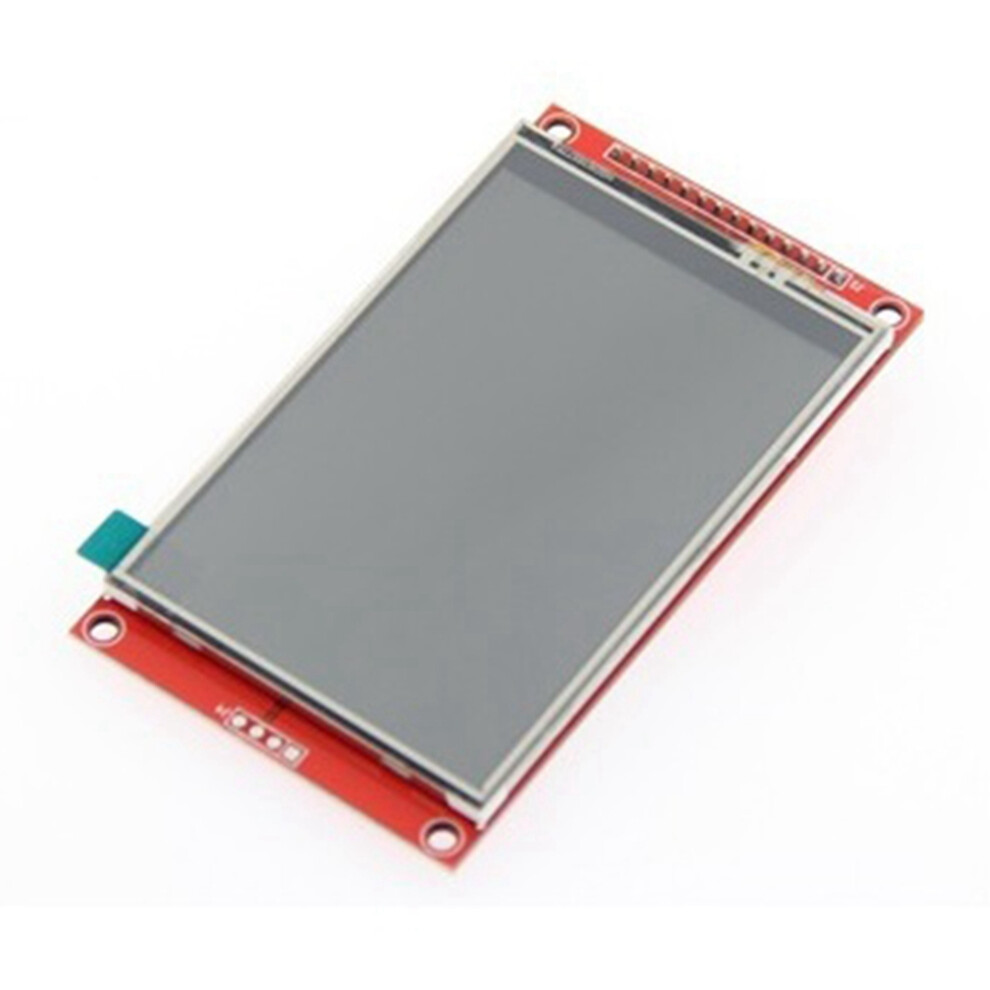

2X 3.5 Inch TFT LCD Display Screen SPI Serial LCD Module 480X320 TFT Module Driver IC ILI9488 Support Capacitive Touch
Brand ISTOVO
New
€41.62
Similar Products we think you'll like
Would you like us to let you know when it's back?
Description & Details
Summary
- 3.5-inch color screen, support 65K color display, display rich colors
- 480X320 HD resolution, optional touch function
- Using SPI serial bus, it only needs a few IOs to light up the display

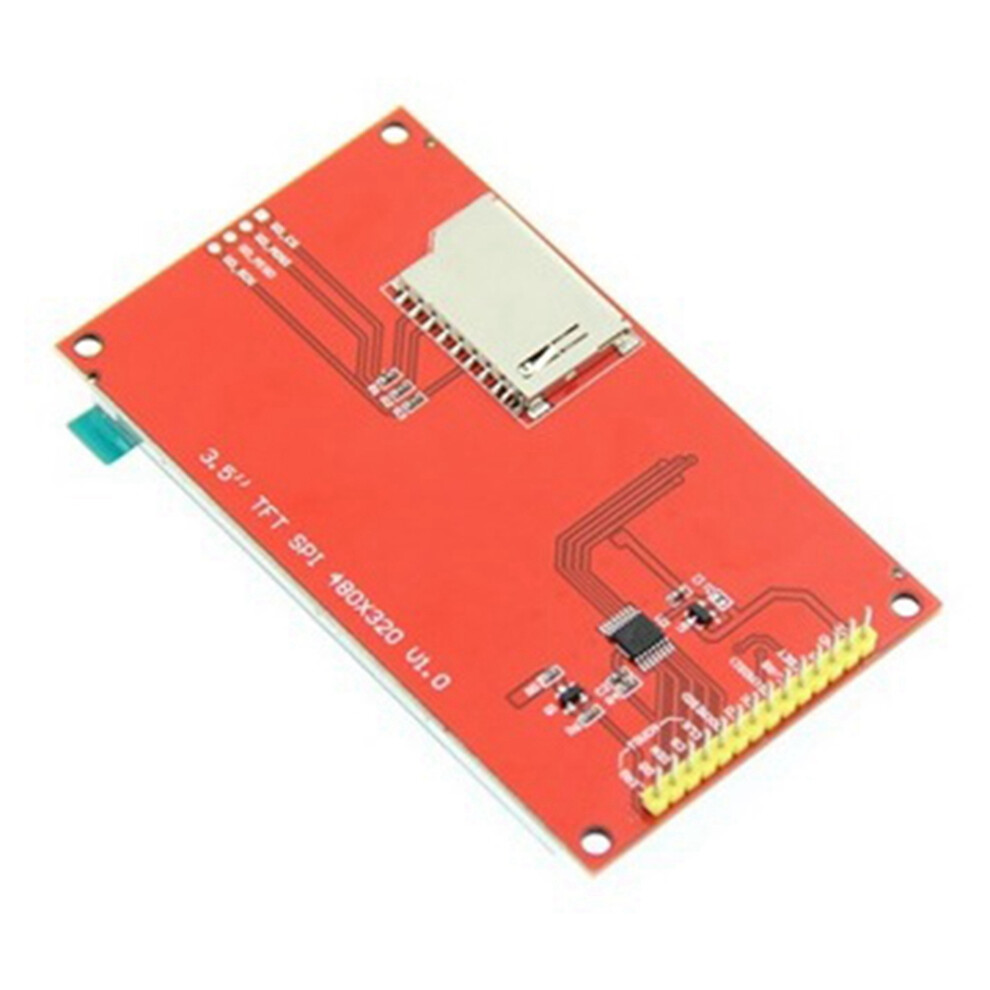

- With SD card slot for easy expansion experiment
- process standards, long-term stable work
2X 3.5 Inch TFT LCD Display Screen SPI Serial LCD Module 480X320 TFT Module Driver IC ILI9488 Support Capacitive Touch Description
3.5-inch color screen, support 65K color display, display rich colors
480X320 HD resolution, optional touch function
Using SPI serial bus, it only needs a few IOs to light up the display
With SD card slot for easy expansion experiment
process standards, long-term stable work
Type: TFT
Driver chip: ILI9488
Resolution: 480*320 (Pixel)
Module interface: 4-wire SPI interface
Effective display area (AA area): 48.96x73.44(mm)

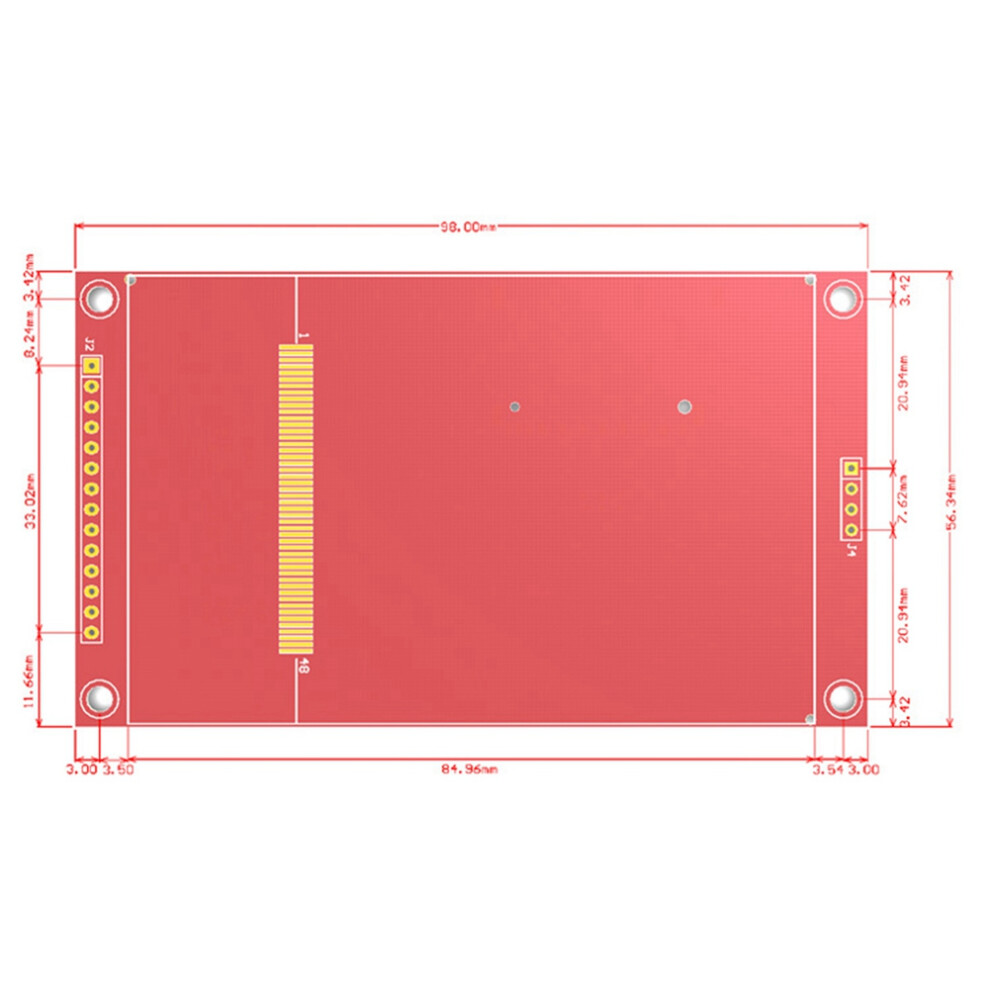

Module PCB backplane size: 56.34x98(mm)
VCC power supply voltage: 3.3V~5V
Logic IO port voltage: 3.3V (TTL)
Power consumption: about 90mA
Colour:red
Material:PC+glass
Package Contents:

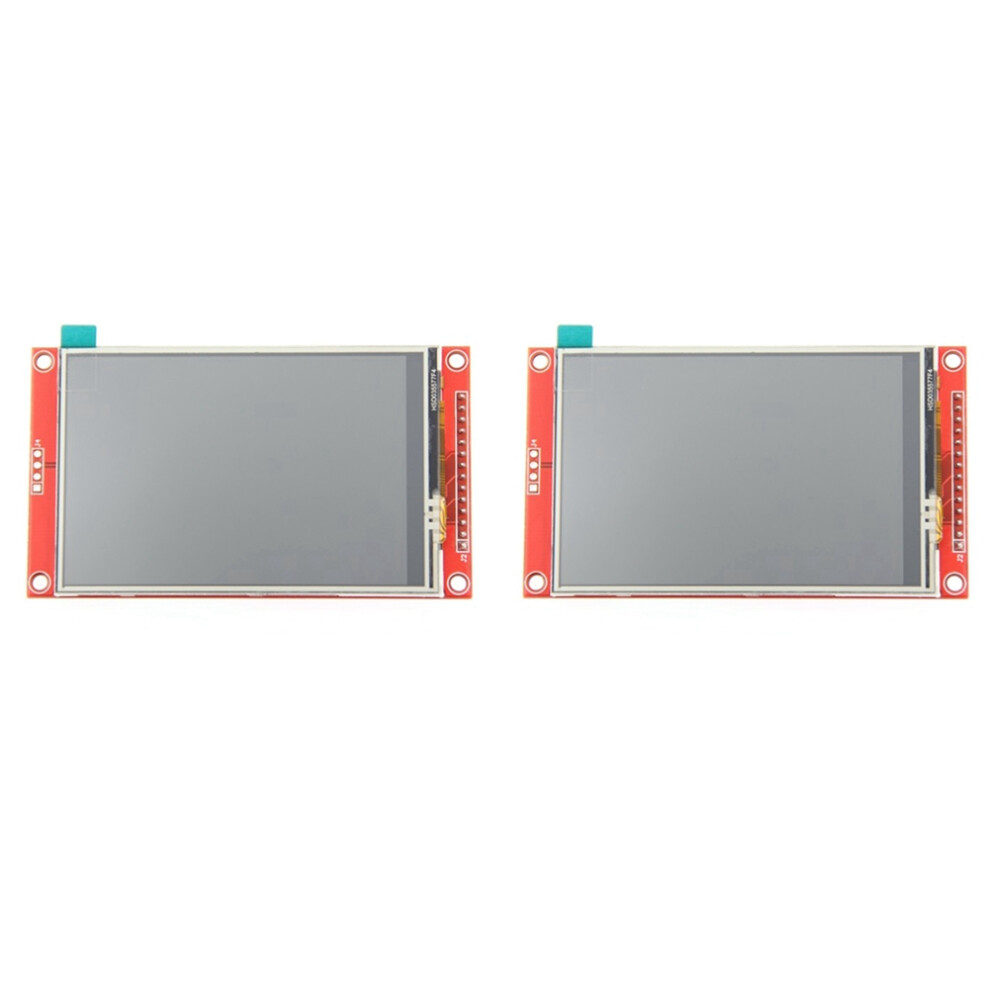

2 x Display Screen
Details
| OPC | PP95T26 |
|---|---|
| Brand | ISTOVO |
| Codes | 6131313564119 (EAN) |
| Product and Safety Information |
Product Data
| Height | 6cm |
|---|---|
| Width | 7cm |
| Length | 12cm |
| Weight | 0.16kg |
| Colour | Red |
| Material | PC+glass |
