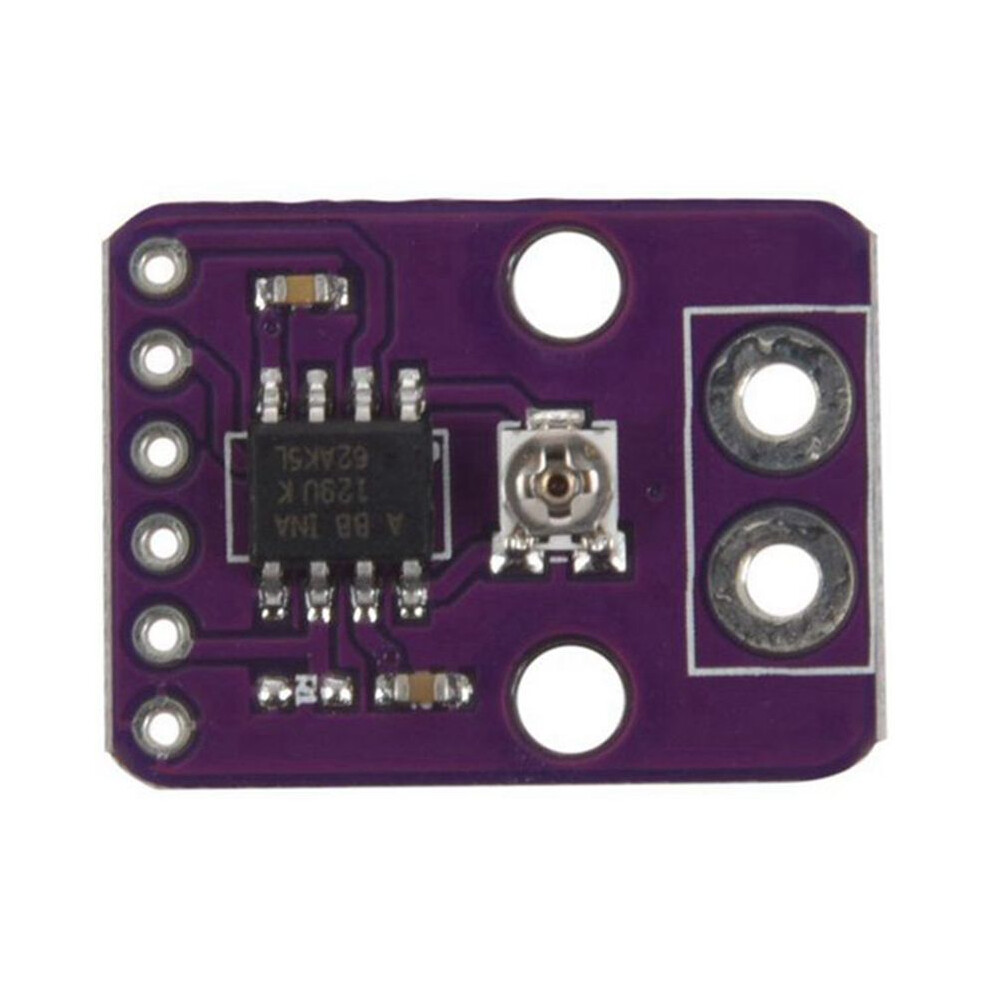

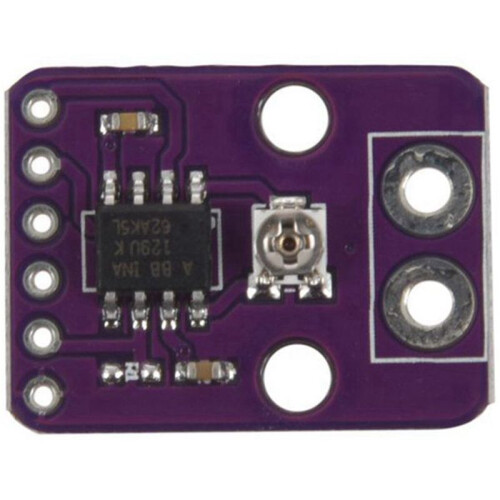

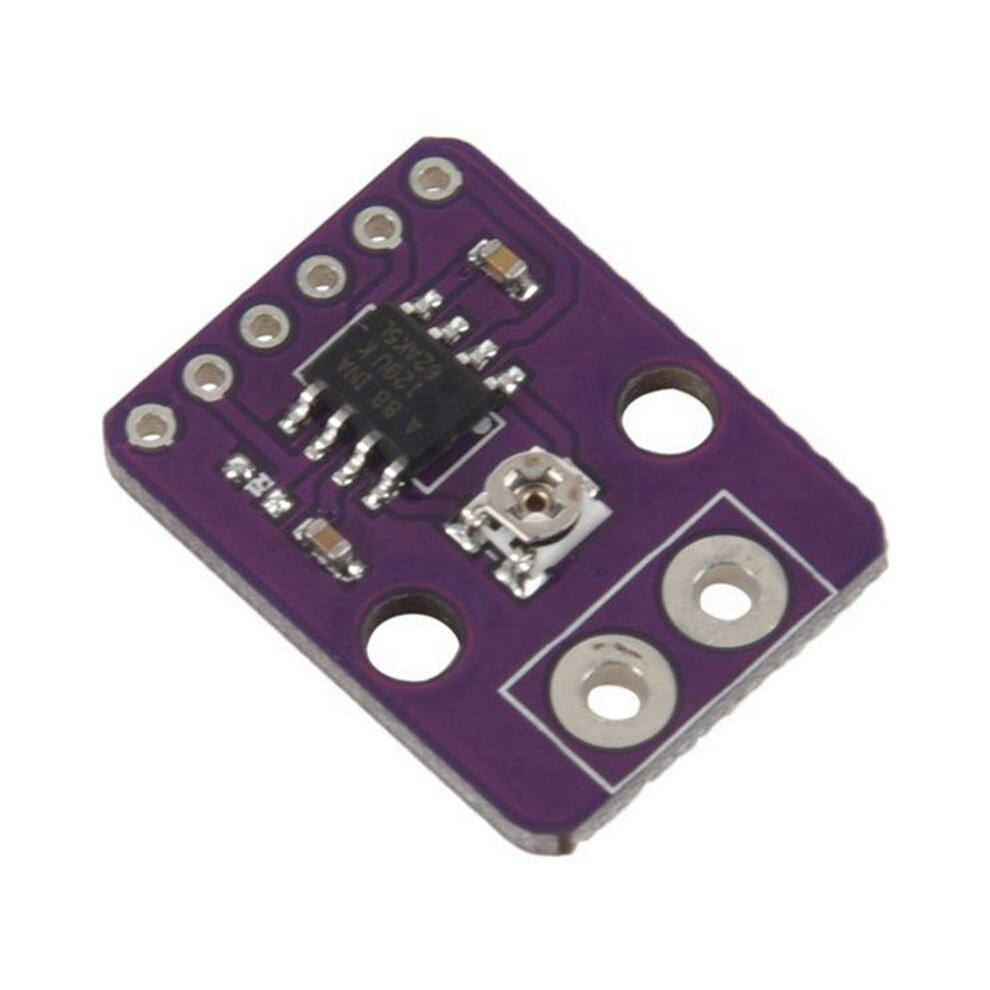

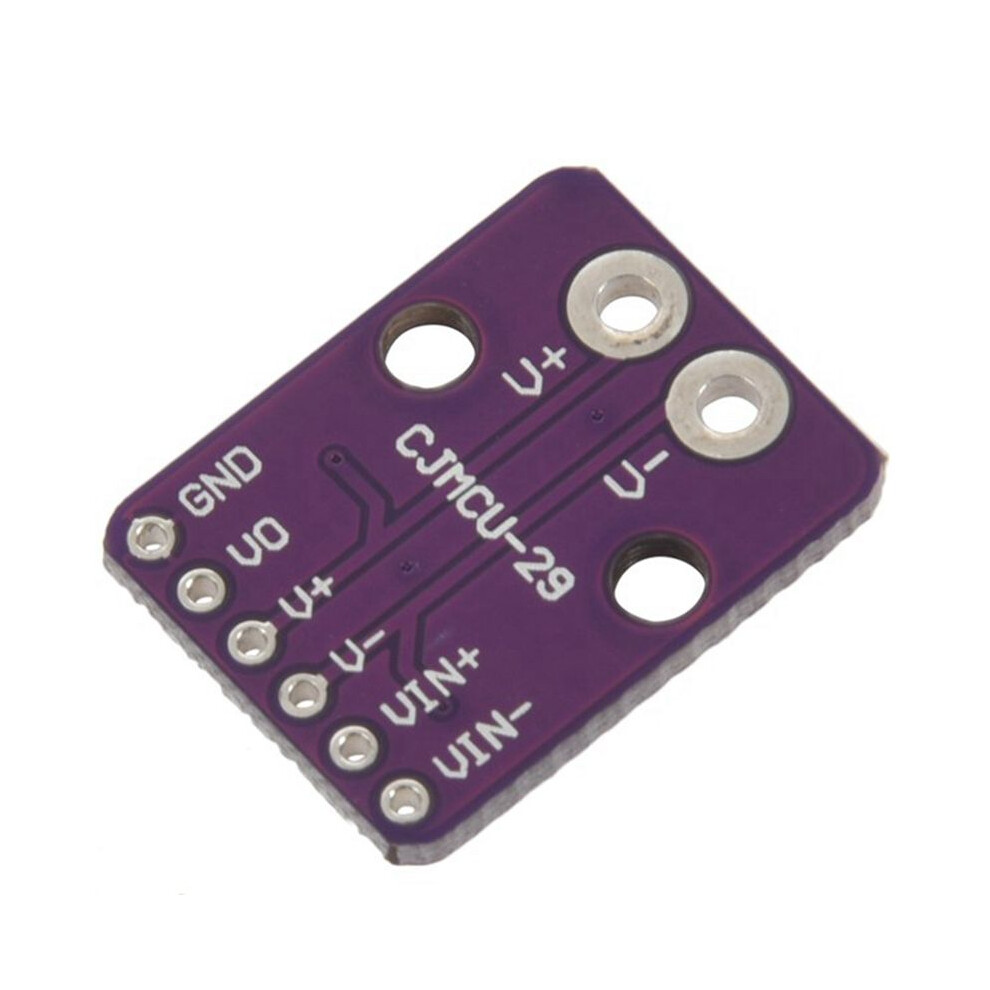

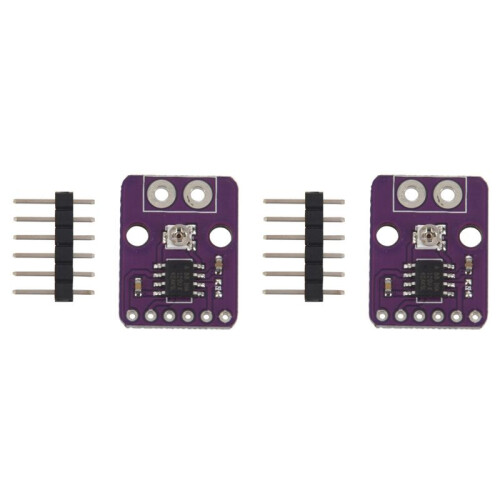

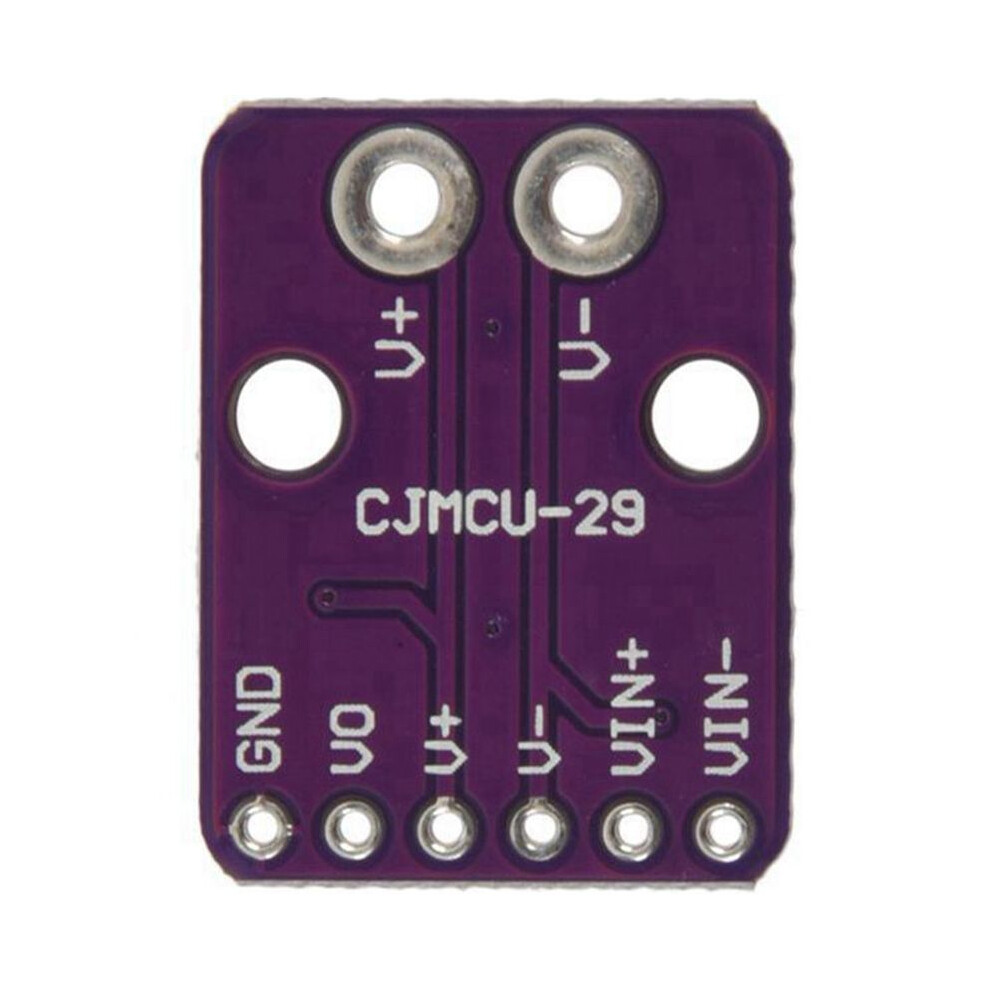

2X CJMCU-29 INA129-HT High Temperature Precision Low Power Instrumentation Amplifier Module Winder

2X CJMCU-29 INA129-HT High Temperature Precision Low Power Instrumentation Amplifier Module Winder Description

The INA129-HT are low-power, general-purpose instrumentation amplifiers offering excellent accuracy.
The versatile three-operational-amplifier design and small size make them Perfect for a wide range of applications.Current-feedback input circuitry provides wide bandwidth even at high gain.
A single external resistor sets any gain from 1 to 10000.
the INA129-HT gain equation is compatible with the AD620.

The INA129-HT are trimmed for very low offset voltage (25 μV Typ) and high common-mode rejection (93 dB at G more than the equal 100).
These devices operate with power supplies as low as +/-2.25 V, and quiescent current of 2 mA, typically.
Internal input protection can withstand to +/-40 V without damage.
Texas Instruments' high-temperature products use highly optimized silicon (die) solutions with design and process enhancements to maximize performance over extended temperatures.
The INA129-HT is available in 8-pin ceramic DIP and 8-pin ceramic surface-mount packages, specified for the -55 Celsius to 210 Celsius temperature range.
Please note: the physical slightly color difference or difference, does not affect the use, please do not mind, thank you!
Material: Metal
colour:

Package Contents:

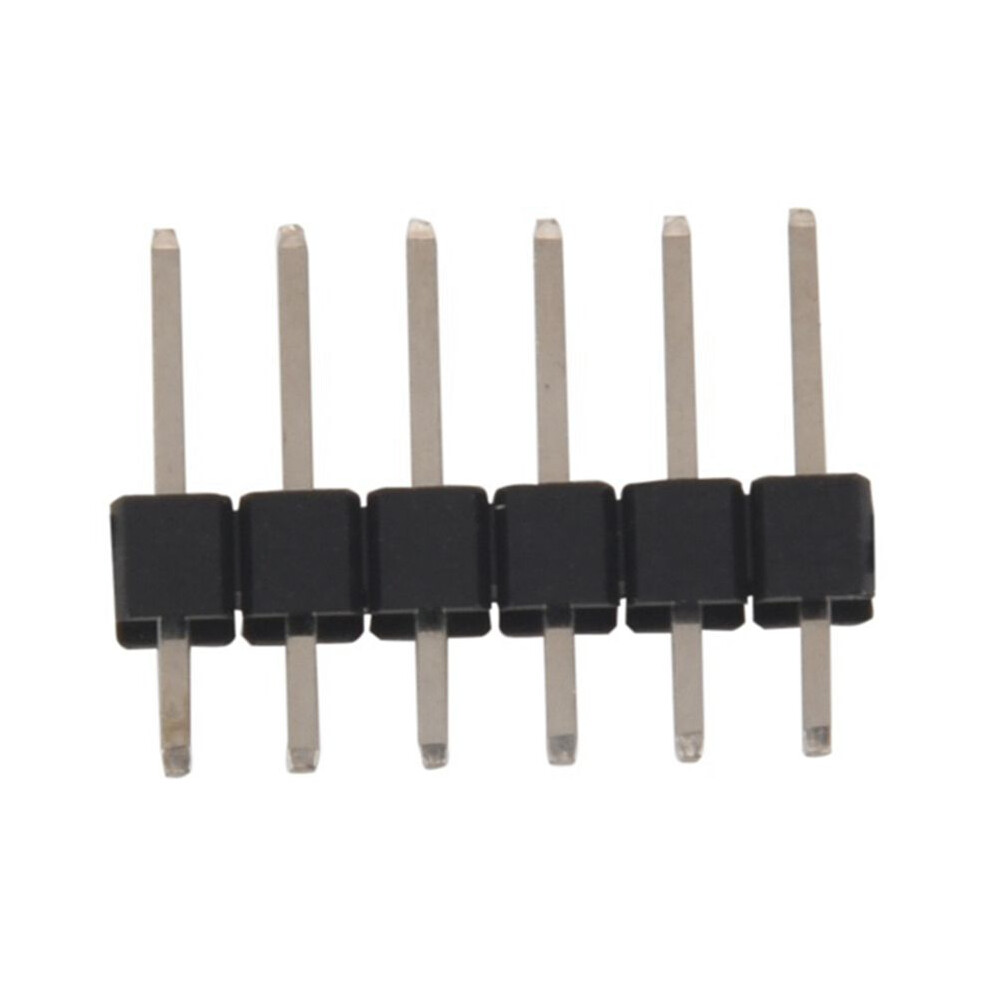

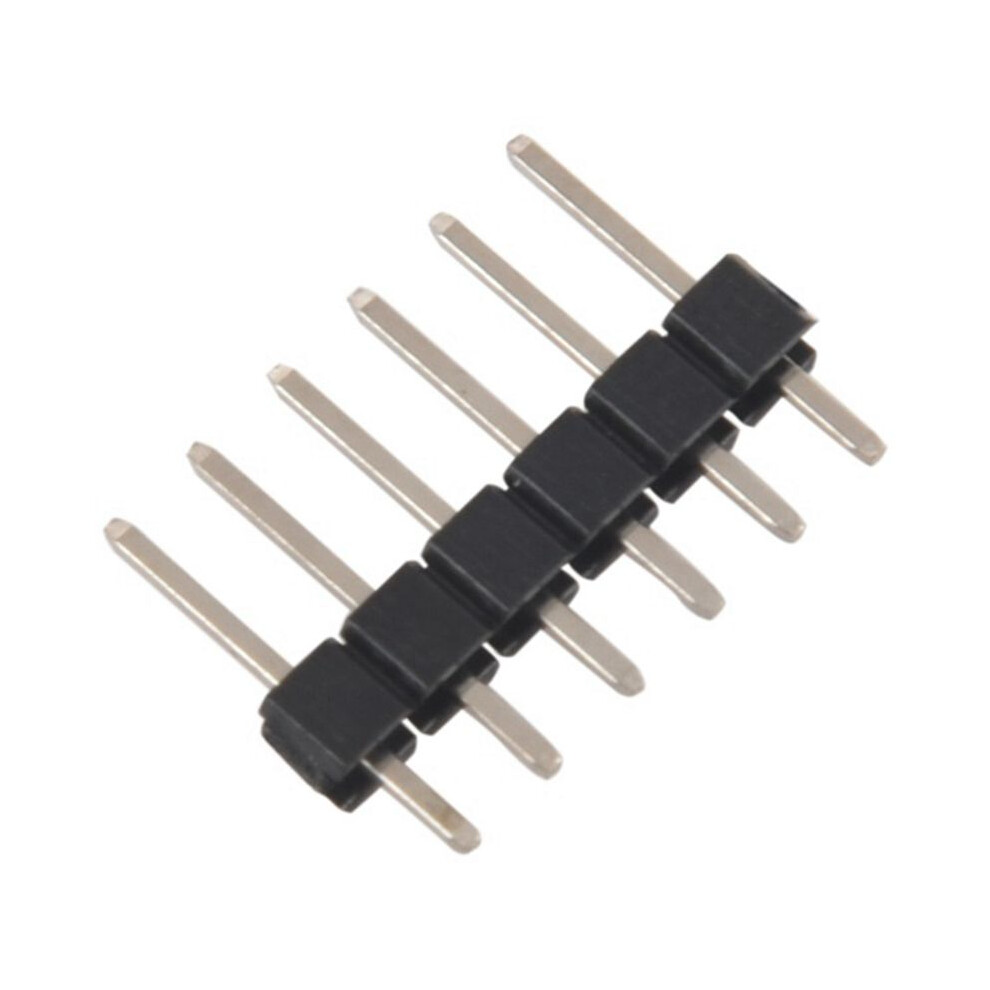

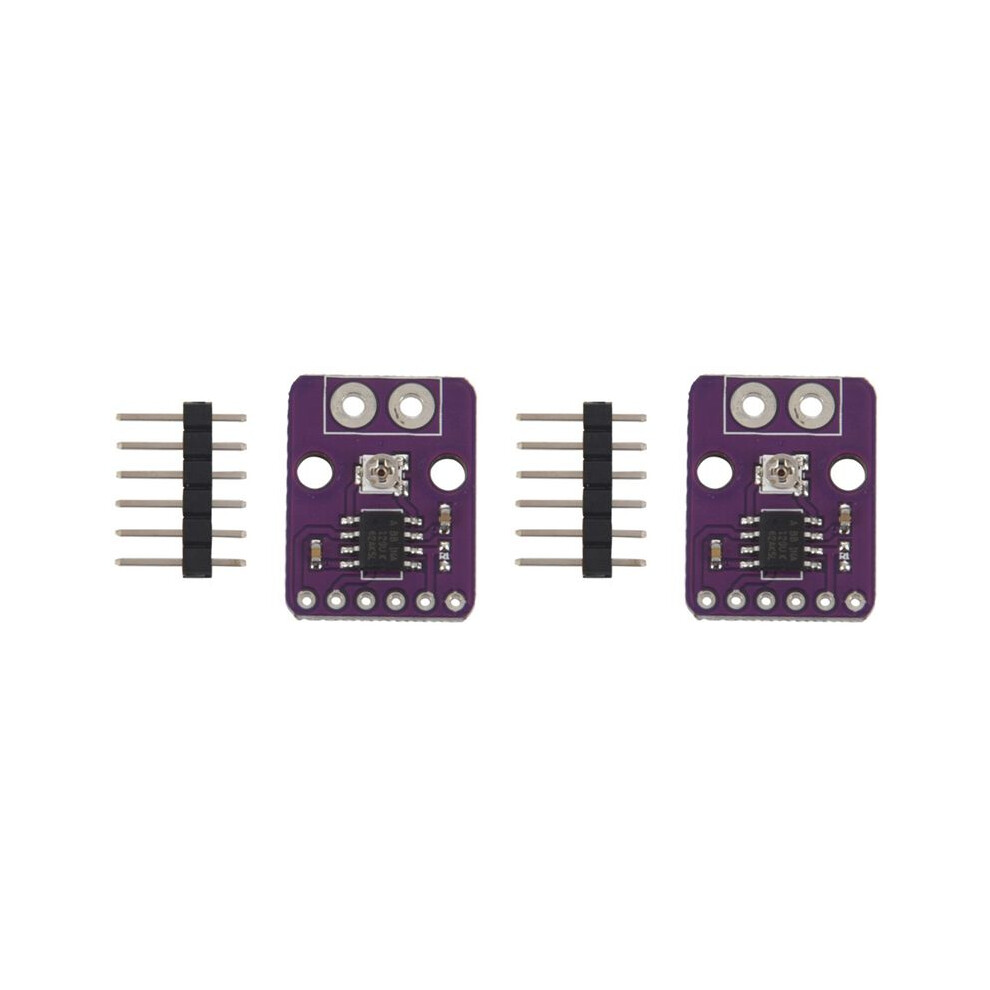

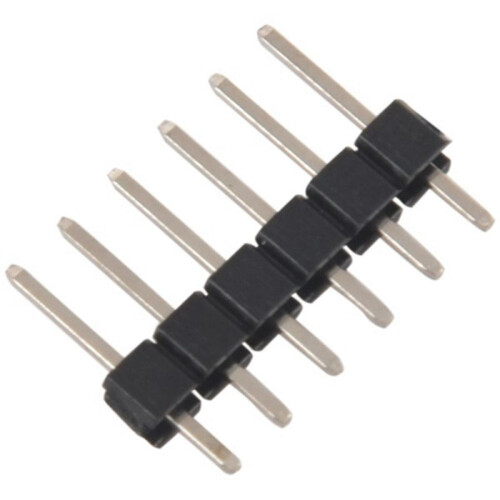

2 x Amplifier Module
