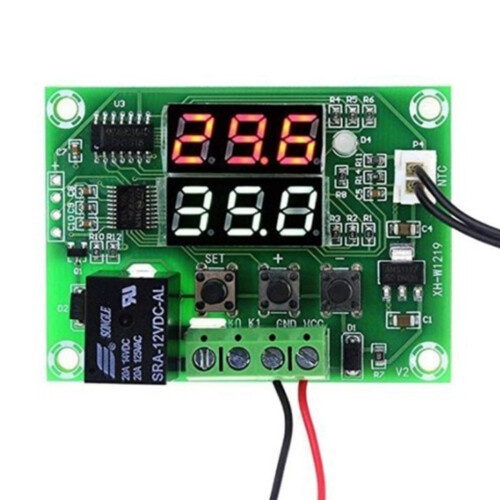

2X DC12V XH-W1219 High Quality NTC Sensor Regulator Sensor Module Temperature Controller Thermostat

2X DC12V XH-W1219 High Quality NTC Sensor Regulator Sensor Module Temperature Controller Thermostat Description

Module: XH-W1219
Function: Temperature Controller
Power Supply: DC12V
New and High Quality

Please pay attention for your first use. You need wait 6s after your setting data, the module will save the date you have set after 6s.
Short press button SET: If you start the setting mode , Nixie tube will blink. You could adjust the T1 and T2 by button+ and button-. Please wait 5s after your setting date, the module will save the date you have set after 5s.
Long press button SET: if you start the parameter setting mode. There are two group parameter for your choice : P0 and P1. You could P0 or P1 by short press SET. Under the parameter P0 and P1,you could set the timing mode by the button+ and button-.
P0--0: timing mode is 0--999 seconds; P0--1: timing mode is 0--999 minutes; P0--2: timing when the pattern is 0--999; P1--0: T1 delay relay (T1 timer); P1--1: T1 delay relay releases (T1 timer)
P1--2: delay relay after T1 (T1 timer), then the delay T2 successor electrical release (T2 timing) ends.
P1--3: T1 delay relay releases (T1 timer), then the delay T2 successor Electric energized (T2 timing) ends.
P1--4: delay relay after T1 (T1 timer), then the delay T2 successor electrical release (T2 timer), repeat the cycle.
P1--5: T1 delay relay releases (T1 timer), then the delay T2 successor Electric energized (T2 timer), repeat the cycle.
Colour: green
Material: plastic
Size: 60x44mm

Package Contents:
2 x Sensor Module
