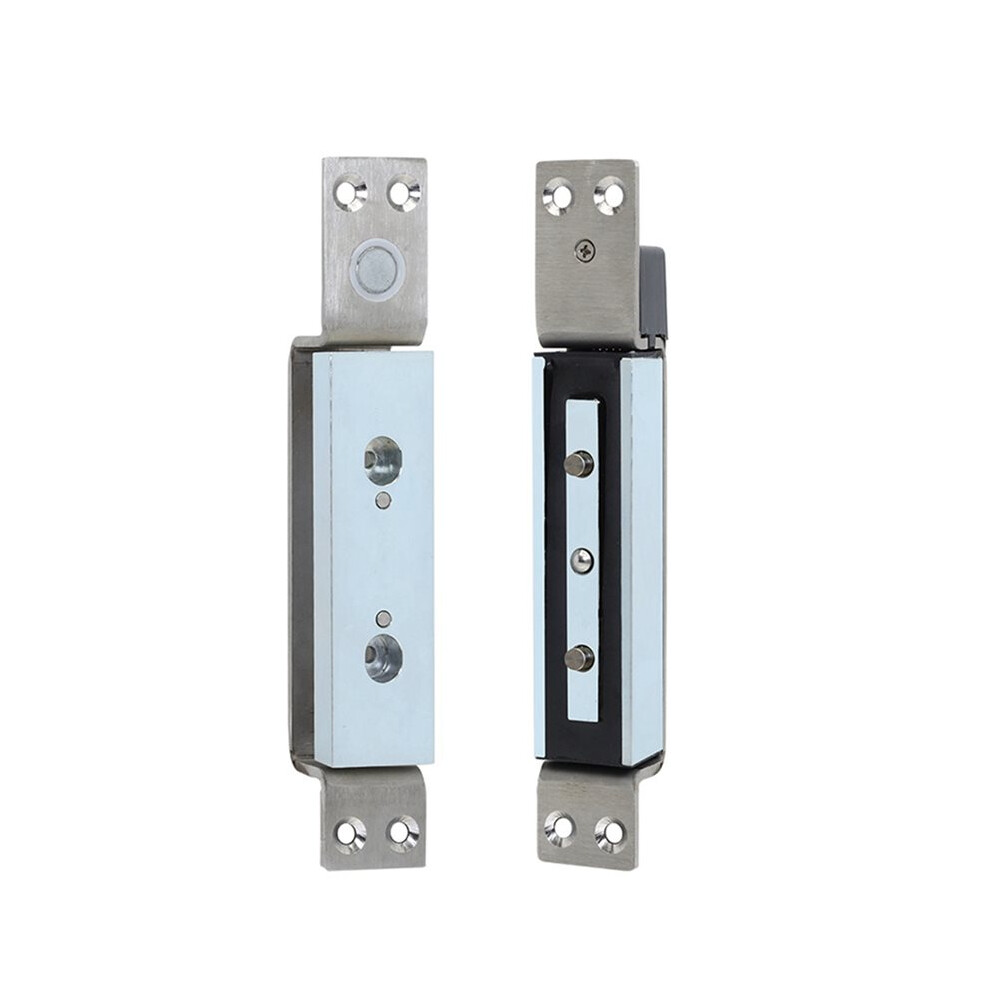

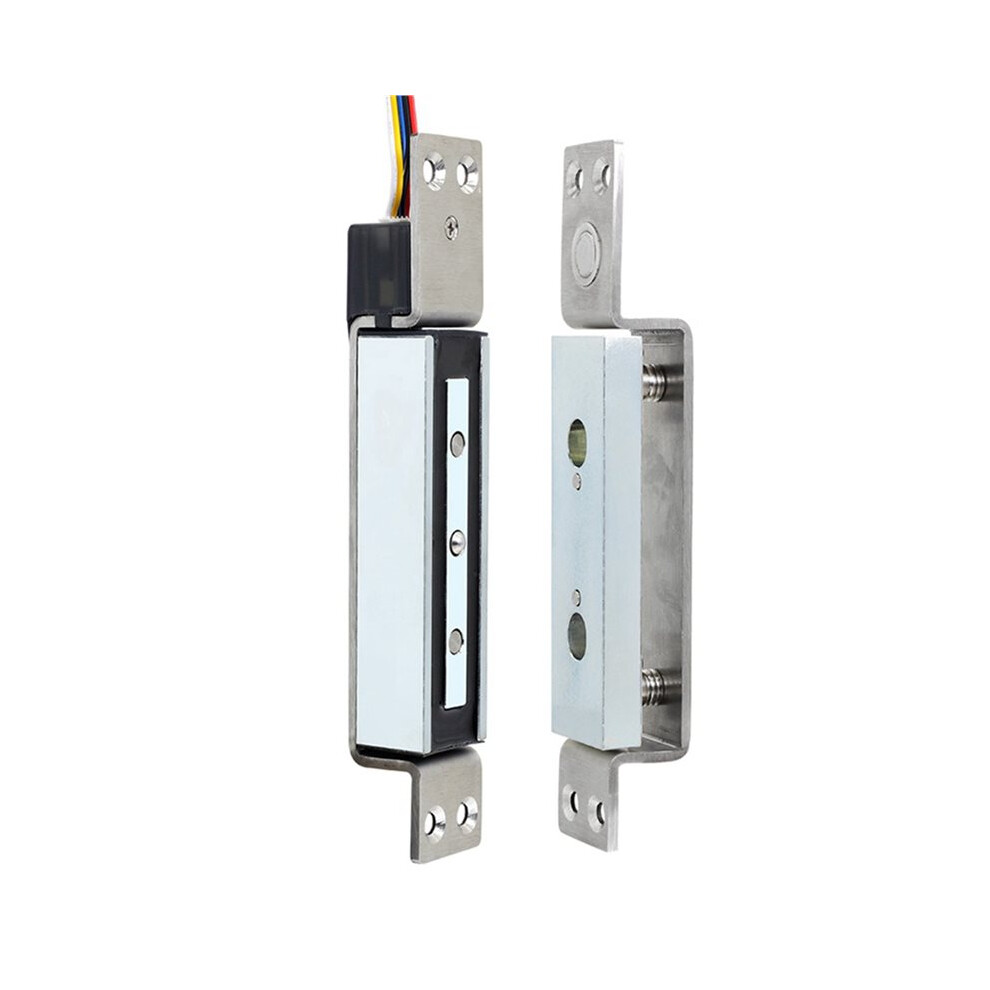

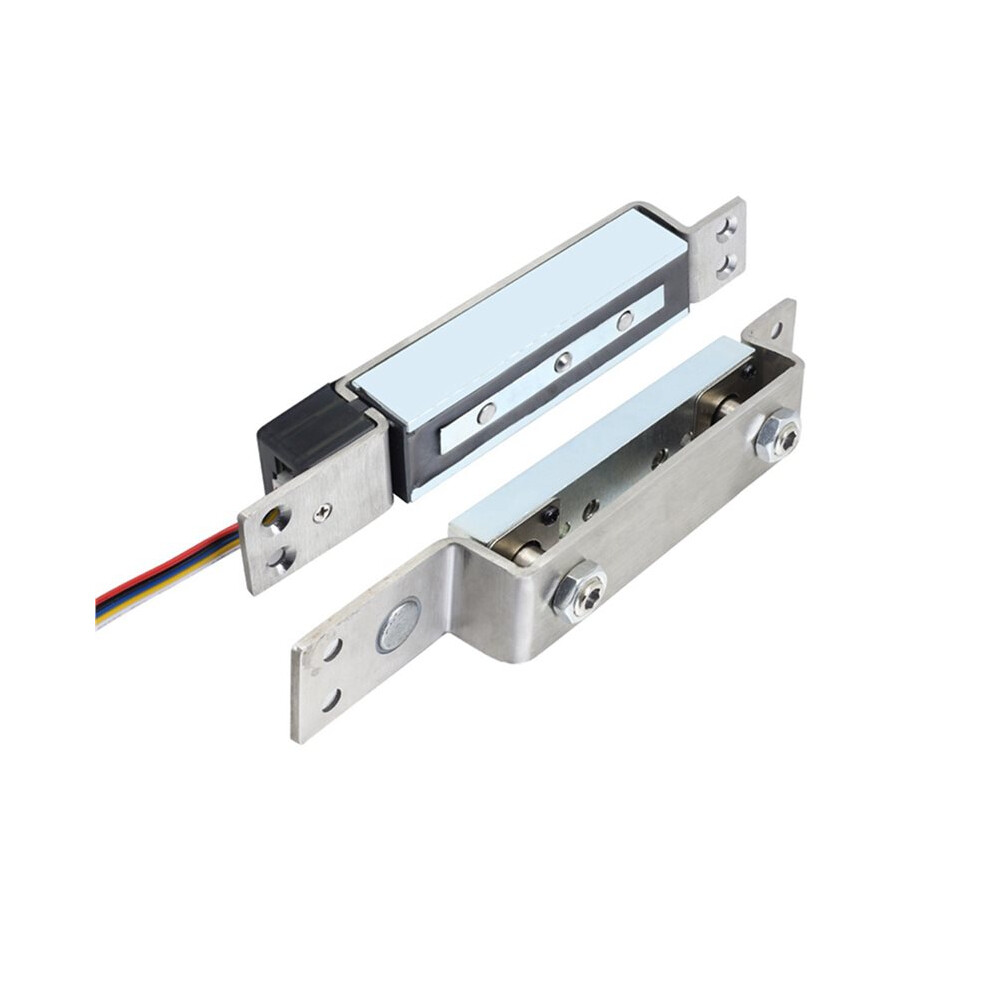

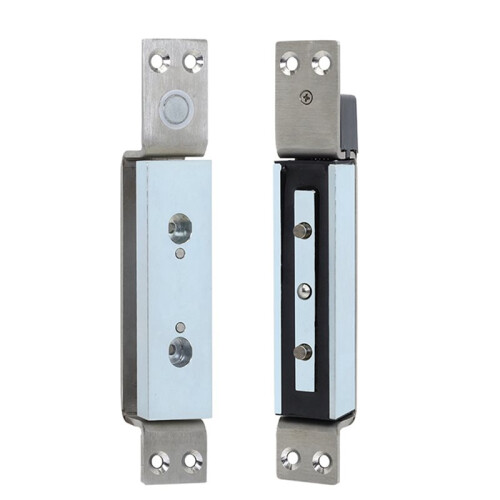

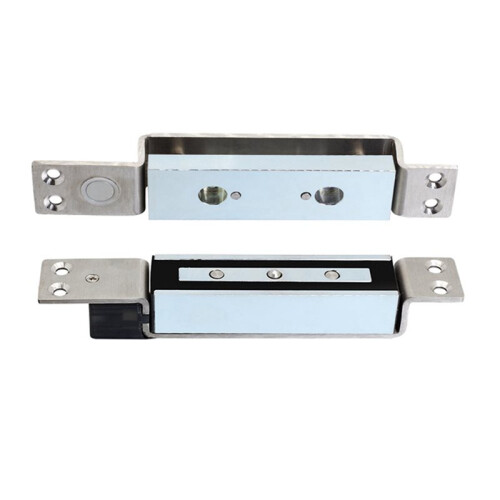

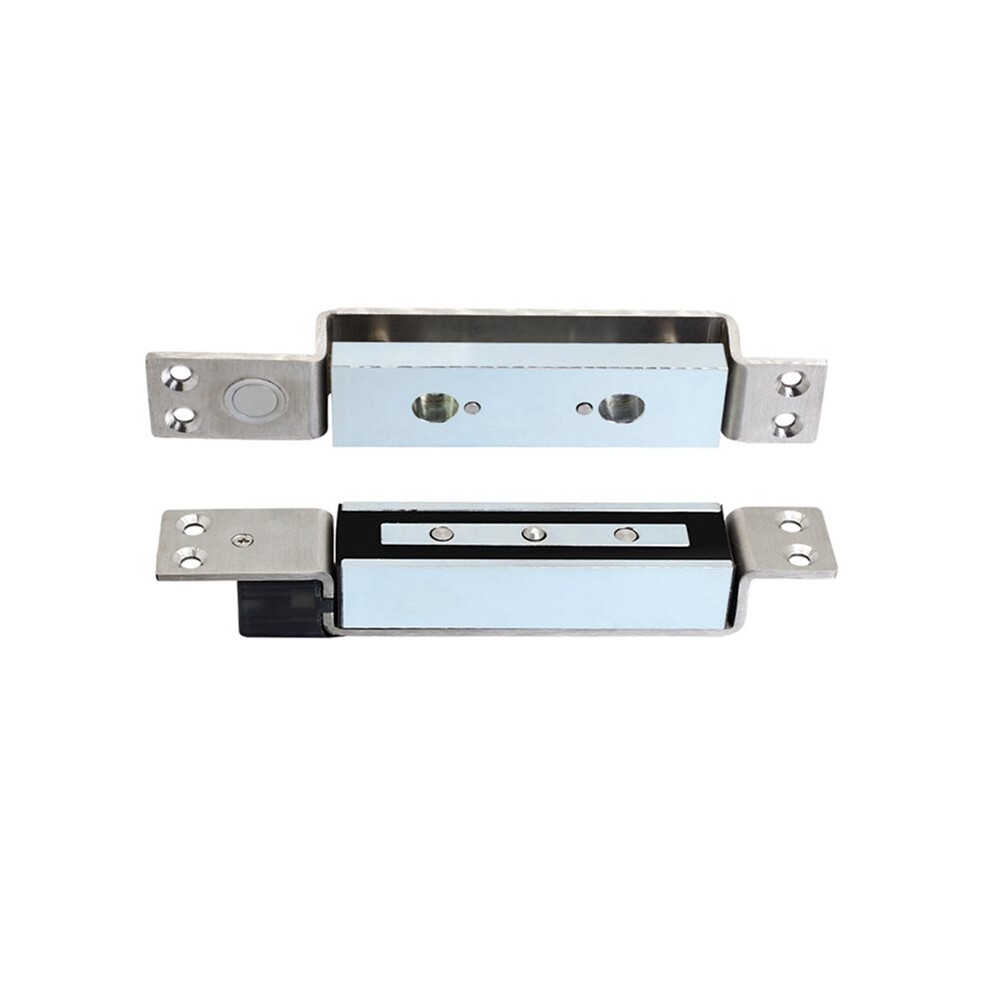

2X Embedded Electromagnetic Shear Lock Concealed Electric Magnetic Door Lock with Delay for Access Control Systems
Brand ISTOVO
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 130,000 Trustpilot reviews and an 'Excellent' rating
€160.02
€197.56
19% off!
+€4.04 Delivery
1%
Earn €1.60 instantly
Learn More
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Standard (€4.04) | Thu 6th - Tue 11th Aug
Returns: 30 days
180-day payment protection
Most Popular in Item Finders
Description & Details
Summary
- Electromagnet: The shear lock contains a powerful electromagnet. When an electric current passes through it, the electromagnet generates a strong magnetic field that locks the door
- Shear Force: In addition to the magnetic force, the shear lock utilizes the shear force between the door and the door frame to increase locking strength. This means that even if the electromagnetic force fails (such as during a power outage), the mechanical shear force can still provide a level of security
- Shear locks provide very high locking strength by combining electromagnetic and mechanical shear forces, making them difficult to forcibly breach
- Since shear locks rely primarily on magnetic force, there is no mechanical wear like in traditional mechanical locks, leading to a longer lifespan
- for Access Control Systems
2X Embedded Electromagnetic Shear Lock Concealed Electric Magnetic Door Lock with Delay for Access Control Systems Description
Electromagnet: The shear lock contains a powerful electromagnet. When an electric current passes through it, the electromagnet generates a strong magnetic field that locks the door
Shear Force: In addition to the magnetic force, the shear lock utilizes the shear force between the door and the door frame to increase locking strength. This means that even if the electromagnetic force fails (such as during a power outage), the mechanical shear force can still provide a level of security
Shear locks provide very high locking strength by combining electromagnetic and mechanical shear forces, making them difficult to forcibly breach
Since shear locks rely primarily magnetic force, there is no mechanical wear like in traditional mechanical locks, leading to a longer lifespan
Working voltage:dc12v-dc24v
Working current:
DC12V starting current 1.6A maintaining current 0.22a
DC24V starting current 1A, maintaining current 0.13A
Feedback signal: NC - short circuit COM dry contact signal when the lock is powered and opened. NO - disconnect the COM dry contact signal when the lock is powered and opened
Adsorption spacing: within 4mm
Ambient temperature: -40 - +55
Lock delay : 0/3/6/9 seconds adjustable
(The product printed words may vary depending the batch, but this does not affect use)
Color:As Shown
Material:Aluminum Alloy

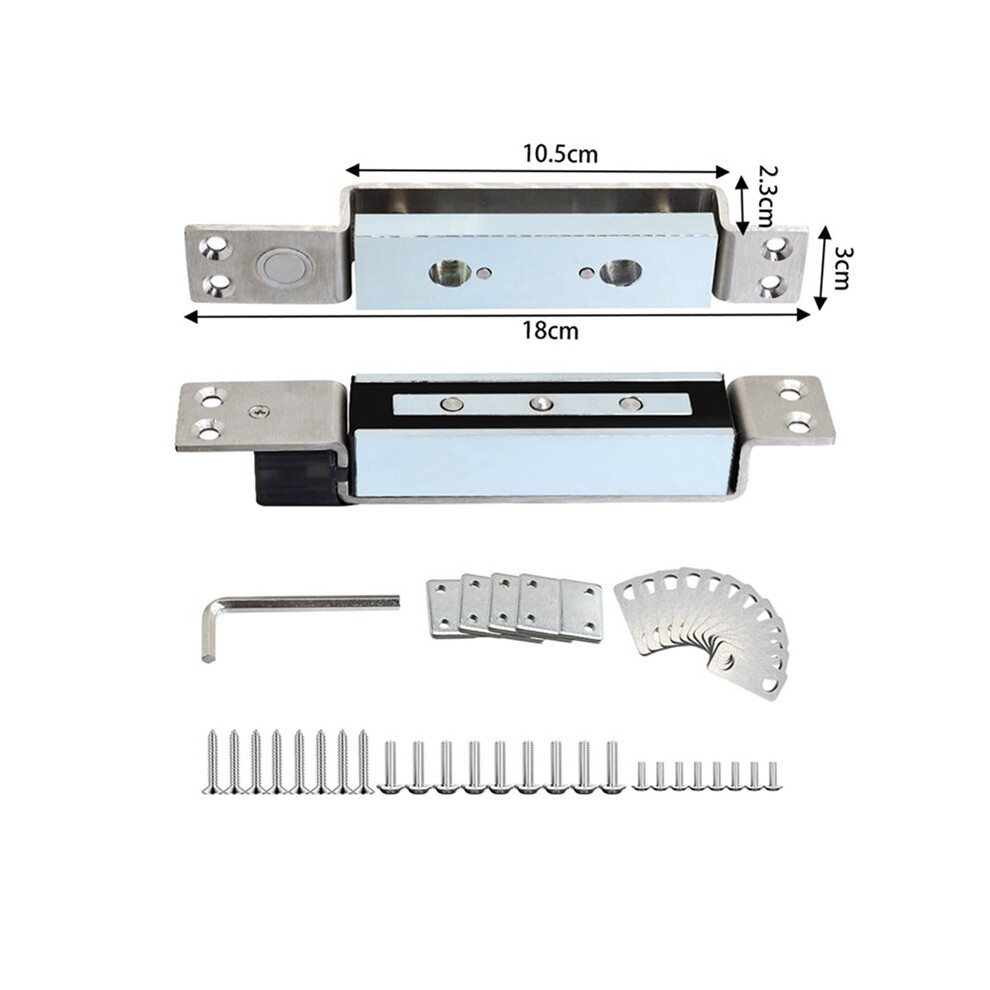

Package Contents:

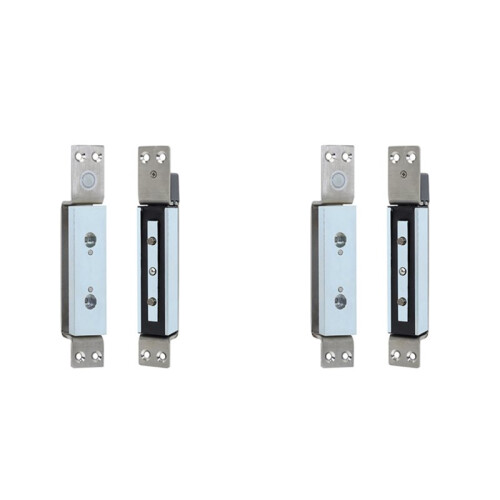

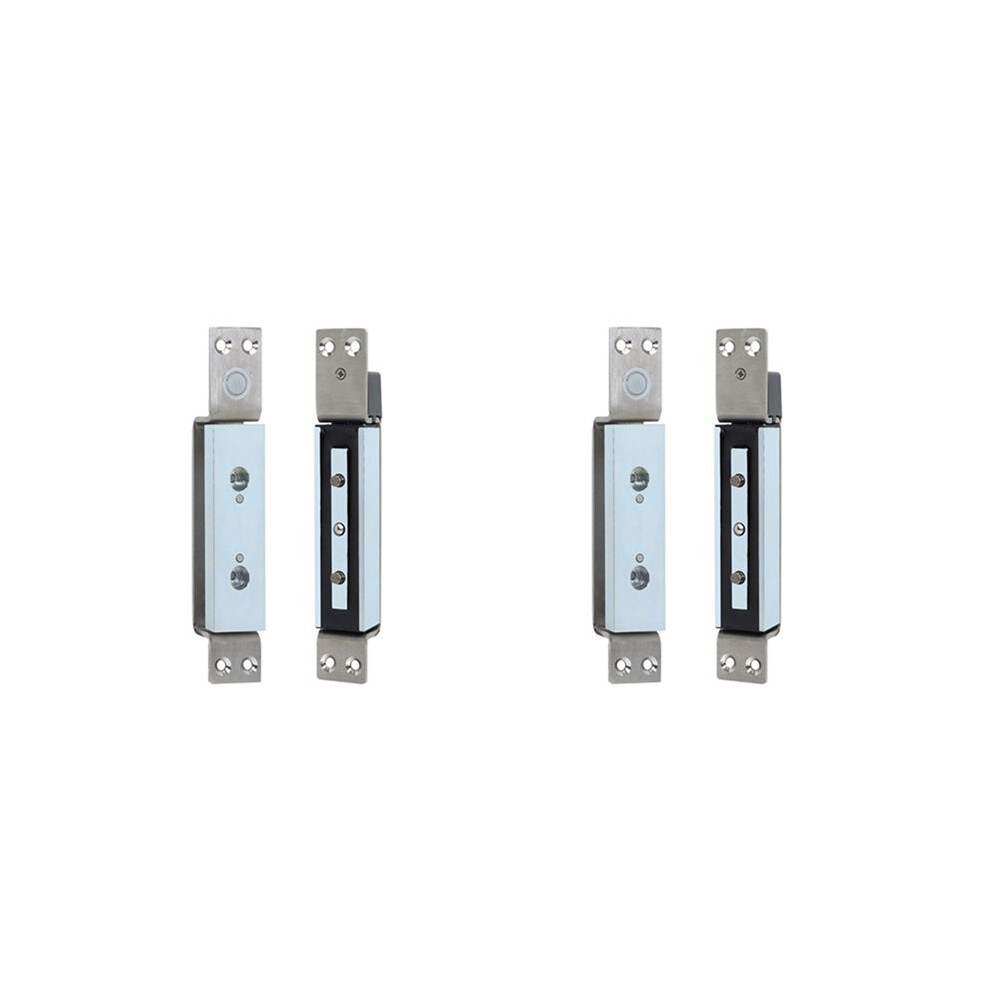

2 x Electromagnetic Shear Lock
Details
| OPC | PW2W8GK |
|---|---|
| Brand | ISTOVO |
| Codes | 4712487510953 (EAN) |
| Product and Safety Information |
Product Data
| Height | 8cm |
|---|---|
| Width | 9cm |
| Length | 24cm |
| Weight | 2.322kg |
| Colour | As Shown |
| Material | Aluminum Alloy |
