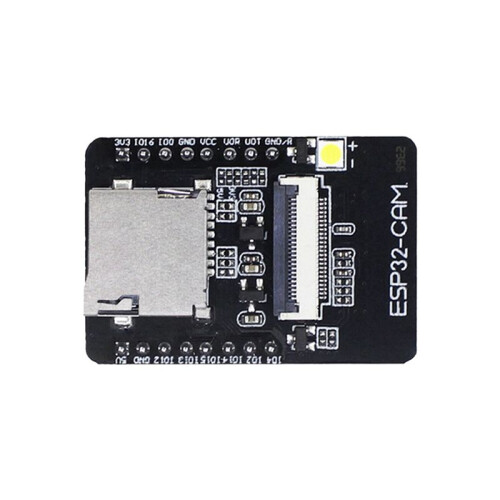

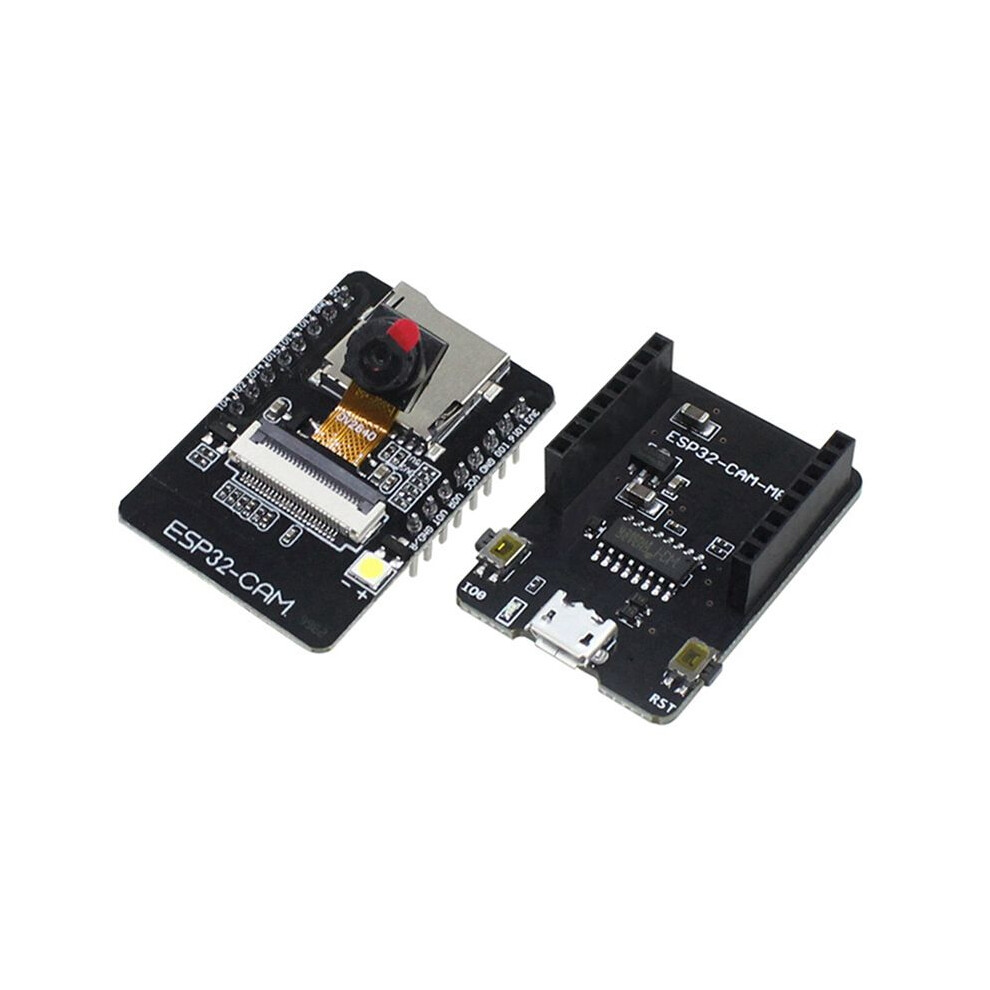

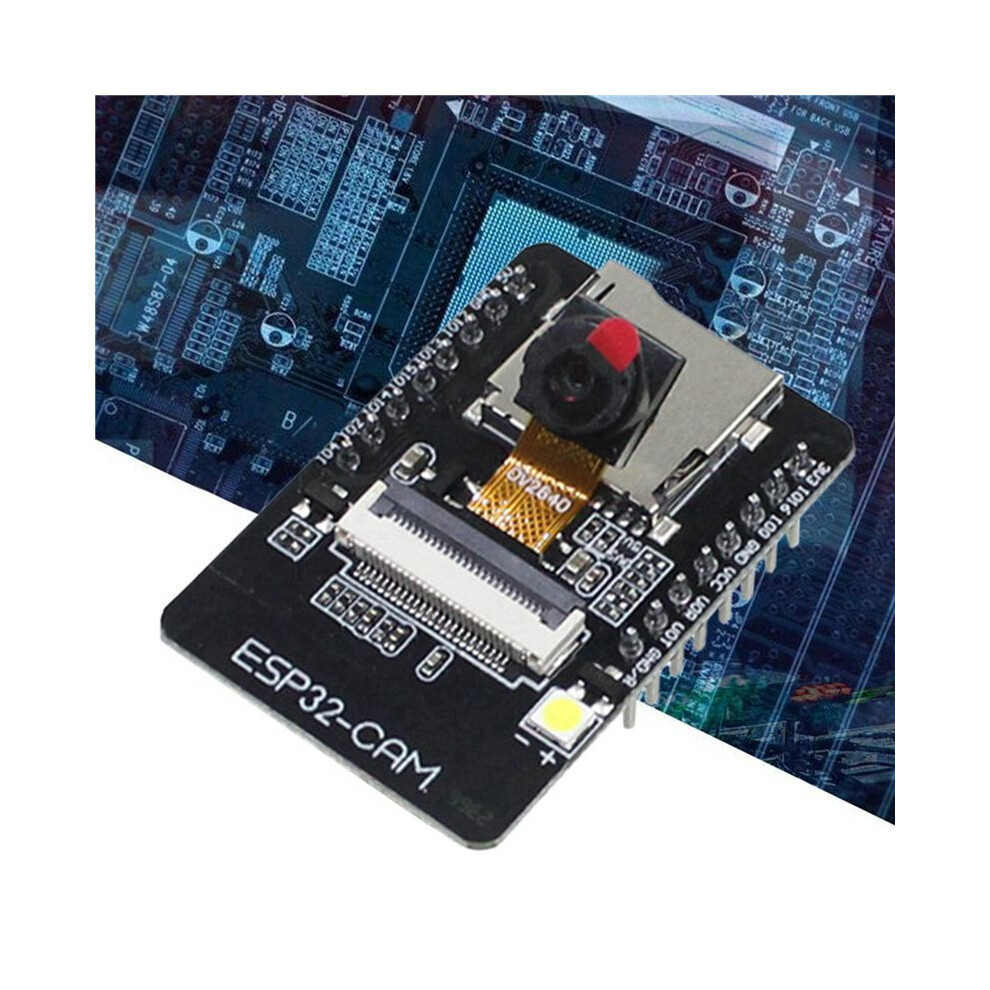

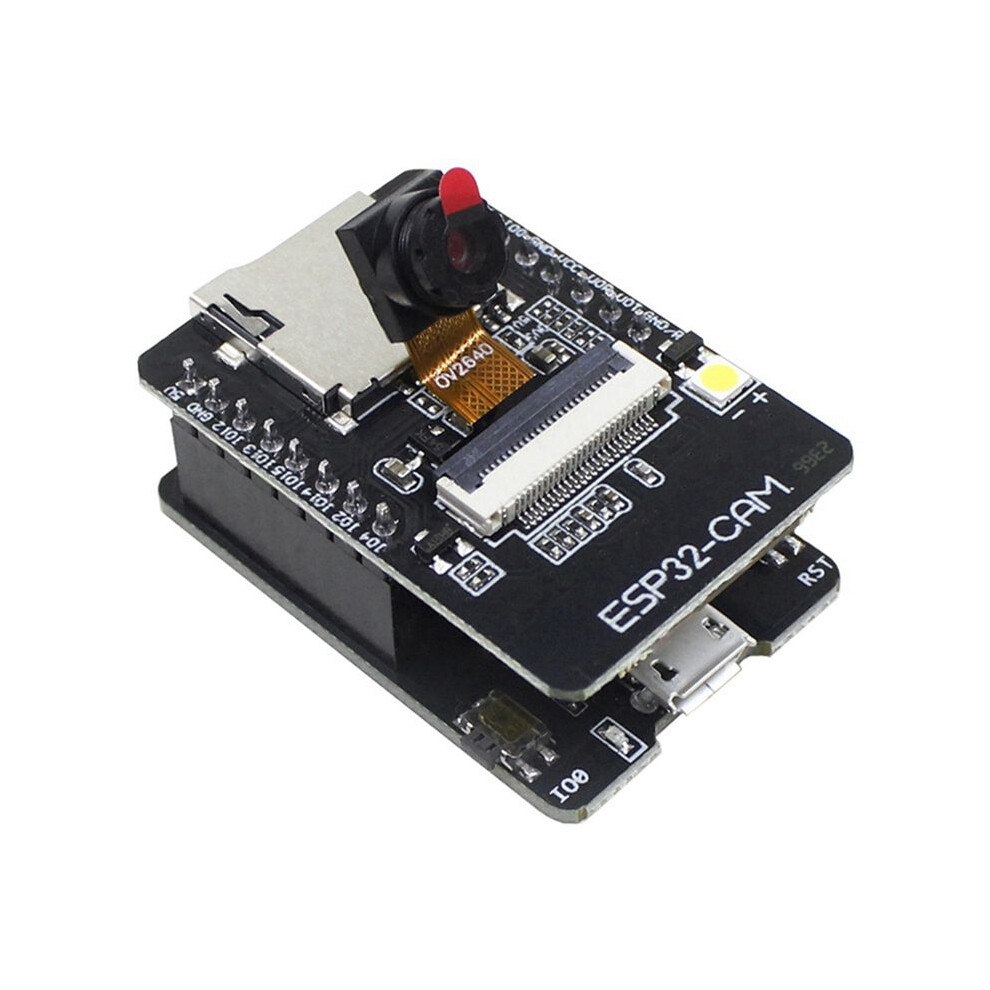

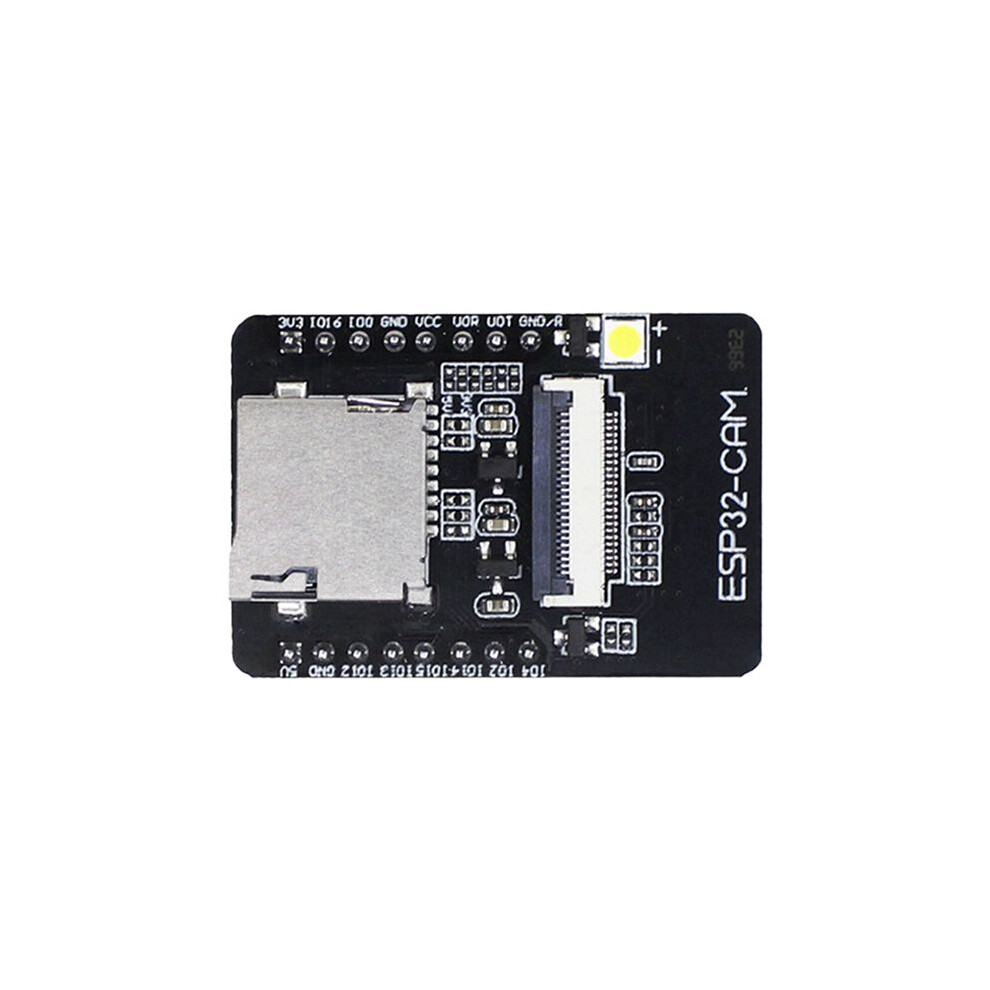

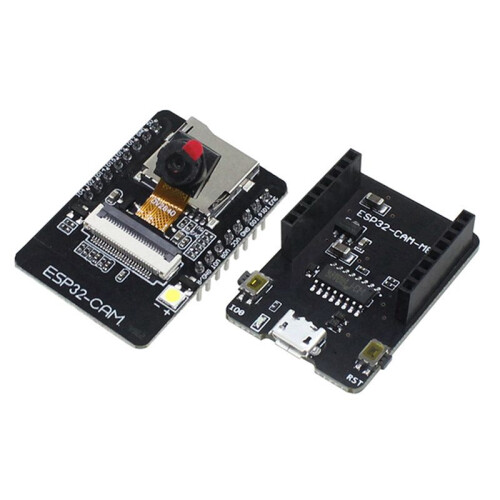

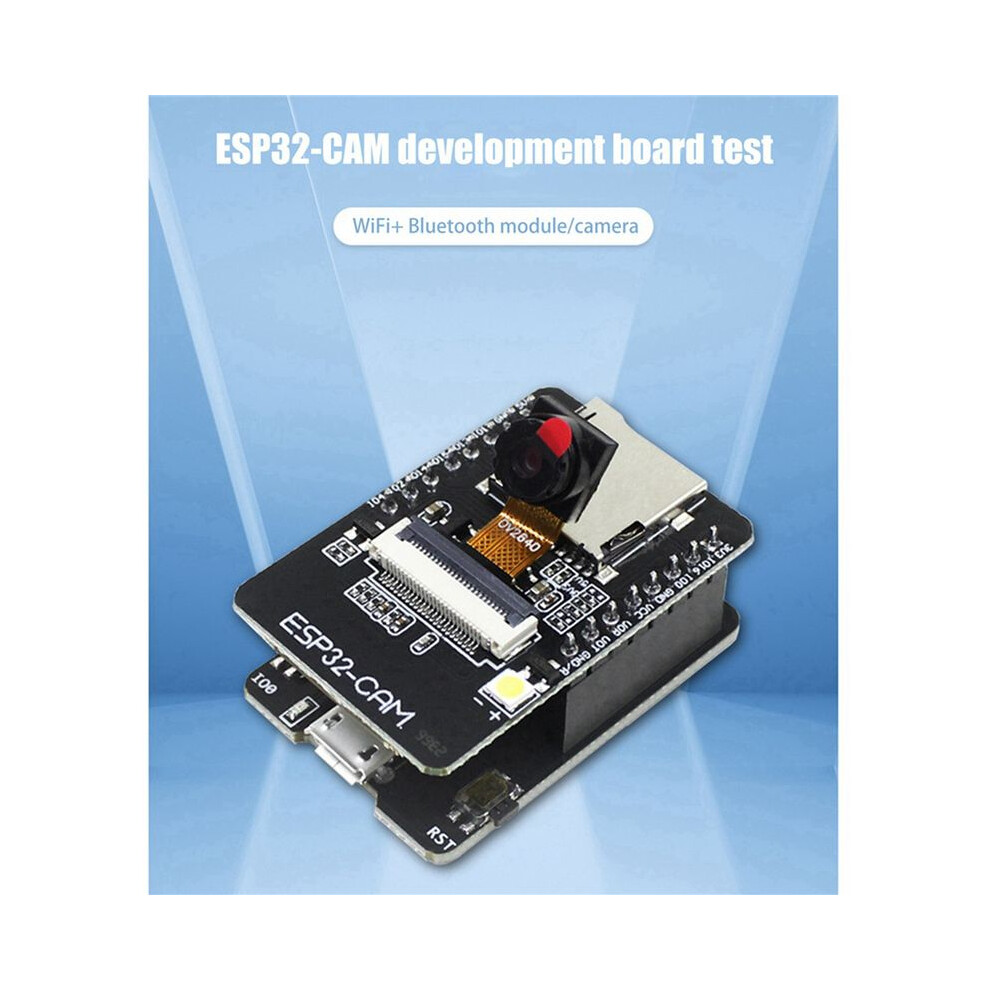

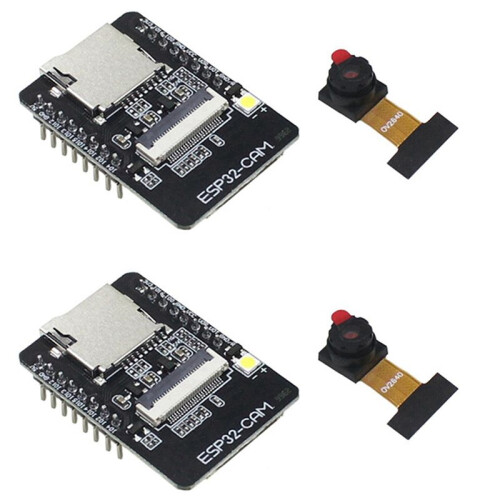

2X ESP32-CAM Development Board+OV2640 Camera Module Set 520KB+4M PSRAM 32Mbit WIFI+ Ultra Low Powers IoT Module

2X ESP32-CAM Development Board+OV2640 Camera Module Set 520KB+4M PSRAM 32Mbit WIFI+ Ultra Low Powers IoT Module Description

1. Low power consumption dual core 32-bit CPU, which can be used as application processor. The main frequency is to 240MH, and the computing capacity is to 600MIPS
2. 520KB built-in, 4M PSRAM external. Support UART/SP/I2C/PWM/ADC/DAC and other interfaces
3. Support OV2640 and OV7670 cameras with built-in flash. Support image WIFI upload
4. TF card support. Support multiple sleep modes. Embedded Wip and FreeRTOS. Support STA/AP/STA+AP working mode
5. Support Confing/Airkiss one button distribution network. Support secondary development

Module model: ESP32-CAM
Package: DIP-16
Size: 27 x 40.5 x 4.5 ( 0.2) mm
SPI Flash: 32Mbit by default
RAM: internal 520KB+external 4M PSRAM
: 4.2 BR/EDR and BLE standards
WI-FI:802.11 b/g/n/e/i
Supported interfaces: UART, SPI, I2C, PWM
TF card support: 4G support
IO port: 9
Serial port rate: 115200bps by default
Image output format: JPEG (only supported by OV2640, BMP, GRAYSCALE
Spectrum range: 2412~2484MHz
Antenna form: -board PCB antenna, gain 2dBi
Transmission power:
802.11b:172 dBm(@11mbps)
802.11g:142 dBm(@54mbps)
802.11n:132 dBm(@MCS7)
Receiving sensitivity:
CCK,1Mbps:-90dBm
CCK,11Mbps:-85dBm
6 Mbps (1/2 BPSK) :-88dBm
54 Mbps ( 3/4 64-QAM ) :-70dBm
MCS7 ( 65 Mbps,72.2 Mbps ):-67dBm
power waste:
Turn off the flash: 180mA@5V
Turn the flash and adjust the brightness to: 310mA@5V
Deep sleep: Low power consumption can reach 6mA@5V
Modem - sleep: low reachable 20mA@5V
Light sleep: low reachable 6.7mA@5V
Security: WPA/WPA2/WPA2 Enterprise/WPS
Power supply range: 5V
Working temperature: - 20 ~85
color:Black
Material:PCB+ metal

Package Contents:

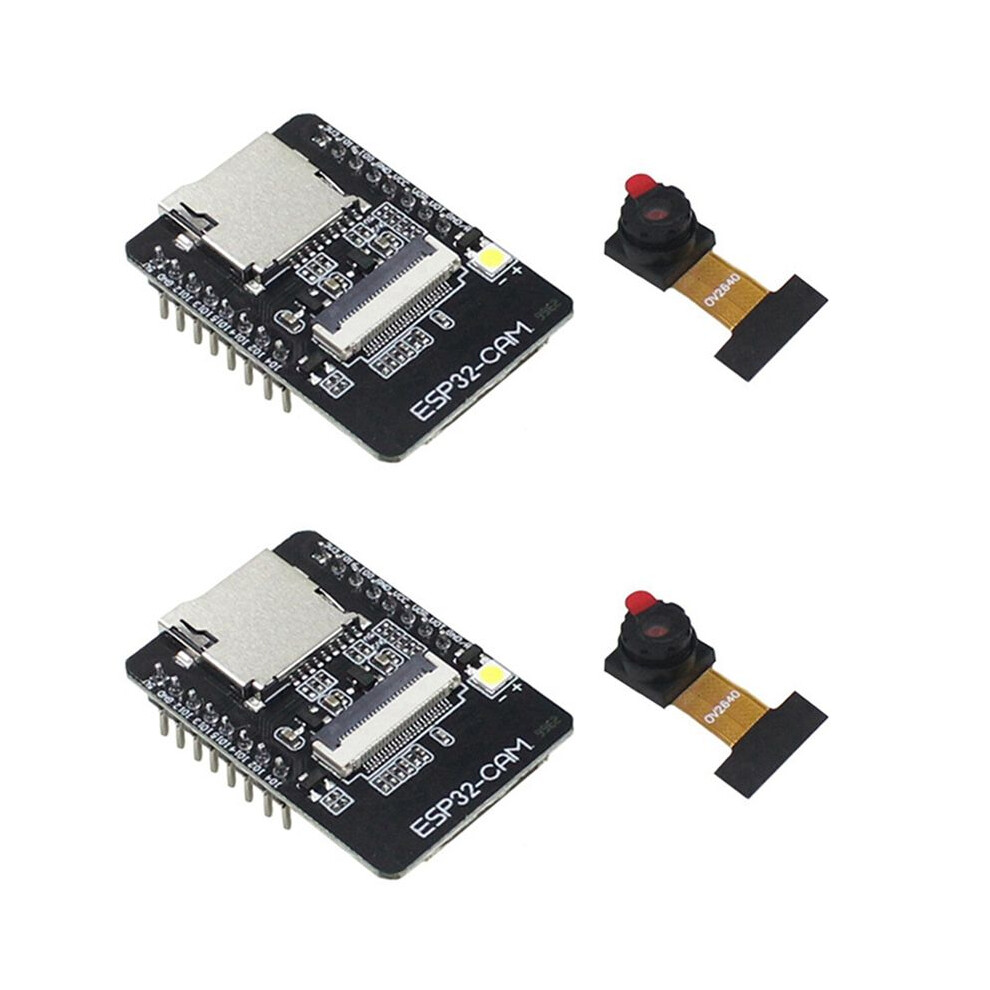

2 x ESP32-CAM development board
2 x O
