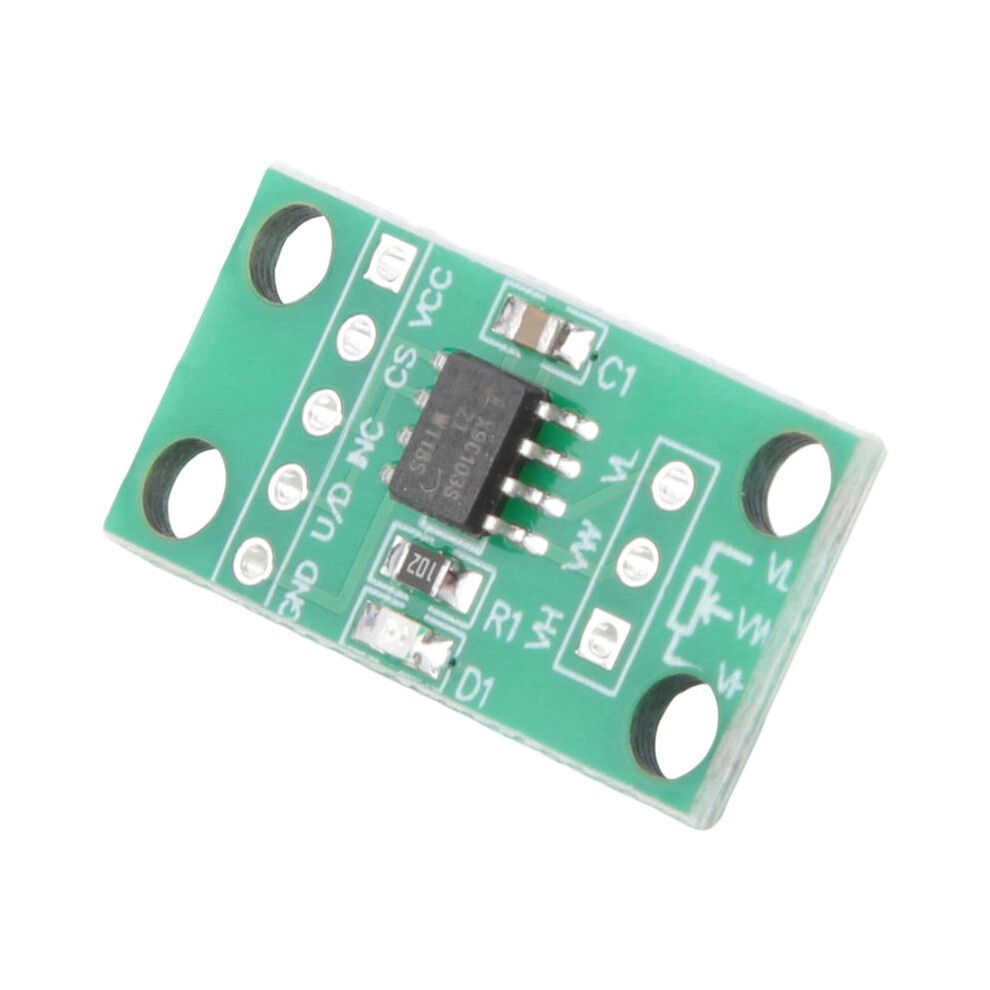

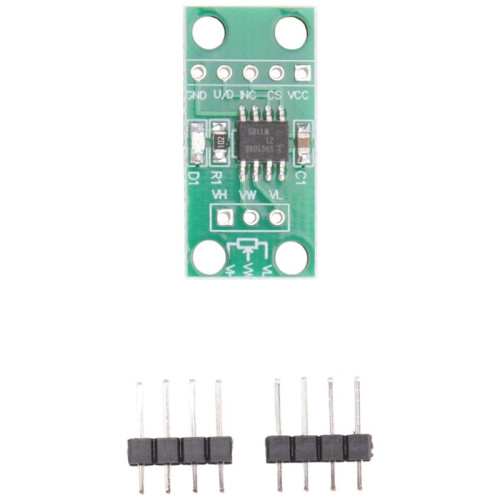

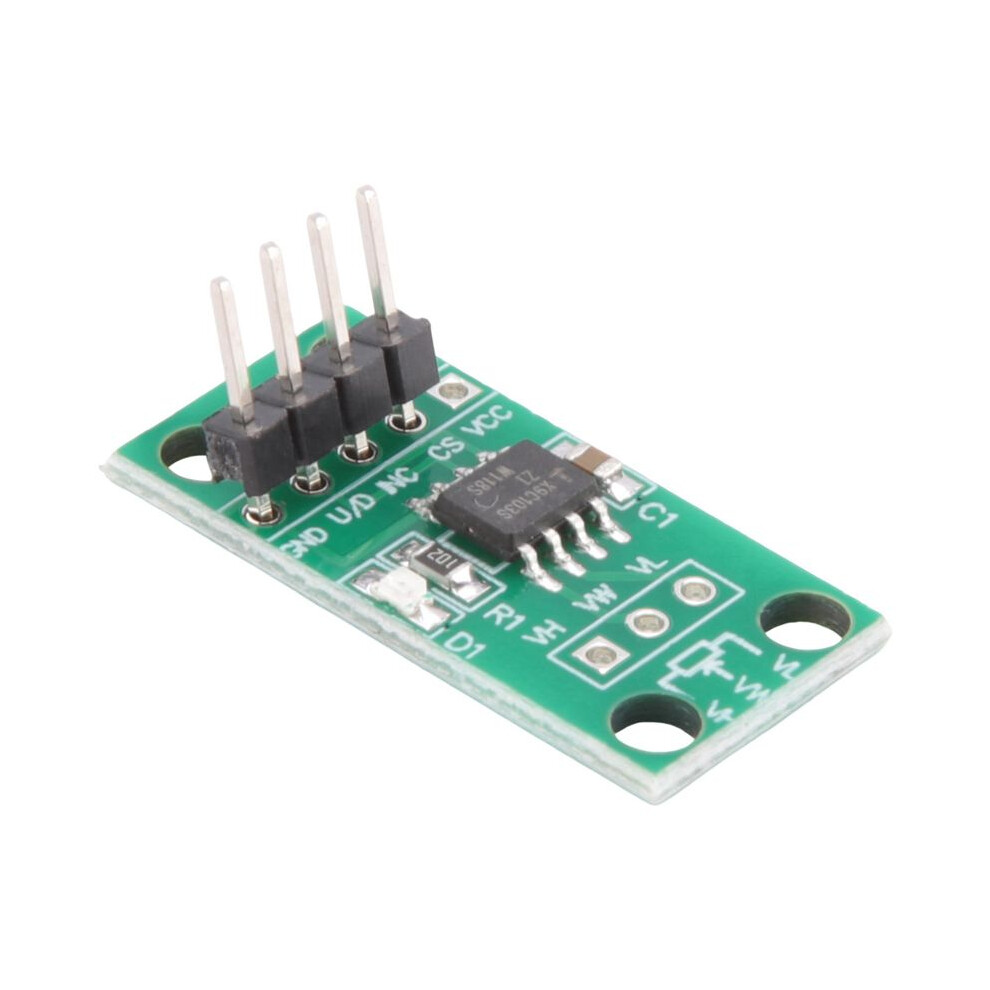

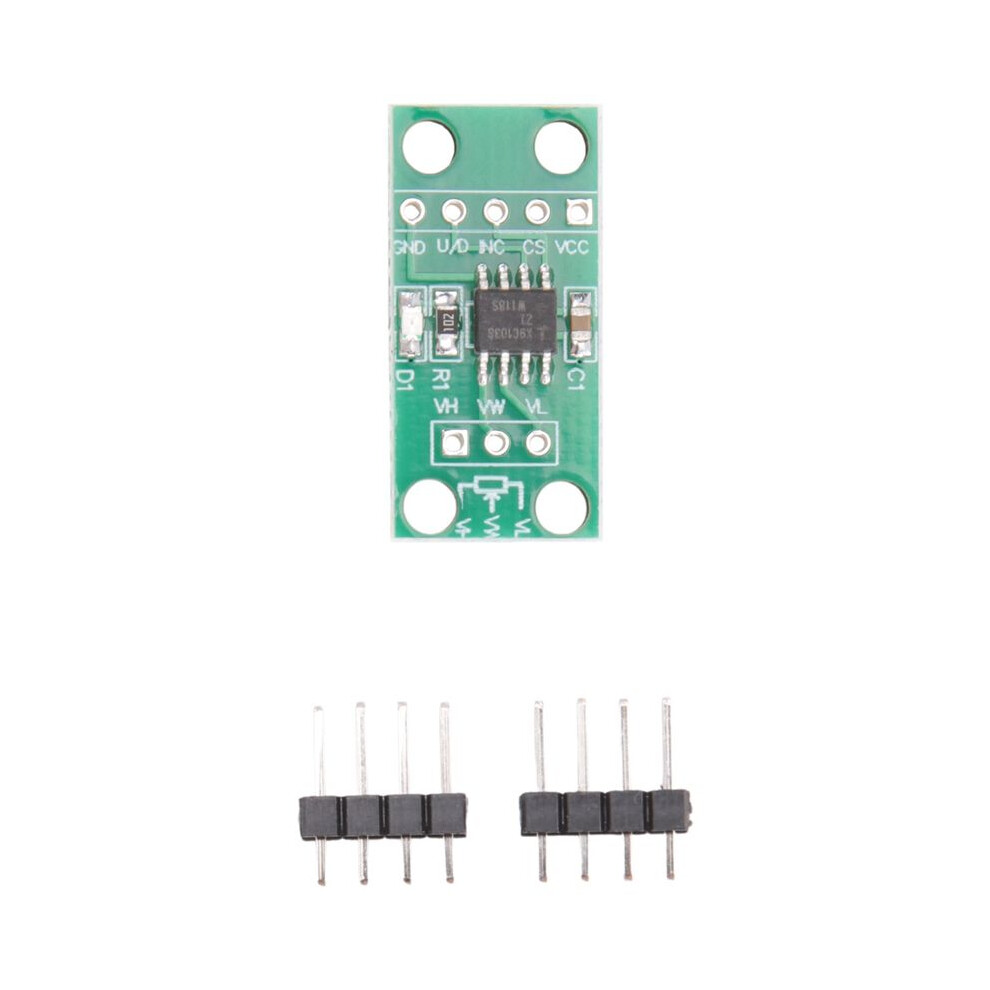

2X X9C103S Digital Potentiometer Module 100K 100Th Order Digital Potentiometer Circuit
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
€10.39
€17.14
39% off!
+€3.00 Delivery
1%
What is instant Cashback?
Learn More
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Standard (€3.00) | Mon 20th - Fri 24th Jul
Returns: 30 days
180-day payment protection
Description & Details
Summary
- Instructions for use:1) Wide voltage (3V-5V) power supply. The chip is X9C103S; PCB board size: 2.7x1.3CM
- 2) 10K full-scale potentiometer.
- 3) The center tap of the potentiometer slides between 0-10k for a total of 100 stages (the typical impedance of the potentiometer sliding end is 40 ohms)
- 4) The digital potentiometer VL and VH ports correspond to the low and high end of the sliding rheostat, respectively, allowing the input voltage range from -5V to +5V.
- 5) The digital potentiometer module is accompanied by a test program. The program code is C language code and is written in sub-modules. The code includes: main function, display sub-function, button sub-function and header file of each module. You can use KEIL4 to open the source code for testing and learning.
2X X9C103S Digital Potentiometer Module 100K 100Th Order Digital Potentiometer Circuit Description
Instructions for use:1) Wide voltage (3V-5V) power supply. The chip is X9C103S; PCB board size: 2.7x1.3CM
2) 10K full-scale potentiometer.
3) The center tap of the potentiometer slides between 0-10k for a total of 100 stages (the typical impedance of the potentiometer sliding end is 40 ohms)
4) The digital potentiometer VL and VH correspond to the low and high end of the sliding rheostat, respectively, allowing the input voltage range from -5V to +5V.
5) The digital potentiometer module is accompanied by a test program. The program code is C language code and is written in sub-modules. The code includes: main function, display sub-function, button sub-function and header file of each module. You can use KEIL4 to open the source code for testing and learning.
Colour:green
Material:PC+Metal
Package Contents:

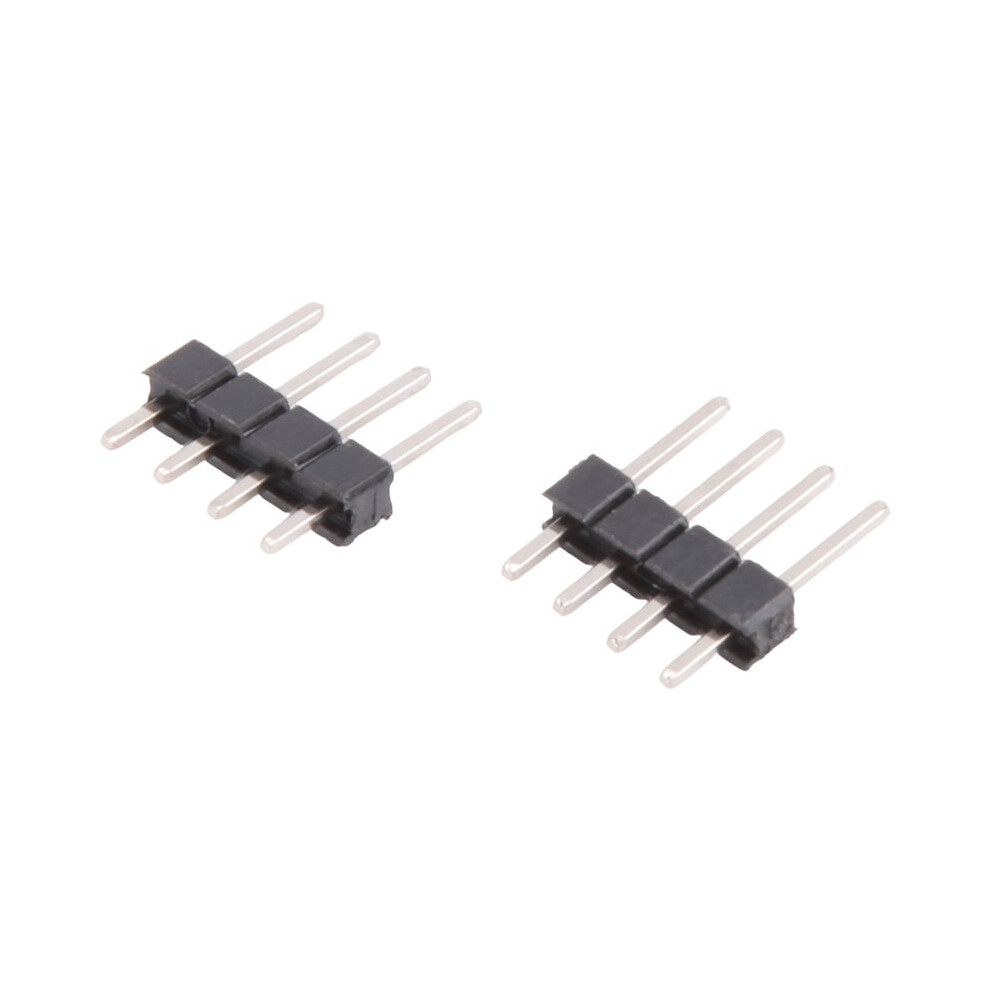

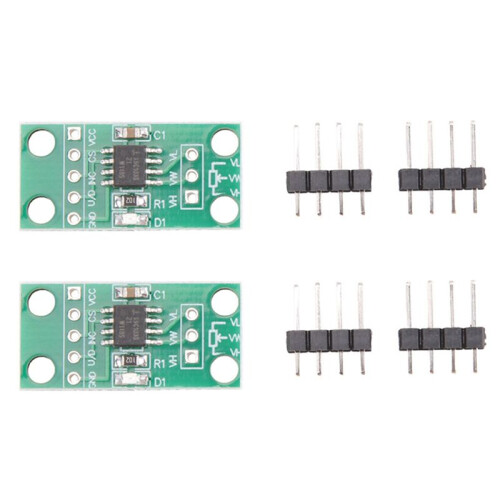

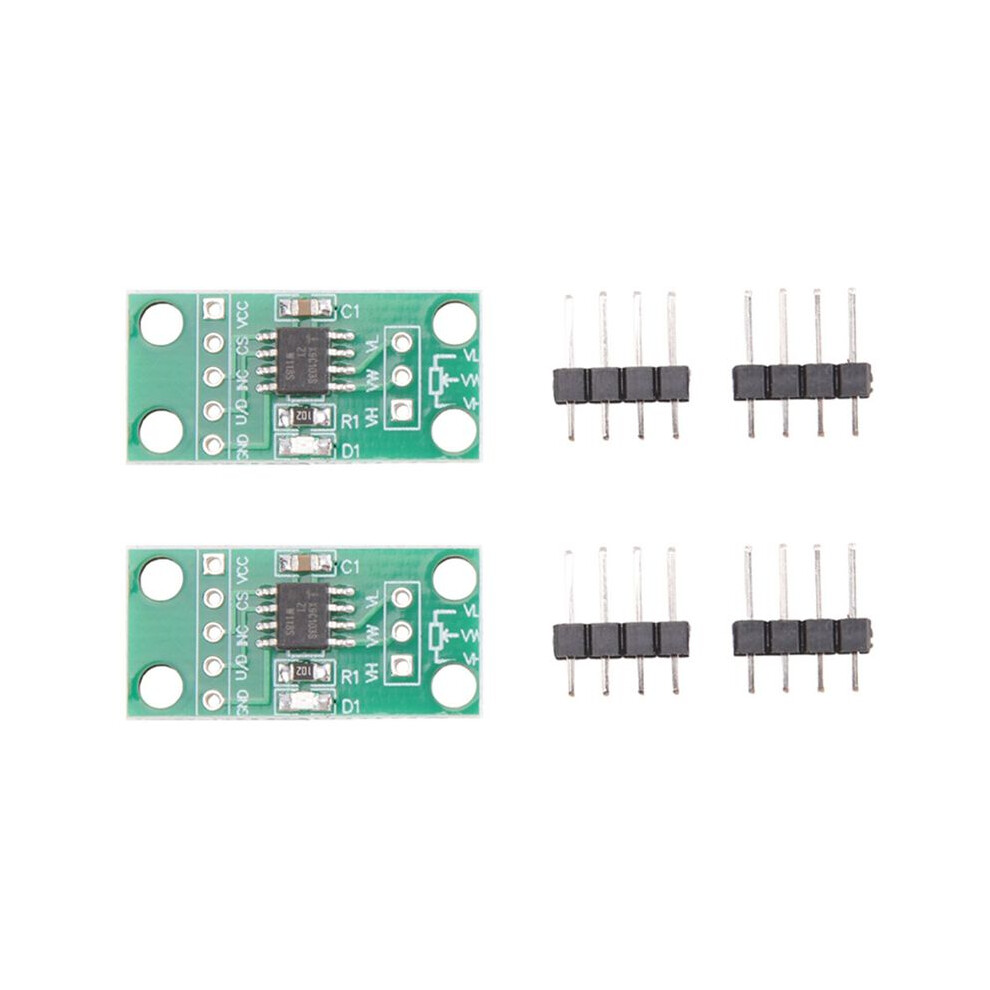

2 x Digital Potentiometer Module
Details
| OPC | PPKK5VJ |
|---|---|
| Codes | 4713318966727 (EAN) |
| Product and Safety Information |
Product Data
| Height | 2cm |
|---|---|
| Width | 4cm |
| Length | 4cm |
| Weight | 0.004kg |
| Colour | Green |
| Material | PC+Metal |
