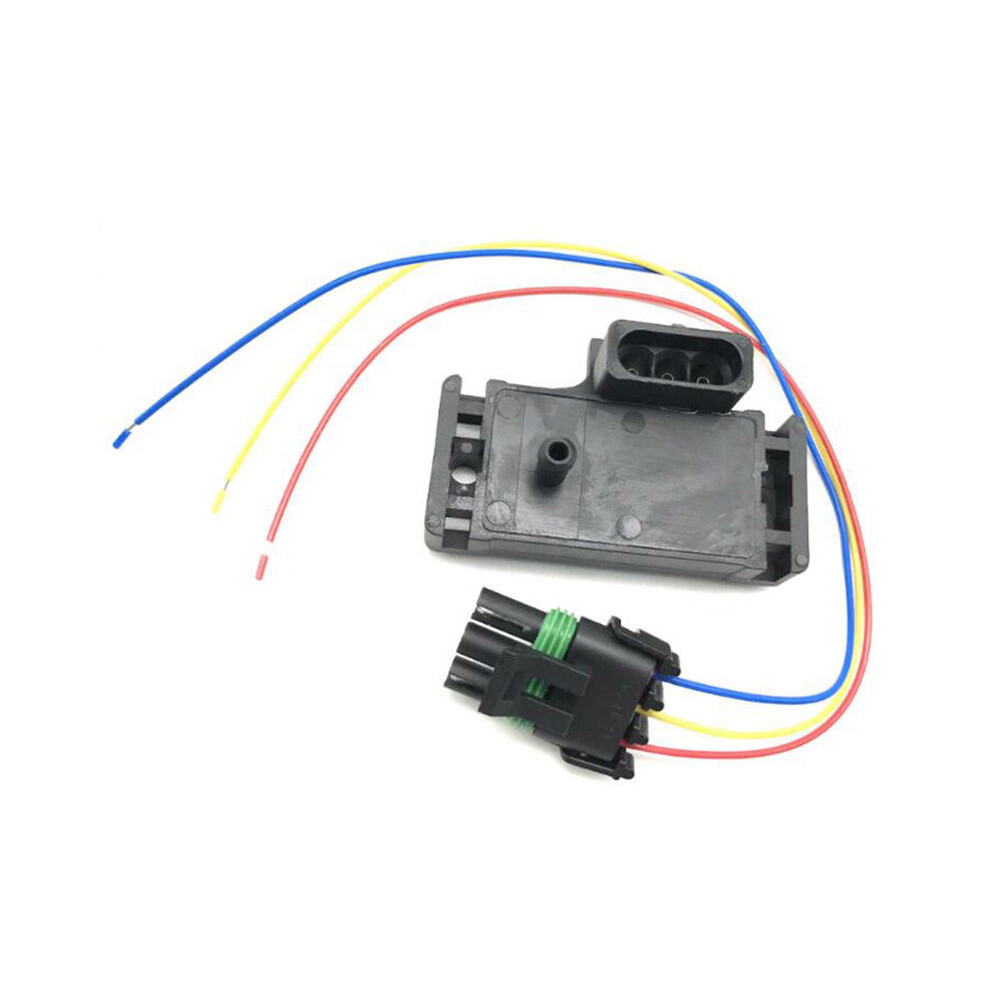

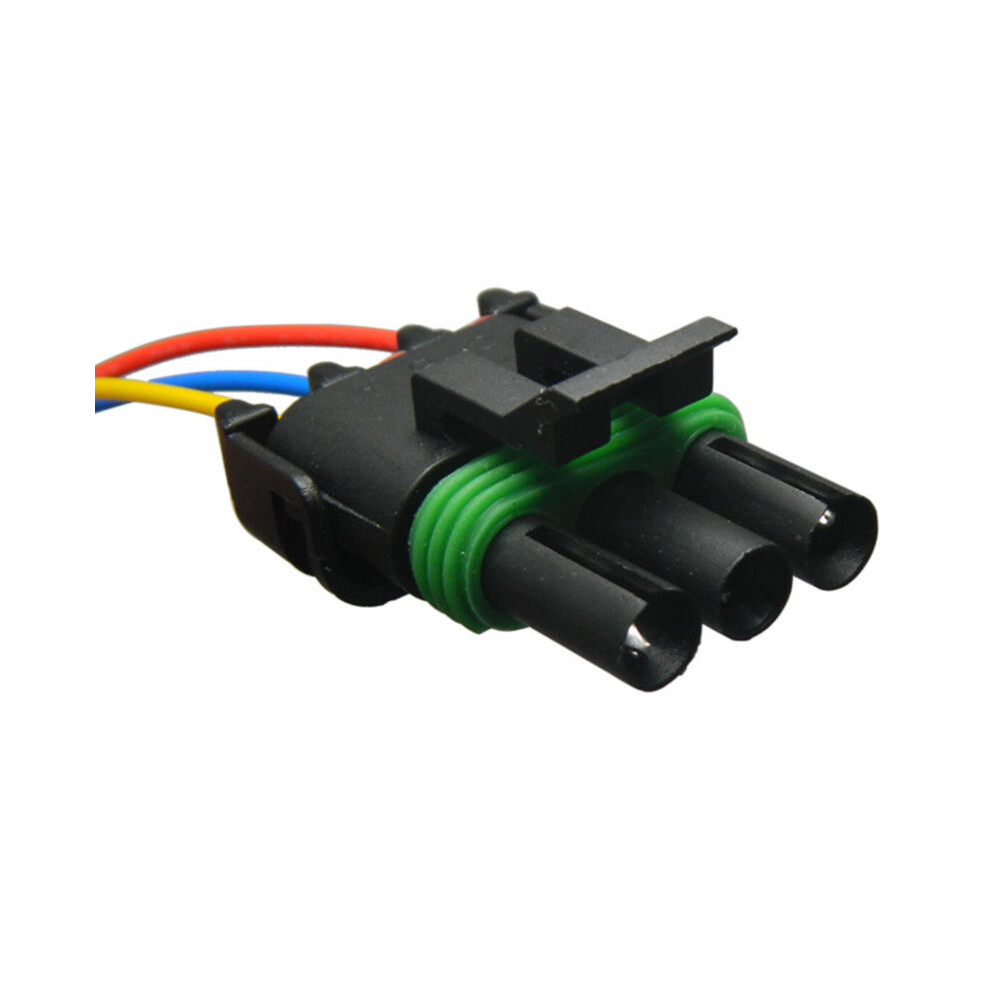

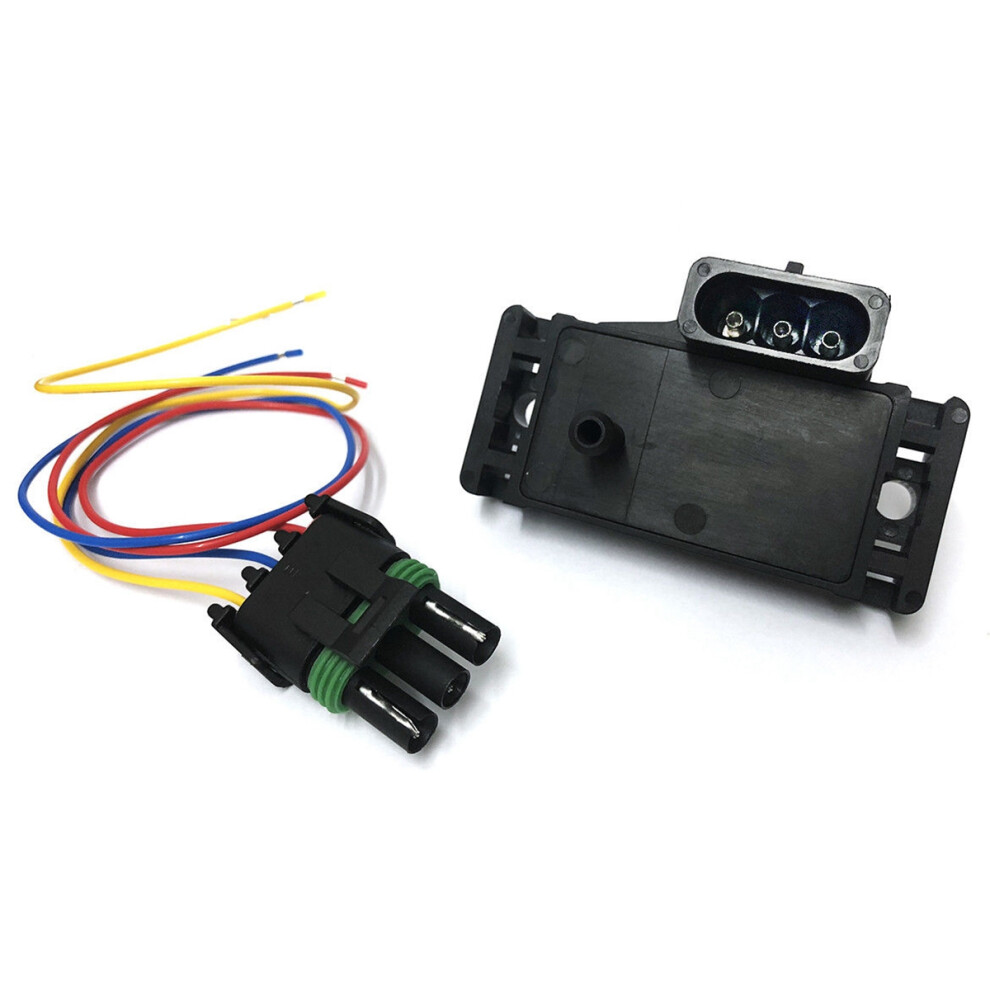

3 Bar Map Manifold Absolute Pressure Sensor Turbo Boost Wire Plug Pigtail 12223861 For

3 Bar Map Manifold Absolute Pressure Sensor Turbo Boost Wire Plug Pigtail 12223861 For Description

MAP sensor is a true absolute sensor, meaning it enable your engine management system to properly compensate for altitude.
The pressure inside your intake manifold is extremely important input to the ECU.
A quality MAP sensor is crucial to your engines performance.
These sensors respond to changes in manifold pressures and relay the information to the ECU in the form of a voltage signal ranging.
3 bar MAP sensors precisely calculate boost pressure up to 43.5 psi gauge (58 psi absolute), while allowing you to have a smooth and repeatable idle.
Measurement Error: less than equal +/- 1%
Pressure Measurement: less than 43.5 psi gauge (58 psi absolute)
Operating Temperature Range: -40 to 267 Fahrenheit (-40 to 125 Celsius)
Response: 1ms, 10 to 90% pressure step.
Compatible with all aftermarket engine management systems.
Pin Out is:
A = Ground = Yellow Wire
B = Sensor Output = Blue Wire
C = +5 Volt Source = Red Wire
colour:black
Material:ABS
Package Contents:
1 * sensor
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
