3 x 60V 100A Watt Meter Power Analyzer Solar Wind Analyzer LCD Digital Electricity Meter - Power Analyzer

3 x 60V 100A Watt Meter Power Analyzer Solar Wind Analyzer LCD Digital Electricity Meter - Power Analyzer Description

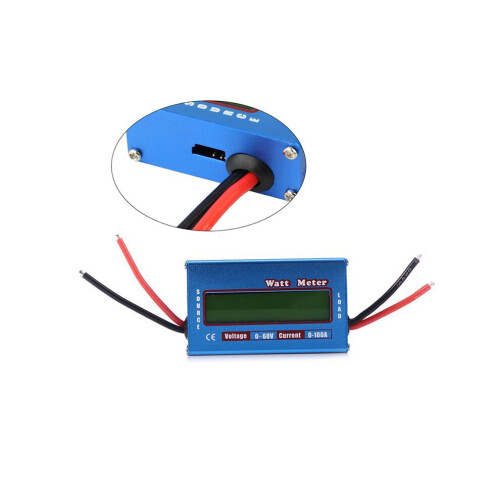

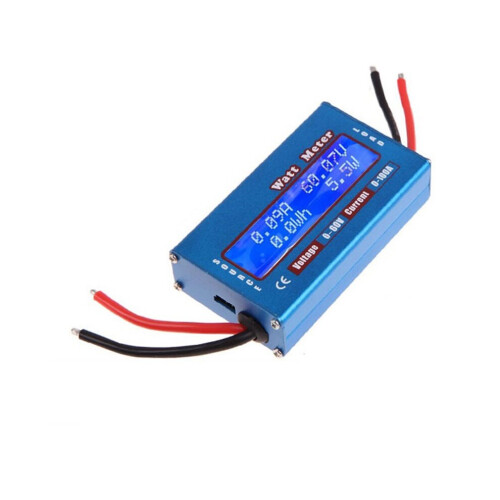

3 x 60V 100A Watt Meter Power Analyzer Solar Wind Analyzer LCD Digital Energy Meter - Power Analyzer Description: User-friendly DC power analyzer 0-60V, 0-100A for measuring the power flow in a low-voltage circuit, e.g., the flow rate (in watts) and the cumulative flow rate (in watt-hours) of a solar panel or wind generator into a battery. Simple positive/negative (GND) two-wire input (source) and two-wire output (load) for series connection in the circuit. Two-line LCD - updated every 0.4 seconds - displays eight different values: Power 0-6554 watts at 0.1W resolution; Current 0-100 amps (max.). 50 A continuous to 0.01 A resolution
Voltage 4 - 60 volts to 0.01 V resolution
Power flow rate 0 - 6554 watt-hours (Wh) at a resolution of 0.1 Wh
Current flow rate 0 - 65 ampere-hours (Ah) to 0.001 Ah resolution
Peak current in amperes
Peak power in watts
Minimum voltage (dip) during the monitoring period
Low circuit resistance. Only 0.001 ohms. Negligible 7 mA circuit load.
Due to different batches, there may be differences in the appearance, color, and printing of the product. which, however, have no impact on its use.
Color: blue
Material: metal

Package contents:

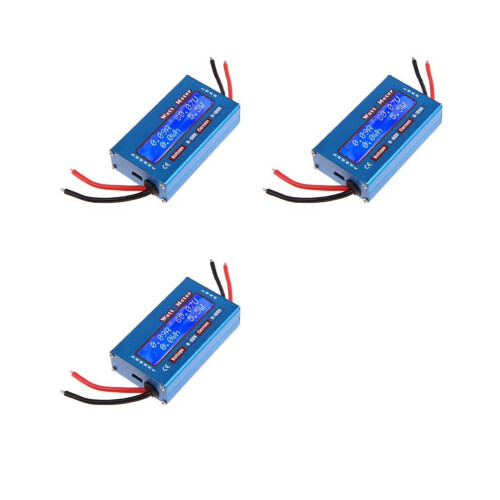

3 x analyzer
