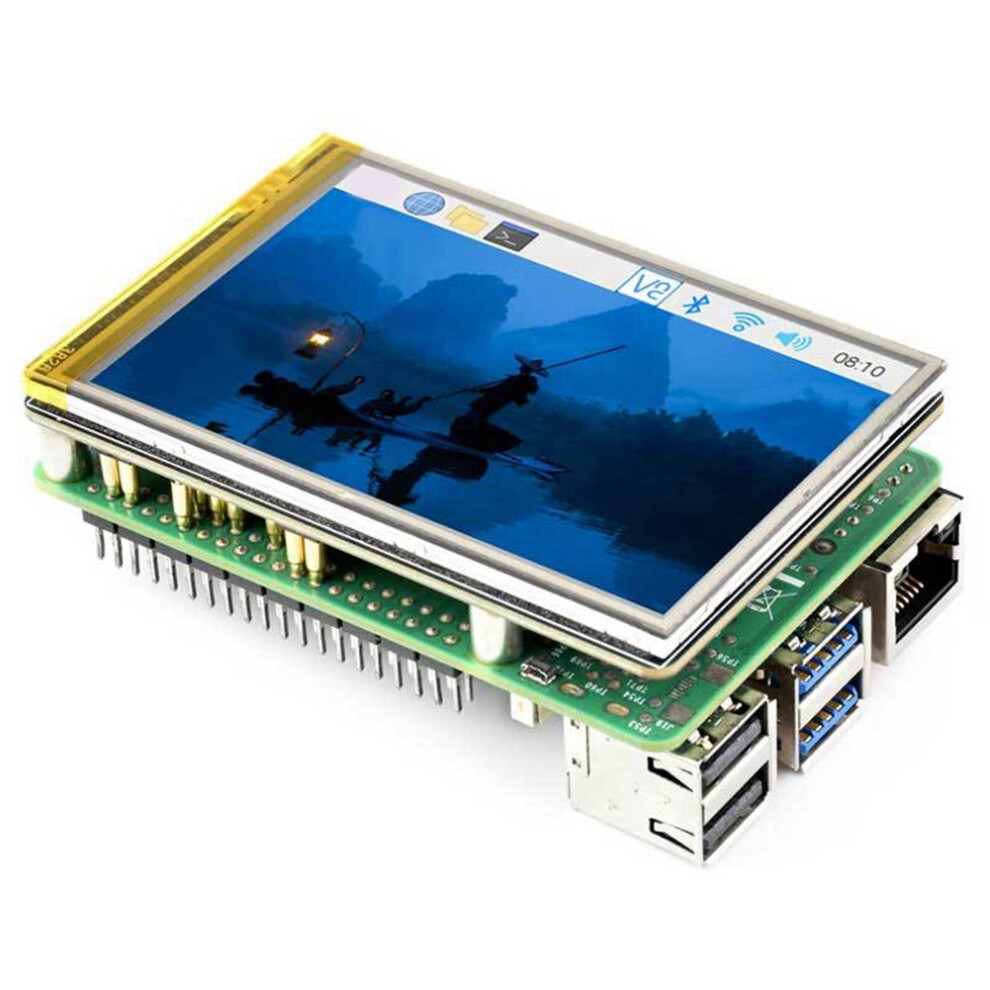

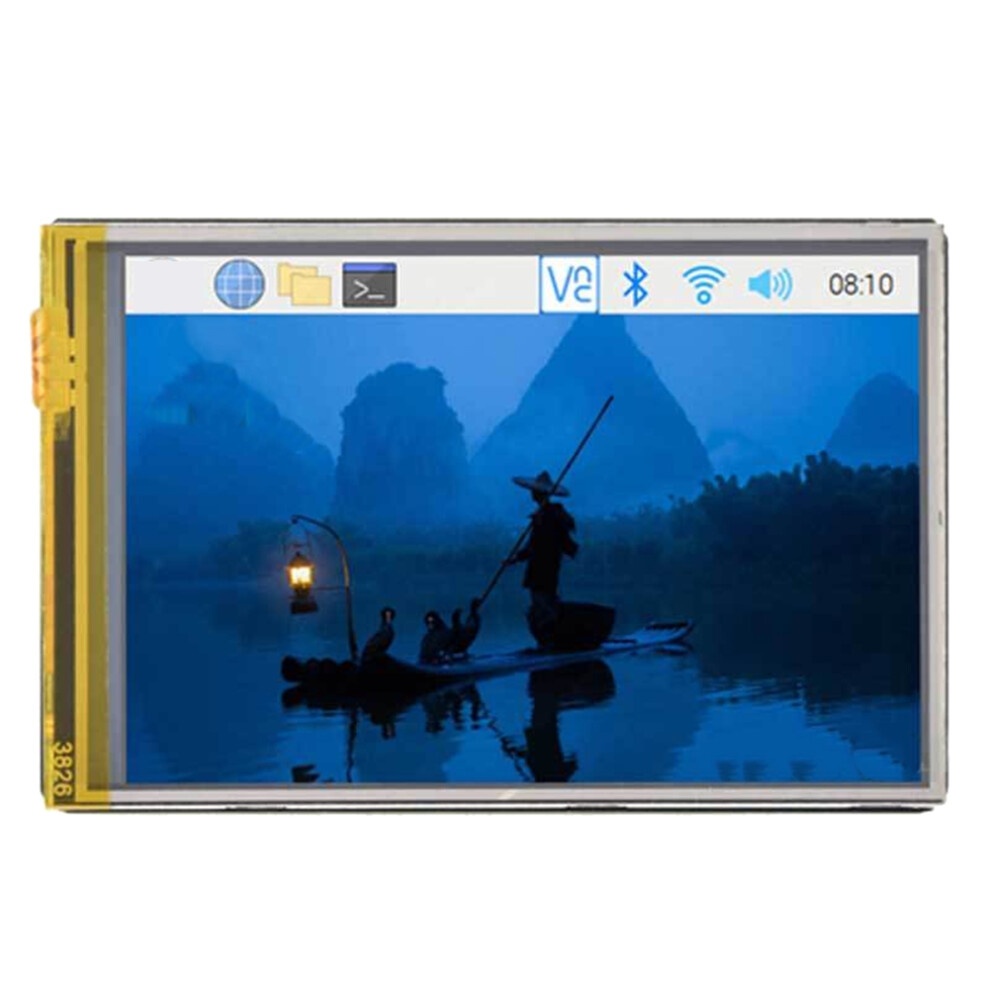

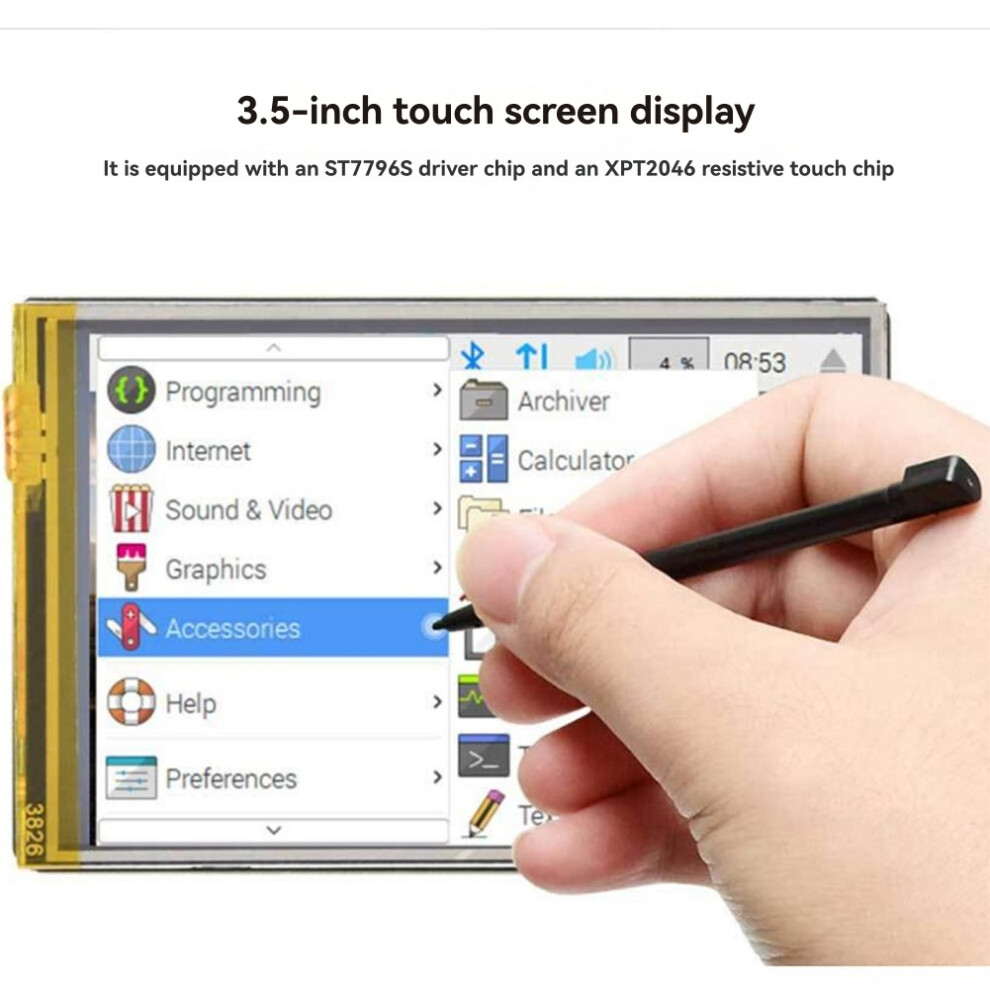

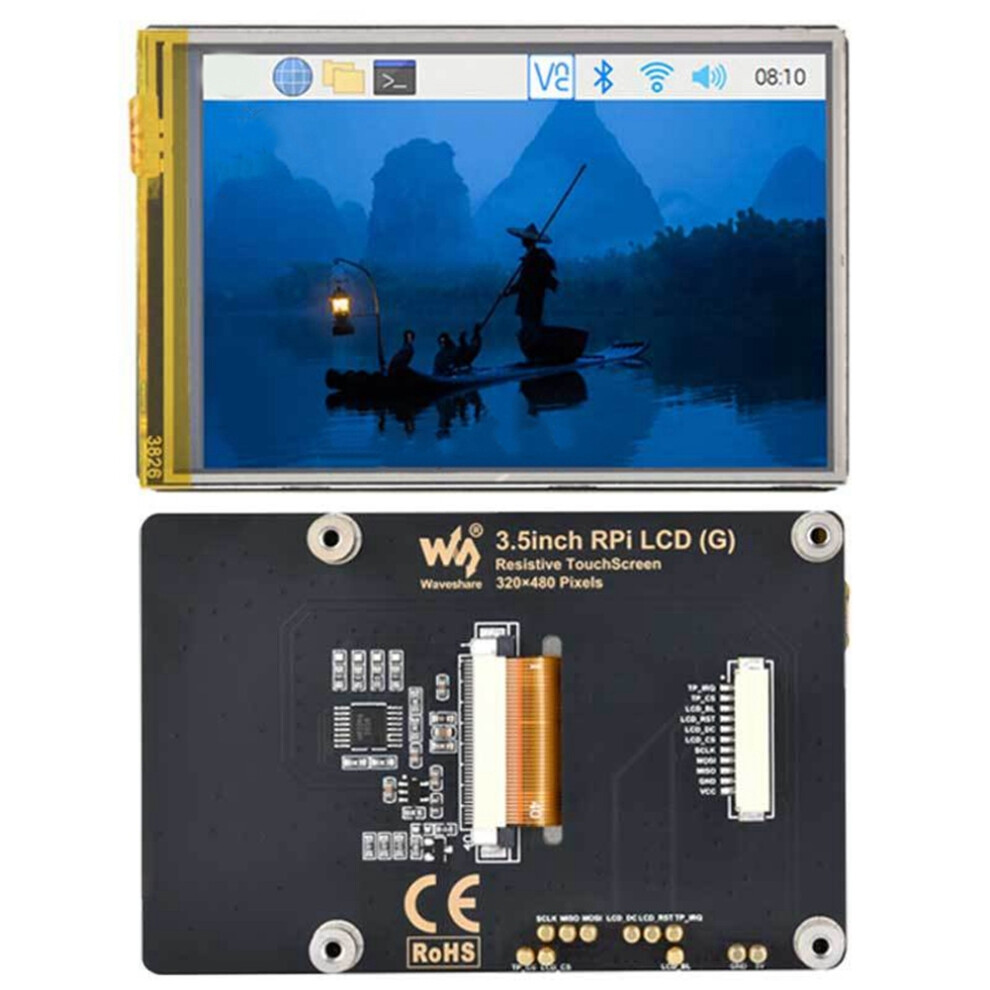

3.5 Inch RPi LCD Touch Display 320x480 Touchscreen

3.5 Inch RPi LCD Touch Display 320x480 Touchscreen Description

Equipped with a 262K color display with a resolution of 320x480, it has excellent visual effects.
The touch screen has high light transmittance, fast response speed, sensitive touch and long service life.

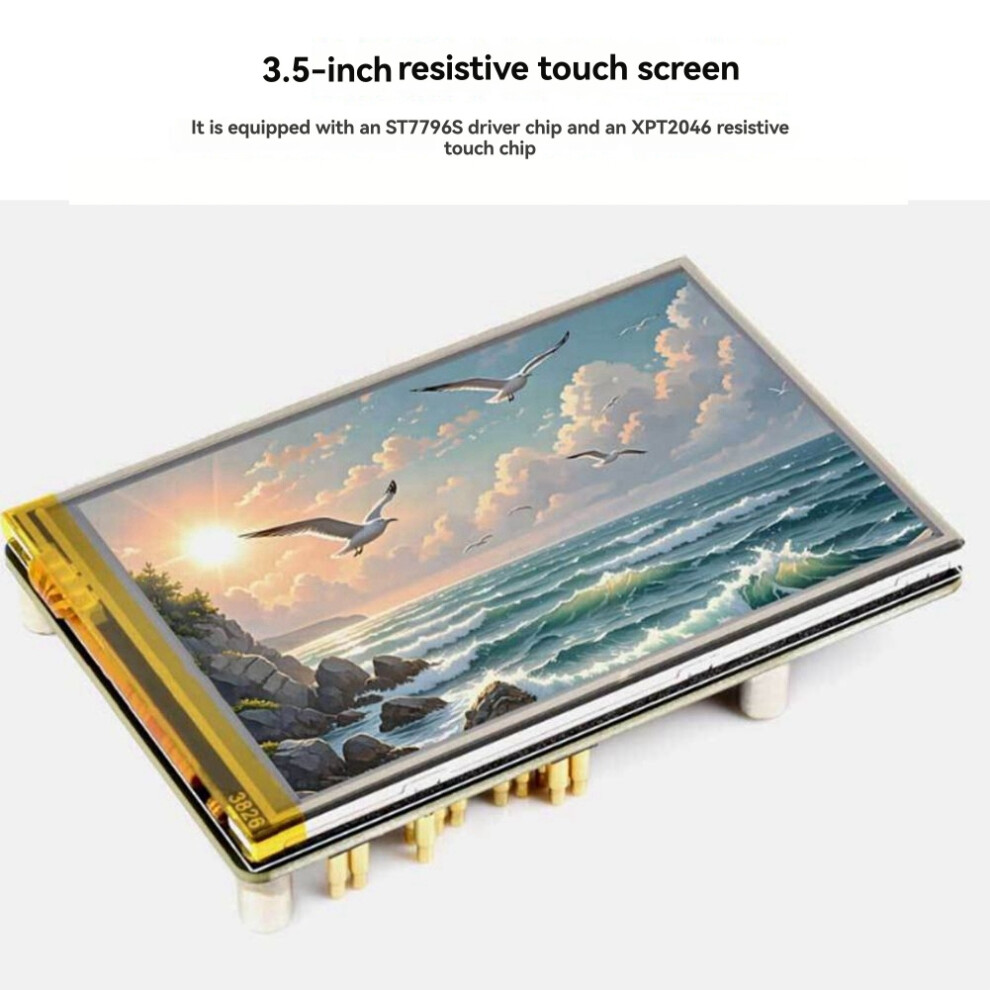

It has a built-in ST7796S driver chip and an XPT2046 resistive touch chip, and communicates through the SPI interface to reduce the occupation of interface pins.

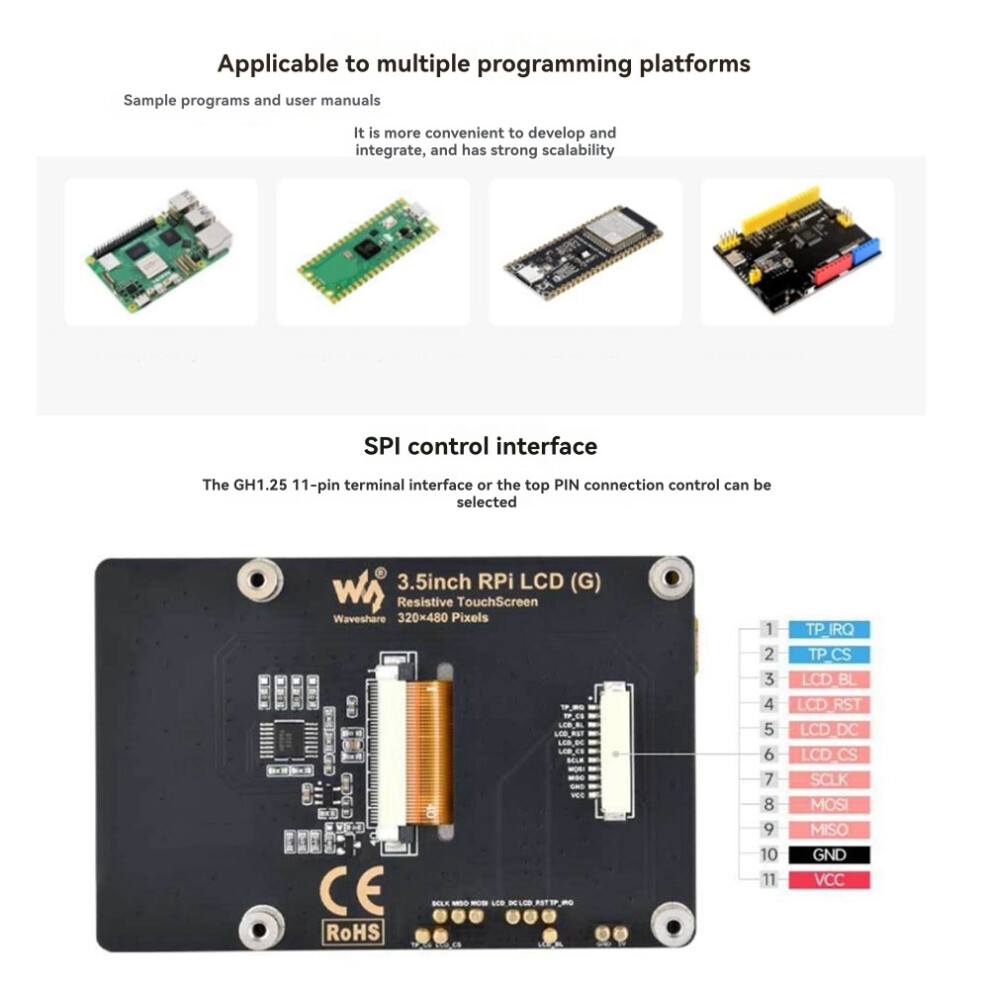

It supports two connection methods: pin communication and GH1.25 11PIN connection line.
It uses immersion gold technology, which is beautiful and

It provides complete routines and development materials for , for Raspberry , ESP32 and for platforms.
Working voltage: 5V
Logic level: 3.3V
Display chip: ST7796S
Touch chip: XPT2046
Display interface: 4-wire SPI
Touch interface: SPI
Display panel: IPS
Display size: 3.5 inches
Touch type: resistive induction
Number of touch points: single touch
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Color: As Shown
Material: PCB

Package Contents:
1 x LCD Touch Display Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
