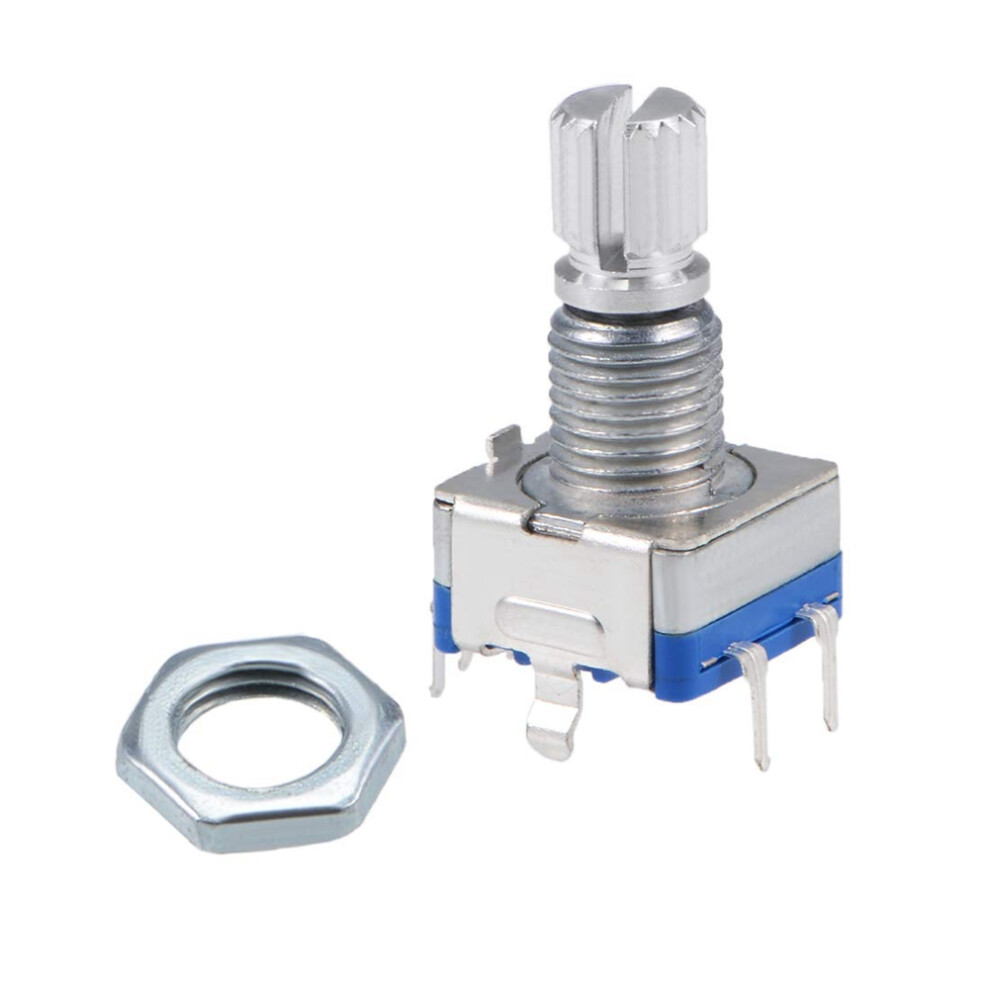

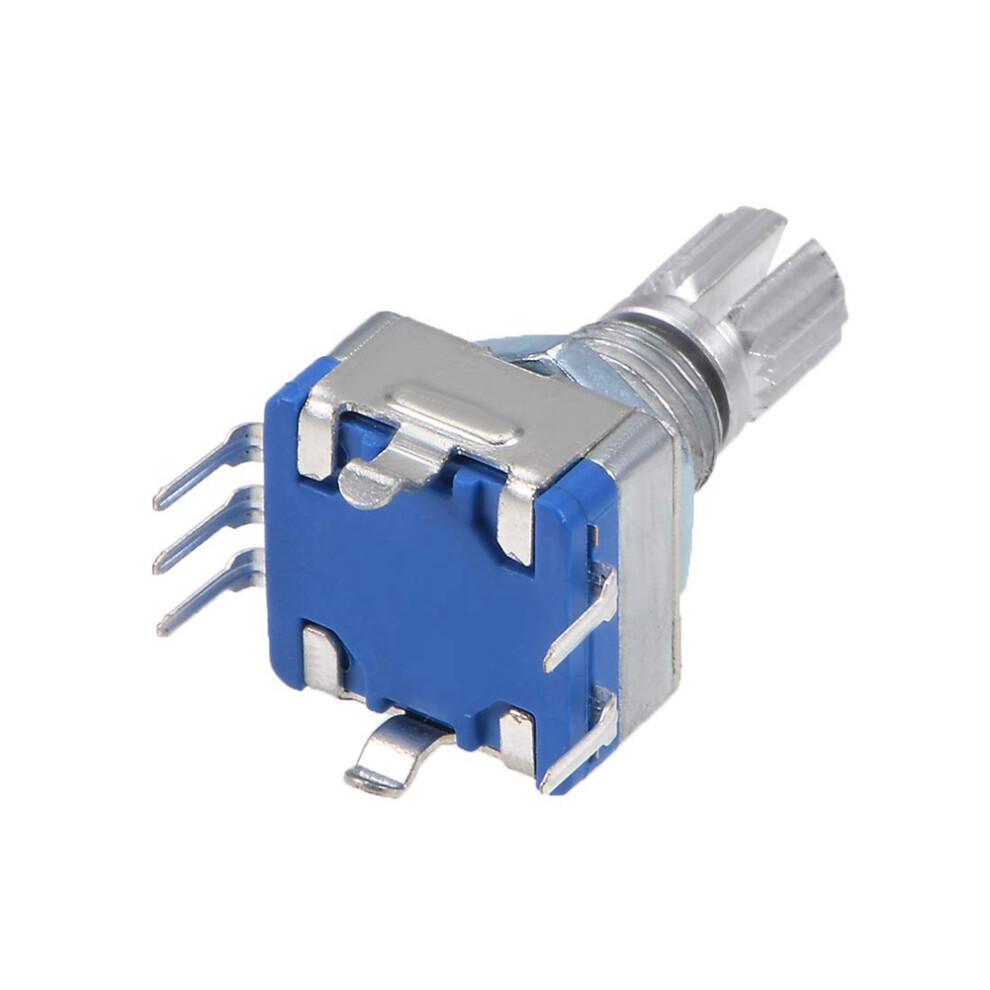

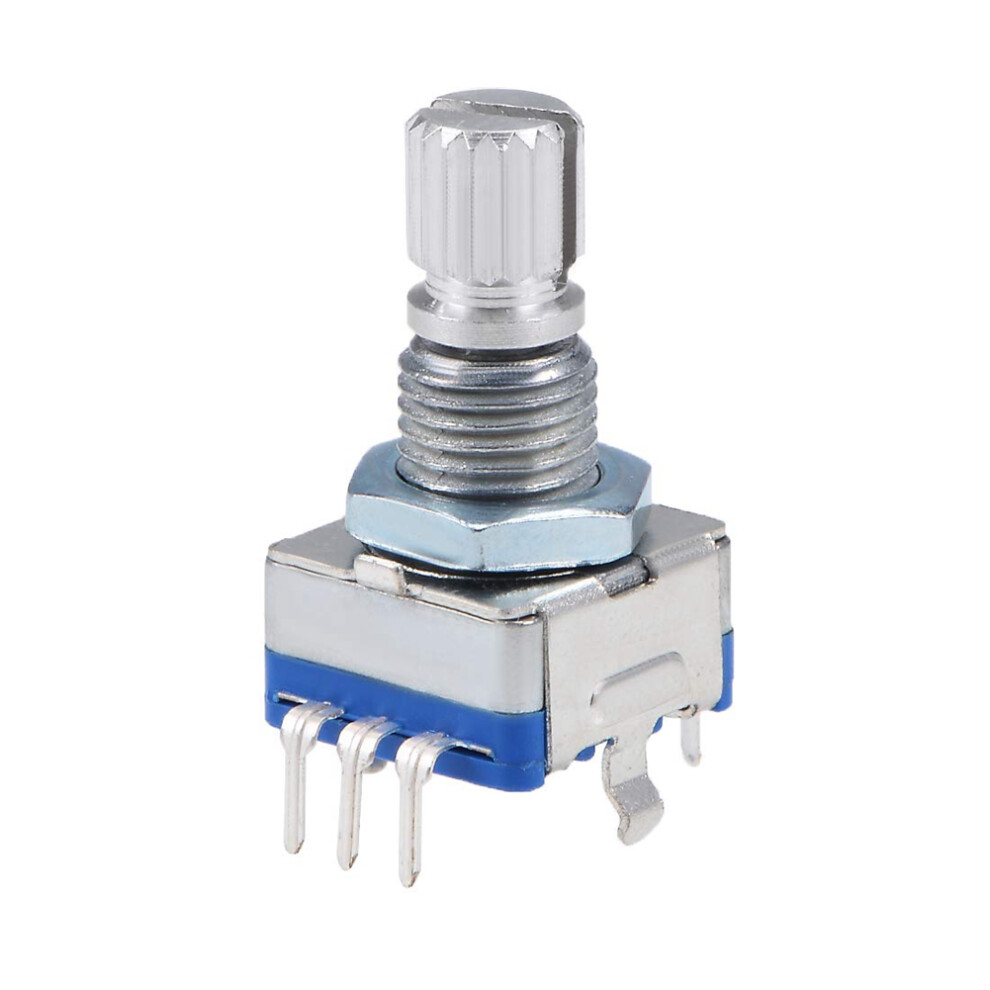

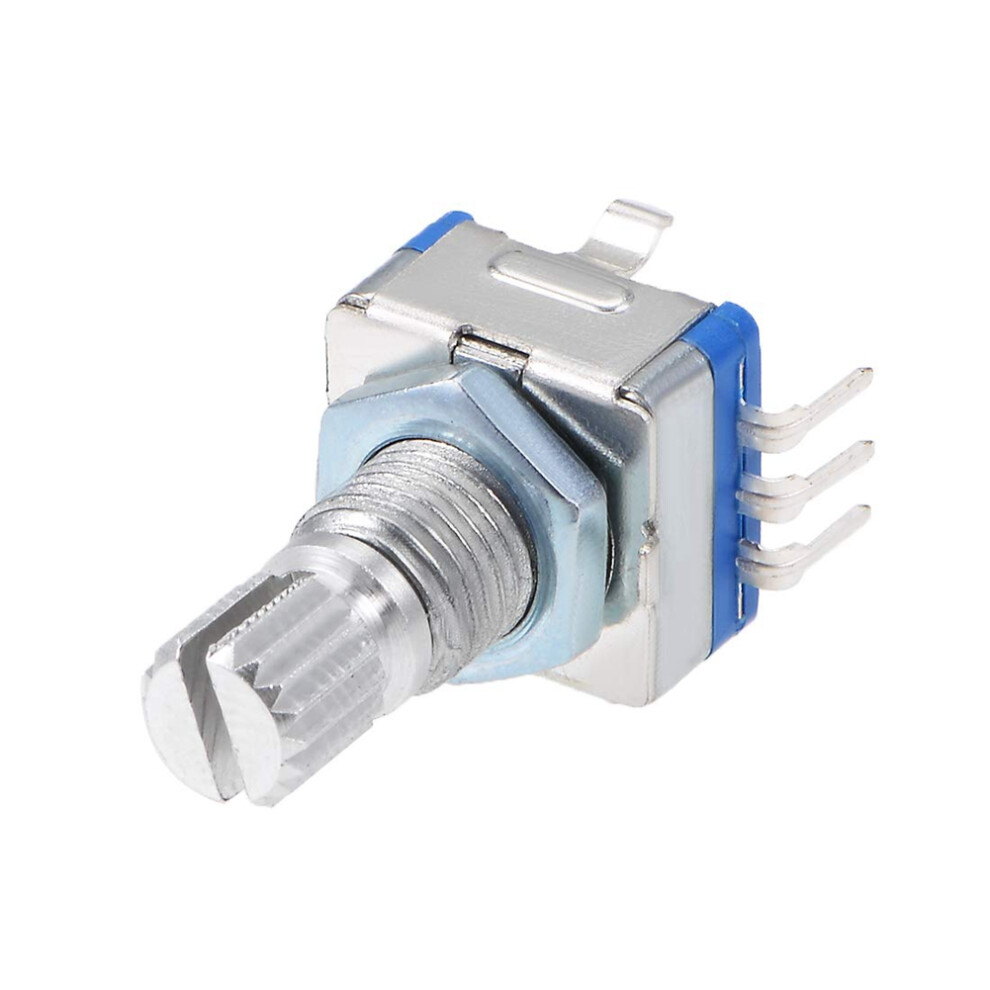

360 Degree Rotary Encoder Code Digital Potentiometer EC11 5 Pins 15mm Shaft 10Pcs

360 Degree Rotary Encoder Code Digital Potentiometer EC11 5 Pins 15mm Shaft 10Pcs Description

Type: Encoder code with ; Adjustment method: 360 Degree; Number of pulses: 20; Pin Numbers: 7(5 working signal pins & 2 mounting pins); Rated Voltage: 5 Volt.

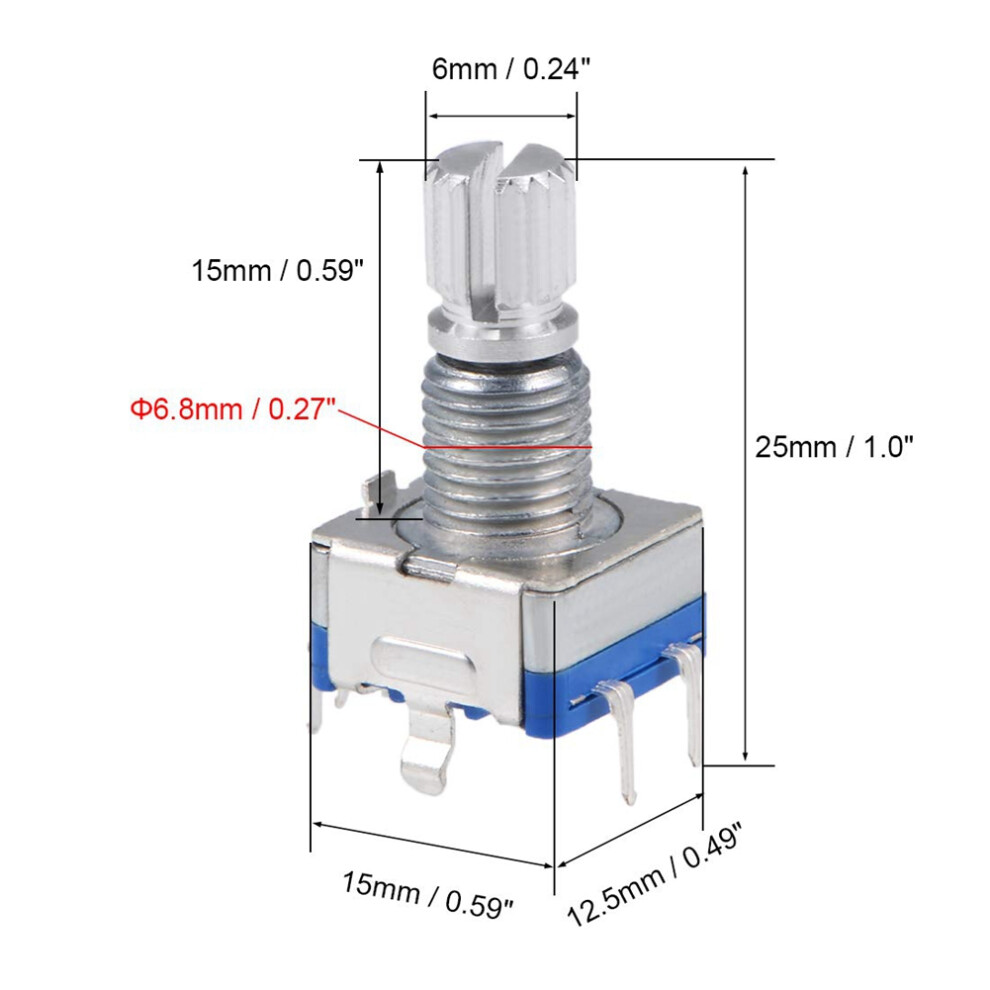

Shaft Diameter: 6mm/0.24inch; Shaft Height: 15mm/0.59inch; Thread Diameter: 6.8mm/0.27inch; Total Dimension: 15mm x 12.5mm x 25mm / 0.59inch x 0.49inch x 1inch(L x W x H).
In the forward rotation, the A phase leads the B phase; when reversed, the B phase leads the A phase. The phase relationship and number of rotations of AB can be identified using a simple digital logic circuit (exclusive OR gate and D flip-flop).
By rotating the rotary encoder can be counted in the positive direction and the reverse direction during rotation of the output pulse frequency, unlike rotary potentiometer count, this rotation counts are not limited. With the buttons the rotary encoder can be reset to its initial state, that starts counting from 0.
Applications: Industrial control, robots, photographic lenses, computer input devices, such as optical mechanical mice and trackballs, controllable stress rheometers. raspberry design sensor module design circuit board design dimming and sound 3D printer LCD display, etc. (car CD players, for volume & /off control or data selection via LED or LCD display; perfect for use with or ATMEL microcontrollers.)

Colour: silver +
Material: metal

Package Contents:

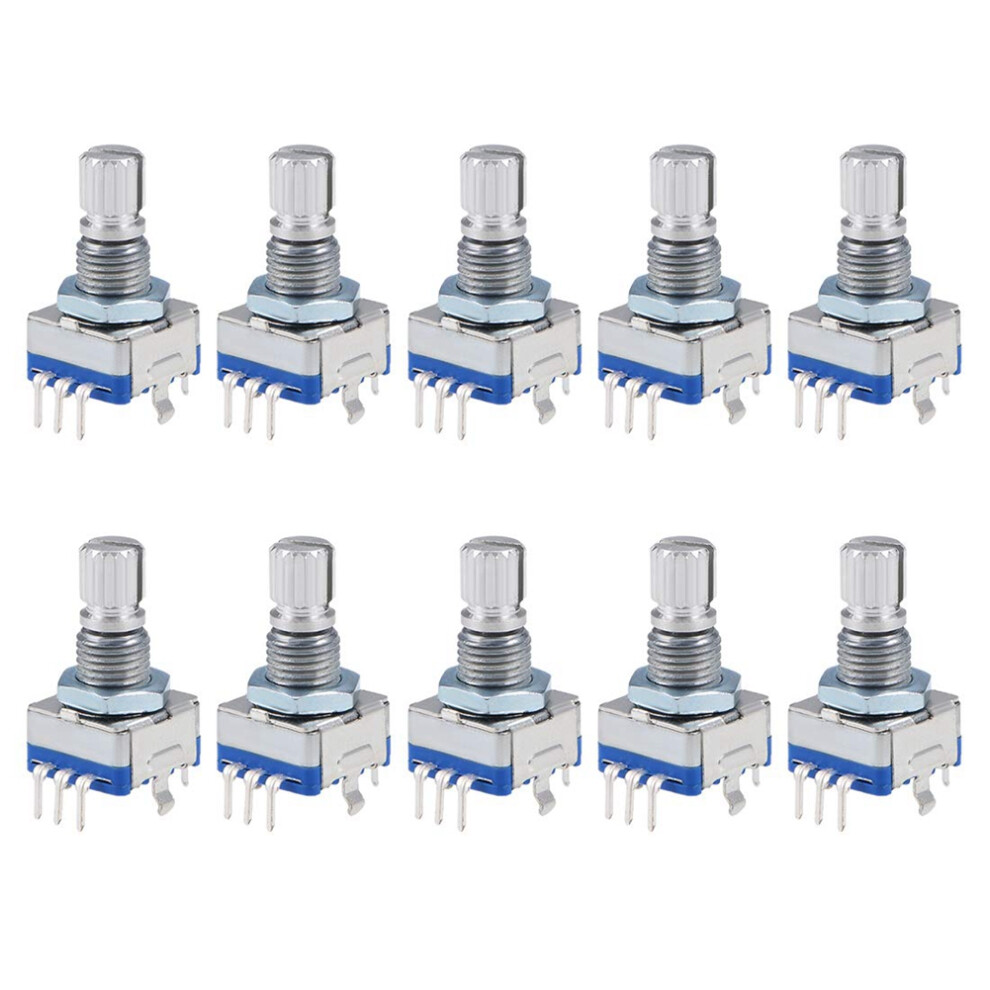

10 x Rotary Encoder Code
