36V 48V 22A Brushless Controller G20 Meter LED +130X Throttle Kit

36V 48V 22A Brushless Controller G20 Meter LED +130X Throttle Kit Description

Description/Features:
Lithium-powered scooter modification accessories LED-G20 instrument tri-mode 22A controller 130X throttle set
The controller is a sine wave tri-mode controller, matching with Hall or non-Hall brushless motor
Applicable to 36V500W 36V750W 48V500W 48V750W with Hall or non-Hall brushless motor

Specifications:

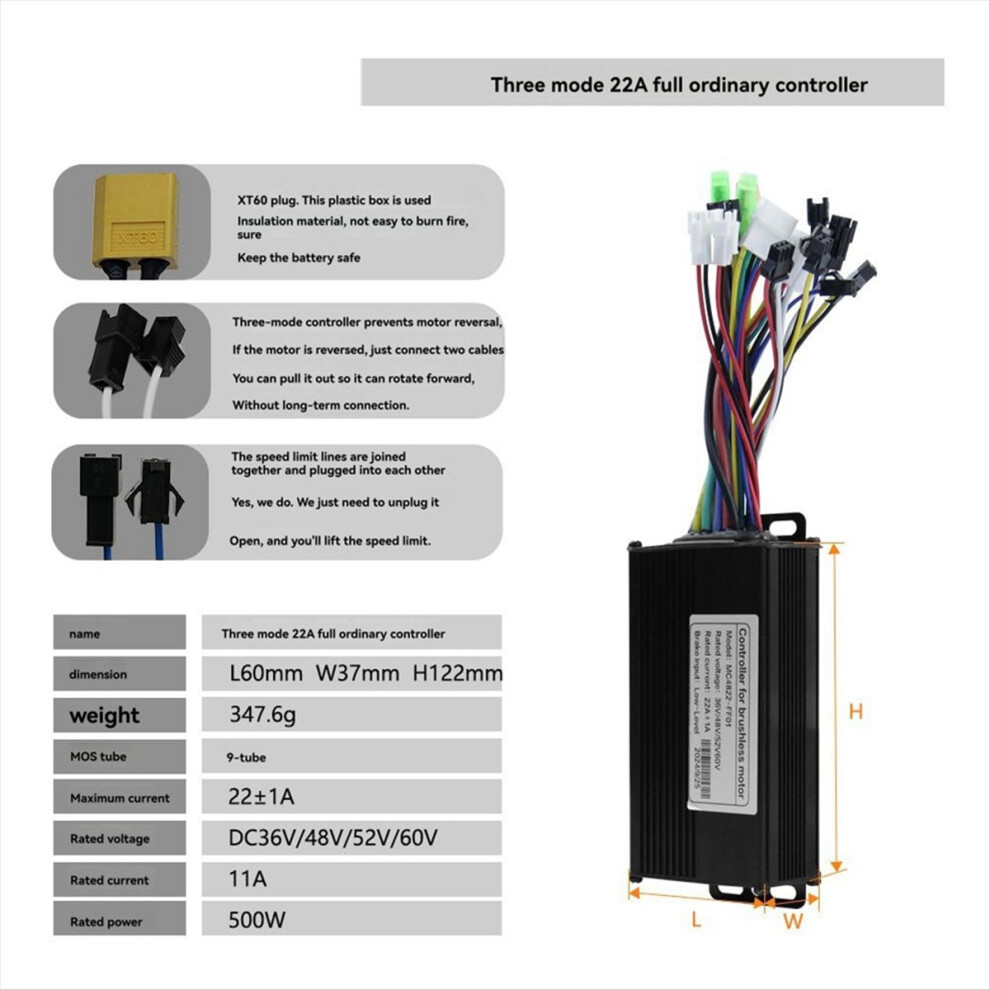

Type: Three-mode 22A full-normal controller
Current: 221A
Rated voltage: 36V-60V
Rated current: 11A
Brake input: low level
Field effect transistor: 9 tubes

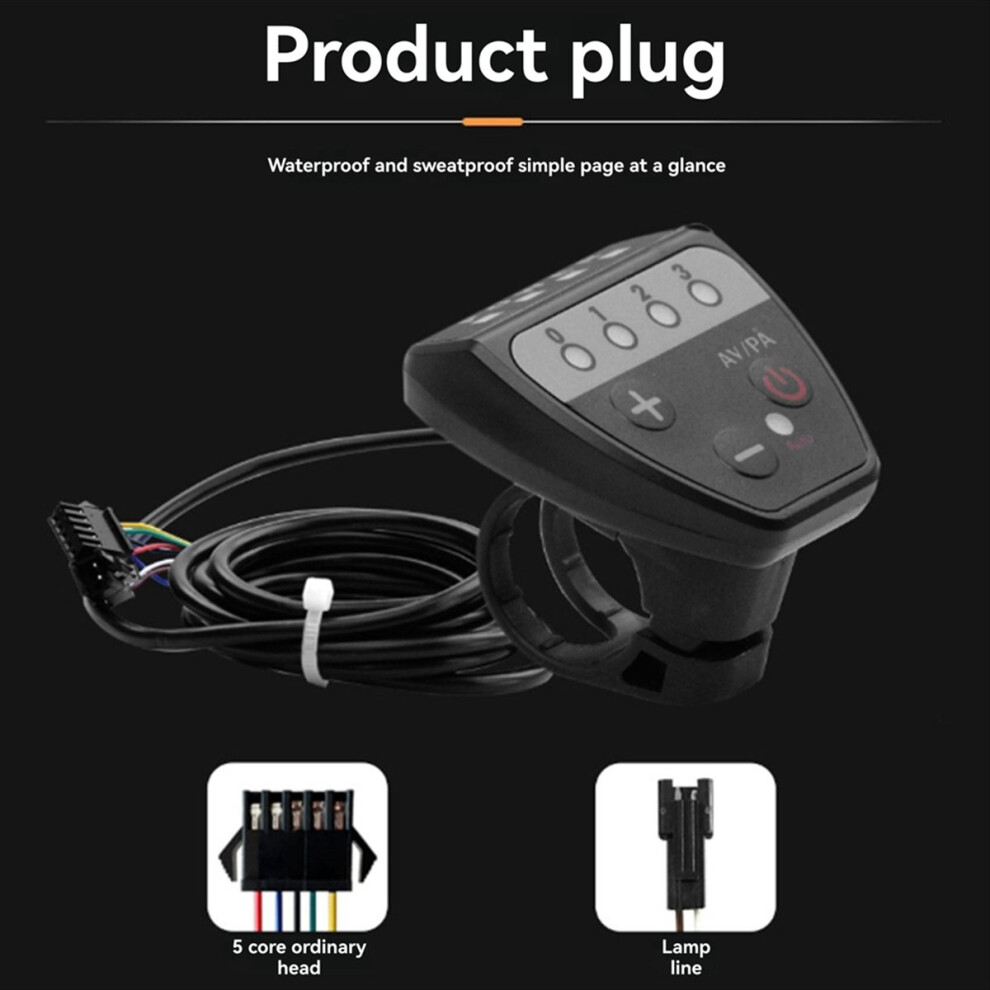

Product model: LED G20 instrument
Core wire specification: 5pin+2pin
Voltage: 36V-48V
Operating temperature: -20C-70C
Connector: SM connector
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Color: black
Material: Metal+Plastic

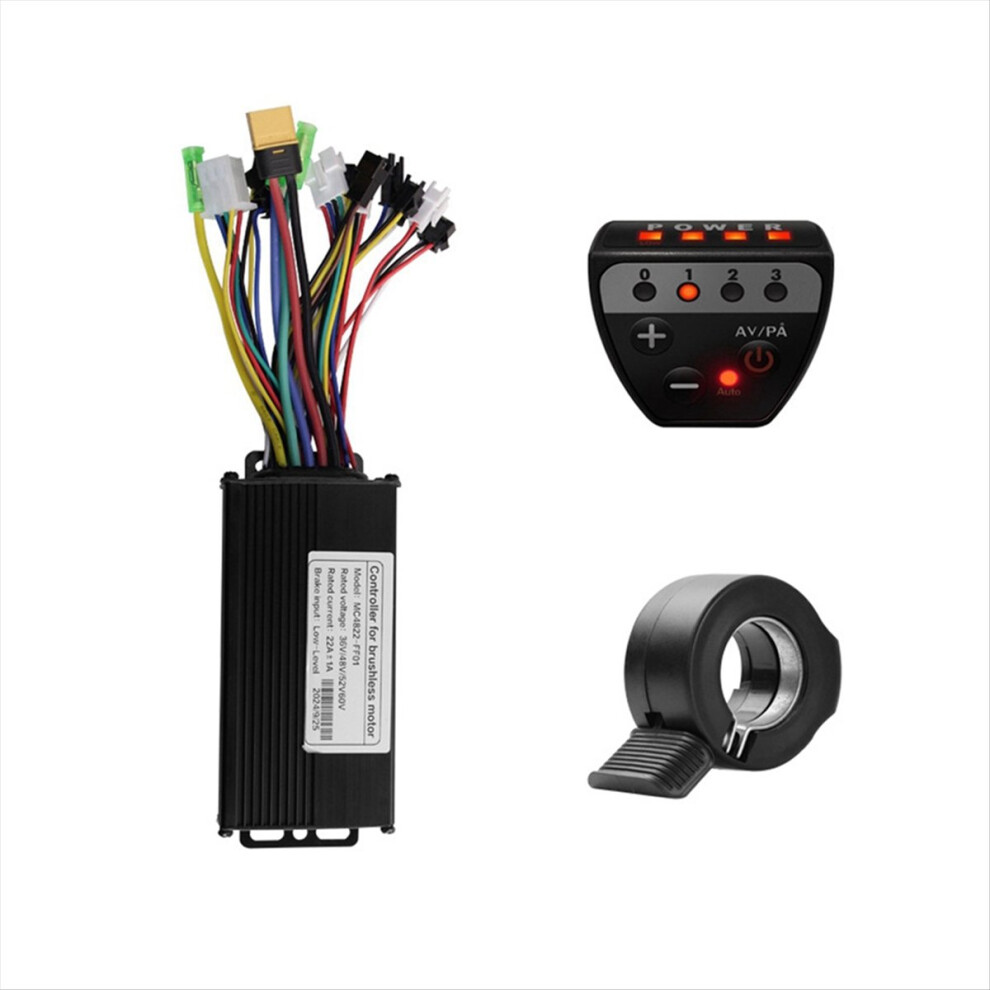

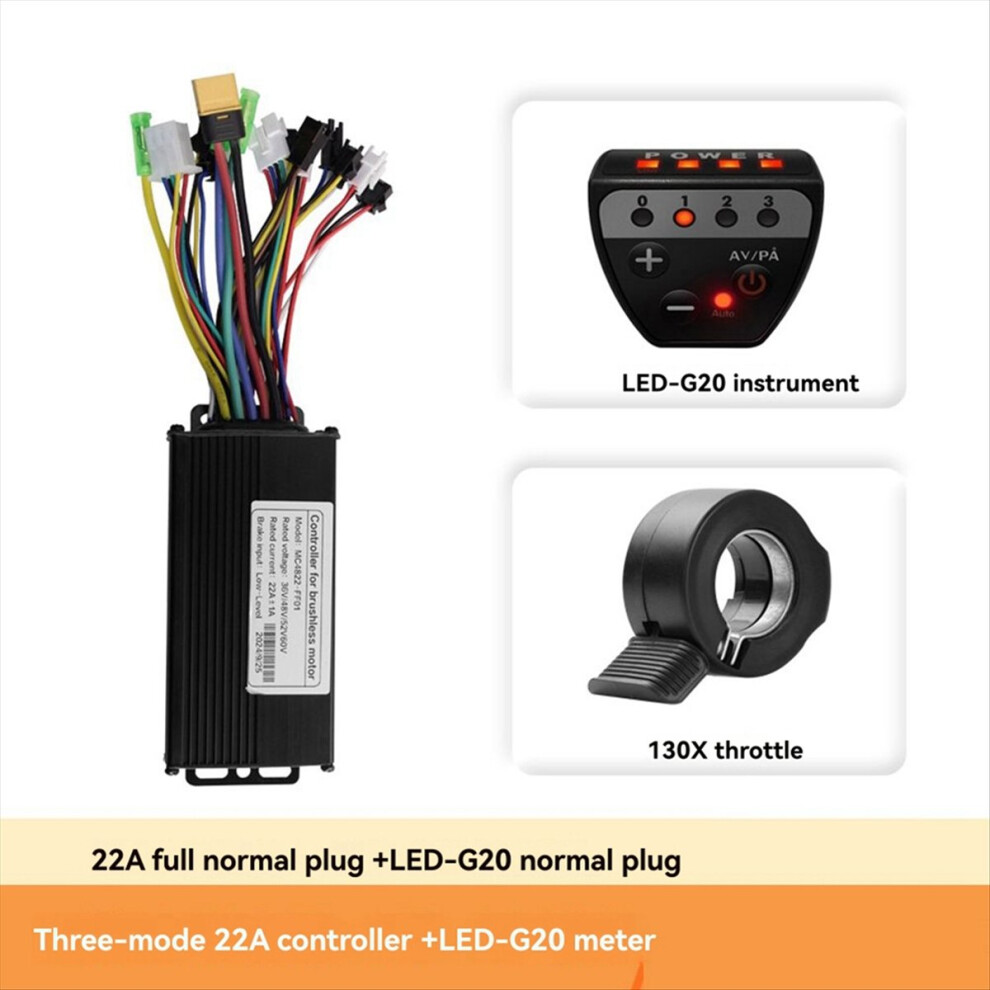

Package Contents:
1 x Controller
1 x LED Display
1 x Throttle

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
