3D light CNC edge detector, CNC machine probe tool

3D light CNC edge detector, CNC machine probe tool Description

3D Light CNC Edge Detector, CNC Machine Probe Tool Description

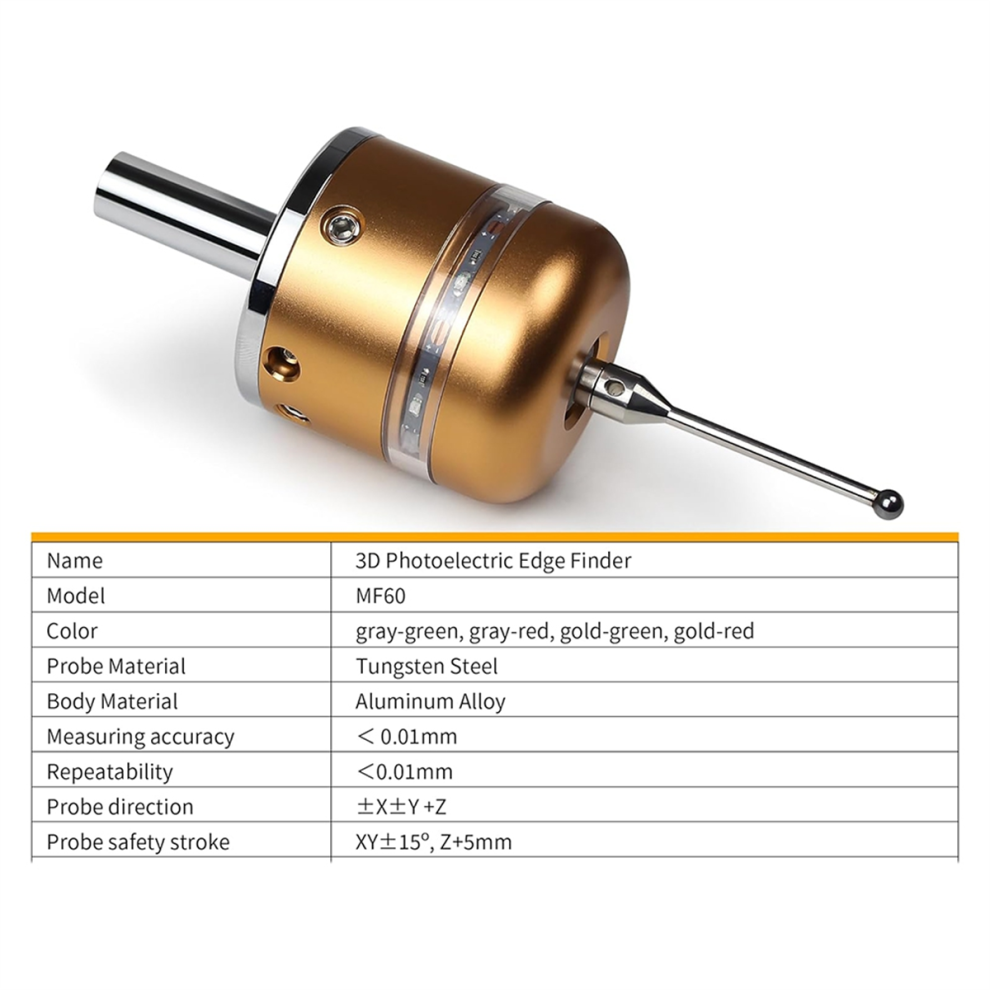

3D edge detector supports X, Y, and Z three-coordinate/direction measurement, reciprocating positioning accuracy 0.01, XY deflection range 0-6, Z-direction expansion and contraction range 1 mm; probe direction: X Y Z; probe safety stroke: XY 15, Z +5 mm; trigger life: 5,000,000; application: metal

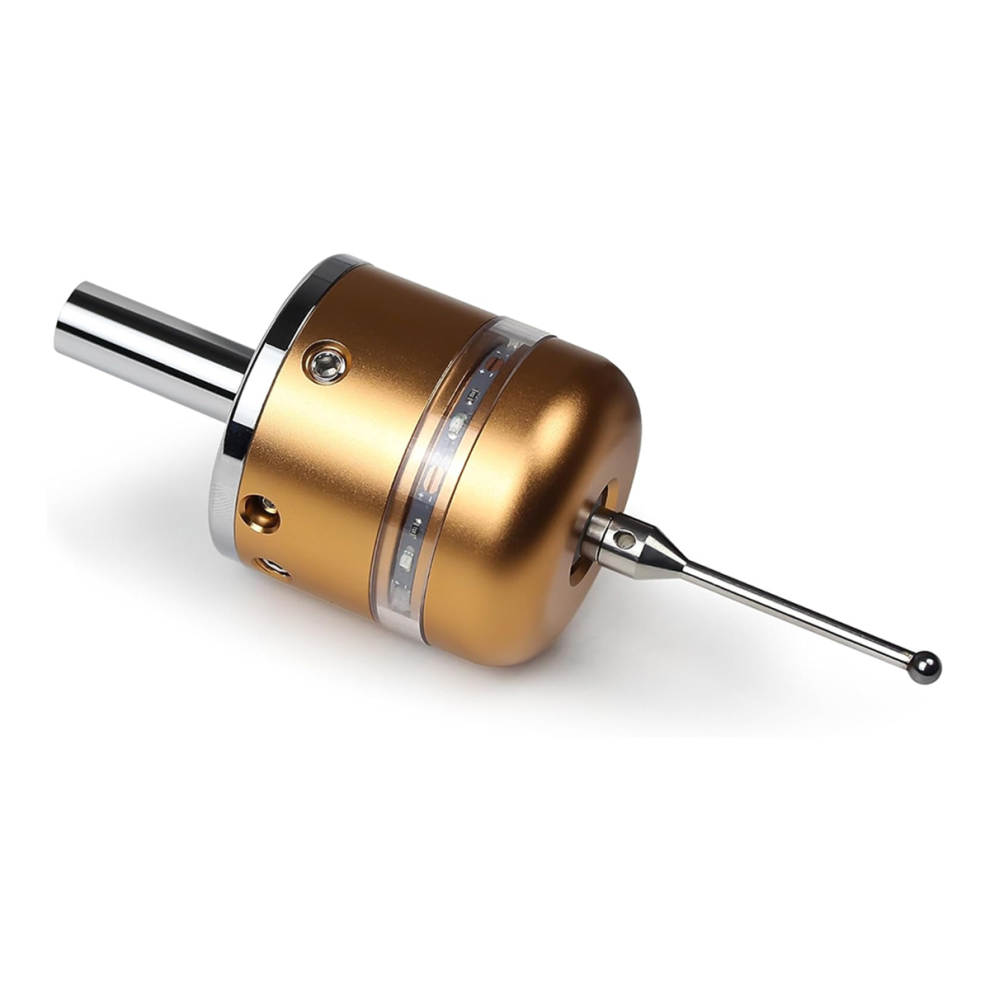

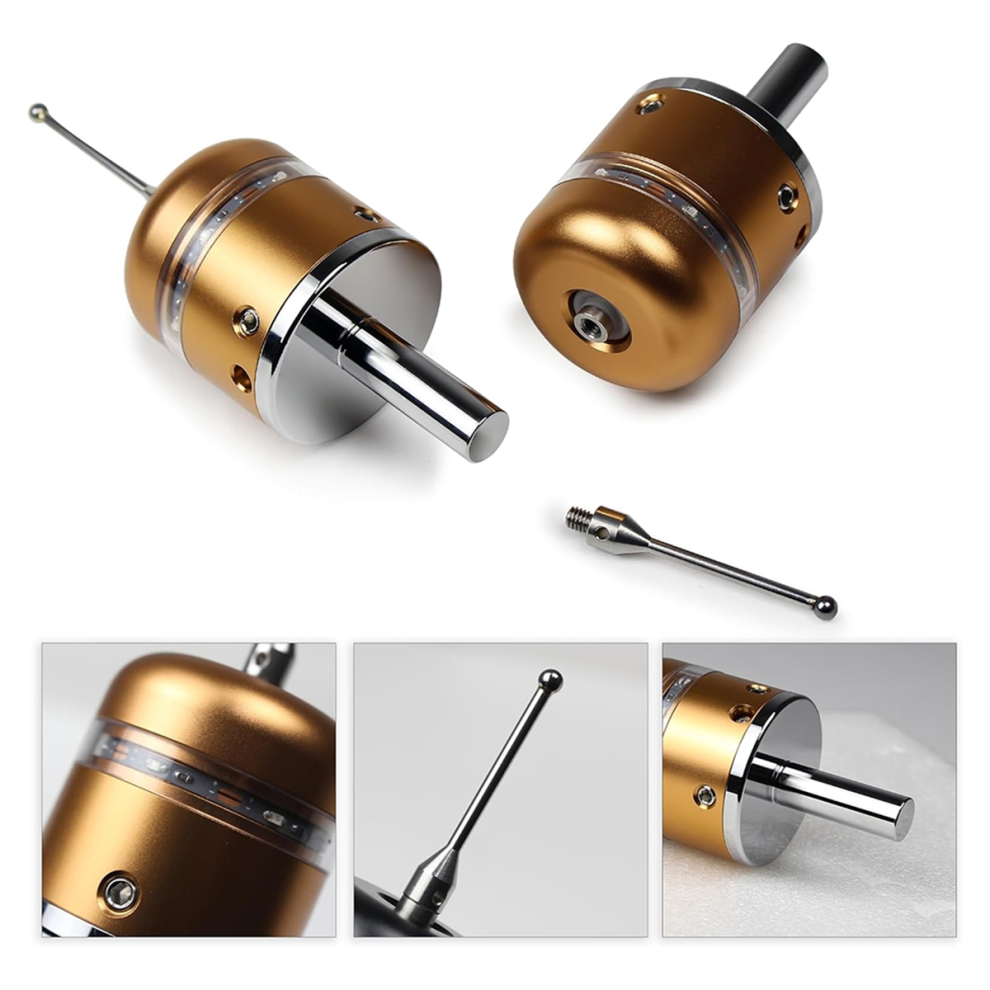

The edge detector features a solid, sealed housing made of anodized aluminum alloy, a flat anti-roll design, and a tungsten steel ball head with a stable structure, excellent performance, and high measurement accuracy. The measuring accuracy is less than 0.01 mm, the repeatability is less than 0.01 mm. The probe can be rotated 180 degrees, eliminating the need to rotate the spindle during measurement and centering, making it more flexible and practical. It supports dust protection and a low level of drip and water resistance, but does not support prolonged drip cleaning, which can maximize the probe's lifespan. Widely used for positioning and measuring CNC lathes, milling machines, etc. If the safety range is exceeded, the probes and probes may be damaged, and detection of insulating materials and insulating machine tools is not supported. Color: As shown. Material: Aluminum alloy. Package contents: 1 set x Desktop CNC Machine
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual color. The allowable measurement error is +/- 1-3 cm.
