3D Printer Parts CNC Closed Loop Stepper Motor Servo Stepping Controller Stm32 Step Pcb Board Nema17 Servomotor MKS(B)

3D Printer Parts CNC Closed Loop Stepper Motor Servo Stepping Controller Stm32 Step Pcb Board Nema17 Servomotor MKS(B) Description

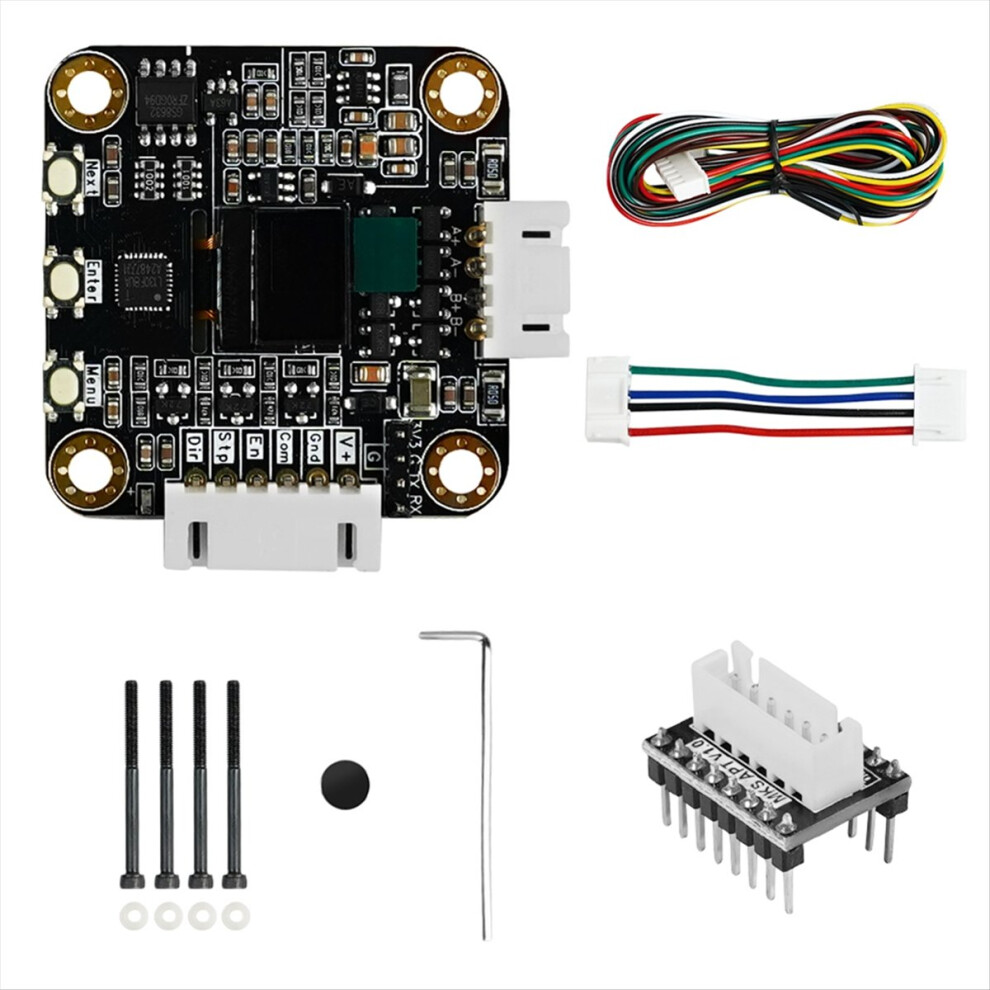

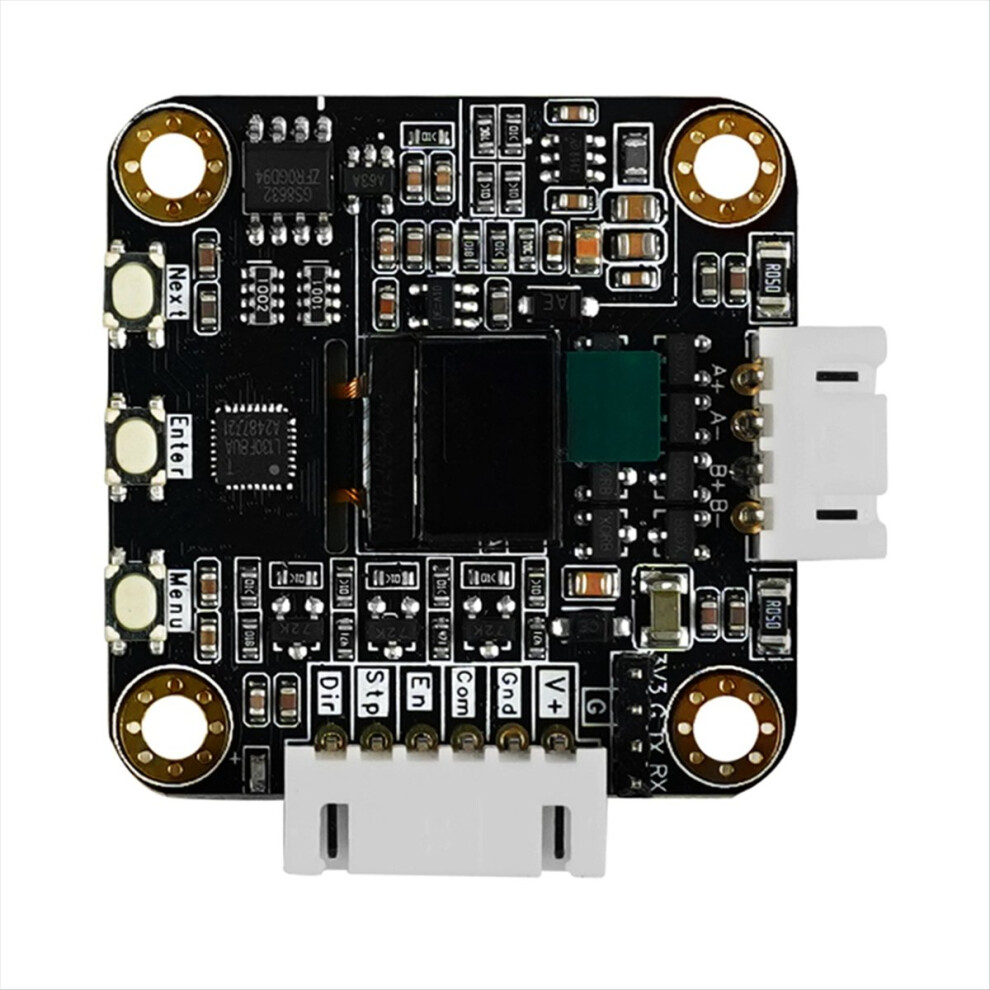

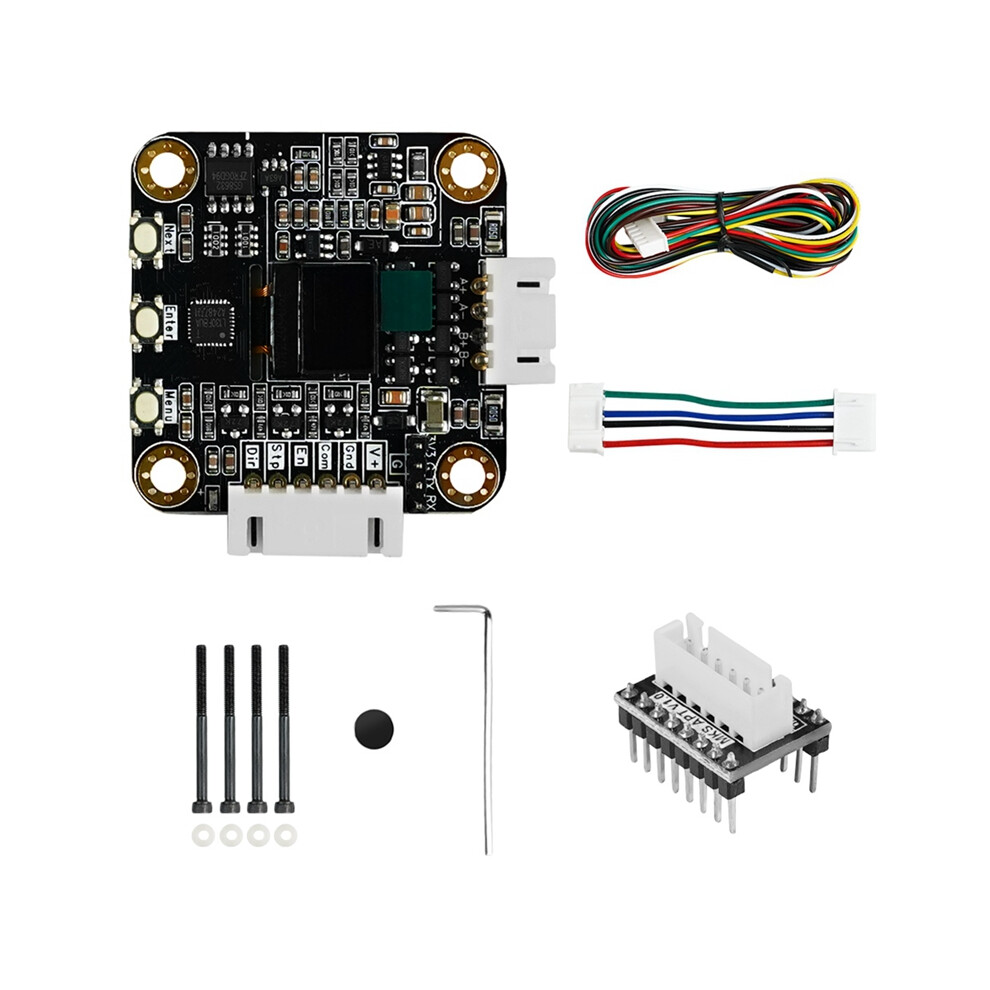

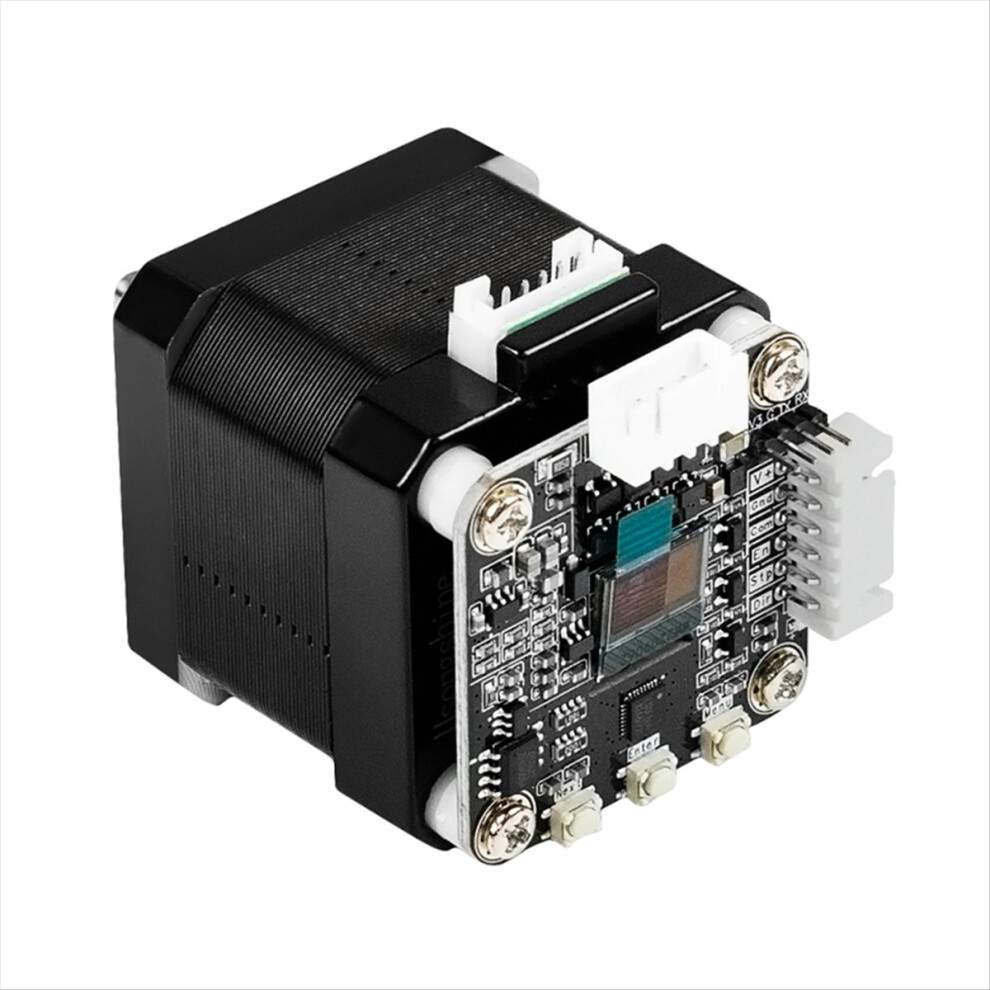

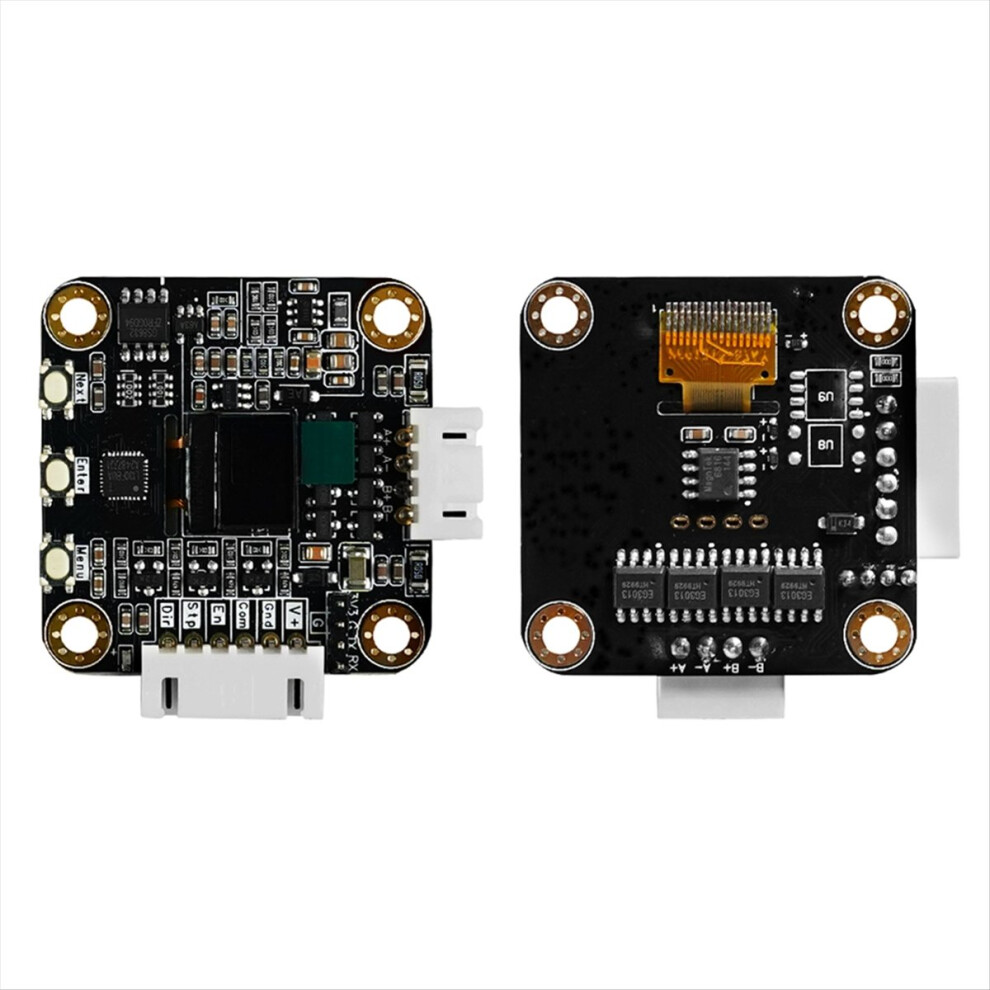

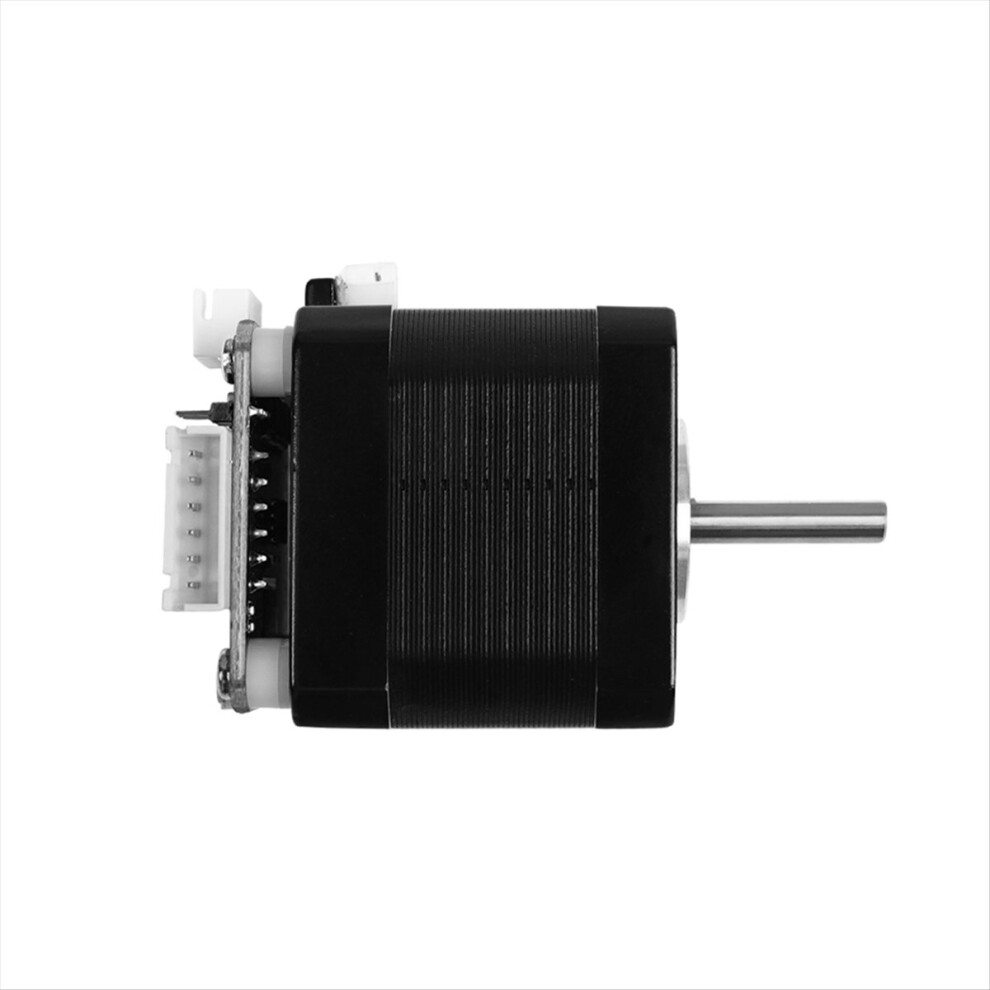

new and high quality. Position/speed/torque closed-loop, it can run at high speed without losing step. Field-Oriented control, low noise, low vibration and low calorific. 4 Half bridge driver with 8 MOSFET, high operating efficiency. 14 Bit magnetic encoder, high angle resolution. Support 1-256 subdivision,odd subdivision is also avaible.(Such as 11 subdivision) Maximum speed 1000RPM.Support motors with 0.9 degree or 1.8 degree . The maximum printing speed can reach 150-180mm/s and easy to install and wire. With USART interface, you can connect the computer by serial port, for parameter adjustment and query. Board Type:MKS SERVO42C V1.0 Microprocessor:Crotex-M0+ Mootor Driver:4 Half bridge driver with 8 MOSFET Input Voltage:7V-28V Encoder:14 Bit Magnetic Encoder Adjustable Current Range:0-3000mA Subdivision:1-256(Default 16) Maximum Speed:1000RPM Angle Resolution:0.08 degree The Frequency of Update:Position 10Khz/Velocity 10Khz/Torque 20Khz Type:B:MKS SERVO42C V1.0 Colour:Black Material:PC+Metal Size:PCBA Size: 39x35.8mm/1.54x1.41in Package Contents: 1Set x MKS SERVO42C V1.0 Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
