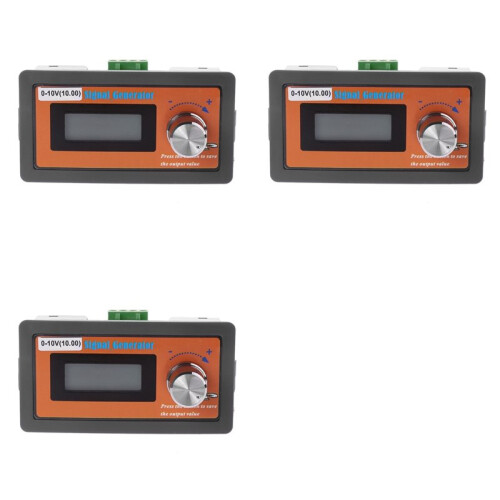

3X 0-10V Signal Generator Voltage Generator 0.01 High Precision

3X 0-10V Signal Generator Voltage Generator 0.01 High Precision Description

Adjustable analog 0-10V adjustable output
Voltage value display
Display accuracy (Adjustment): 0.1 (Fine adjustment) or 1.0 (Rough adjustment).
Have power supply reverse polarity and output short-circuit protection.
Encoder adjustment, can be manual adjustment or automatic programmable output: dynamic output continuous curve.

The power supply has reverse connection protection and the output is short-circuit protected;
4-digit, liquid crystal display (with backlight);
Technical indicators
Mounting panel / chassis opening size: 77 x 40mm;
Power supply: DC7V---28V (power supply must be 2V larger than the output, for example, 0-10V output, more than 12V power supply);
Display adjustment accuracy: according to the displayed value, the lowest 1 ‰ (5V accuracy 0.005V);
The actual accuracy is 0.02V (compared to the multimeter error);
Output maximum current 200mA;
Colour:As Shown
Material:plastic

Package Contents:
3 x Signal Generator
