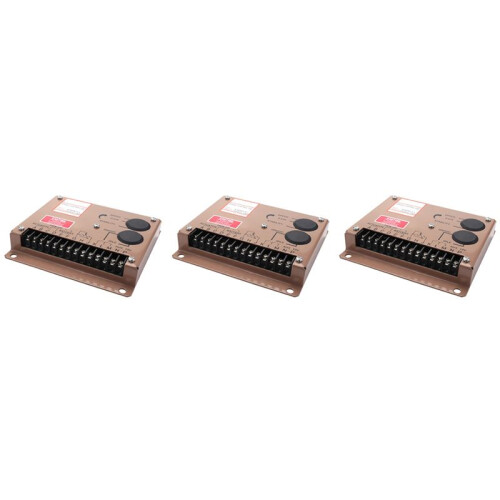

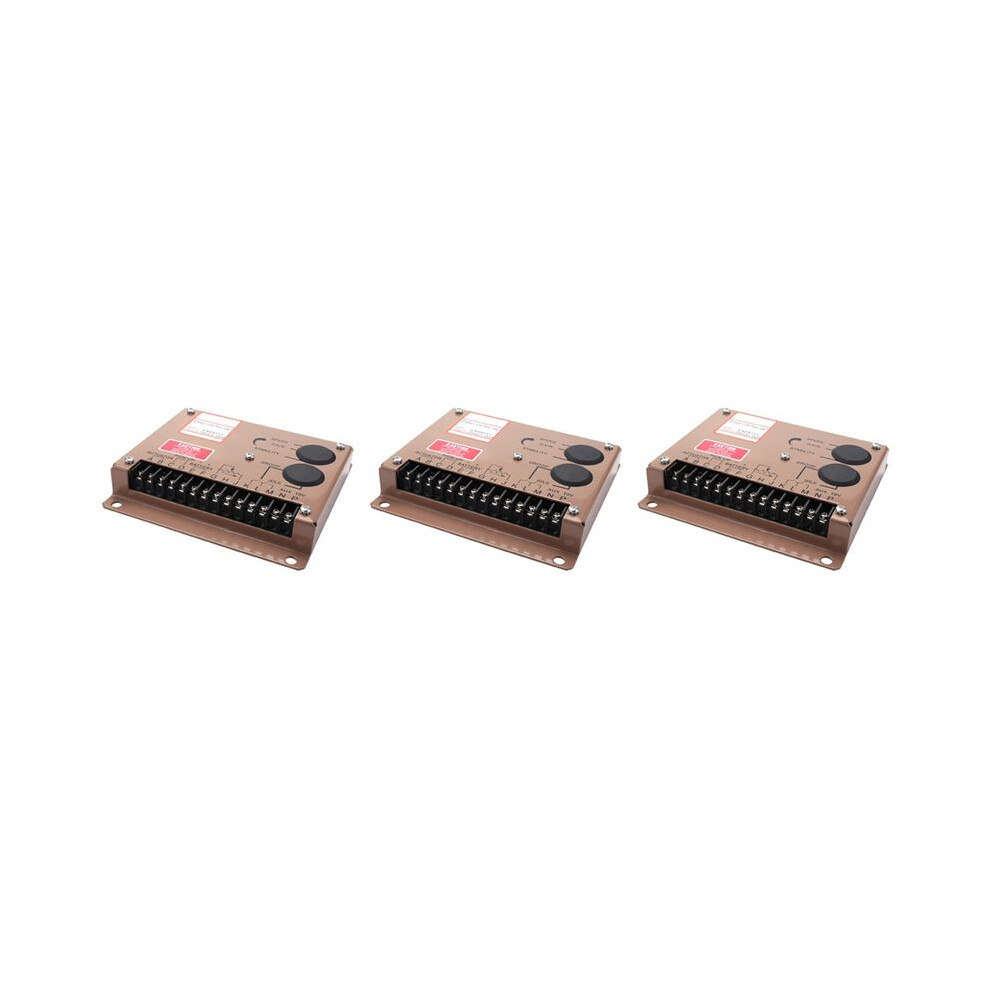

3X Engine Motor Speed Regulator ESD5111 Genset Adjustment Controller Power Supply Ac Generator Part 12V 24V
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 137,000 Trustpilot reviews and an 'Excellent' rating
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Mon 9th - Wed 11th Nov
Sold by: moresk
Returns: 30 days
180-day payment protection
You might also like
Summary
- Model Number: ESD5111
- name: speed controller
- ESD5111 engine speed regulator
- RPM stability: Less than ± 0. 25%
- Speed range: 1 KHz ~ 7.5 KHz
3X Engine Motor Speed Regulator ESD5111 Genset Adjustment Controller Power Supply Ac Generator Part 12V 24V Description
Model Number: ESD5111
name: speed controller
ESD5111 engine speed regulator
RPM stability: Less than 0. 25%
Speed range: 1 KHz ~ 7.5 KHz
Thermal stability: Max 1%
IDLE Regulation: 160 20Hz
DROOP Regulation: 15Hz 6Hz / Amp minimum
Maximum: 400Hz 75Hz / Amp
External speed regulation: 200Hz (with 1 K ohm connected)
Auxiliary input sensitivity: 148Hz / 1V, 10Hz
Impedance: 1M ohm
Working temperature range: -40-85
Environment:
Working humidity range: maximum 95%
Average temperature: -55-92 Celsius
Shocking: 20-100 HZ 500mm / sec.
Input power supply
Voltage: 12/24 V
Ground post: negative post
Power supply: 50mA
Continuous Actuator Current: Minimum 2.5A, maximum 10A
Signal: 0.5-120 RMS
The following are our products:1 AVR Brushless Universal: 8A ... 12A ... 15A ... SAVRH-75A ... SAVRH-PCB ...
2Stamford AVR: AS440 ... MX321 ... MX321-A ... MX341 ... MX341-A ... SX440 ... SX440-A ... SX440-T ... SX460 ... SX460-A .
3AVR: R230, R438, R448 ... R449 ... SSAYEC432.
4AVR: SE350.
5 AVR Brush: SR-100, SR-110.SR-130B ... SR-120.SR-160B.SR-170
6 Governor motor: 3036453 of 34008326 EFC3044196 ... ESD5111 ... ESD5500E!
7 Controller: CTR101 ... CTR168 ... DSE501K ... DSE5110
colour:Picture color
Material:Plastic + metal
Package Contents:
3 x ESD5111 Governor
Note: the above parameters are tested with an operating frequency of 4000Hz
Details
| OPC | PYK2ZV2 |
|---|---|
| Brand | TAUOH |
| Codes | 4713914069969 (EAN) |
| Product and Safety Information |
Product Data
| Height | 18cm |
|---|---|
| Width | 15cm |
| Length | 18cm |
| Weight | 1.725kg |
| Colour | Picture color |
| Material | Plastic + metal |
