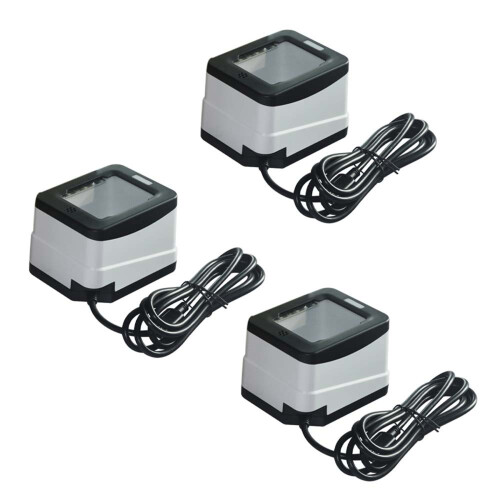

3X XT2001B USB / RS232 Bar Code Reader Portable Mobile Payment Box 1D / 2D Code Multifunction QR Reader Barcode Scanner

3X XT2001B USB / RS232 Bar Code Reader Portable Mobile Payment Box 1D / 2D Code Multifunction QR Reader Barcode Scanner Description

1. Quickly identify the one-dimensional code and two-dimensional code the screen
2. No plug-in required, fast invoicing
3. Anti-slip and drop-resistant design
4. Large reading window
5. Integrated design of body and data cable. Compatible with multiple systems

Pixel: 640 x 480CMOS
Advantages: Scan mobile phones / tablets / Alipay / WeChat / paper barcodes
Interface type: USB / RS232 / TTL
Environment light intensity: 0-100000 Lux
Lighting lamp: no lighting mode, reading bright mode, constant bright mode
Code system:
1D: Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF- 14, Matrix 2 of 5,Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS- Limited, RSS-Expand)
2D: PDF417, Data Matrix, QR, Micro-QR
Reading accuracy: greater than equal 5mil
Typical reading depth of field: QR CODE (30MIL), 0-15CM
CODE 128 (10MIL), 0-12CM
Barcode sensitivity:
Tilt: +/-50degree@ 0degree Roll and 0degree Skew
Rotation: +/-360degree@ 0degree Pitch and 0degree Skew
Deflection: +/-60degree@ 0degree Roll and 0degree Pitch
Lowest contrast: greater than equal 30%
Prompt mode: buzzer, LED indicator
Working voltage: 5VDC+/-5%
Working current: 150mA+/-15mA
Standby current: 80mA+/-2mA
Maximum current: less than 200mA
Environmental parameters:
Working temperature: -20Celsius - +50Celsius
Storage temperature: -40Celsius - +70Celsius
Relative humidity: 5%-95% (no condensation)
colour:White
Material:ABS
size:102 x 82 x 73mm

Package Contents:
3 x bar code reader
