4 CH Balanced XLR Audio over Fiber Extender EU PLUG

4 CH Balanced XLR Audio over Fiber Extender EU PLUG Description

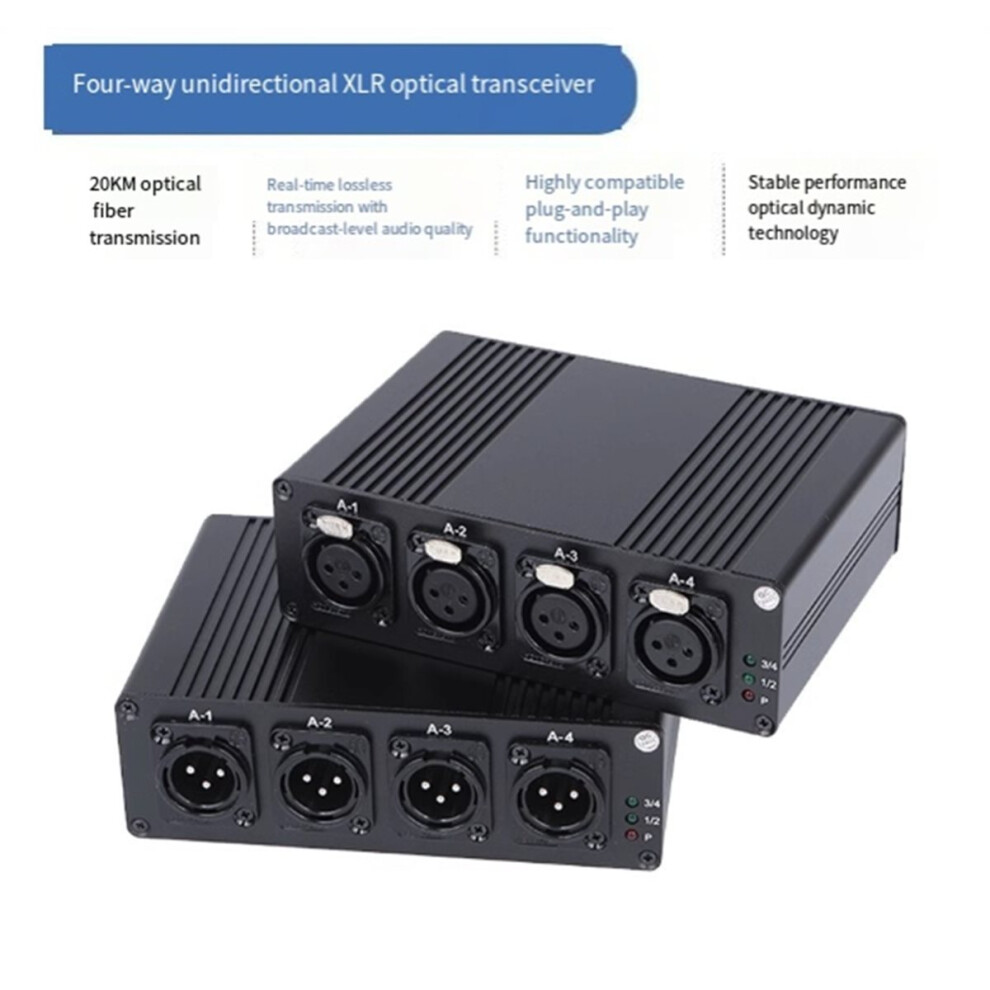

Introduce: This digital four channel audio optical transceiver can use one SC optical fiber to transmit four channel forward audio signals.The audio signal adopts 24bit/96KHZ digital sampling to high fidelity transmission; digital optical transmission channel ensures high-quality signal transmission.
It can be applied to game console high fidelity audio equipment, set-top box, HI-FI home theater, large screen projection video conference, public video broadcasting system, remote multimedia education, classroom medical care, field, flat video media advertisement transmission demonstration, etc.
Four channels one-way XLR audio optical fiber transmission, with a default distance of 20KM (0-120KM optional). High speed synchronous digital transmission technology.
The optical dynamic technology is adopted, and no adjustment is required during use. No electromagnetic interference, no radio frequency interference, no ground current.
safe transmission in harsh electromagnetic environment.

Description:
Audio input impedance:10K
Audio output impedance:600Ω
Interface mode:Balanced XLR
Input/output amplitude ratio:1/1
frequency response:20HZ-20KHZ
Audio sampling rate:24bit/96KHZ
Signal-to-noise ratio: equal 75dB
Audio interface:XLR
Optical character:
Transmission wave length:TX:1310nm,RX:1550nm
Optical interface:FC/SC(Default SC standard)
Transmitting optical power:Max 10dB/20KM
Receiving sensitivity:-35@155MB/S
Optical dynamic range:-39dB - -42dB
Optical allowable maximum chain loss:25dB
Transmission distance:20KM(Single mode)
Installation Process:

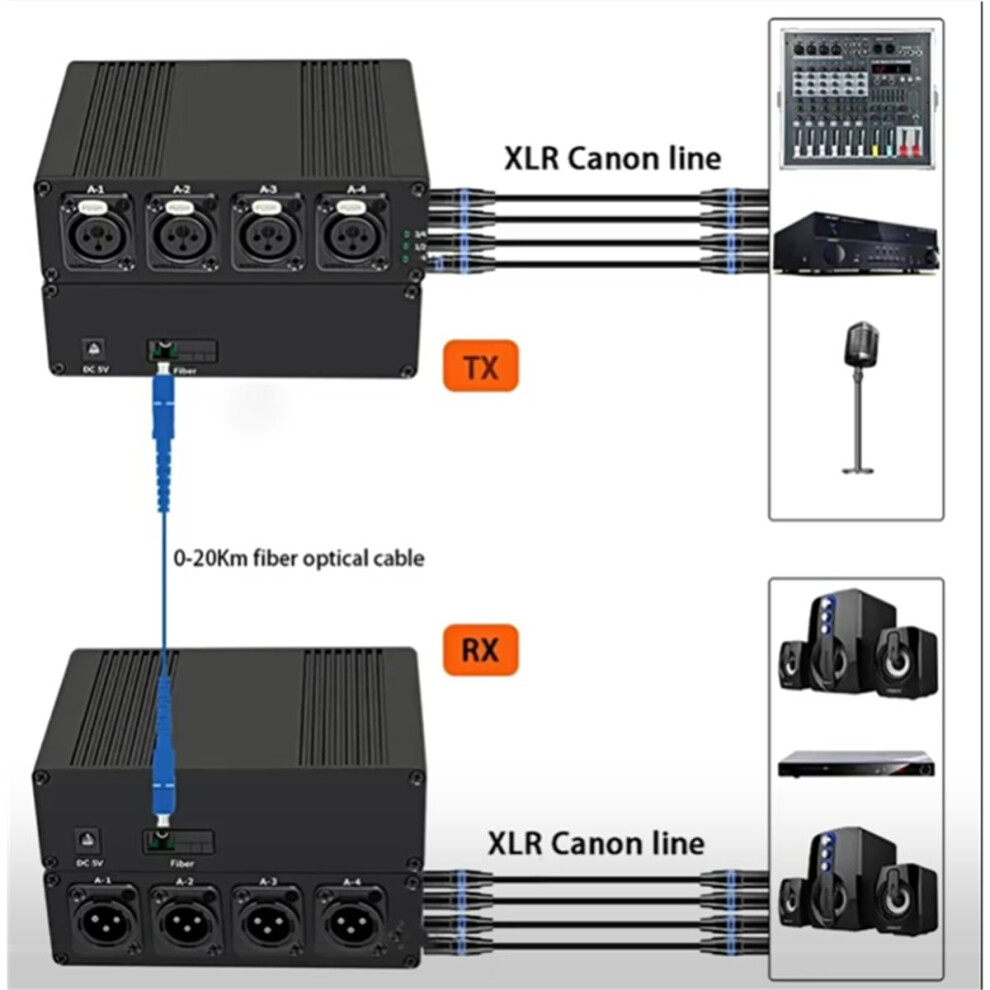

1. Connect the audio signal source to the transmission end of XLR audio fiber extender;
2. Connect the receiving end of XLR audio fiber extender to the audio and power amplifier;
3. Connect the optical fiber interface between the sender and the receiver with one optical fiber cable;

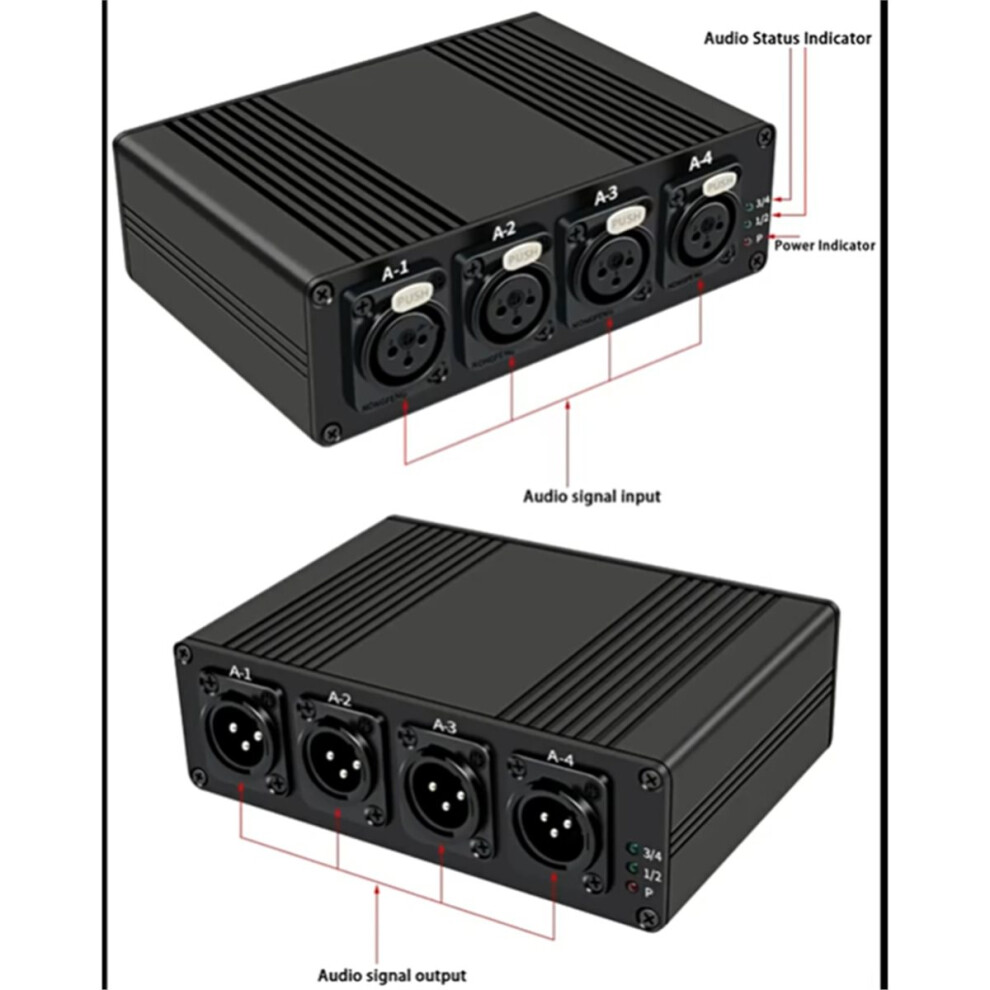

4. Connect the sender and the receiver to the power supply. When the indicator lights up normally, the system operates normally
Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Voltage:AC100-240V
Color:Black
Material:Aluminum Alloy

Package Contents:

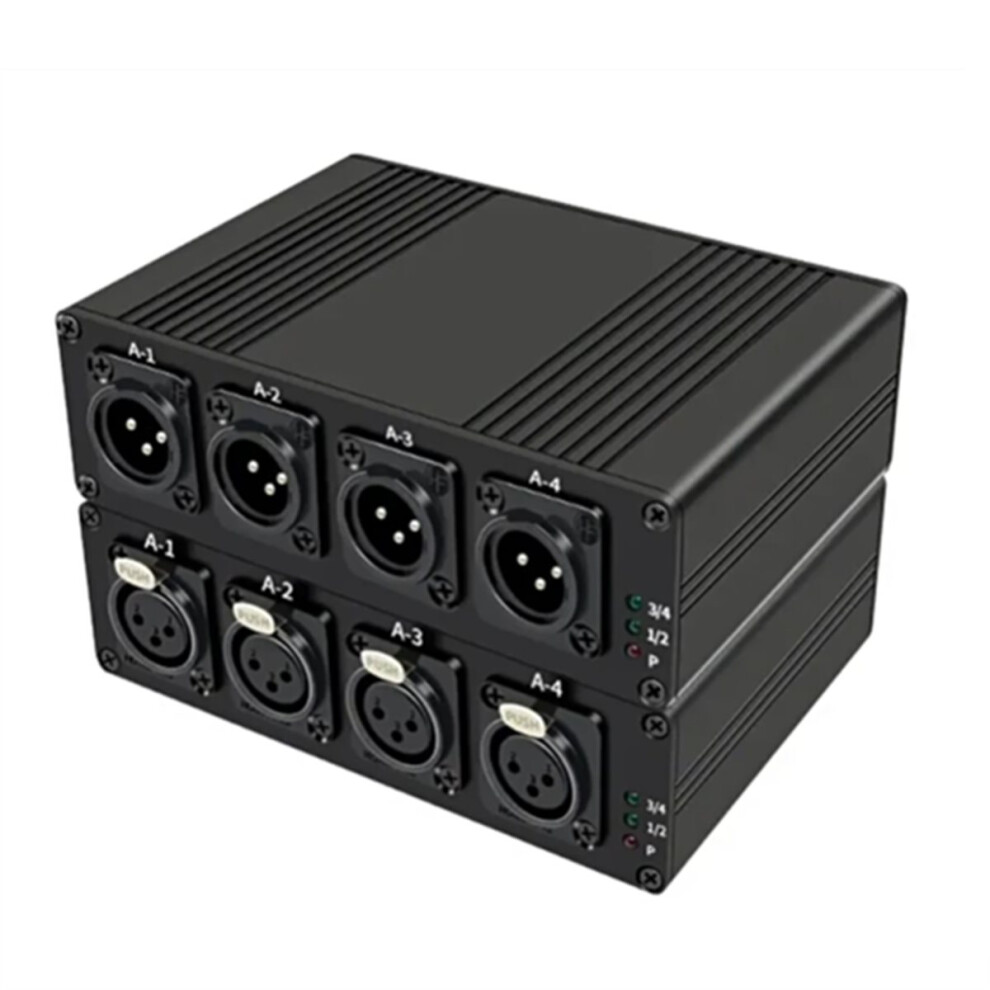

1 x XLR transmitter
1 x XLR receiver
2 adapter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
