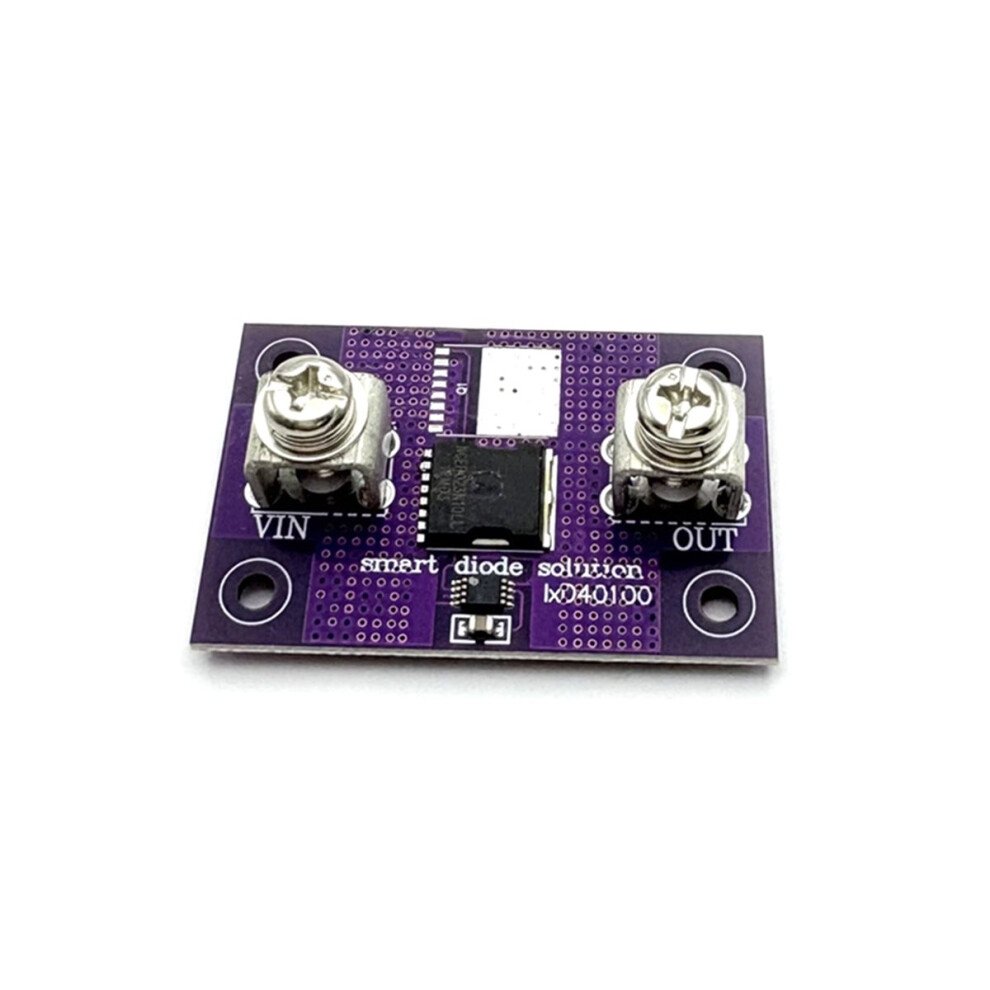

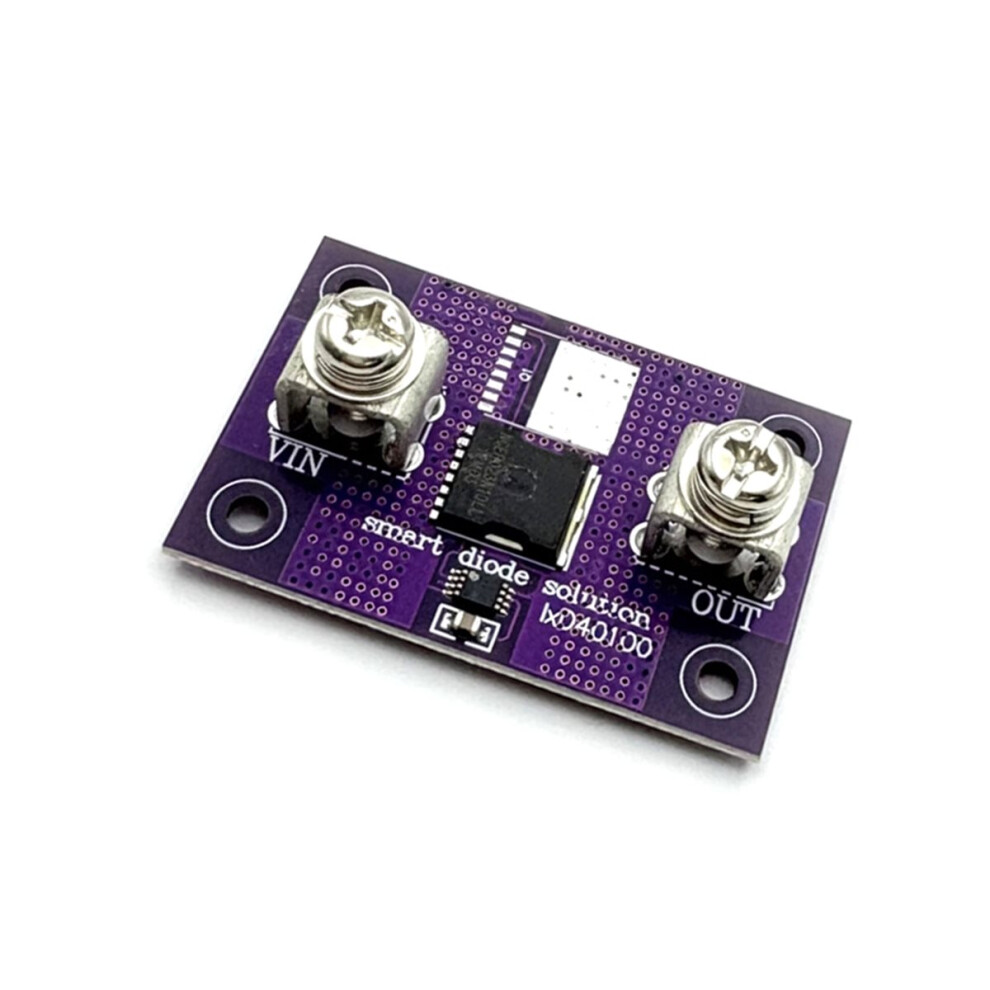

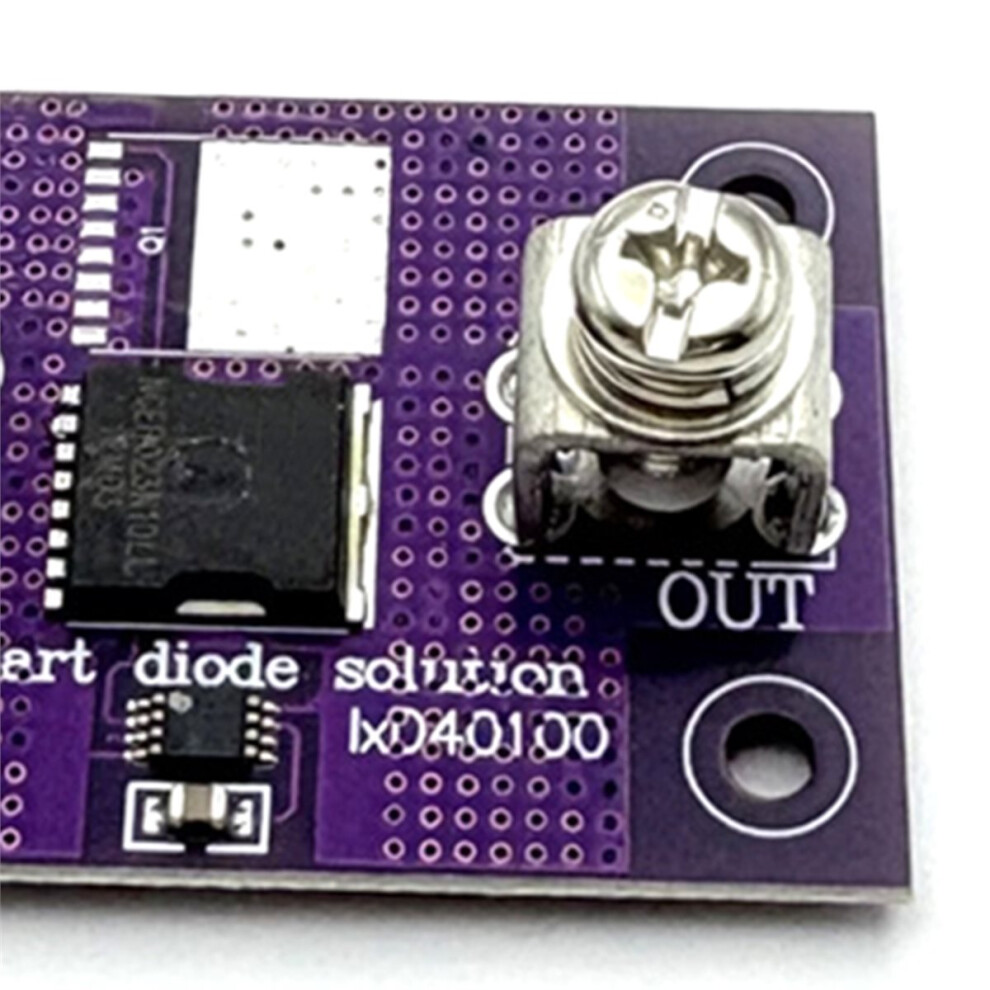

40A Diode Module with No Voltages Restriction Small Size for Industrial Auto

40A Diode Module with No Voltages Restriction Small Size for Industrial Auto Description

Small appearance easy to understand operation; several types available to meet different customer needs
Only need to be connection in series to the positive terminals of the circuit, no need to the negative terminals.
No input Voltages limitation. (Guaranteed reverse Voltages belows 40V)
300A high current tube, tube can pass 40A current,
1 milliohm on-resistance, small loss, low heat generation. Fast response to reverse polarity within 2US, input and output equivalent to diode. Detect the output Voltages is the input immediately shut down the output, detection value of millivolt level, the corresponding speed is very fast

Model: LXD40100
40A No Voltages Limitation Diode Module
Size: about 50x33x18mm/1.97x1.3x0.7in (with terminals); 50x33x4mm/1.97x1.3x0.16in (without terminals)
Working environment temperature:-40-125 degree
Component: PCBA
Functions:
1.Replacement of ordinary high current diode, storage batteries, solared panel, reverse flooding and reverse current .
2. Series connection in the input of the power supply is for reverse poofed connection
Precautions:
The input Voltages is unlimitedly, but there reverse Voltages requirements, the reverse Voltages is lower than 40V, the output Voltages can not be than the input Voltages of 40V, for example: the input is connection to the 24V power supply, the output is connection to the battery, can be connection to the 12V, 24V 36V 48 60V battery, can not be connection to the battery above 72V, (72V output 24V input =48Voltes) the reverse Voltages is than 40V.
Color: As Shown
Material: PCB

Package Contents:
1 * Ideal Diode

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
