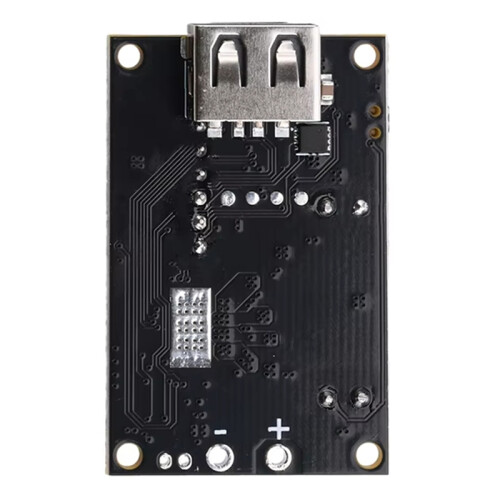

45W 2-6S Fast Charging Mobile Power Module Type C+USB

45W 2-6S Fast Charging Mobile Power Module Type C+USB Description

1. 2-6S battery can be set, maximum 45W charging and discharging, standby power consumption 100μA.
2. Input power adaptive, IC over-temperature protection, overcharge and overflow protection.
3. Support lithium and lithium iron batteries, support for lift voltage charging and discharging, support for voltage and current display.
4. Module volume is relatively small, heat dissipation area is limited, high-power output heat is a normal phenomenon.
5. Main uses: outdoor power supply, energy storage equipment, backup power, mobile power DIY.

Parameter:
Support BC1.2/5V2.4A, 2.4A AFC 9V/12V, PD2.0/3.0/3.1/, FCP, QC2.0/3.0/3.0+, SCP and other protocols
Standby power consumption: 100μA
Power: Maximum 45W
Module interface:
B+: connect to positive terminal of battery protection board
B-: connect to the negative terminal of the battery protection board
Colour:As Shown
Material:plastic
style:TYPE-C+USB
Dimensions:46x29x14mm
USB port: with protocol output interface

Package Contents:
1 * Power module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
