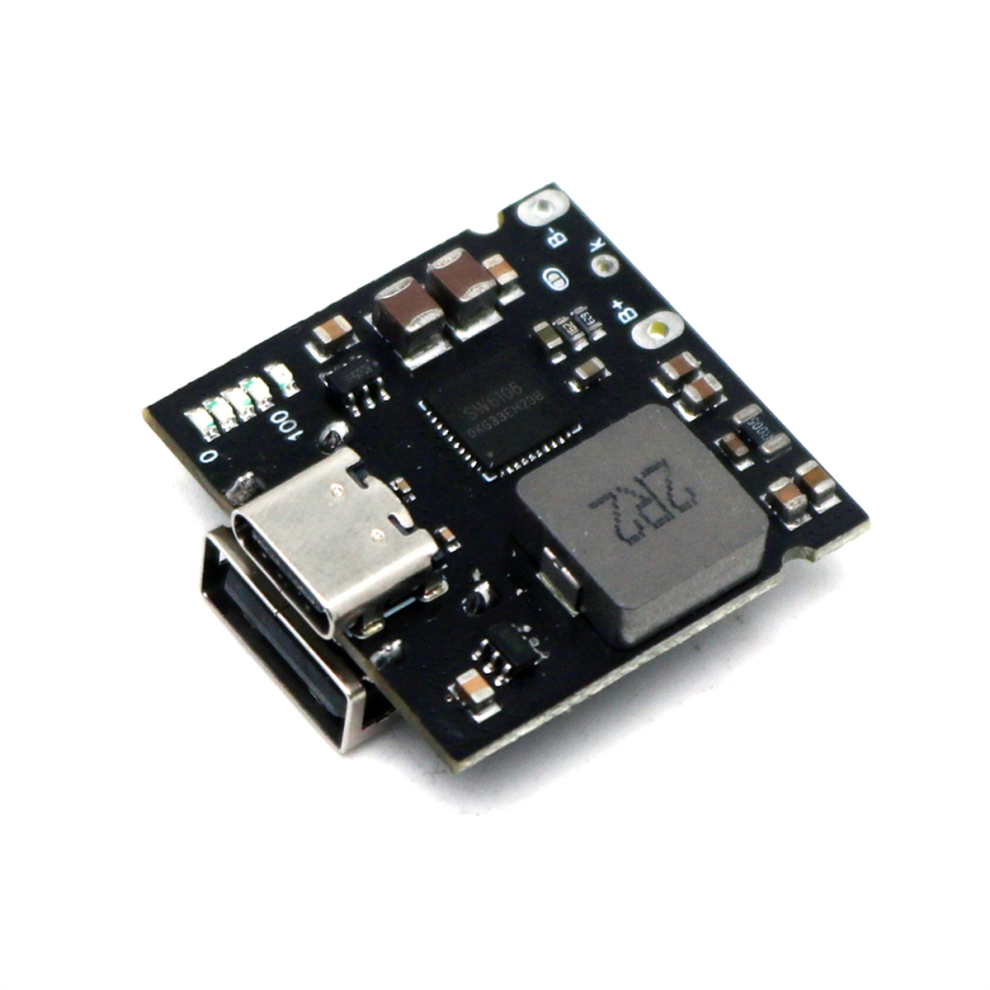

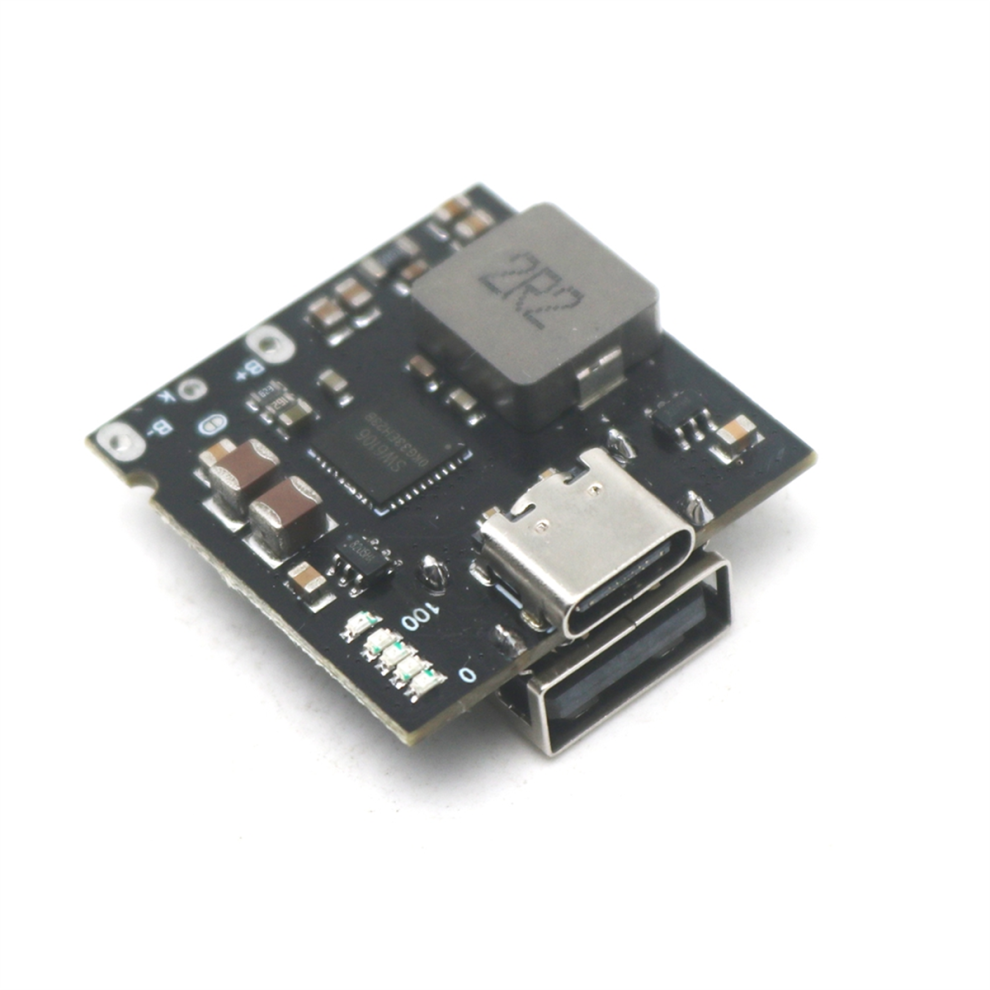

4A 18W PD3.0 Fast Charging Module 1S 3.7V 4.2V Li-

4A 18W PD3.0 Fast Charging Module 1S 3.7V 4.2V Li- Description

Max Input/Output Power: 18W
Battery Charge Current:Fast Charge Trigger: Up to 4A (max)
Critical Note: connecting wires between battery and module are short and thick.
Protocol Support:Compatible Fast-Charge Protocols: PD3.0, QC3.0, AFC, FCP, PE2.0
Tested Compatibility:Type-C port supports for Fast Charging ( with for 16PM; requires cable).

Excluded Protocols: VOOC/SCP (does not support currents 3.5A).for Note: Supports FCP but not SCP.
Battery Configuration Recommendations
For optimal performance, use 4 x 18650 batteries in parallel (high-capacity configuration strongly advised).
CC/CV Charging Workflow (4.2V cutoff example):
Trickle Charge Mode (Battery Less than 3V):
Charges at 300mA until voltage exceeds 3V.
Constant Current (CC) Mode (Battery 3V):
Non-Fast Charge Adapter: 2.5A
Fast Charge Adapter: 4A (max)
Constant Voltage (CV) Mode (Battery =4.2V):
Current gradually decreases until reaching -300mA (charge termination).
Auto-Recharge: Activates if post-charge voltage drops below 4.1V.

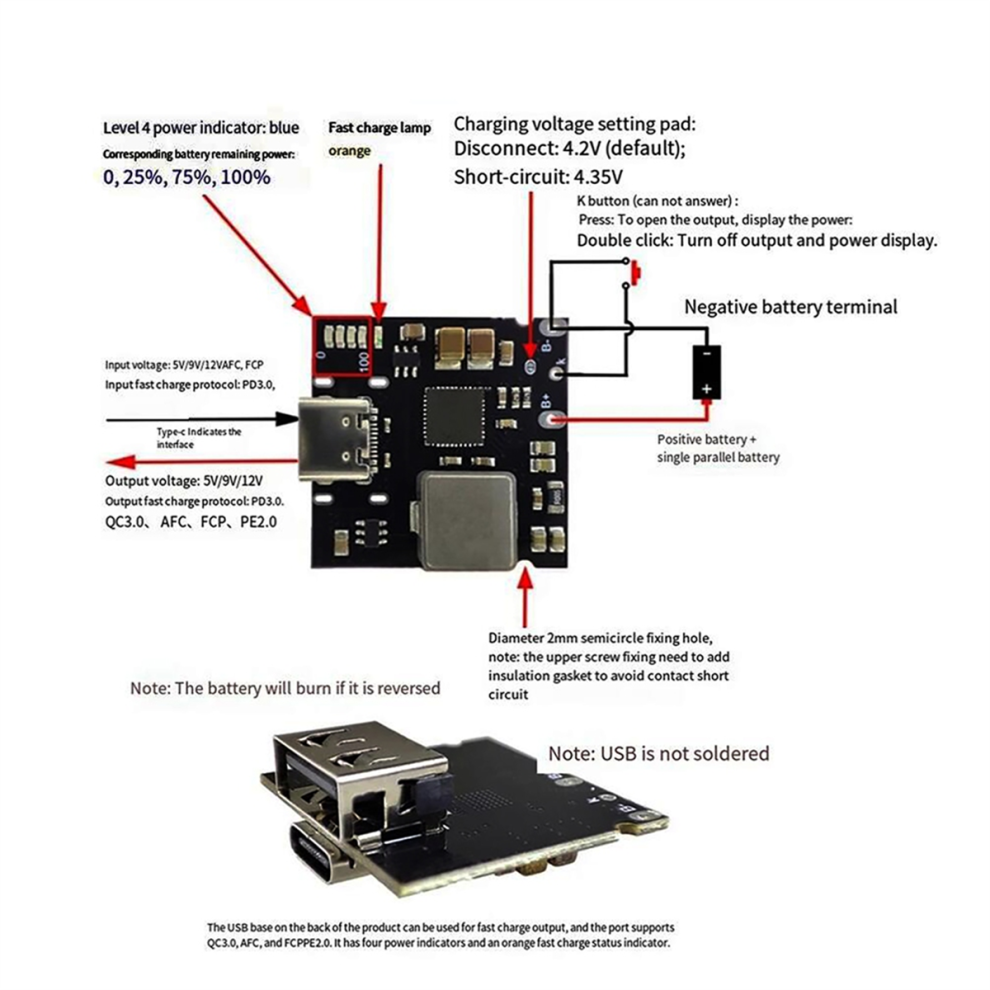

Button K FunctionsShort :Activates Type-A port and light-load Type-C port for discharge.
Enables power level display.
Double :Deactivates Type-A/Type-C ports and power display.
With External Power: Only disables output ports (display remains active).
Color: Black
Material: PC

Package Contents:
1 x Fast Charging Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
