Introduction

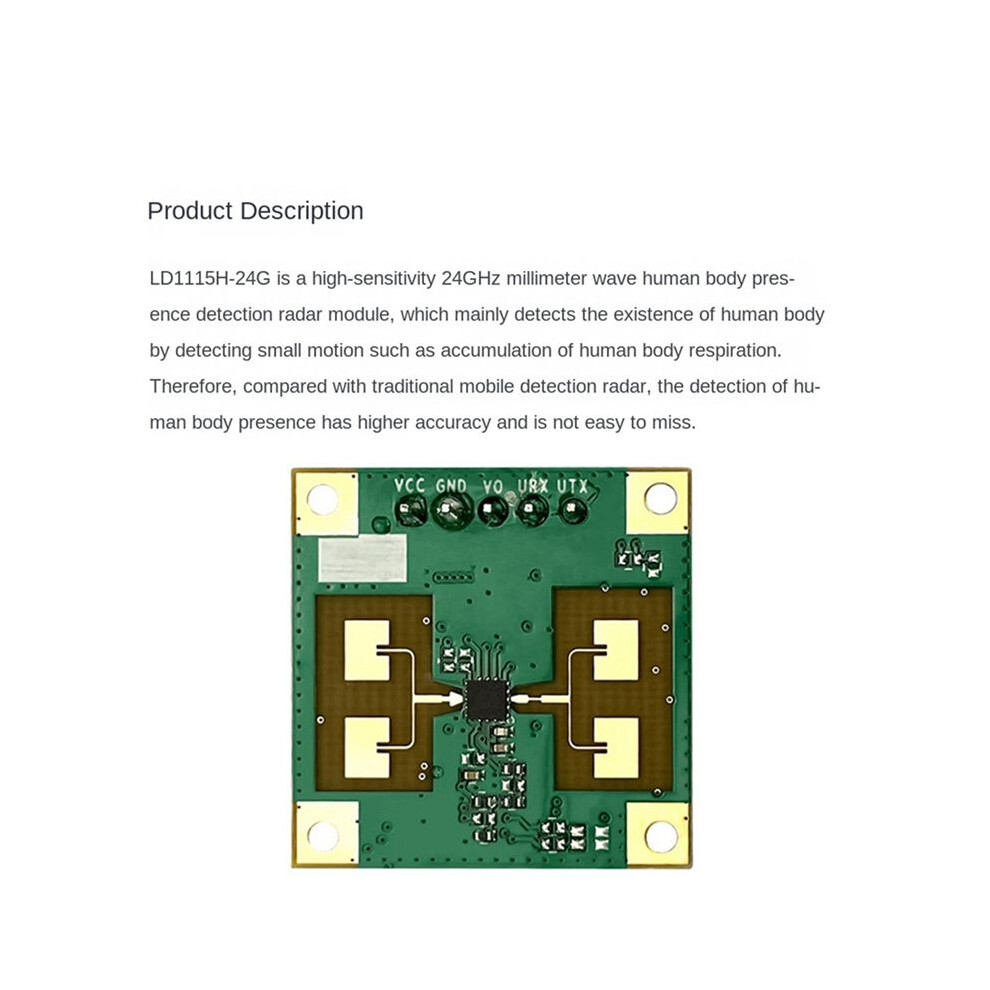

HLK-LD1115H is a high sensitivity 24GHz millimeter wave human presence detection module. The main feature of this module is that the basis of the function of the traditional human body induction , it also has the function of judging the existence of the human body by detecting and accumulating small movements such as human breathing.
Therefore, the presence detection within a certain range has higher accuracy and is not easy to miss.

Color as shown
material:PC+Metal
Specifications
Frequency 24G-24.5GHz
Modulation method CW
Detection distance Greater than 4m static human presence detection, Greater than 16m motion detection
Range hanging height , static body detection coverage radius 2m, mobile detection radiusGreater than 5m
Power supply 3.6-5V
Current 70mA
Output serial level 3.3V
Detection cycle adaptive
Antenna half power angle horizontal 57, vertical 24 (see the figure below for the definition of antenna horizontal/vertical direction)
Data format Serial port ASCII output/high and low level
Startup about 15 seconds

Package Contents:

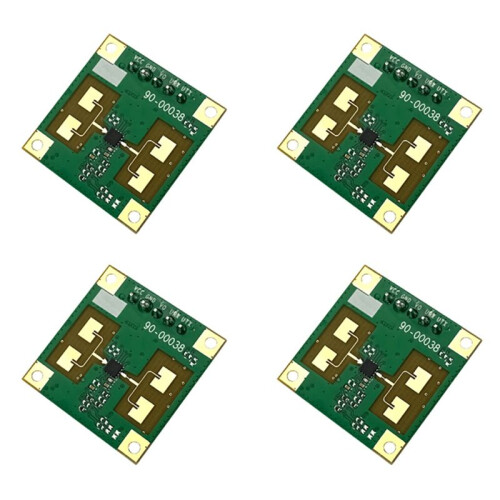

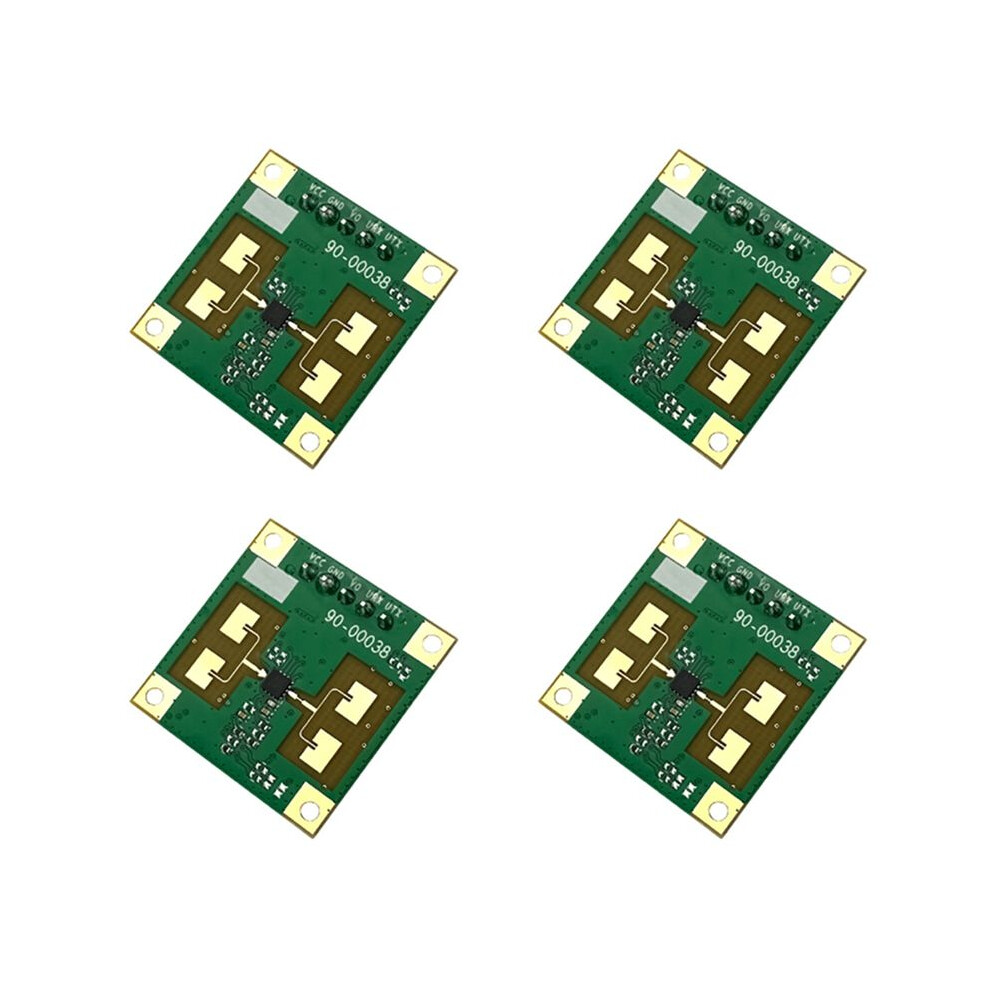

4pc 24GHz millimeter wave human presence detection module
