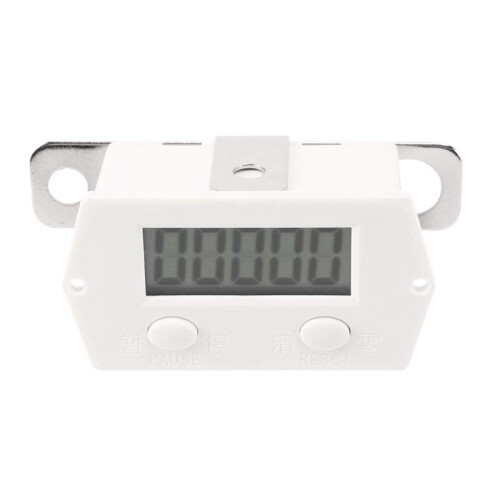

4X LCD Digital 0-99999 Counter 5 Digit Gauge + Proximity Sensor with Magnetic

4X LCD Digital 0-99999 Counter 5 Digit Gauge + Proximity Sensor with Magnetic Description

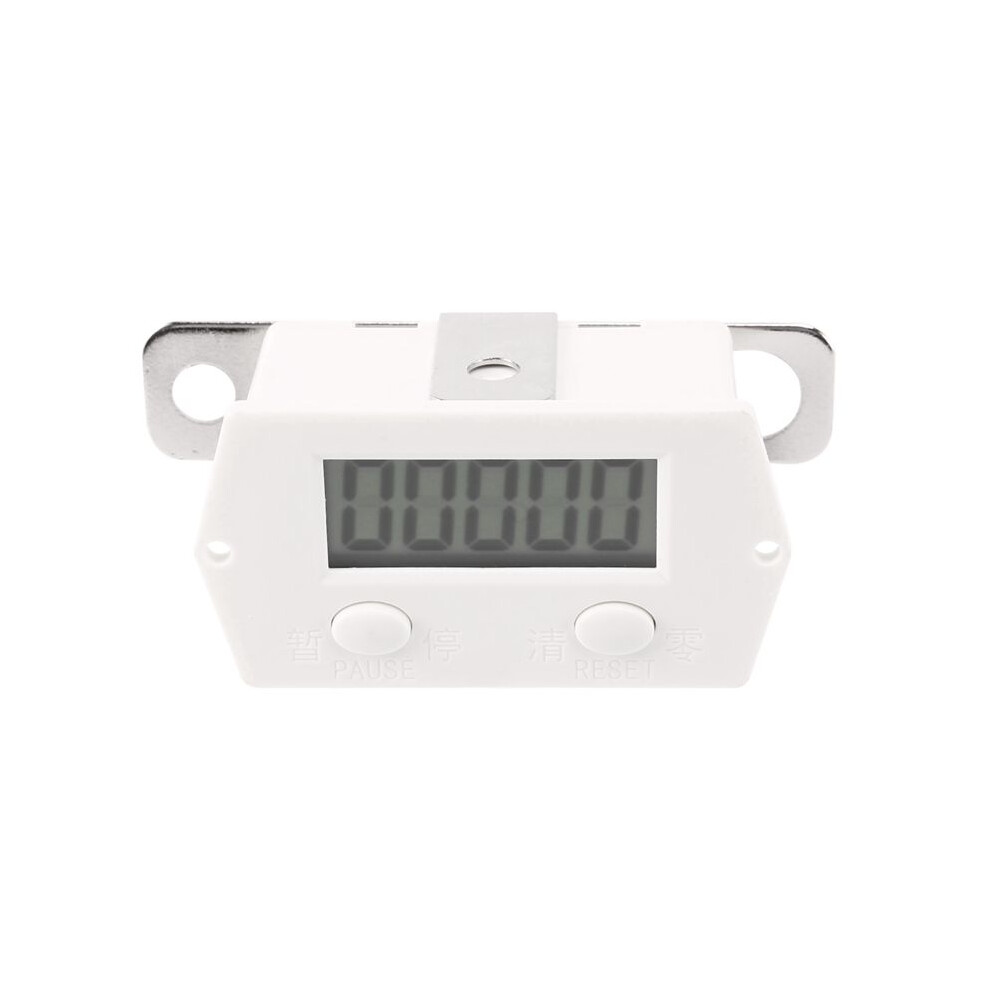

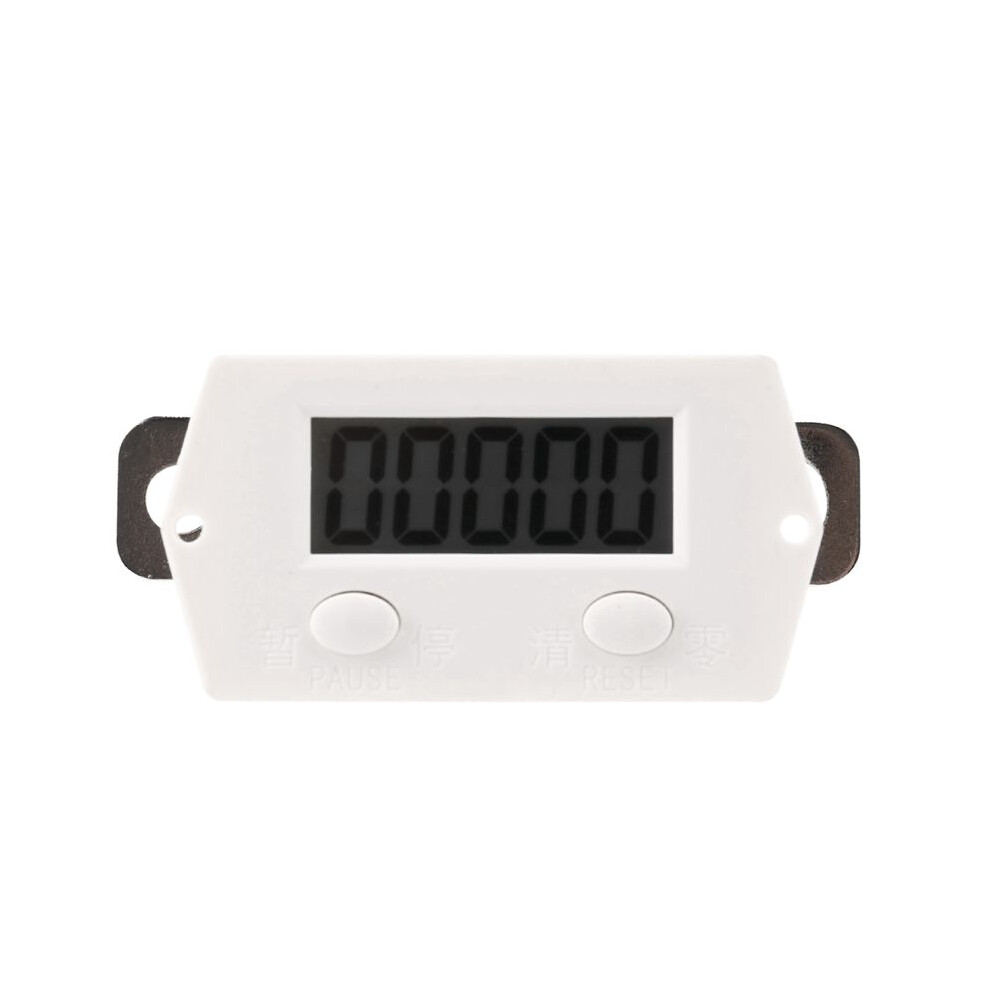

5 Digits LCD accurate digital counter, Come with proximity and magnetic.
Power supply: AA 1.5V battery. Easy to install.
Measuring range: 0-99999, counting frequency: 20HZ
Built in RESET key and PAUSE panel.
Widely use in Automatic Conveyor Belting System,Winding Machine,packaging machinery,textile machinery,milling machine,ect.

5 digit large lcd screen , display of large and clear
Use the common AA 1.5V batteries, without external power supply, and the replacement of the battery is convenient
Press the PAUSE key, Counting pause , then press PAUSE key, and restore counting
Input using ordinary contact signal, selecting the sensor is simple and convenient, accurate and reliable count
Resetable zero: panel / external dual use
Seismic design, effectively prevent data loss
No mechanical abrasion, reliable work, long service life
Power: 1.5v AA cell(battery included)
Count range: 0----99999
Reset minimum pulse width: 0.1s
Reset method: manual panel/ external
Count the highest frequency: 20hz, or 20 times/s
Working temperature: - 5--40C
Count the minimum pulse width: 10ms

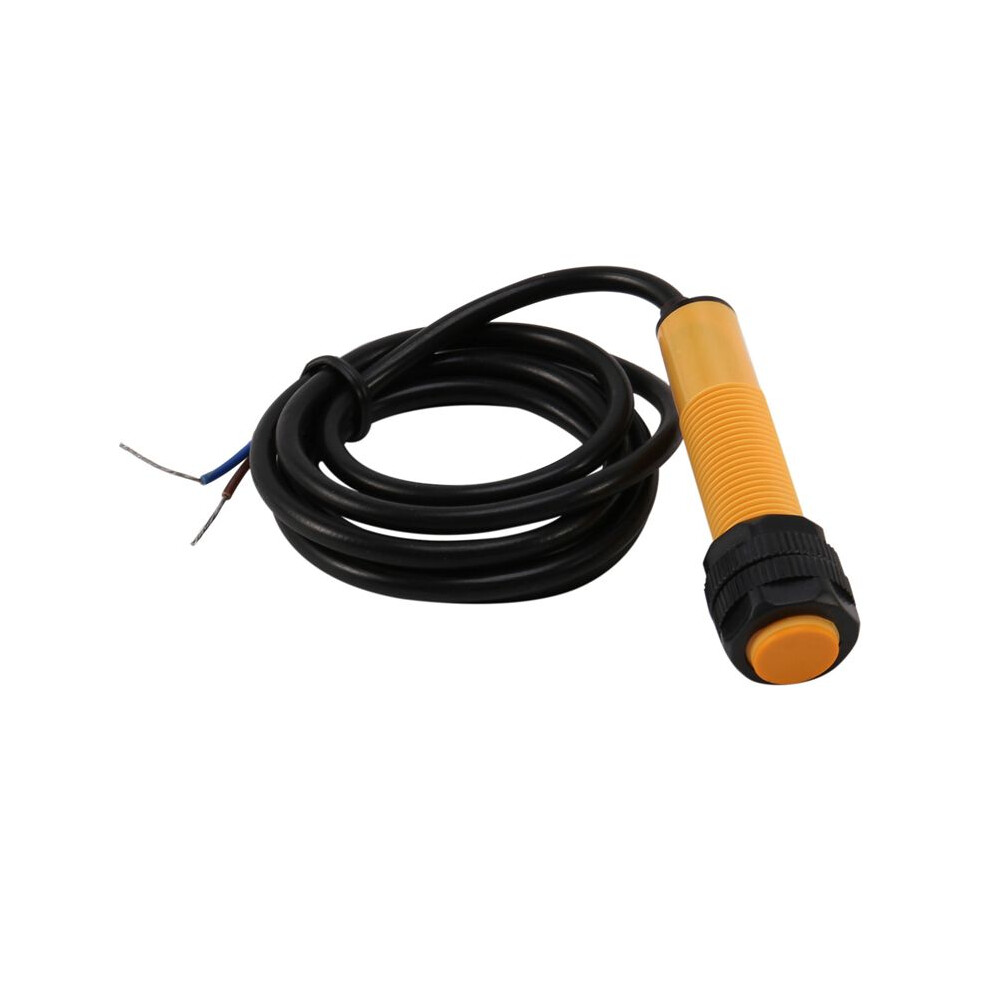

Promixity sensor: 2 wires, Length: 110mm, come with magnet
Detecting distance: 3-10mm
Maximum resistance when connect point : less than equal 10KΩ
Minimum resistance when connect point off: greater than equal 500KΩ
colour:white
Material:Metal + plastic
size:Panel: 72 x 38 x 31mm
Hole size: 63 x 35mm

Package Contents:
4 x Digital 5 Digit LCD Punch Counter
4 x bracket
4 x proximity
4 x strong magnet
