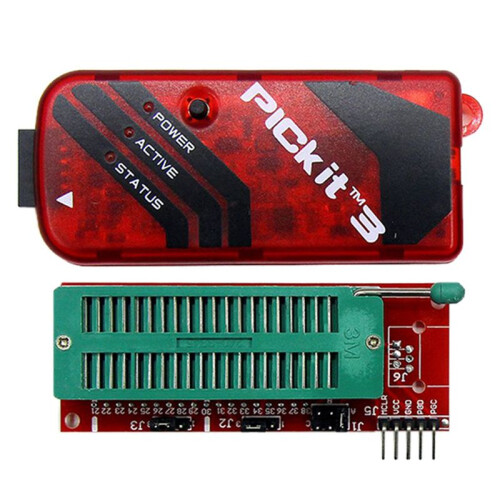

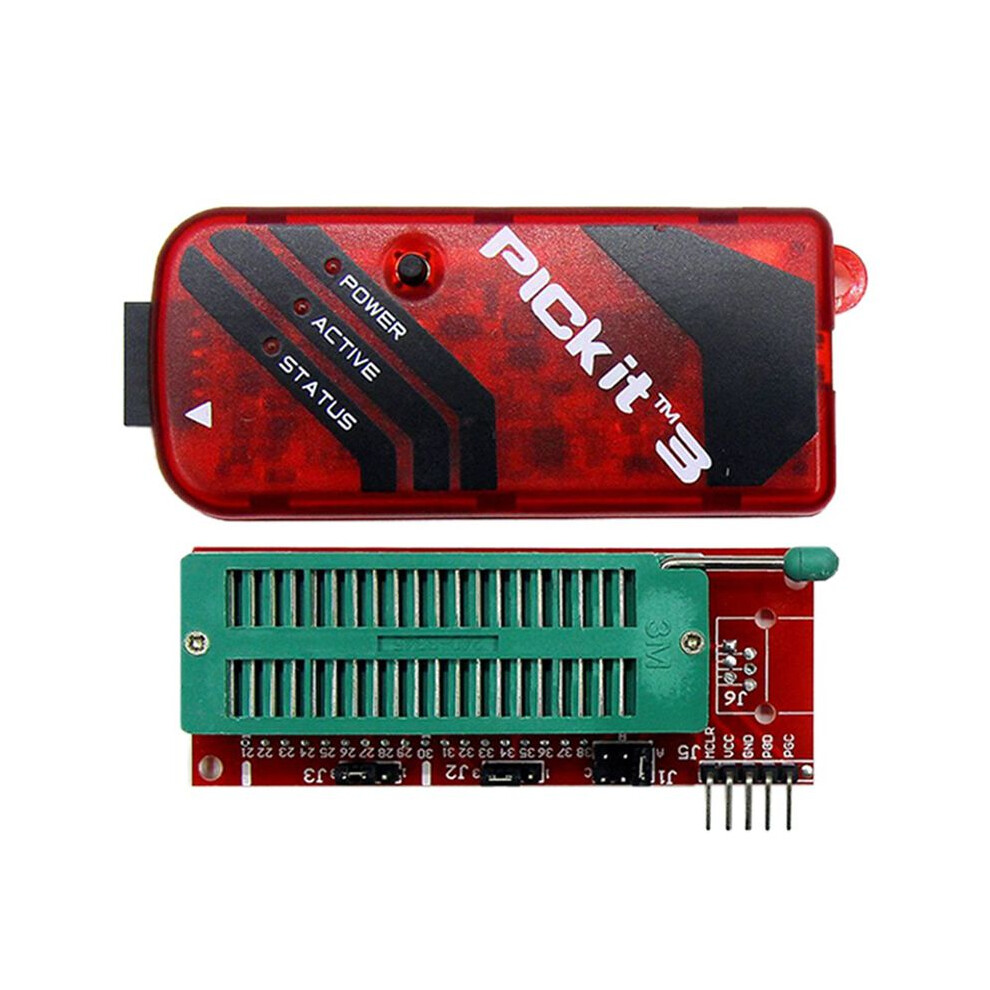

4X PICKIT3 Programmer Universal ICD2 PICKit 2 PICKIT 3 Programming Adapter

4X PICKIT3 Programmer Universal ICD2 PICKit 2 PICKIT 3 Programming Adapter Description

100% new and high quality
PICKIT3 Programmer Description:USB (Full speed 12 Mbits/s interface to host PC) Real- execution. MPLAB IDE compatible (free copy included)
The MPLAB PICkit 3 allows debugging and programming of and dsPIC Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE).
The MPLAB PICkit 3 is connected to the design engineer's PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE)
Supports low voltage to 2.0 volts (2.0v to 6.0v range)

Diagnostic LEDs (power, busy, error)
Read/write program and data memory of microcontroller
Erase of program memory space with verification
Freeze-peripherals at breakpoint
Program to 512K byte flash with the Programmer-to-Go
Instructions for use:

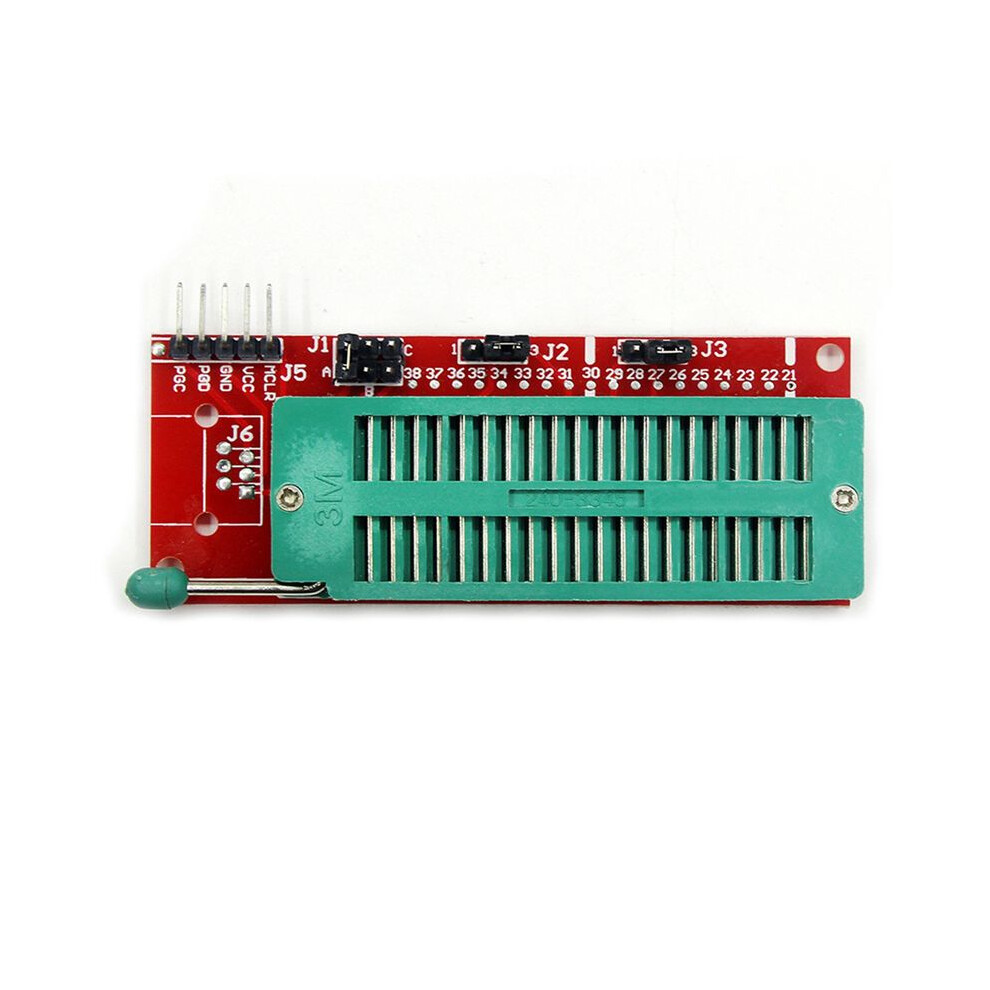

Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag short-circuit cap the A position
The 8,14,18,20-pin microcontroller aligned the left 8P/14P/18P/20P flag (B), shorting cap the B position
The ICD2, KIT2, KIT3 crystal or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the can not be programmed the chip is programmed functions)
The supports the following programming microcontroller:
PIC16/18XX 40PIN Series devices (except 16F59)
PIC16/18XX 28PIN Series devices (except 16F57)
PIC16/18XX 18PIN Series devices
The 8PIN/14PIN/20PIN family of devices (except 10FXX)
Colour:Red
Material:plastic
Size:14.5 x 7 x 4CM

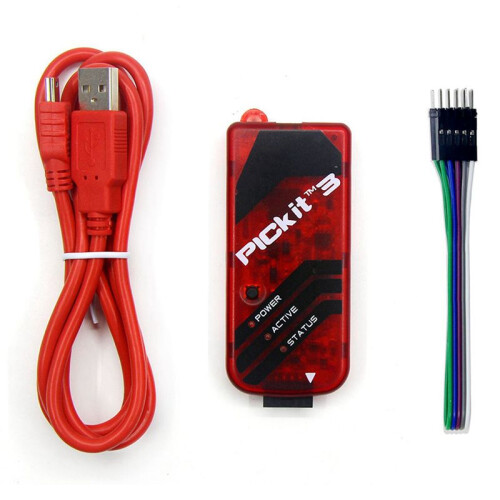

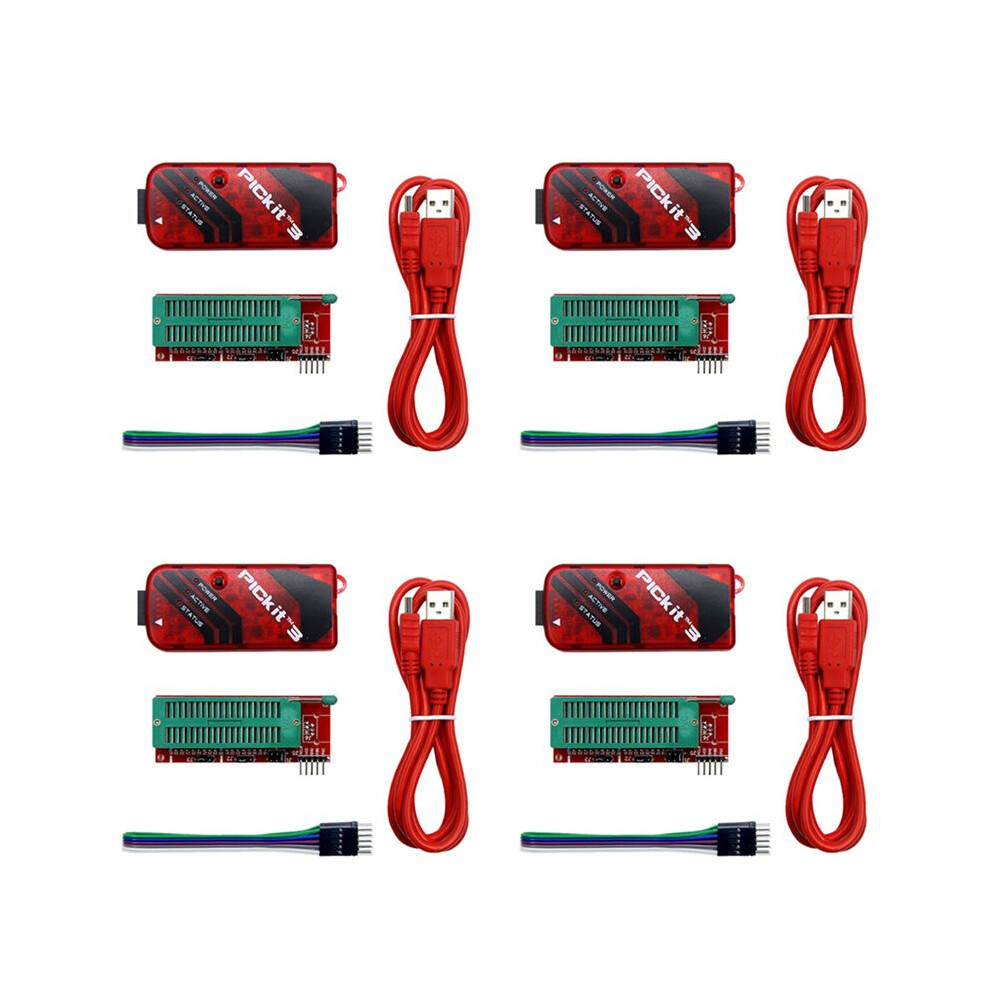

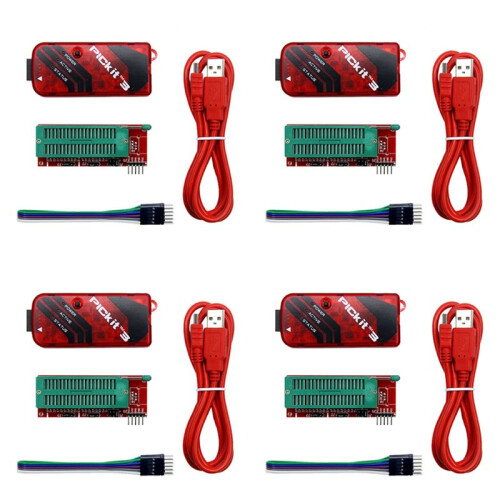

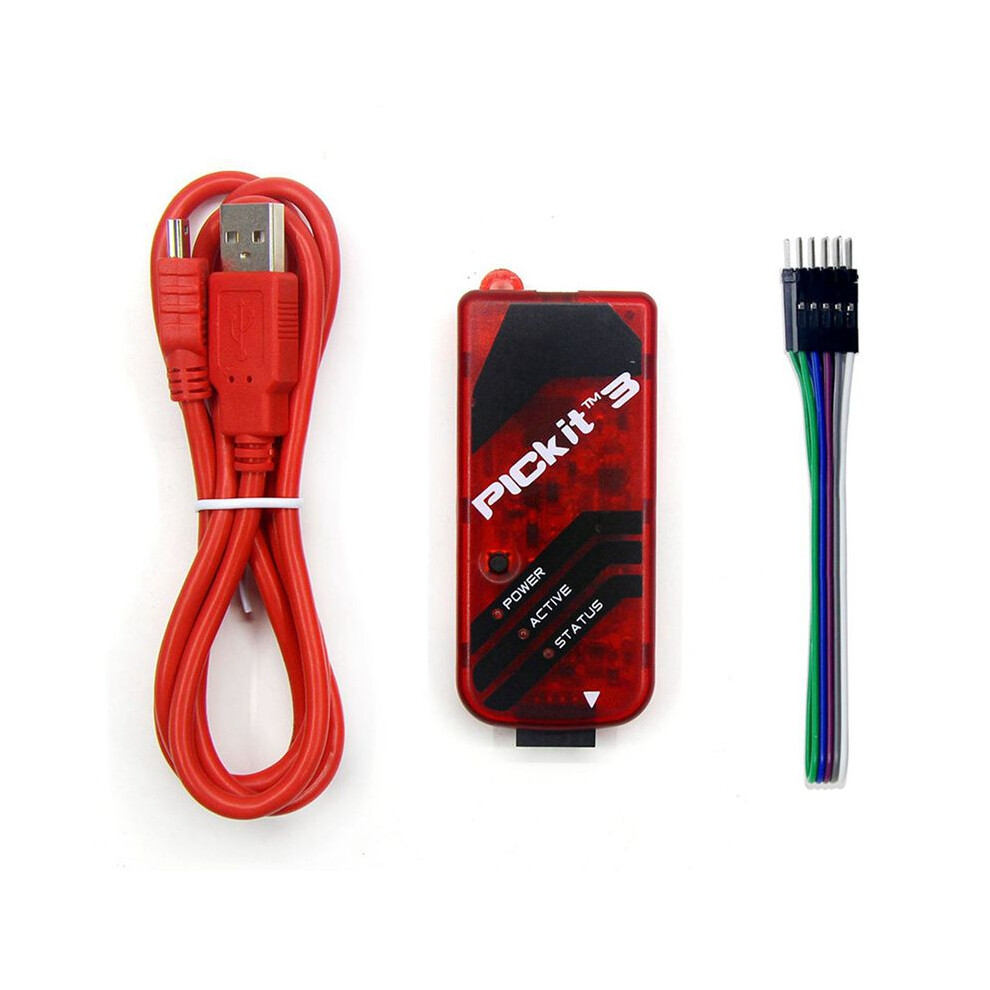

Package Contents:
4xPICKIT3 Simulator

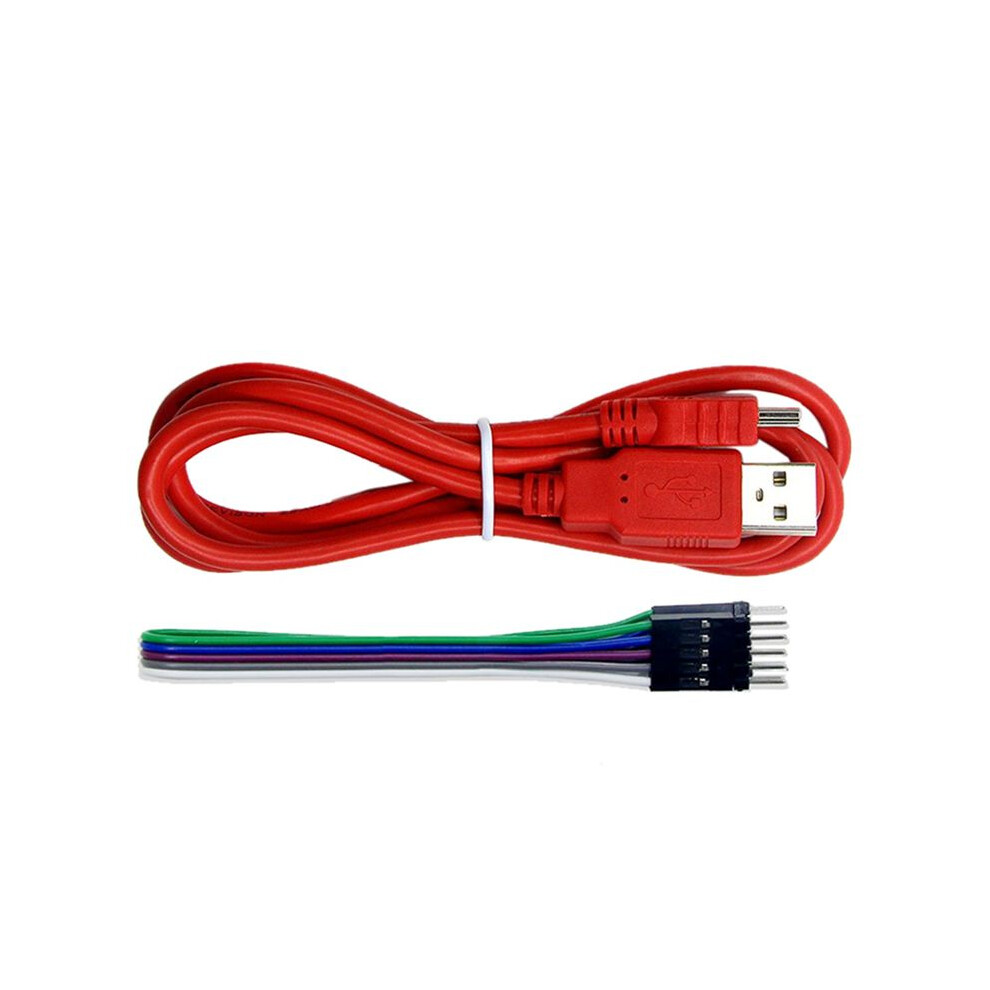

4xUSB Cable
4x6Pin cable
4xUnivers
